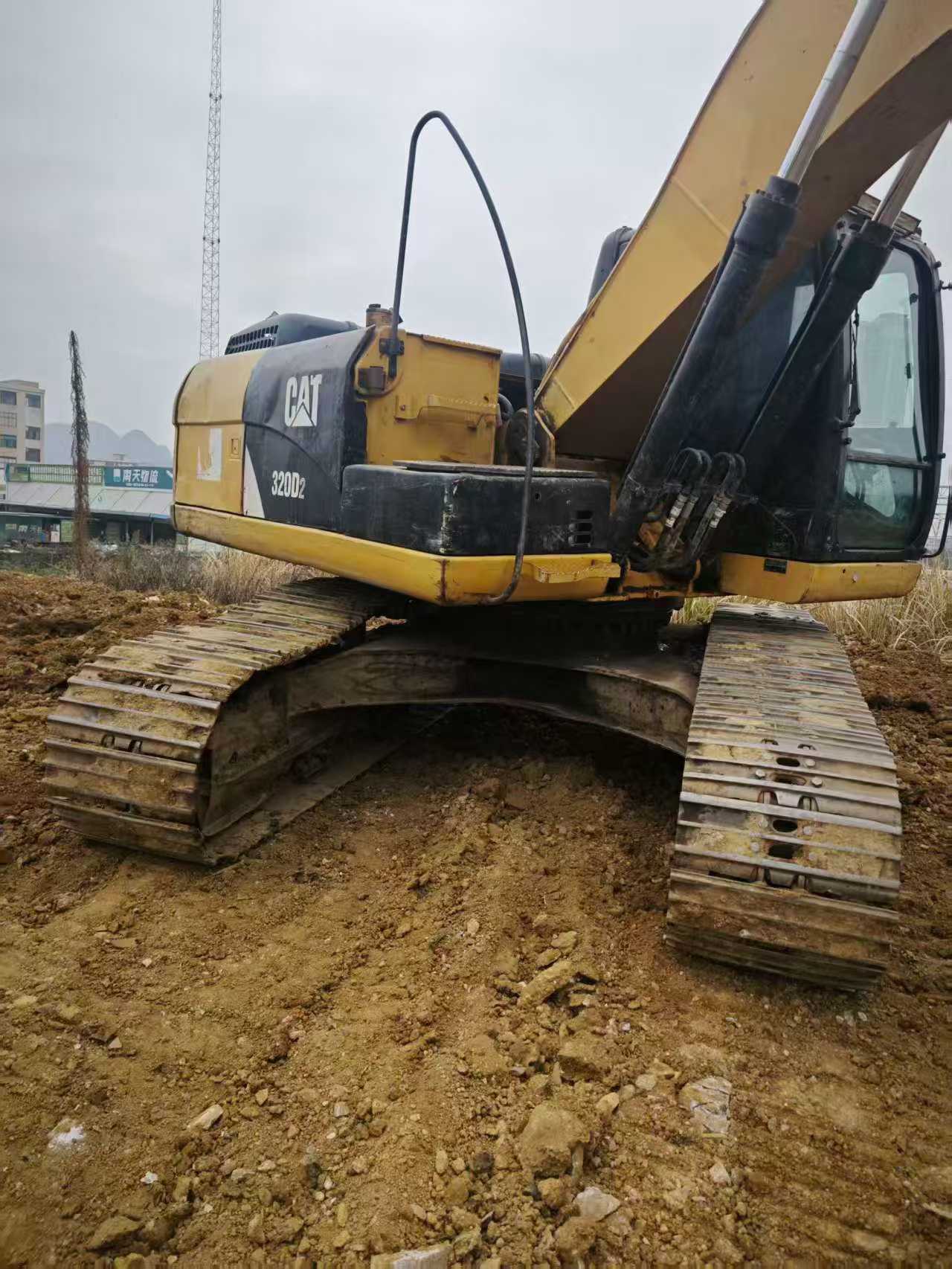

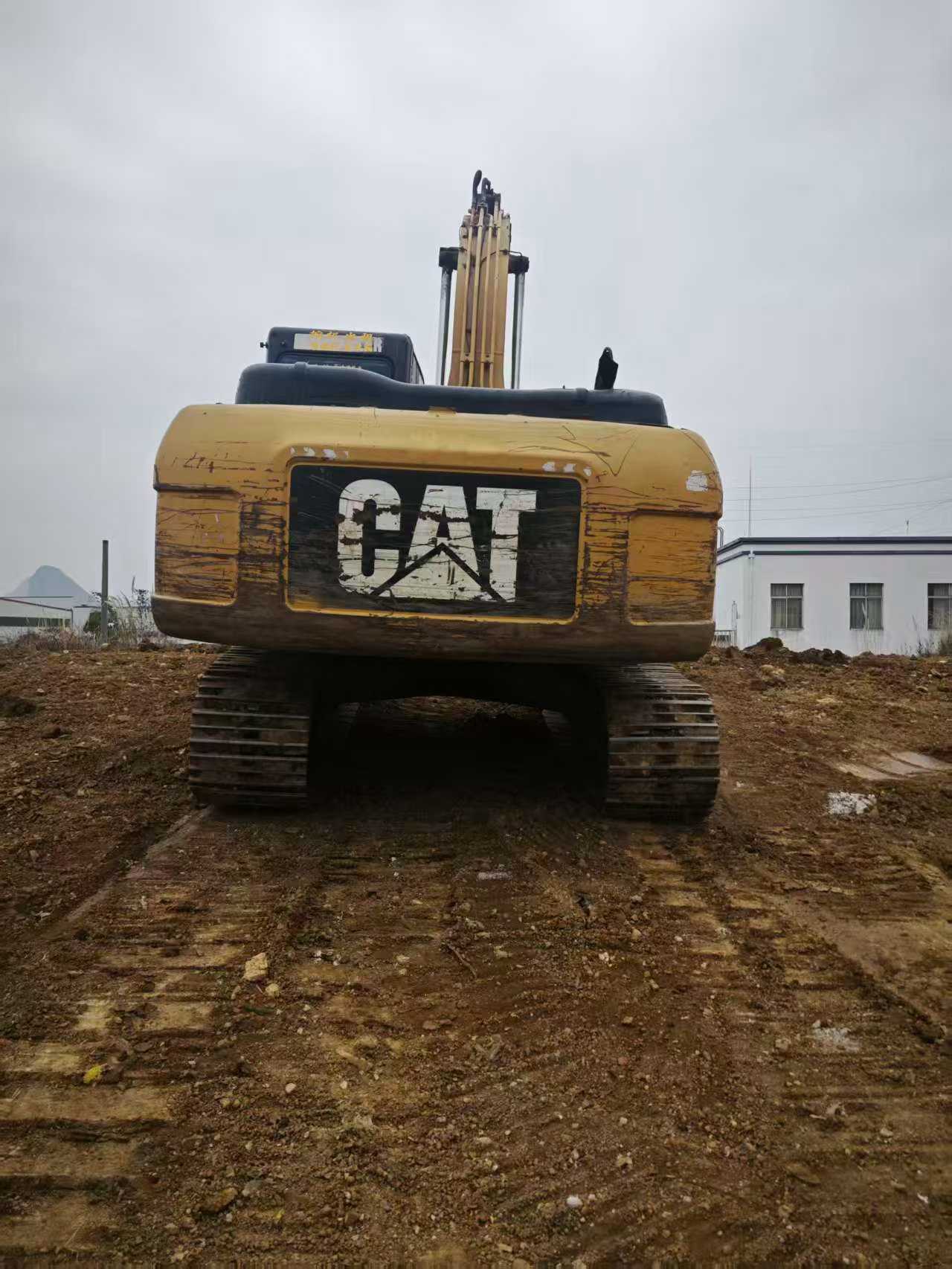

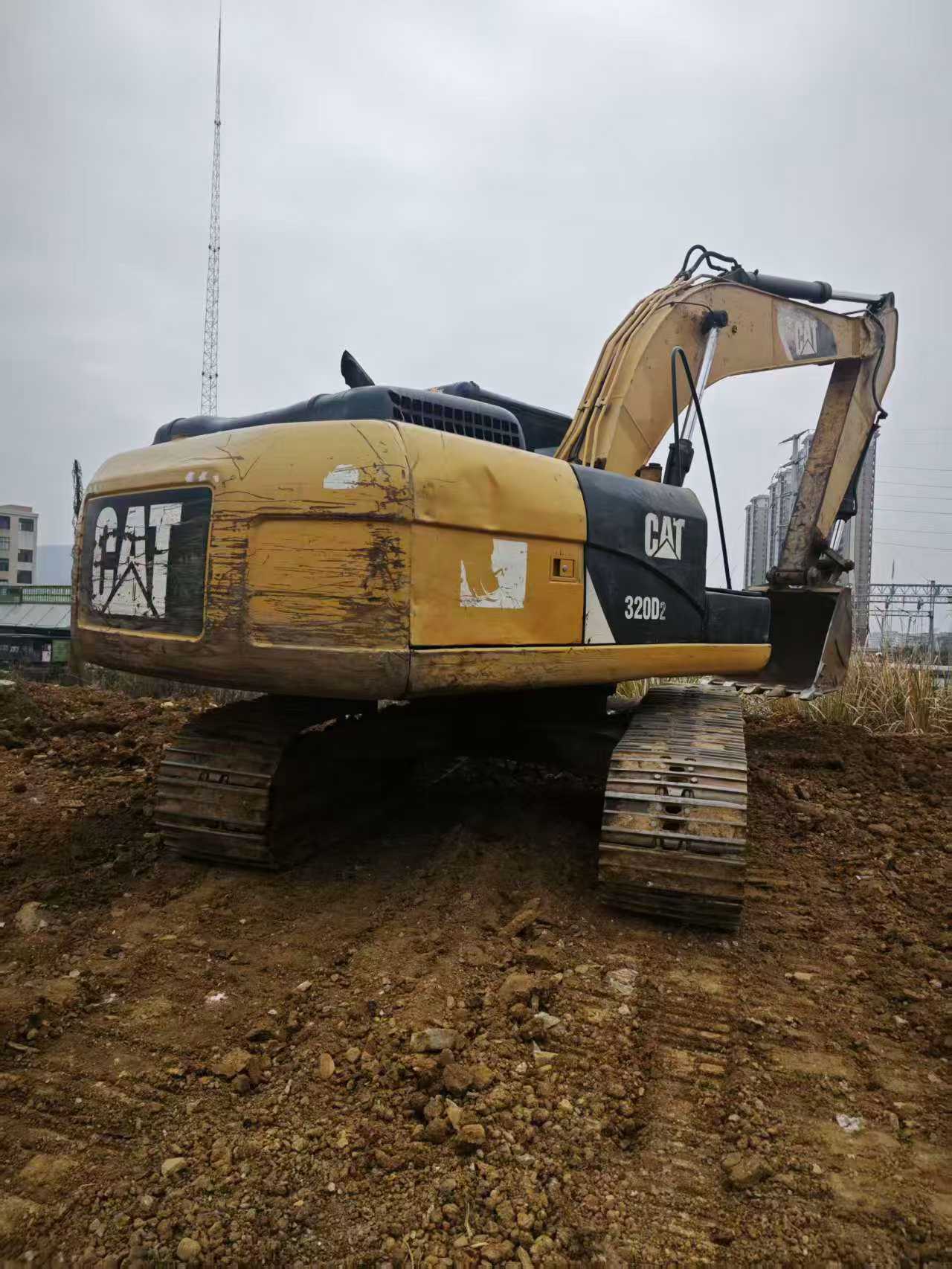

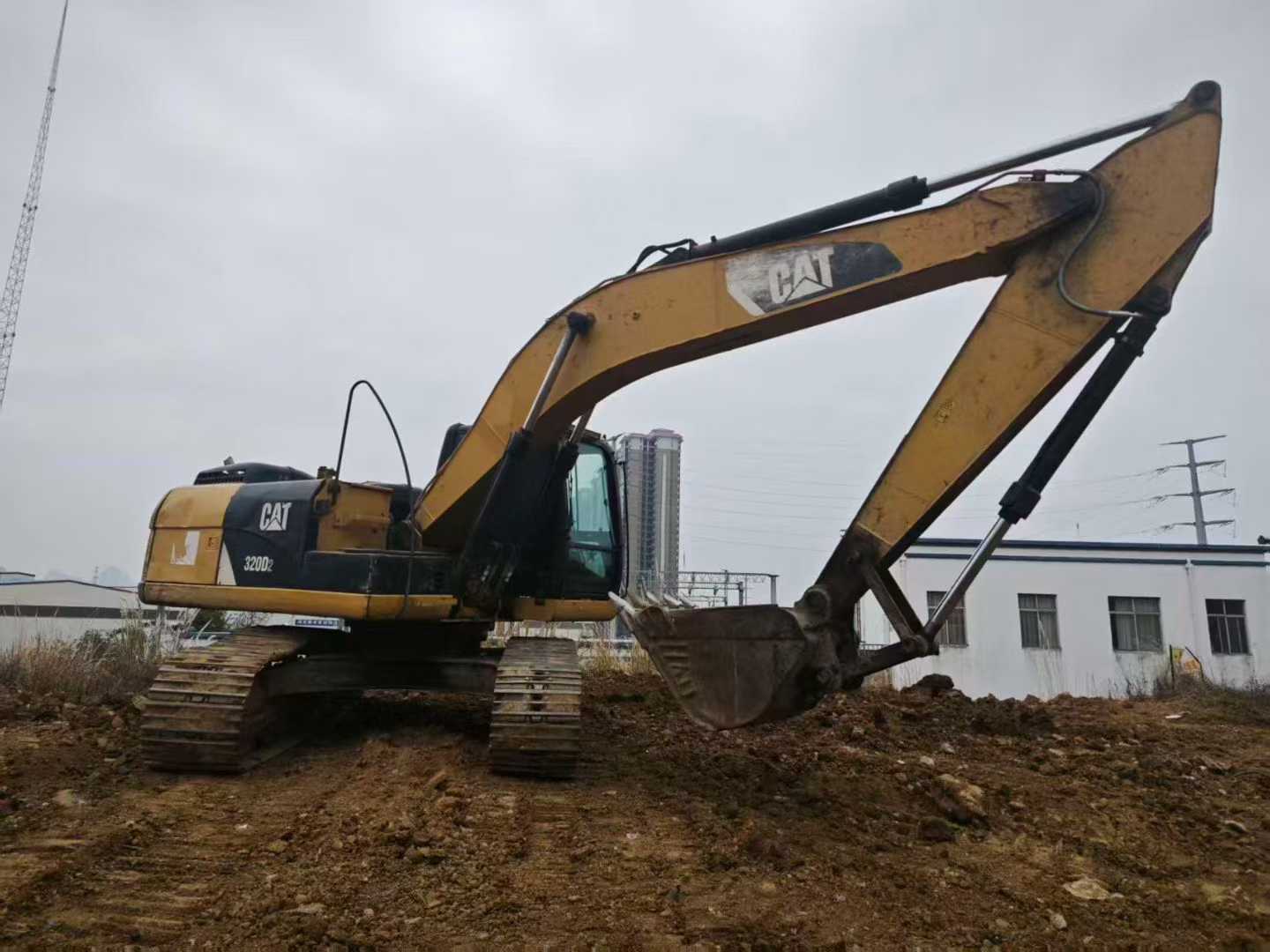

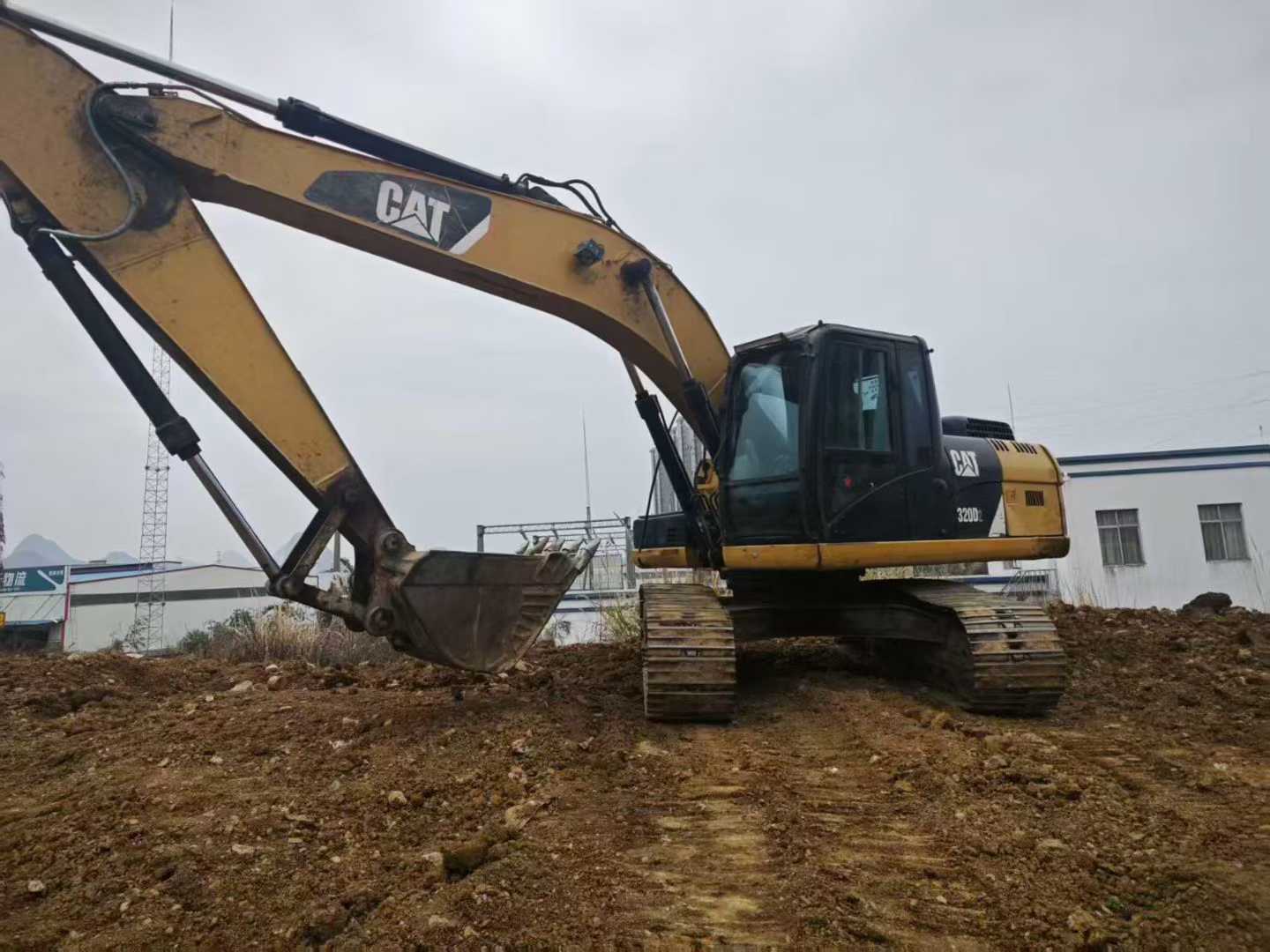

2014 Caterpillar 320D

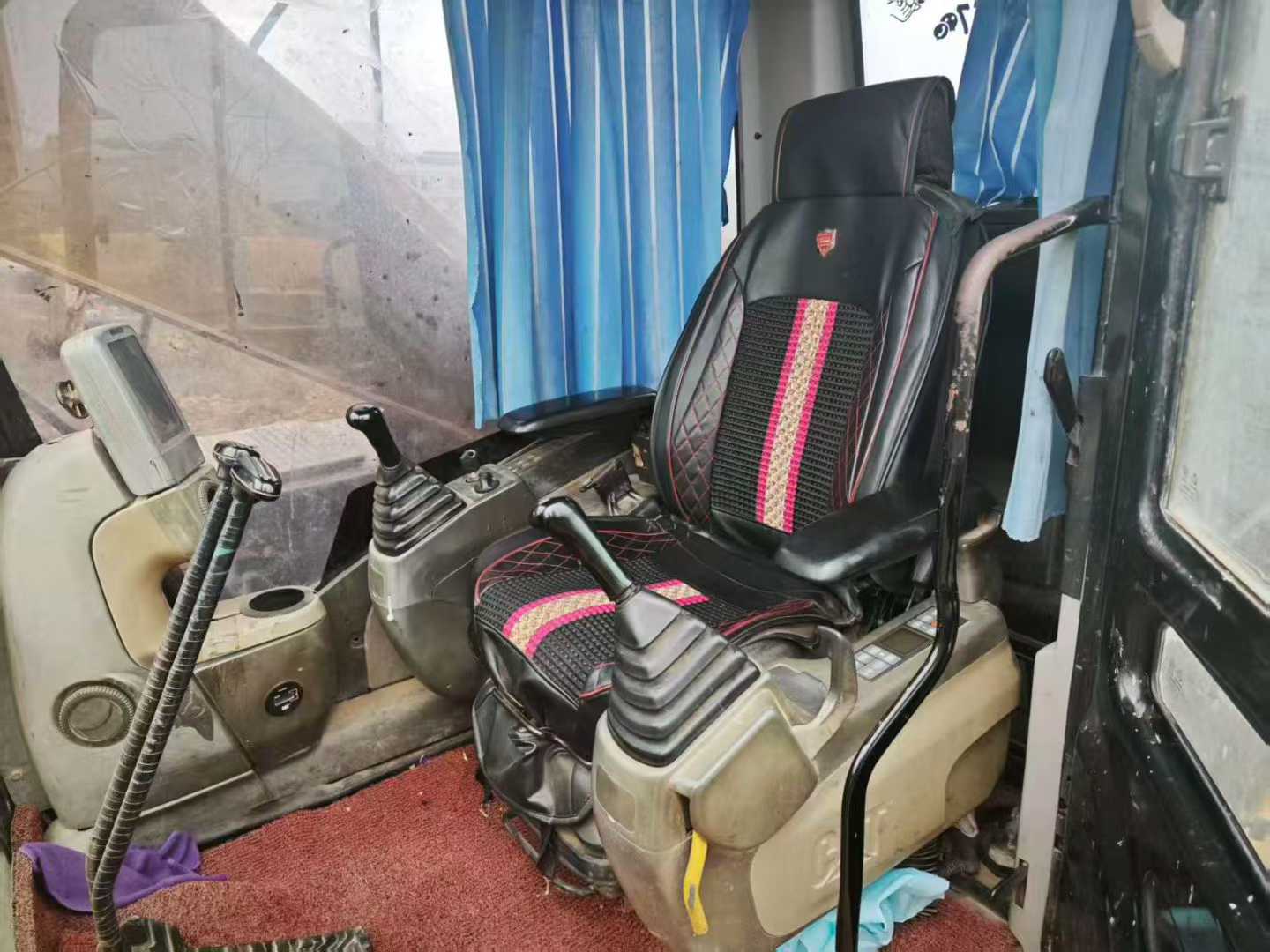

Commanding a 20-ton workhorse from Guilin, Guangxi, this 2014 Caterpillar 320D delivers precision control and operational confidence for demanding excavation tasks. Powered by the robust Caterpillar C6.4 ACERT engine producing 103kW at 2000rpm, operators benefit from responsive hydraulic performance with a 205 l/min main pump flow and 35 MPa working pressure. The spacious cab provides exceptional visibility across the 9850mm maximum excavation radius, while the 11.5 rpm rotation speed ensures smooth, controlled movements during complex maneuvers.

Stability remains paramount with a 20,930kg working weight and optimized 2200mm track gauge, enabling confident operation on slopes up to 35°. The 5700mm boom and 2900mm arm configuration offer a maximum digging depth of 6710mm and vertical reach of 9840mm, supported by impressive bucket digging force of 140.1kN. Dual-speed travel at 3.5/5.7 km/h enhances jobsite mobility, while the 2750mm rear turning radius facilitates work in confined spaces.

• Water-cooled 6-cylinder engine with 6.37L displacement
• 1.0m³ bucket capacity with backhoe configuration
• 410L fuel tank for extended operation
• Compact transport dimensions: 9460mm × 2800mm × 3050mm
