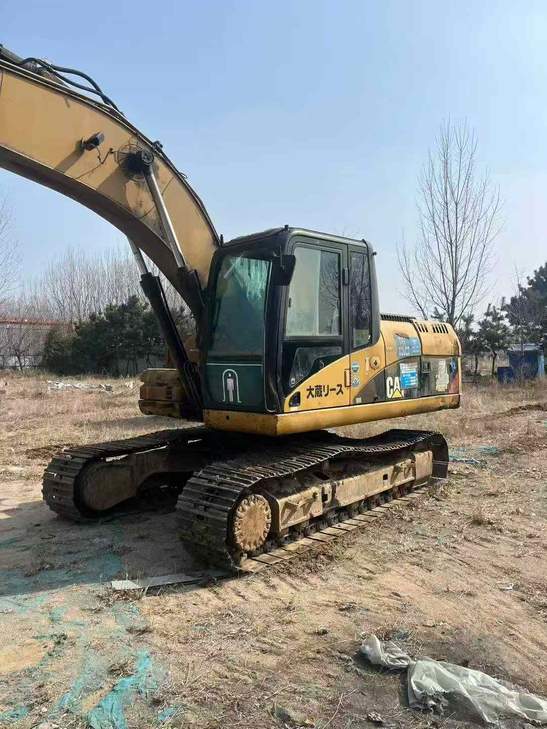

2016 Caterpillar 320D

Engineered with precision and built for demanding excavation work, this 2016 Caterpillar 320D delivers reliable performance through proven hydraulic technology and robust mechanical design. Powered by the Caterpillar C6.4 ACERT engine producing 103 kW at 2000 rpm, this 20-ton excavator combines a 6.37L displacement with water-cooling efficiency for sustained operation in challenging conditions.

Hydraulic superiority defines this machine's capability. With a main pump flow of 205 l/min and working circuit pressure of 35 MPa, operators achieve precise control across all functions. Bucket digging force reaches 140.1 kN while rod digging force delivers 106.4 kN, ensuring productive material handling in varied soil conditions.

Key specifications include:

• Maximum digging depth: 6,710 mm with 9,850 mm reach at ground level
• Operating weight: 20,930 kg with 1 m³ bucket capacity
• Boom and stick configuration: 5,700 mm / 2,900 mm for optimal working envelope
• Travel speeds: 3.5/5.7 km/h with 70% grading ability
• Compact transport dimensions: 9,460 × 2,800 × 3,050 mm

Currently located in Qingdao, Shandong, this joint-venture manufactured excavator represents Caterpilla
