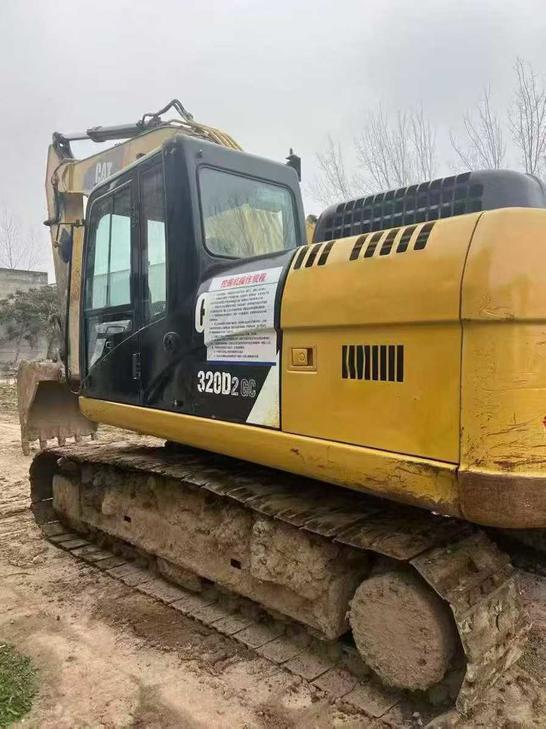

2013 Caterpillar 320D2GC
Product Description
Built for productivity, this 2013 Caterpillar 320D2GC hydraulic excavator delivers reliable performance across excavation, grading, and demolition applications. Operating at 20 tons with a robust Cat C7.1 engine generating 93kW of rated power, this machine handles demanding jobsite conditions with proven efficiency. The 0.9m³ backhoe bucket, backed by 148kN of digging force and 108kN of rod force, cuts through tough material while maintaining precision control.
Currently located in Xuzhou, Jiangsu, this excavator arrives site-ready with:
- Maximum digging depth of 6,720mm and excavation height reaching 6,570mm
- 428L/min main pump flow ensuring responsive hydraulic performance
- 5.8km/h travel speed with 206kN maximum tractive force for mobility
- Compact 2,750mm rear turning radius for confined workspace maneuverability
- 410L fuel capacity supporting extended operational shifts
Engineered for durability and consistent output, this 320D2GC combines Caterpillar's joint venture manufacturing standards with field-tested components. Deploy this excavator immediately to meet production targets on earthmoving, trenching, or material handling projects.
| Specifications | Value |
|---|---|
| No. | 1031609 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 20100.0-20800.0 |
| Bucket capacity (m³) | 0.9 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

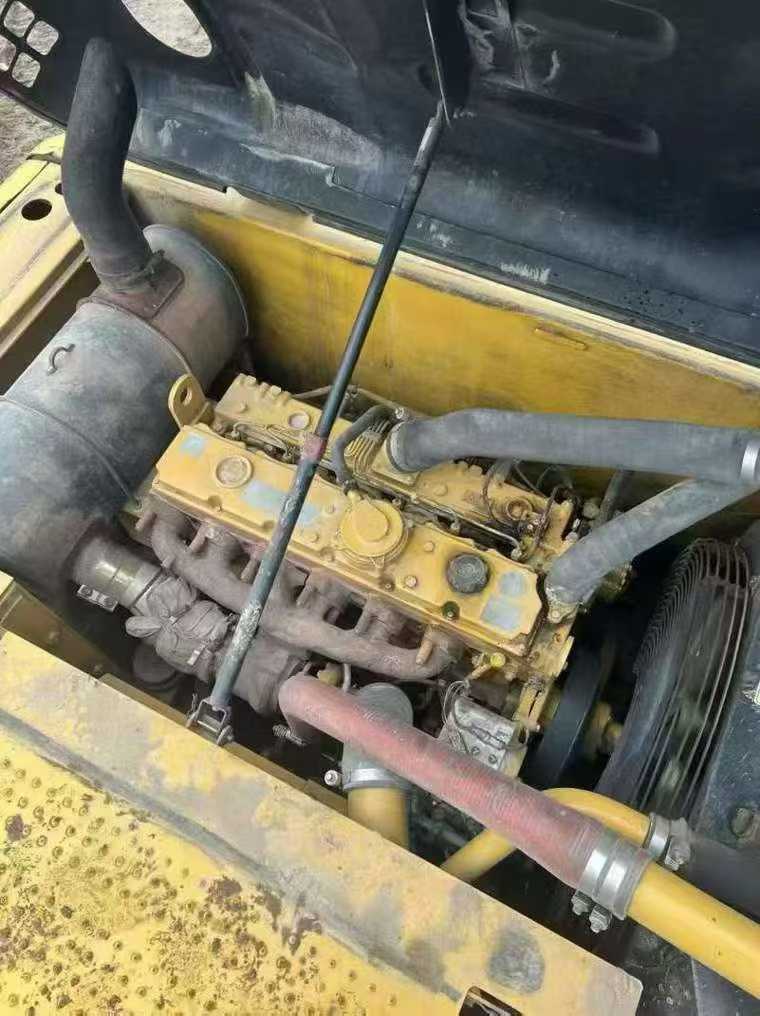

| Engine type | Cat C7.1 |
| Rated power (kw/rpm) | 93.0 |
| Cylinder diameter × stroke (mm) | 105 |
| Displacement (L) | 7.01 |
| Rotation speed (rpm) | 11.9 |
| Bucket digging force (kN) | 148 |
| Rod digging force (kN) | 108 |
| Maximum tractive force (kN) | 206 |
| Travel speed (km/h) | 5.8 |
| Maximum flow of main pump (l/min) | 428.0 |
| Rotary Hydraulic Circuit (Mpa) | 25.0 |
| Pilot pump flow (L/min) | 23.1 |
| Fuel Tank (L) | 410 |
| Hydraulic Tank (L) | 138.0 |
| Engine Oil changes (L) | 16 |
| Coolant (L) | 25 |
| Total transport length (mm) | 9460 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3030 |
| Full cab height (mm) | 2950 |
| Minimum ground clearance (mm) | 450 |
| Back end turning radius (mm) | 2750 |
| Total track length (mm) | 4080 |
| Track ground length (mm) | 3270 |
| Maximum digging depth (mm) | 6720 |
| Maximum excavation height (mm) | 6570 |
| Maximum unloading height (mm) | 6490 |
| Maximum vertical digging depth (mm) | 6010 |
Overview
No.1031609
Brand Name：
CaterpillarModel Number：
320D2GCYear：
2013
Location：
Jiangsu China
Pub Date：
