2011 Caterpillar 320DGC
Product Description

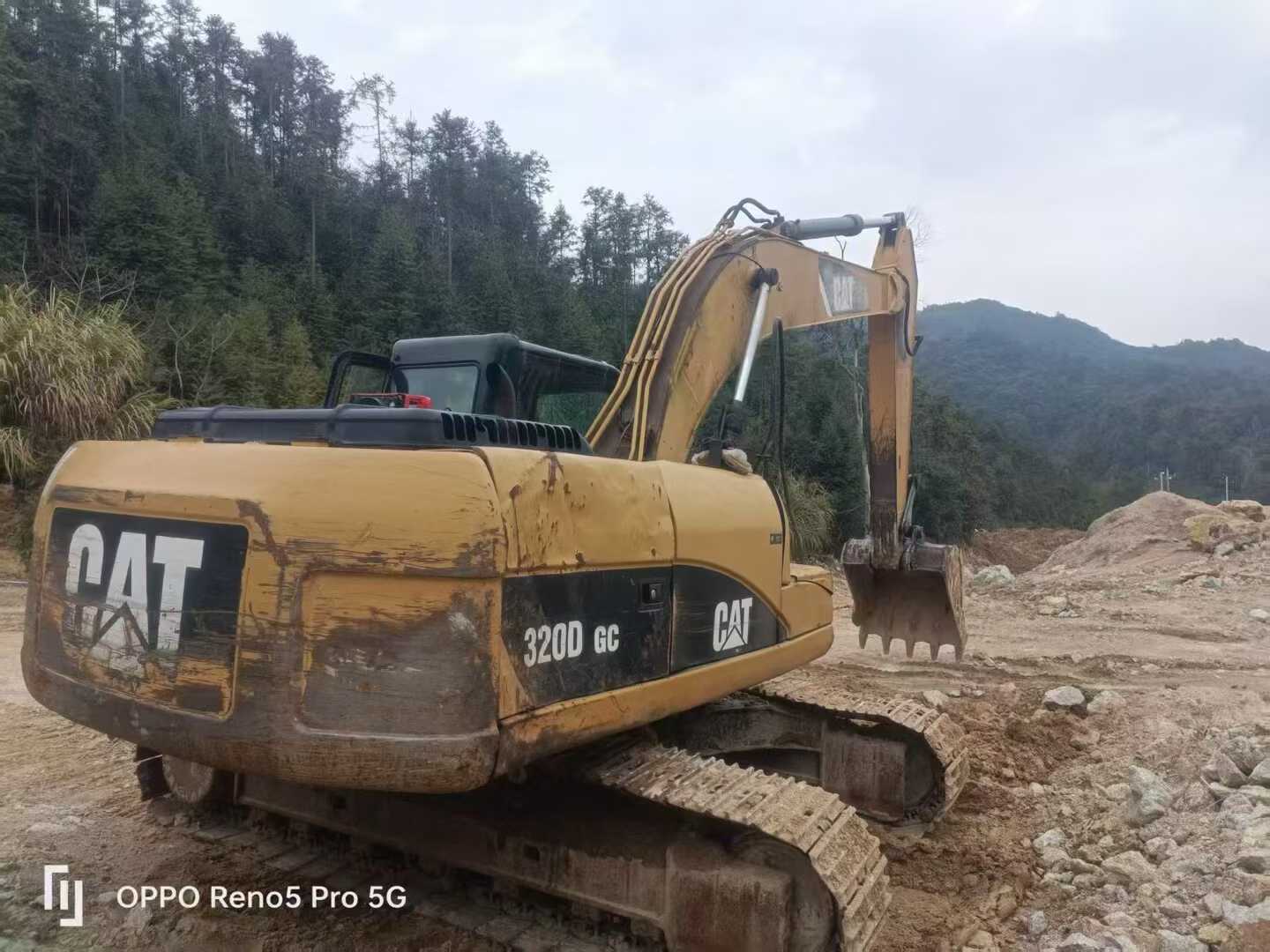

Proven reliability meets operational efficiency in this 2011 Caterpillar 320DGC hydraulic excavator, currently located in Lishui, Zhejiang. Powered by the robust C6.4 ACERT engine delivering 92.3kW at 2000rpm, this 20-ton workhorse offers exceptional digging performance with 140.1kN bucket force and 106.4kN arm force. Operating weight of 20,400kg combines with a 0.9m³ bucket capacity to handle demanding excavation, loading, and grading applications across construction and infrastructure projects.
Caterpillar's global parts network ensures minimal downtime and straightforward maintenance, a critical advantage when purchasing used equipment. Key specifications include:
- Maximum digging depth: 6,710mm with 9,850mm reach at ground level
- 5,700mm boom and 2,900mm arm configuration for versatile working range
- Water-cooled 6-cylinder engine with 6.37L displacement
- 205L/min main pump flow supporting efficient hydraulic operations
- 600mm track plates providing stability on varied terrain
Backed by Caterpillar's reputation for durability and strong resale value retention, this 320DGC represents a sound investment for contractors requiring dependable performance and long-ter
| Specifications | Value |
|---|---|
| No. | 1026222 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 20400 |
| Bucket capacity (m³) | 0.9 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2900 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | C6.4ACERT |
| Rated power (kw/rpm) | 92.3/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.37 |
| Ground specific pressure (Kpa) | 6 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 140.1 |
| Rod digging force (kN) | 106.4 |
| Travel speed (km/h) | 3.5/5.7 |
| Main overflow set pressure (Mpa) | 3.5 |
| Maximum flow of main pump (l/min) | 205 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 25 |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 35 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-120 x 1104 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-140 x 1504 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-120 x 1260 |
| Fuel Tank (L) | 410 |
| Hydraulic Tank (L) | 120 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 25 |
| Hydraulic System (L) | 260 |
| Total transport length (mm) | 9460 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3050 |
| Full cab height (mm) | 2950 |
| Counterweight ground clearance (mm) | 1020 |
| Minimum ground clearance (mm) | 450 |
| Back end turning radius (mm) | 2750 |
| Total track length (mm) | 4075 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3265 |
| Maximum digging depth (mm) | 6710 |
| Maximum excavation height (mm) | 9840 |
| Maximum unloading height (mm) | 6500 |
| Maximum vertical digging depth (mm) | 6180 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 9850 |
| Maximum effective digging depth (mm) | 6540 |
Overview
No.1026222
Brand Name：
CaterpillarModel Number：
320DGCYear：
2011
Location：
Zhejiang China
Pub Date：
