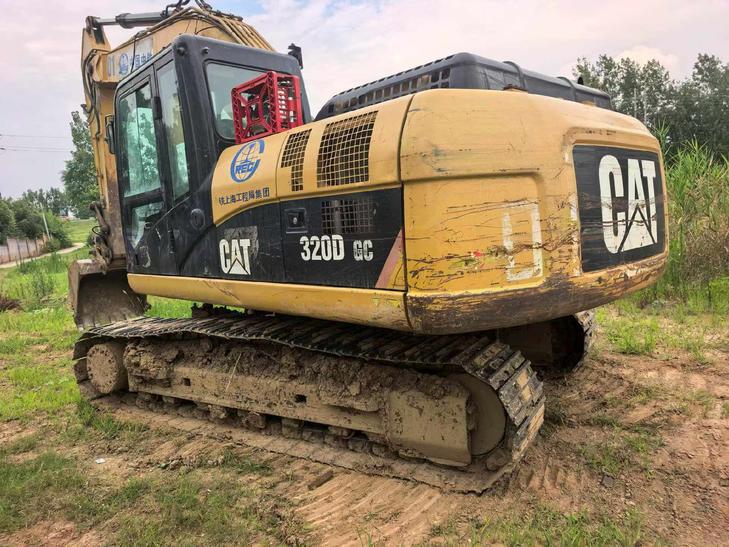

2013 Caterpillar 320DGC
Product Description
Discover a reliable and cost-effective solution with this 2013 Caterpillar 320DGC excavator, available in Anhui, China. Originally purchased for over one million RMB, this unit is now offered at an incredible discount, making it an exceptional value for your business. This machine has been well-maintained and is in its original condition, ensuring you receive a high-quality, durable asset. All invoices and documentation are included, providing a transparent purchase experience. The 320DGC is ready to be deployed immediately, delivering the performance and reliability expected from Caterpillar equipment.
- Year: 2013
- Brand: Caterpillar
- Model: 320DGC
- Location: Anhui, China
- Original Documentation: All invoices available
| Specifications | Value |
|---|---|
| No. | 1097810 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 20400 |
| Bucket capacity (m³) | 0.9 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2900 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | C6.4ACERT |
| Rated power (kw/rpm) | 92.3/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.37 |
| Ground specific pressure (Kpa) | 6 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 140.1 |
| Rod digging force (kN) | 106.4 |
| Travel speed (km/h) | 3.5/5.7 |
| Main overflow set pressure (Mpa) | 3.5 |
| Maximum flow of main pump (l/min) | 205 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 25 |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 35 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-120 x 1104 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-140 x 1504 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-120 x 1260 |
| Fuel Tank (L) | 410 |
| Hydraulic Tank (L) | 120 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 25 |
| Hydraulic System (L) | 260 |
| Total transport length (mm) | 9460 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3050 |
| Full cab height (mm) | 2950 |
| Counterweight ground clearance (mm) | 1020 |
| Minimum ground clearance (mm) | 450 |
| Back end turning radius (mm) | 2750 |
| Total track length (mm) | 4075 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3265 |
| Maximum digging depth (mm) | 6710 |
| Maximum excavation height (mm) | 9840 |
| Maximum unloading height (mm) | 6500 |
| Maximum vertical digging depth (mm) | 6180 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 9850 |
| Maximum effective digging depth (mm) | 6540 |
