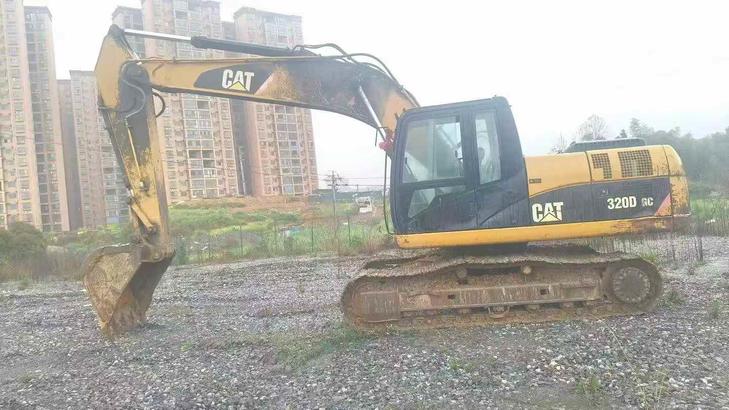

Name: Used Excavators 2016 Caterpillar 320DGC
Brand: Caterpillar
SKU: USED-1045346
Availability: InStock
Rating: 4.4 (63 reviews)

Sany

Caterpillar

XCMG

Hitachi

Komatsu

Doosan

Kobelco

Hyundai

Volvo

Sumitomo

Kato

Case

Yanmar

JohnDeere

Liebherr

Proven in demanding conditions since 2016, this Caterpillar 320DGC excavator demonstrates the durability that has made CAT a global benchmark in heavy equipment. With a robust 20-ton operating weight and C6.4 ACERT engine delivering 92.3 kW of reliable power, this machine continues to perform as a dependable workhorse on job sites worldwide. Its 0.9 m³ bucket capacity, combined with 140.1 kN bucket digging force and 9,850 mm maximum excavation radius, provides the versatility needed for diverse earthmoving applications.

<ul>
<li>Water-cooled 6-cylinder engine with 6.37L displacement ensures consistent performance</li>
<li>Maximum digging depth of 6,710 mm and excavation height of 9,840 mm</li>
<li>205 l/min main pump flow supports efficient hydraulic operations</li>
<li>Impressive 70% (35°) climbing ability for challenging terrain</li>
<li>Compact transport dimensions (9,460 × 2,800 × 3,050 mm) facilitate easy mobilization</li>
<li>Currently located in Hunan, ready for immediate deployment</li>
</ul>

Built to last through years of rigorous service, this joint venture-manufactured excavator represents proven engineering quality that continues to deliver value long after initial investment.

Skip the factory lead times with this ready-to-deploy 2016 Komatsu PC120 excavator, strategically positioned in Hubei Province for immediate delivery across China. Built with Japanese precision engineering, this 12-ton workhorse delivers reliable performance through its proven Komatsu S4D105-5 engine producing 67.1kW of power.

Engineered for versatility, this machine combines a 4.6-meter boom with a 2.0-meter arm to achieve maximum digging depths of 5 meters and excavation heights reaching 7.55 meters. With its compact 2.43-meter transport width and efficient hydraulic system flowing 323 L/min, rapid site deployment becomes seamless.

<ul>
<li>Available now from Hubei - no manufacturing delays</li>
<li>12-ton operating weight with 70% climbing capability</li>
<li>Maximum excavation radius: 7.54 meters</li>
<li>Fuel-efficient 230L tank capacity</li>
<li>Fast deployment ready for immediate productivity</li>
</ul>

Secure this proven performer today and maintain project momentum without the typical procurement delays associated with new equipment orders.

Komatsu PC120

Built for demanding construction environments, this 2012 Volvo EC210B excavator delivers proven performance with 21-ton operating capacity and robust Volvo D6D engine producing 107kW of reliable power. Currently located in Hubei Province, this machine features a 0.9-0.92m³ bucket capacity and impressive 9.94m maximum digging radius, making it ideal for medium to large-scale earthmoving projects.

Volvo's reputation for engineering excellence translates directly into lower ownership costs and superior resale value. Key advantages include:

<ul>
<li>Extensive parts network across China ensures minimal downtime</li>
<li>Proven hydraulic system with dual 200L/min pumps for consistent performance</li>
<li>Advanced turbocharging and electronic fuel injection for fuel efficiency</li>
<li>70% climbing ability and 183kN maximum tractive force for challenging terrain</li>
</ul>

With Volvo's established service infrastructure and strong brand recognition, this EC210B represents a smart investment for contractors seeking dependable equipment with predictable maintenance costs and strong market value retention.

Volvo EC210B

Available now in Zhejiang Jinhua, this 2016 Hitachi EX70 mini excavator eliminates factory wait times and puts 7 tons of proven performance on your site fast. Equipped with a 0.4 m³ backhoe bucket and reliable traditional power, this joint venture-built machine delivers the precision and durability Hitachi is known for. Skip the 6-12 month lead times of new equipment—this ready-to-deploy unit ships directly from our Jinhua facility to your project location across Asia, Europe, or beyond.

<ul>
<li>Year: 2016</li>
<li>Model: Hitachi EX70</li>
<li>Operating Weight: 7 tons</li>
<li>Bucket Capacity: 0.4 m³ (backhoe configuration)</li>
<li>Power Type: Traditional diesel</li>
<li>Origin: Joint venture/Import quality</li>
<li>Current Location: Zhejiang Jinhua, China</li>
<li>Availability: Immediate dispatch</li>
</ul>

Secure this compact excavator today and accelerate your project timeline. Contact Fair Trade Machinery for shipping quotes and inspection arrangements.

Hitachi EX70

With a rated power of 60.4 kW and an Isuzu A-4BG1T engine, this 2020 Hitachi EX130H-5 excavator delivers reliable performance for your construction needs. Designed with the operator in mind, it features a spacious cab offering excellent visibility, enhancing both safety and productivity on the job site. The backhoe bucket, with a capacity range of 0.3 to 0.66 m³, ensures versatility in various digging tasks.
<ul>
<li>Travel speed of 5.5 km/h for efficient movement around the site</li>
<li>Ground specific pressure of 38.3 Kpa, ensuring stability even on softer ground</li>
<li>Total transport dimensions of 7580 mm x 2490 mm x 2720 mm, making it easy to transport</li>
<li>Maximum digging depth of 5360 mm and maximum excavation height of 8550 mm, providing extensive reach and capability</li>
<li>Counterweight ground clearance of 890 mm and minimum ground clearance of 440 mm, reducing the risk of damage from obstacles</li>
</ul>

Hitachi EX130H-5

Engineered with precision hydraulics and proven Kubota V3300-DI power, this 2016 Doosan DH80 delivers 45.8kW at 2200rpm through a water-cooled 3.3L displacement system. The 8-ton excavator combines a maximum main pump flow of 162.8 l/min with robust hydraulic circuits—250 Mpa for travel, 190 Mpa for rotation—ensuring responsive control across all operations. Bucket digging force reaches 55kN while rod digging force achieves 38kN, supported by optimized cylinder configurations throughout the boom, arm, and bucket systems.

Built at Doosan's joint-venture facility in Yantai, Shandong Province, this model features a 3100mm boom and 1800mm arm for a maximum digging reach of 6170mm and depth of 4060mm. The 0.28-0.32m³ backhoe bucket handles diverse excavation tasks with fuel efficiency rated at 163g/ps·hr. Standard hydraulic crushing pipeline integration expands attachment versatility. Compact transport dimensions of 5920mm length by 2200mm width enable easy mobilization between jobsites.

Currently located in Jinhua, Zhejiang Province, this DH80 represents Doosan's commitment to hydraulic efficiency and operational reliability in the compact excavator segment.

Doosan DH80

Built in 2023, this Sany SY375H excavator delivers proven performance backed by one of China's most trusted heavy equipment manufacturers. Operating at 37 tons with a robust 212kW GH-6HK1XKSC engine, this machine combines a 1.9m³ bucket capacity with 235kN bucket digging force and 10,750mm maximum reach for demanding applications. Currently located in Wenzhou, Zhejiang Province, this unit represents exceptional value in the used market.

Why Sany Makes Financial Sense:
<ul>
<li>Parts Availability: Global dealer network ensures components ship quickly, minimizing downtime across Asia, Africa, and beyond</li>
<li>Resale Protection: Sany's market share growth means strong secondary demand when you're ready to upgrade</li>
<li>Service Infrastructure: Factory-trained technicians and comprehensive documentation reduce maintenance complexity</li>
<li>Proven Durability: Water-cooled turbocharged design with 540L fuel capacity ensures extended operation between services</li>
</ul>

With 70% climbing ability, 8.8 RPM rotation speed, and hydraulic systems engineered for Asian conditions, this SY375H offers reliability without the premium pricing

Sany SY375H

Engineered for precision and control, this 2016 Hitachi EX200-3 delivers exceptional operator-focused performance in the 20-ton class. Powered by a proven traditional diesel engine, this joint venture excavator combines Japanese engineering standards with practical field reliability. Operators benefit from superior cabin visibility across all working angles, reducing blind spots during complex maneuvers and tight-site operations.

Stability remains uncompromised throughout the operating envelope. The machine's low center of gravity and reinforced undercarriage provide confident handling on uneven terrain, while responsive hydraulic controls allow for smooth, fatigue-reducing operation during extended shifts. The backhoe configuration optimizes digging force and reach for trenching, foundation work, and material handling applications.

<ul>
<li>Operating Weight: 20 tons</li>
<li>Power System: Traditional diesel</li>
<li>Configuration: Backhoe attachment</li>
<li>Current Location: Ganzhou, Jiangxi, China</li>
<li>Build Quality: Joint venture/Import standard</li>
</ul>

Available for immediate inspection and global export through Fair Tra

Hitachi EX200-3

Built for precision and daily productivity, this 2016 Caterpillar E120B delivers reliable performance across demanding job sites. Operating at 12 tons with a 62.6 kW CATERPILLAR 3114 engine, this mid-size excavator combines proven hydraulic efficiency with operator-centered design. Currently located in Shenzhen, Guangdong, this machine offers excellent value for contractors seeking dependable excavation capability.

<ul>
<li>Operator Comfort: Spacious cab with 2700mm height provides clear sightlines to bucket and surrounding work zones, reducing fatigue during extended shifts</li>
<li>Stable Performance: 2780mm track ground length and 41.2 kPa ground pressure ensure balanced load distribution on varied terrain</li>
<li>Reach & Depth: Maximum digging depth of 5150mm and 7925mm excavation radius handle foundation work, trenching, and loading operations efficiently</li>
<li>Proven Powertrain: 4.4L displacement engine paired with 165L hydraulic system maintains consistent cycle times</li>
<li>Maneuverability: 2115mm rear turning radius and 2490mm transport width facilitate confined site navigation</li>
</ul>

Ideal for urban construction, utility

Caterpillar E120B

Proven in demanding conditions since 2017, this Sany SY245H crawler excavator demonstrates exceptional durability through years of reliable operation. Built with Sany's robust engineering standards in China, this 24-ton workhorse features a powerful D06FRC engine delivering 147kW at 2100rpm, paired with a water-cooled system designed for sustained heavy-duty performance. Operating weight of 25,500kg provides the stability needed for challenging excavation projects.

Performance credentials include impressive reach specifications: 10,225mm maximum digging radius and 6,705mm maximum digging depth. The 1.3-1.5m³ backhoe bucket generates 175kN of digging force, while the hydraulic system delivers consistent power through a 277L tank capacity. Track dimensions of 600mm width across 3,640mm ground contact length ensure superior traction and minimal ground pressure of just 53.2kPa.

Key specifications:
<ul>
<li>Rated Power: 147kW (2100rpm) with 750N.m maximum torque</li>
<li>Working Range: 10,225mm radius / 6,705mm depth / 9,745mm height</li>
<li>Fuel Capacity: 475L for extended operation</li>
<li>Transport Dimensions: 10,290mm × 3,190mm × 3,190mm</li>
<li>Current Location: Shanghai, Chin

Sany SY245H

With 21 tons of robust performance, the Sany SY215C excavator is available now in 广东茂名, ready for immediate deployment to your site. Skip the factory lead times and enhance your project's efficiency with this powerful machine. Equipped with a Mitsubishi 4M50 engine, it delivers 118 kW of rated power at 2000 rpm, ensuring reliable and efficient operation. The excavator features a 1.1 m³ bucket capacity, ideal for a wide range of excavation tasks. Its 5.4 km/h travel speed and 70% climbing ability make it highly versatile on various terrains. Additionally, the SY215C boasts a maximum digging depth of 6600 mm and a maximum digging radius of 10280 mm, making it a formidable asset for any construction or excavation project.
<ul>
<li>Immediate availability in 广东茂名</li>
<li>Fast deployment to your site</li>
<li>21900 kg working weight, 21-ton class</li>
<li>118 kW / 2000 rpm rated power from Mitsubishi 4M50 engine</li>
<li>Travel speed: 5.4 km/h; Climbing ability: 70%</li>
<li>Maximum digging depth: 6600 mm; Maximum digging radius: 10280 mm</li>
</ul>

Sany SY215C

Proven performance meets exceptional value with this 2020 Sany SY485C excavator, currently located in Yunnan. Built by China's leading heavy machinery manufacturer, this 48-ton workhorse demonstrates the durability and reliability that define modern Sany engineering. Four years of operational history confirm its robust construction and dependable traditional power system, making it an intelligent investment for demanding excavation projects.

<ul>
<li>Year: 2020</li>
<li>Brand: Sany</li>
<li>Model: SY485C</li>
<li>Tonnage: 48 tons</li>
<li>Power Type: Traditional power</li>
<li>Configuration: Backhoe bucket</li>
<li>Origin: Made in China</li>
<li>Location: Yunnan, China</li>
</ul>

Designed for heavy-duty applications, this excavator delivers consistent productivity across mining, infrastructure, and large-scale earthmoving operations. Its proven track record since 2020 validates Sany's commitment to manufacturing equipment built to last. Contact Fair Trade Machinery today to secure this reliable 48-ton performer for your fleet.

Sany SY485C

Engineered with precision, this 2022 Sany SY375H excavator delivers 212 kW of rated power at 2000 rpm through its robust GH-6HK1XKSC engine. The 6-cylinder, turbocharged, water-cooled system generates 1080 N·m of maximum torque, providing reliable performance for demanding excavation operations. With a 37-ton working weight and 1.9 m³ bucket capacity, this machine combines substantial digging force—235 kN bucket force and 210 kN arm force—with exceptional reach capabilities extending to 10,750 mm maximum digging radius.

<ul>
<li>Operating weight: 37,500 kg with optimal 68.8 kPa ground pressure</li>
<li>Maximum digging depth: 7,155 mm; vertical depth: 5,125 mm</li>
<li>Hydraulic efficiency: 8.8 rpm rotation speed for smooth operation</li>
<li>7.79L displacement engine with direct injection technology</li>
<li>540L fuel capacity supporting extended work cycles</li>
<li>Currently located in Yunnan, China</li>
</ul>

Built to Chinese manufacturing standards, the SY375H series represents Sany's commitment to hydraulic performance and structural durability in the mid-size excavator segment.

Proven in demanding applications since 2021, this Sany SY550H excavator delivers the durability heavy operations require. With a robust 51,000 kg working weight and powerful 300 kw rated engine at 1800 rpm, this 55-ton workhorse tackles high-volume earthmoving with consistent reliability. Its 3.1-3.5 m³ backhoe bucket capacity ensures productive cycle times, while the impressive 12,841 mm maximum digging radius and 8,077 mm depth capability handle large-scale excavation projects with authority.

Built to last through rigorous job site conditions, this machine features a reinforced undercarriage with 4,415 mm track ground length and 600 mm wide track plates for exceptional stability. Currently located in Yunnan, China, it demonstrates the build quality Sany engineering is known for—ready to extend its proven track record on your next project.

<ul>
<li>Operating Weight: 51,000 kg</li>
<li>Rated Power: 300 kw/1800 rpm</li>
<li>Bucket Capacity: 3.1-3.5 m³</li>
<li>Max Digging Depth: 8,077 mm</li>
<li>Max Digging Radius: 12,841 mm</li>
<li>Travel Speed: 5.4/3.1 km/h</li>
<li>Climbing Ability: 70%</li>
</ul>

Sany SY550H

Available now in Yunnan, this 2020 Sany SY205C 20-ton excavator eliminates factory wait times and delivers fast deployment to your jobsite. Powered by a robust 118 kW engine with proven traditional fuel technology, this machine offers immediate productivity for earthmoving, trenching, and heavy construction applications across challenging terrain.

<ul>
 <li>Specifications: 21,500 kg operating weight | 0.9-1.1 m³ bucket capacity | 10,280 mm max dig reach</li>
 <li>Performance: 138 kN bucket force | 109 kN arm force | 6,600 mm max dig depth</li>
 <li>Mobility: 70% gradeability (35°) | 5.4 km/h travel speed | 2,900 mm tail swing radius</li>
 <li>Transport Dims: 9,680 mm length × 2,980 mm width × 3,440 mm height</li>
 <li>Configuration: Backhoe setup | 600 mm track shoes | 47.3 kPa ground pressure</li>
</ul>

Skip extended lead times. Sourced directly from Yunnan, this China-manufactured excavator is inspection-ready and positioned for rapid shipping to your location. Secure reliable 20-ton capacity without production delays.

Sany SY205C

Built for demanding excavation and grading work, this 2019 Sany SY215C delivers immediate productivity with its proven Mitsubishi 4M50 engine producing 118kW at 2000rpm. Operating at 21 tons with a 1.1m³ bucket capacity, this mid-size excavator tackles trenching, foundation work, and demolition projects with 138kN bucket digging force and 103kN arm force. Maximum digging depth reaches 6,600mm while the 10,280mm working radius covers substantial ground per cycle.

<ul>
<li>Mitsubishi 4M50 water-cooled diesel: 118kW rated power, 580N.m torque</li>
<li>21,900kg working weight with 1.1m³ backhoe bucket (0.8-1.2m³ range)</li>
<li>Digging performance: 6.6m depth, 10.28m radius, 9.6m height</li>
<li>390L fuel tank and 239L hydraulic reservoir for extended shifts</li>
<li>70% gradeability and 47.4kPa ground pressure for varied terrain</li>
<li>Currently located in Yunnan, ready for inspection and deployment</li>
</ul>

Transport dimensions of 9,680mm length accommodate standard lowboy hauling. This Chinese-manufactured excavator arrives site-ready for earthmoving, utility installation, or material handling operations requiring reliable mid-range capacity.

Built for precision work in confined and open sites, this 2016 Hyundai 110LVS delivers 11-ton capacity with operator-centered engineering. Powered by a MITSUBISHI 4FRC engine producing 74 kW at 2000 rpm, this machine combines reliable joint-venture build quality with field-proven hydraulics. Dual variable plunger pumps supply 2×112 l/min flow, ensuring smooth simultaneous functions across a 7740 mm maximum digging radius and 5090 mm depth capability.

<ul>
<li>Enhanced cabin visibility with 2800 mm full cab height for superior site awareness</li>
<li>Compact 2380 mm rear swing radius enables tight-quarter maneuverability</li>
<li>Responsive travel speeds (5.5/3.4 km/h) and 70% grading ability maintain stability on slopes</li>
<li>330 Mpa working hydraulic circuit delivers consistent bucket and boom control</li>
<li>0.45 m³ backhoe bucket with 4300 mm boom and 2260 mm arm for versatile trenching</li>
<li>250 L fuel tank supports extended shifts without frequent refueling</li>
</ul>

Currently located in Nanning, Guangxi, this excavator offers dependable performance for contractors prioritizing operator comfort and machine control in medium-duty applications.

Specifications	Value
No.	1045346
Tonnage (tons)	20
Working weight (kg)	20400
Bucket capacity (m³)	0.9
Boom length (mm)	5700
Rod length (mm)	2900
Country of origin	Japan
power	Traditional power
manufacturer	Joint venture/Import
bucket	backhoe
Engine type	C6.4ACERT
Rated power (kw/rpm)	92.3/2000
Cooling mode	water-cooling
Cylinder diameter × stroke (mm)	102 x 130
Number of cylinders (PCS)	6
Displacement (L)	6.37
Ground specific pressure (Kpa)	6
Rotation speed (rpm)	11.5
Climbing ability (%)	70/35 °
Bucket digging force (kN)	140.1
Rod digging force (kN)	106.4
Travel speed (km/h)	3.5/5.7
Main overflow set pressure (Mpa)	3.5
Maximum flow of main pump (l/min)	205
Traveling Hydraulic Circuit (Mpa)	35
Rotary Hydraulic Circuit (Mpa)	25
Hydraulic crushing pipeline is standard	no
Working Hydraulic Circuit (Mpa)	35
Pilot Oil Circuit (MPa)	3.9
Bucket cylinders - Number × diameter × stroke (mm)	1-120 x 1104
Bucket rod cylinders - Number × diameter × stroke (mm)	1-140 x 1504
Boom cylinders - Number × diameter × stroke (mm)	2-120 x 1260
Fuel Tank (L)	410
Hydraulic Tank (L)	120
Engine Oil changes (L)	30
Coolant (L)	25
Hydraulic System (L)	260
Total transport length (mm)	9460
Total transport width (mm)	2800
Total transport height (mm)	3050
Full cab height (mm)	2950
Counterweight ground clearance (mm)	1020
Minimum ground clearance (mm)	450
Back end turning radius (mm)	2750
Total track length (mm)	4075
Track gauge (mm)	2200
Track plate width (mm)	600
Total track width (mm)	2800
Track ground length (mm)	3265
Maximum digging depth (mm)	6710
Maximum excavation height (mm)	9840
Maximum unloading height (mm)	6500
Maximum vertical digging depth (mm)	6180
Bulldozer lift or depth (mm)	No bulldozer
Dodging plate width × height (mm)	No bulldozer
Maximum excavation radius of stop surface (mm)	9850
Maximum effective digging depth (mm)	6540

2016 Caterpillar 320DGC
