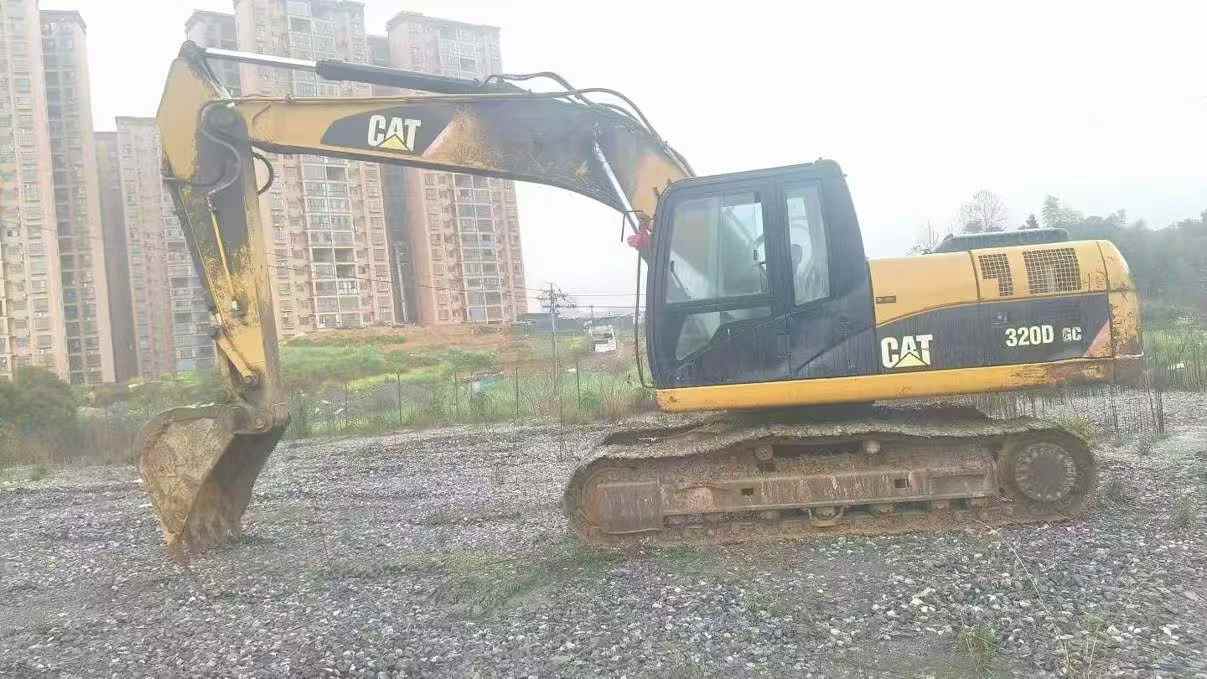

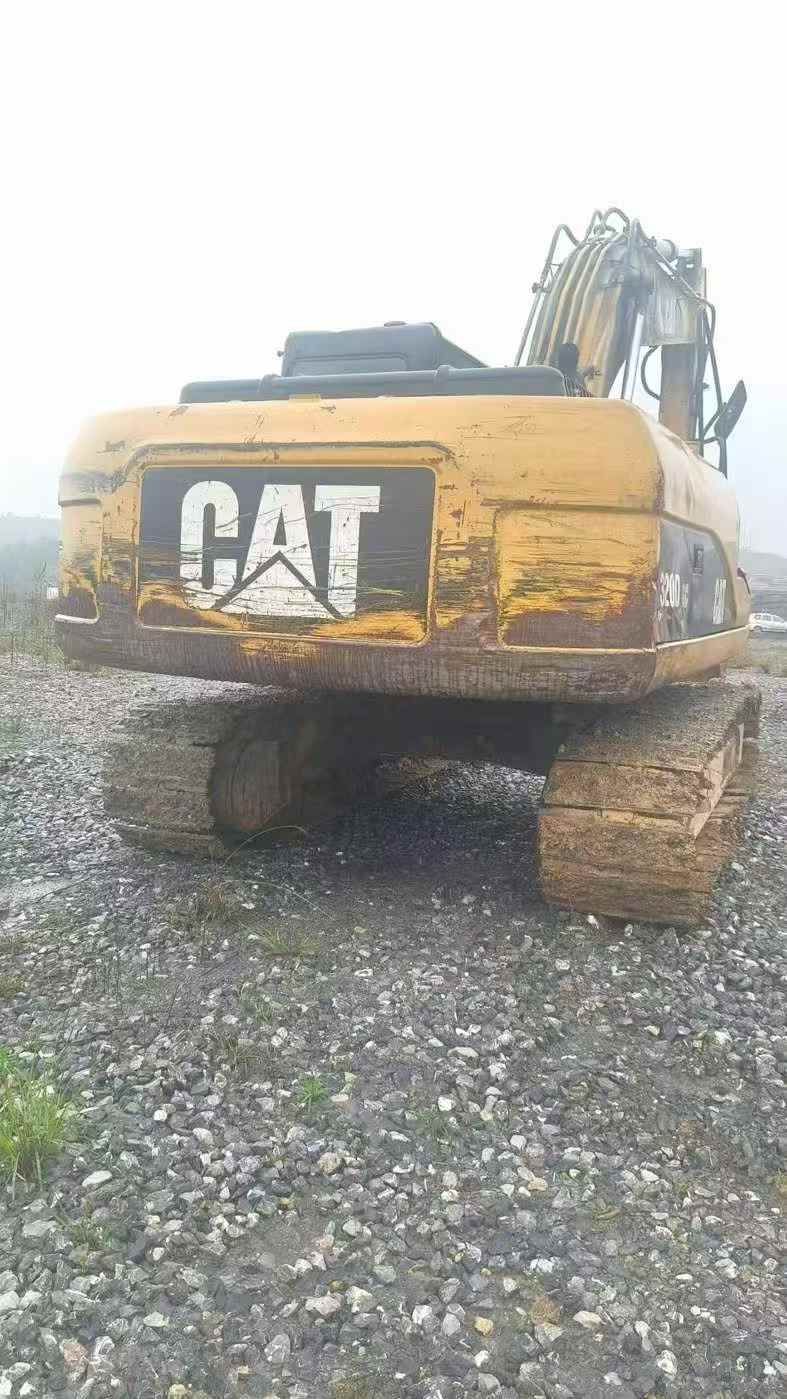

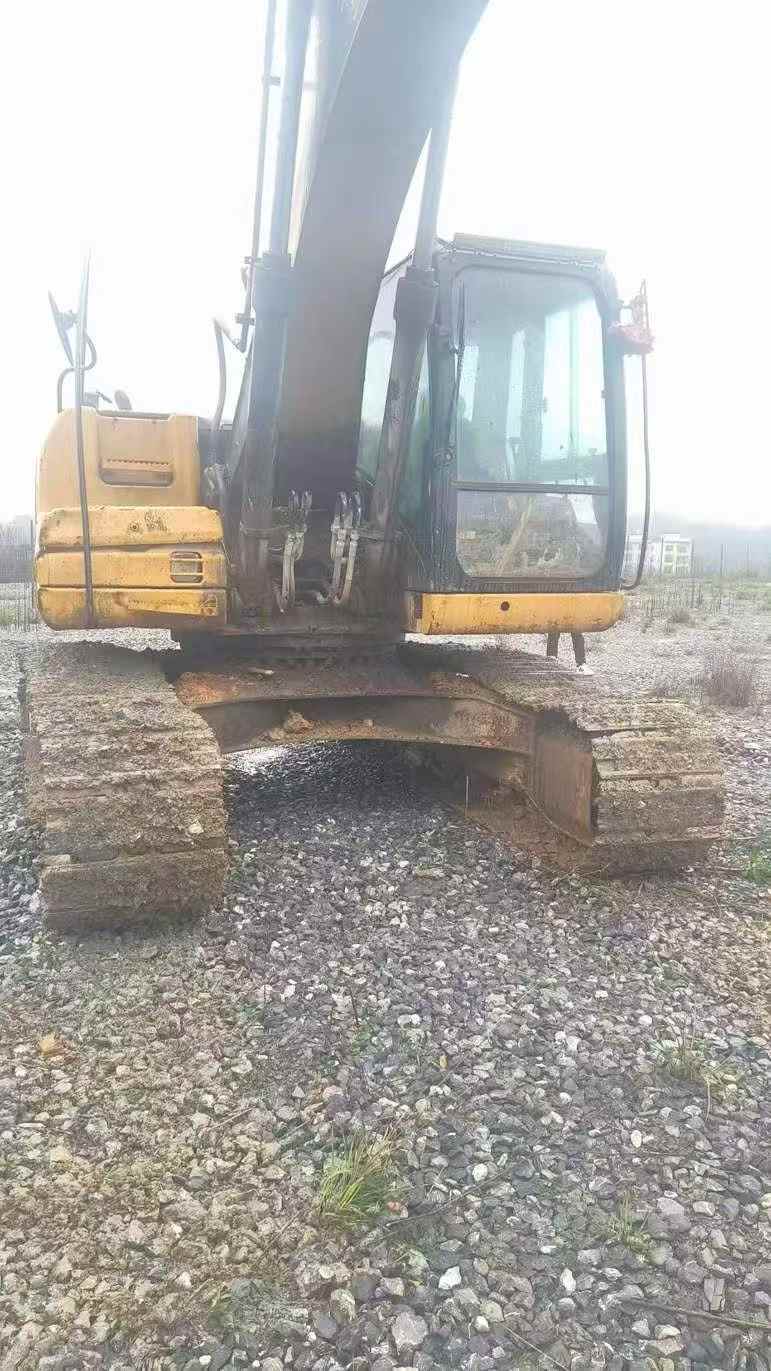

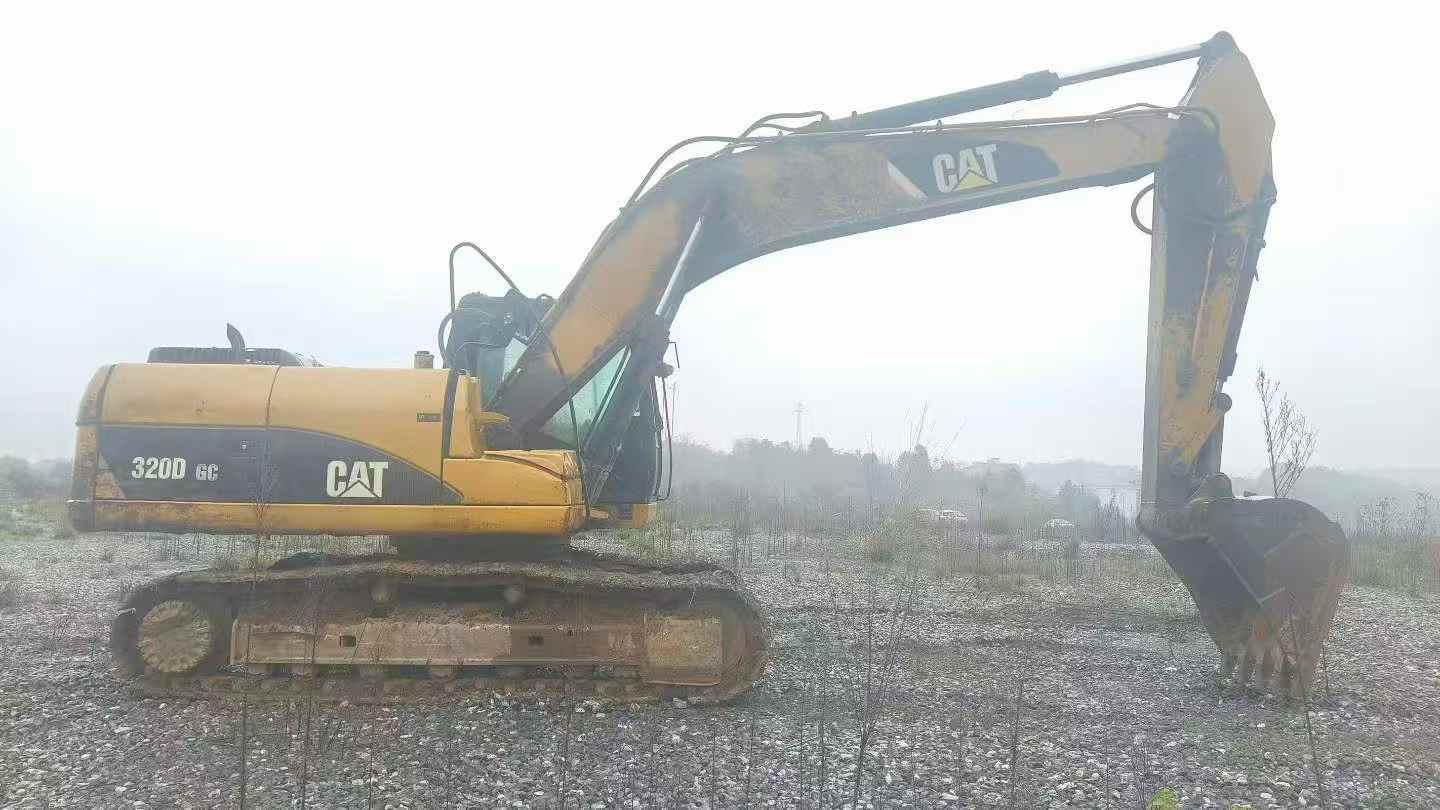

2016 Caterpillar 320DGC
Product Description
Acquire proven excavation power without the premium price tag. This 2016 Caterpillar 320DGC delivers 20-ton performance with a robust C6.4 ACERT engine producing 92.3kW at 2000rpm, offering exceptional value against new equipment investments. Operating from Guizhou, this machine combines Cat's legendary durability with impressive productivity specifications.
Engineered for demanding applications, this excavator features a 0.9m³ bucket capacity and maximum digging depth of 6,710mm. The 140.1kN bucket digging force and 106.4kN rod digging force handle tough materials efficiently, while the 9,850mm maximum excavation radius extends your operational reach. Water-cooled 6-cylinder engine and 205 l/min hydraulic flow ensure consistent performance across extended shifts.
- 20,400kg operating weight with 5,700mm boom and 2,900mm stick
- 410L fuel capacity for prolonged operation
- Compact transport dimensions: 9,460mm × 2,800mm × 3,050mm
- Joint venture quality with Xuzhou manufacturing heritage
Invest smartly in reliable heavy equipment that delivers ROI from day one. Contact Fair Trade Machinery for complete specifications and competitive pricing.
| Specifications | Value |
|---|---|
| No. | 1046093 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 20400 |
| Bucket capacity (m³) | 0.9 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2900 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

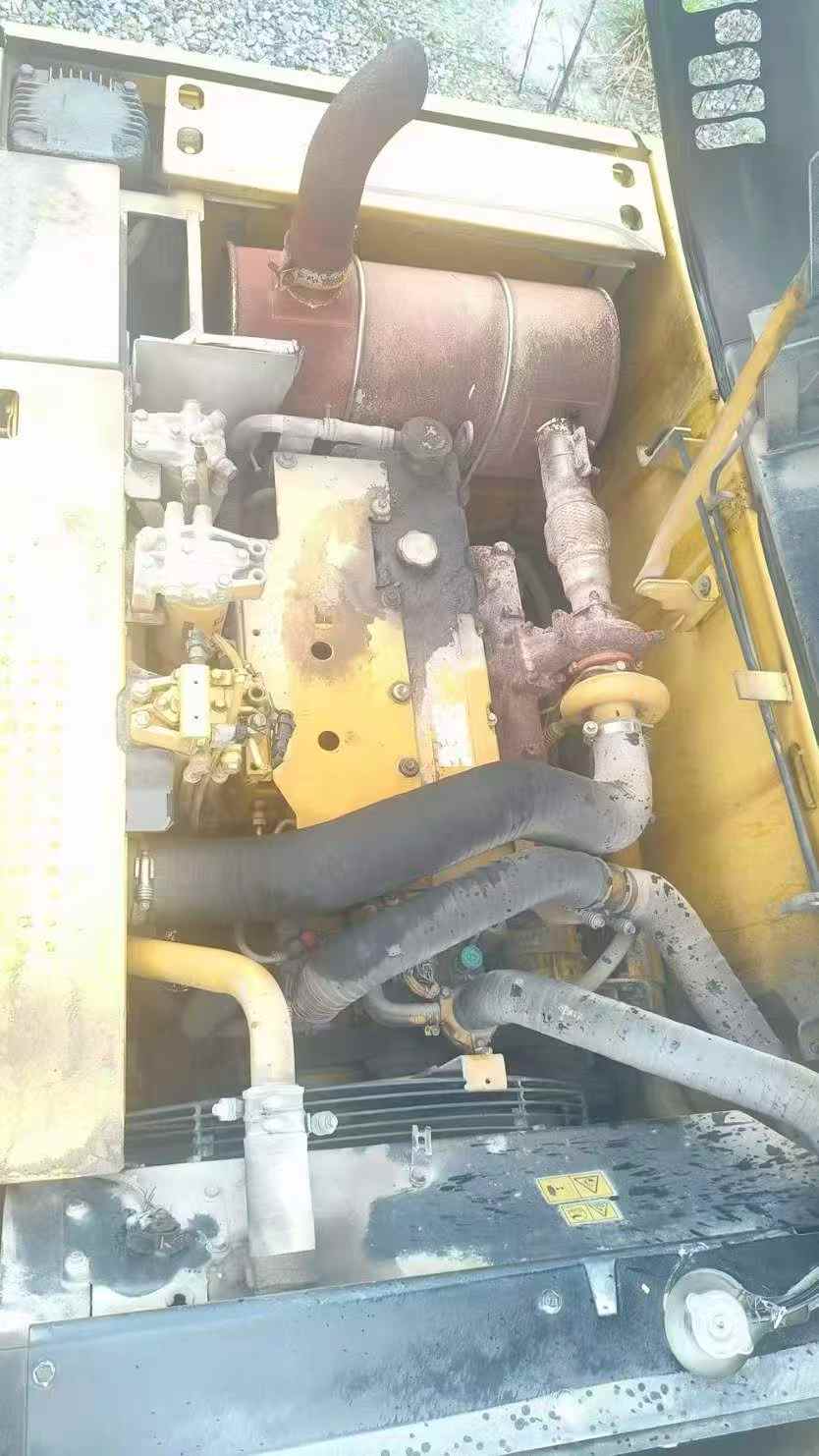

| Engine type | C6.4ACERT |
| Rated power (kw/rpm) | 92.3/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.37 |
| Ground specific pressure (Kpa) | 6 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 140.1 |
| Rod digging force (kN) | 106.4 |
| Travel speed (km/h) | 3.5/5.7 |
| Main overflow set pressure (Mpa) | 3.5 |

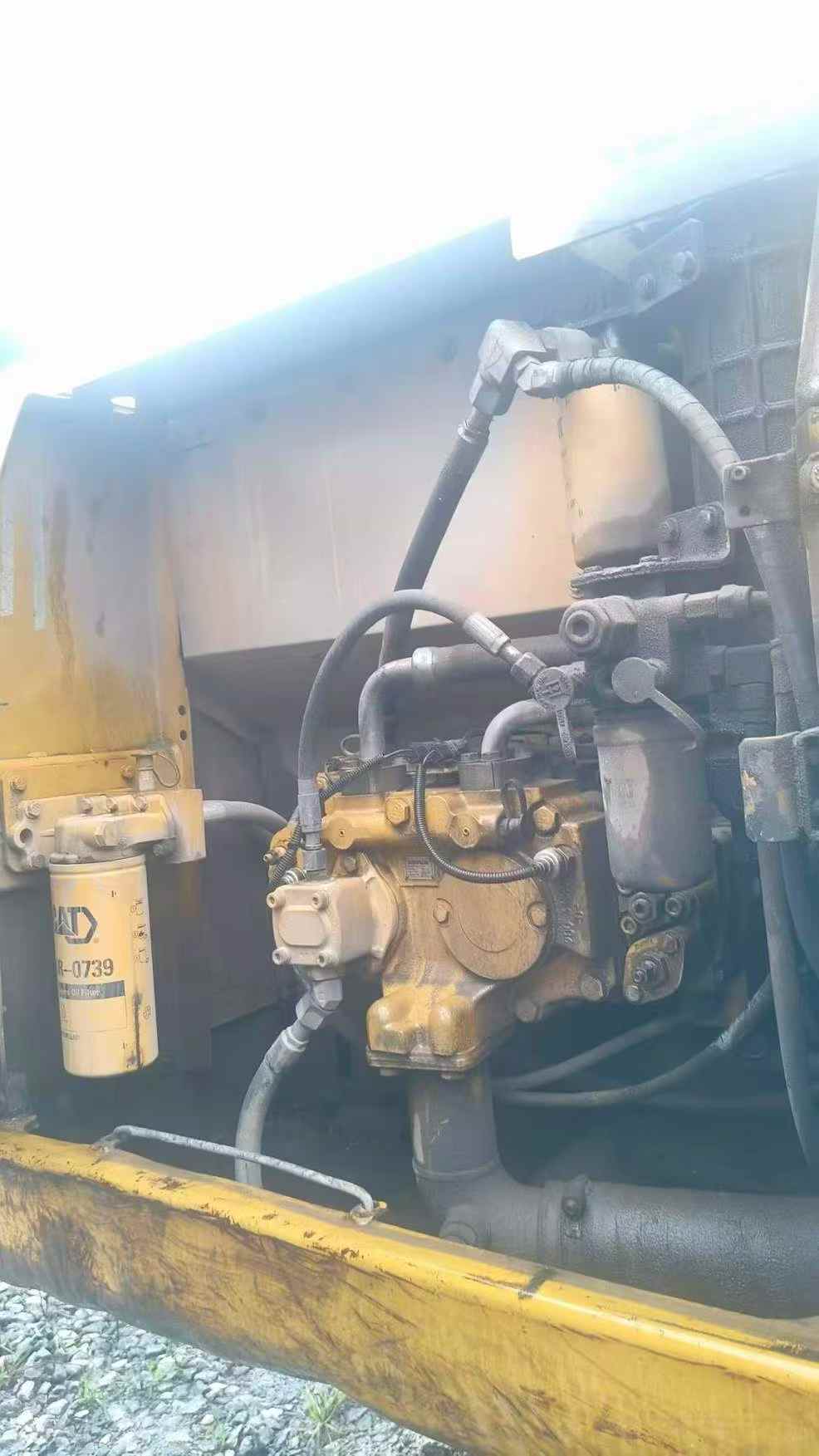

| Maximum flow of main pump (l/min) | 205 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 25 |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 35 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-120 x 1104 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-140 x 1504 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-120 x 1260 |
| Fuel Tank (L) | 410 |
| Hydraulic Tank (L) | 120 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 25 |
| Hydraulic System (L) | 260 |
| Total transport length (mm) | 9460 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3050 |
| Full cab height (mm) | 2950 |
| Counterweight ground clearance (mm) | 1020 |
| Minimum ground clearance (mm) | 450 |
| Back end turning radius (mm) | 2750 |
| Total track length (mm) | 4075 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3265 |
| Maximum digging depth (mm) | 6710 |
| Maximum excavation height (mm) | 9840 |
| Maximum unloading height (mm) | 6500 |
| Maximum vertical digging depth (mm) | 6180 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 9850 |
| Maximum effective digging depth (mm) | 6540 |
Overview
No.1046093
Brand Name：
CaterpillarModel Number：
320DGCYear：
2016
Location：
Guizhou China
Pub Date：
