Name: Used Excavators 2013 Caterpillar 323D2L
Brand: Caterpillar
SKU: USED-1036276
Availability: InStock
Rating: 4.7 (62 reviews)

Sany

Caterpillar

XCMG

Hitachi

Komatsu

Doosan

Kobelco

Hyundai

Volvo

Sumitomo

Kato

Case

Yanmar

JohnDeere

Liebherr

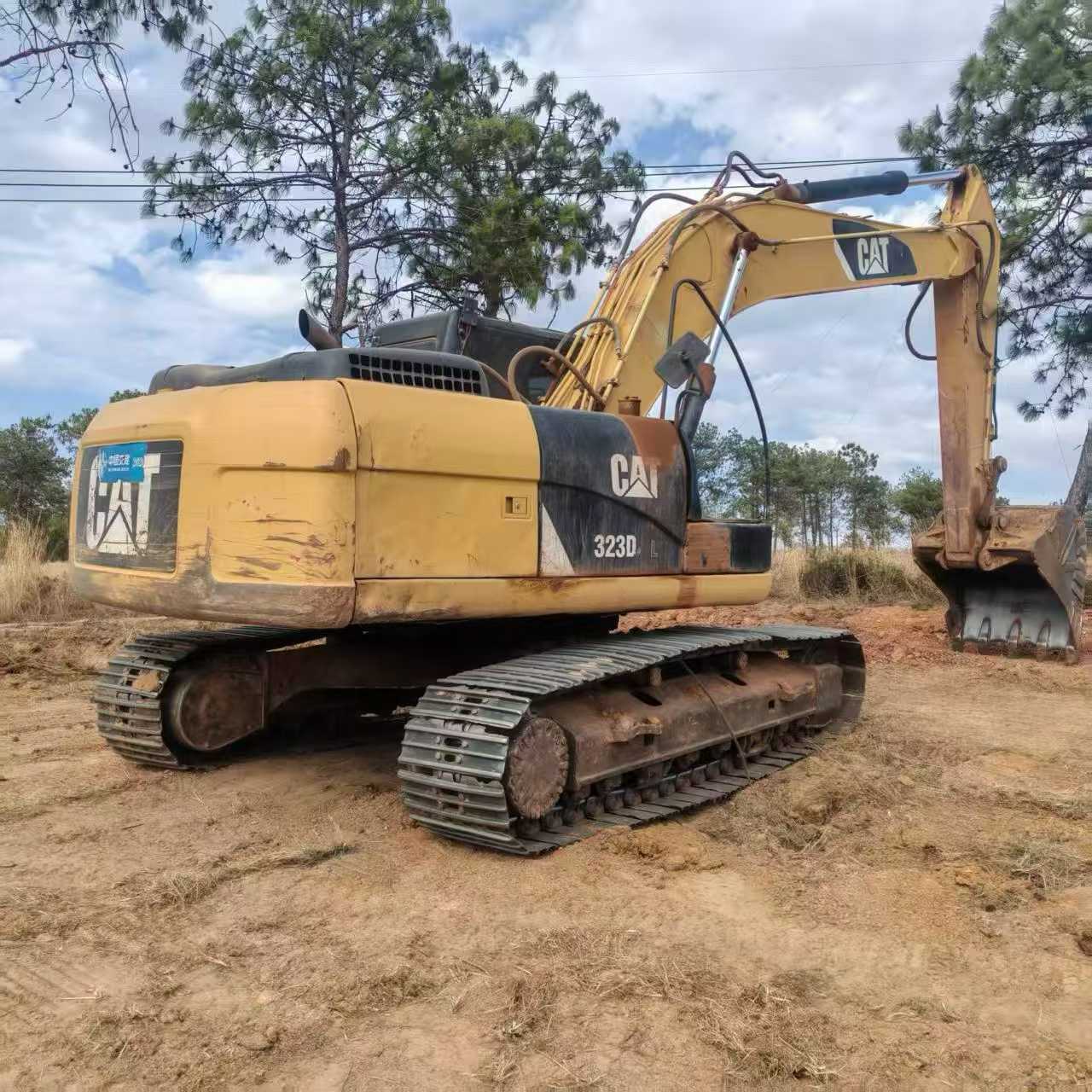

Available now in Yunnan Kunming, this 2013 Caterpillar 323D2L medium excavator eliminates factory wait times and delivers immediate deployment to your worksite. Operating at 23 tons with a robust Cat C7.1 ACERT engine producing 118 kW, this Japanese-origin machine combines proven reliability with the performance standards required for demanding excavation projects across Southwest China and beyond.

<ul>
 <li>Immediate Availability: Skip months of manufacturing delays—this unit ships directly from Kunming</li>
 <li>Powerful Performance: 1.19 m³ bucket capacity, 6720mm maximum digging depth, 140 kN bucket digging force</li>
 <li>Extended Reach: 5700mm boom and 2900mm arm deliver 9860mm maximum excavation radius</li>

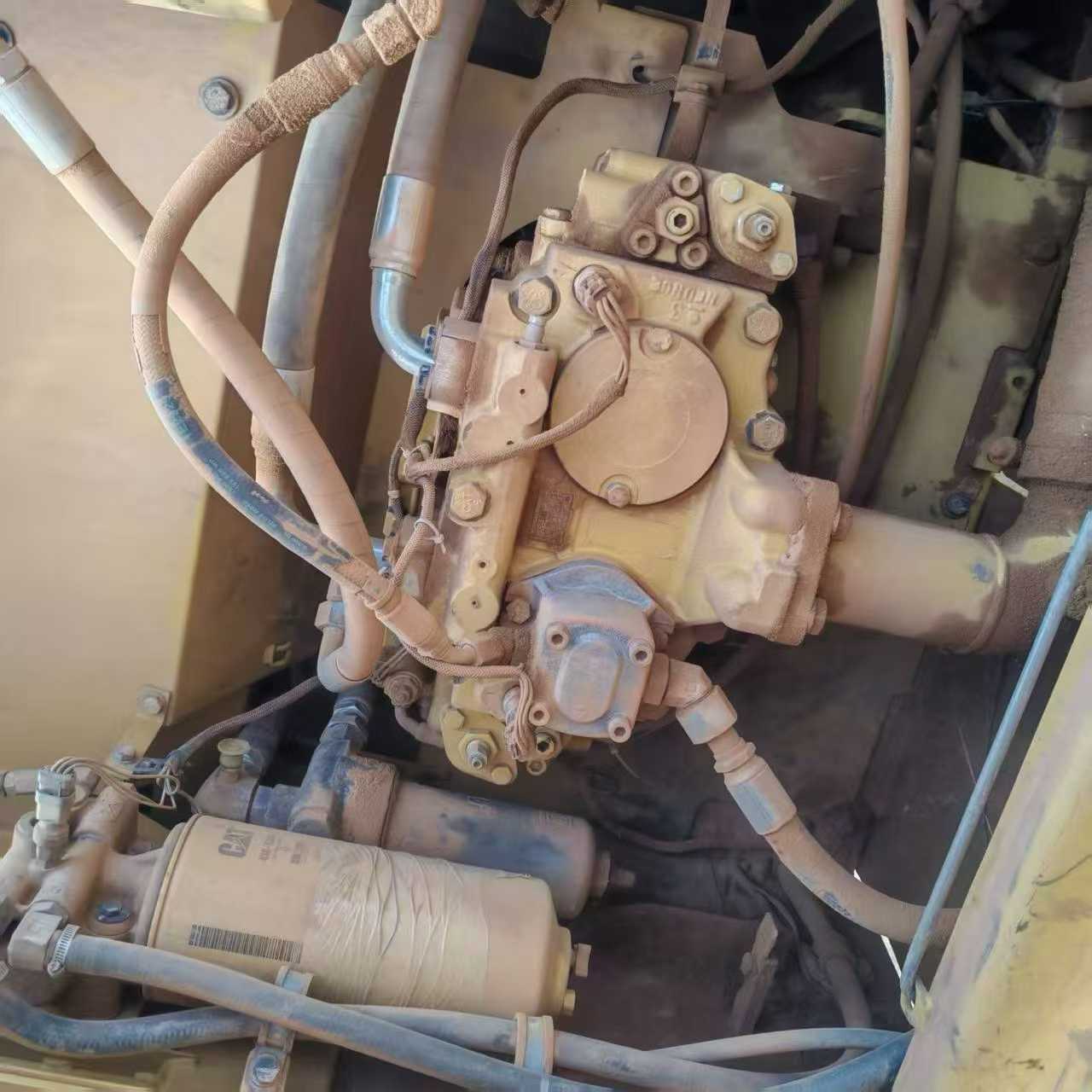

 <li>Dual-Pump Hydraulics: 214 L/min × 2 main pumps ensure responsive control and cycle times</li>
 <li>Versatile Mobility: 70% grading ability, 5.6 km/h high-speed travel, 2750mm tight tail swing radius</li>
 <li>Ready to Work: Factory-spec fuel, hydraulic, and cooling systems fully serviced for immediate operation</li>
</ul>

Fast-track your project timeline with this turnkey excavator positioned in China's

Built in 2021, this Doosan DL420 wheel loader delivers proven performance with the backing of one of the industry's most reliable brands. Powered by a robust 210 kW engine producing 1,275 N·m of torque, this machine handles demanding material handling operations with an 8,000 kg rated load and 3.9 m³ bucket capacity. Operating weight of 21,900 kg ensures stability during loading cycles, while the 3,085 mm unloading height and 1,285 mm reach optimize truck loading efficiency.

Doosan's global parts network and strong resale value make this DL420 a smart investment in the used equipment market. With maximum digging force of 20 kN and tractive force of 21.4 kN, this loader tackles heavy-duty applications across construction, mining, and aggregate operations. The 40 km/h maximum speed enhances productivity on larger job sites, supported by generous fuel (367 L) and hydraulic (265 L) tank capacities for extended operation.

Currently located in Wenzhou, Zhejiang, this machine represents dependable Doosan engineering with documented service history and readily available replacement parts worldwide.

Doosan DL420

With a Cummins QSM11(Tier2) engine delivering 250 kW of power, this 2021 XCMG LW800K loader is a robust choice for demanding tasks. Located in 浙江温州, it offers a maximum torque of 1647 N.m at 1400 rpm, ensuring reliable performance. The machine boasts a bucket capacity of 4.5 m³ and a rated load of 8000 kg, making it ideal for heavy-duty operations. Its digging force of 260 kN and maximum tractive force of 245 kN enhance its efficiency on the job site. Weighing 28500 kg, this loader features an unloading height of 3400 mm and an unloading distance of 1400 mm at a 45° angle, facilitating versatile use. Equipped with a 420 L fuel tank, it ensures long operational hours. This used XCMG LW800K is a smart investment, offering high performance at a fraction of the cost of a new model.

XCMG LW800K

Proven in demanding conditions since 2011, this Kobelco SK260 excavator represents over a decade of reliable performance in the field. Operating at 26 tons with traditional power systems, this backhoe-equipped machine has established itself as a dependable workhorse for contractors who prioritize longevity and consistent output. Built by a joint venture manufacturer to exacting standards, the SK260 combines robust engineering with practical functionality that stands the test of time.

<ul>
<li>26-ton operating capacity for versatile mid-range excavation work</li>
<li>Traditional power system ensures straightforward maintenance and parts availability</li>
<li>Backhoe configuration ideal for trenching, foundation work, and general earthmoving</li>
<li>Joint venture/Import build quality with proven durability in global markets</li>
<li>Currently located in Dezhou, Shandong, ready for inspection</li>
</ul>

With more than ten years demonstrating its structural integrity and mechanical resilience, this SK260 offers value-conscious buyers a machine that has already proven its ability to deliver. Ideal for operations requiring dependable performance without compromise.

Kobelco SK260

Proven performance meets long-term value in this 2019 Sany SY195C excavator, currently located in Lianyungang, Jiangsu. Operating at 19 tons with a robust 118kW engine delivering 580 N·m of maximum torque, this machine combines serious digging force (138kN bucket, 103kN arm) with the reliability that has made Sany China's leading heavy equipment manufacturer. With a maximum digging reach of 10,280mm and depth capabilities to 6,600mm, it handles demanding excavation tasks while maintaining fuel efficiency through its 340L tank and proven 4M50 engine technology.

Choosing a used Sany means investing in smart economics. Parts availability throughout China and expanding global networks ensures minimal downtime, while Sany's strong resale values protect your capital investment. The SY195C's 0.8-1.1m³ bucket capacity and 5.4km/h travel speed deliver productivity that competing brands struggle to match at this price point.

<ul>
<li>Working weight: 20,900kg with superior stability</li>
<li>Hydraulic system: 239L tank for consistent performance</li>
<li>Transport dimensions: 9,680mm × 2,800mm × 3,440mm</li>
<li>Climbing ability: 70% (35°) grade capability</li>
<li>Backed by China's largest equipment manufacturer</li>
</ul>

Sany SY195C

Built to endure the toughest job sites, this 2020 Komatsu PC300 excavator stands as a proven workhorse in the heavy equipment industry. Operating at 30 tons with traditional power systems, this machine combines the reliability of joint venture manufacturing with field-tested performance that professionals demand. Currently located in Guilin, Guangxi, this backhoe-equipped excavator has demonstrated exceptional durability through consistent operation, proving Komatsu's reputation for engineering excellence.

<ul>
<li>Year: 2020</li>
<li>Model: Komatsu PC300</li>
<li>Operating Weight: 30 tons</li>
<li>Power Type: Traditional power</li>
<li>Configuration: Backhoe attachment</li>
<li>Manufacturing: Joint venture/Import quality</li>
<li>Current Location: Guilin, Guangxi, China</li>
</ul>

Engineered for longevity and built to last, the PC300 delivers consistent productivity across excavation, trenching, and material handling applications. Its proven track record in demanding conditions makes this excavator a dependable investment for contractors seeking reliable performance without compromise.

Komatsu PC300

Proven performance meets rock-solid reliability in this 2017 Sany SY195C excavator, now available from our Jiangsu location. With a 19-ton operating weight and 118kW rated power from its dependable 4M50 engine, this workhorse has demonstrated exceptional durability through years of demanding fieldwork. Built to withstand tough conditions, it delivers 138kN bucket digging force and reaches a maximum digging depth of 6,600mm, making it ideal for medium to heavy-duty excavation projects.

<ul>
 <li>Operating Weight: 20,900 kg</li>
 <li>Engine: 4M50, 118kW @ 2000 rpm</li>
 <li>Bucket Capacity: 0.8-1.1 m³</li>
 <li>Max Digging Reach: 10,280 mm</li>
 <li>Max Digging Depth: 6,600 mm</li>
 <li>Climbing Ability: 70% (35°)</li>
 <li>Fuel Tank: 340 L</li>
</ul>

Manufactured in China with Sany's reputation for quality engineering, this machine represents outstanding value for contractors seeking dependable equipment with a proven track record. Contact Fair Trade Machinery today for detailed specifications and availability.

Built in 2016, this PC200-7 represents Komatsu's proven engineering legacy in the 20-ton excavator class. Powered by the reliable SAA6D102E-2 engine delivering 107 kW, this machine combines a 0.8 m³ bucket capacity with 149 kN bucket digging force to handle demanding earthmoving operations. With a maximum digging depth of 5,380 mm and reach extending to 9,380 mm, it offers versatility across construction and infrastructure projects.

Komatsu's global parts network ensures minimal downtime—critical for used equipment buyers. As a joint-venture manufactured unit, this excavator maintains strong resale value thanks to the brand's reputation for durability and widespread dealer support. Currently located in Jiangsu, China, the PC200-7 features robust hydraulics with dual 214 l/min main pumps and a 400-liter fuel capacity for extended work cycles.

Key Specifications:
<ul>
<li>Operating weight: 20,253 kg with water-cooled 5.9L engine</li>
<li>Transport dimensions: 9,480 × 3,000 × 2,985 mm</li>
<li>Maximum digging height: 9,800 mm</li>
<li>Variable piston pump hydraulic system</li>
</ul>

Komatsu PC200-7

Built for high-capacity earthmoving operations, this 2016 Caterpillar 973D track loader delivers 196 kW of CAT C9 ACERT power to handle demanding excavation, grading, and material handling tasks. Currently located in Anhui, this machine arrives site-ready with a proven drivetrain and robust hydraulic system designed for continuous production work.

<ul>
 <li>3.21 m³ bucket capacity moves maximum material per cycle</li>
 <li>28,058 kg operating weight provides stability during heavy digging and grading</li>
 <li>5,521 kg rated load handles oversized materials efficiently</li>
 <li>3,138 mm maximum unloading height clears standard haul trucks</li>
 <li>346 L/min hydraulic flow ensures responsive bucket and blade control</li>
 <li>2,930 mm track ground length distributes weight for 85.5 kPa ground pressure</li>
 <li>621 L fuel capacity supports extended shifts without refueling delays</li>
</ul>

Equipped with water-cooled 8.8 L displacement engine and 275-bar hydraulic system, this 973D performs reliably in demolition, site preparation, and bulk excavation applications. Machine is available for immediate deployment to your project.

Caterpillar 973D

Engineered with precision hydraulics and proven powertrain technology, this 2019 XCMG XE200 delivers consistent 20-ton performance for demanding excavation work. Built by a joint venture manufacturer combining international standards with robust construction, the XE200 features a traditional power system optimized for fuel efficiency and torque delivery across extended duty cycles. Advanced hydraulic circuitry ensures smooth bucket control and rapid cycle times, while the backhoe configuration provides versatility for trenching, loading, and general earthmoving applications.

<ul>
<li>20-ton operating weight for stable digging force</li>
<li>Traditional power system with proven reliability</li>
<li>Joint venture engineering quality and build standards</li>
<li>Precision hydraulic controls for operator efficiency</li>
<li>Backhoe-equipped for multiple applications</li>
<li>Currently located in Guilin, Guangxi</li>
</ul>

Designed for contractors requiring dependable mid-size excavation capacity, this XE200 represents XCMG's commitment to technical excellence in the 20-ton class. Comprehensive hydraulic systems and quality manufacturing ensure long-term productivity on infrastructure, commercial, and civil engineering projects

XCMG XE200

Built for precision and control, this 2018 XCMG XE210 crawler excavator delivers 21 tons of stable operating weight with exceptional visibility from the operator's station. Powered by a reliable ISUZU BB-6BG1TRP-01 engine producing 103kW at 1950rpm, this machine combines responsive hydraulics with ergonomic design for extended shift comfort. The spacious cabin provides commanding sightlines across the 9,930mm maximum digging radius, while dual variable pumps and plunger hydraulic motors ensure smooth, predictable movements during precise grading or heavy excavation work.

<ul>
 <li>Operating weight: 21,500kg with 0.91m³ backhoe bucket capacity</li>
 <li>Maximum digging depth: 6,605mm | Maximum reach: 9,930mm</li>
 <li>ISUZU 6.494L water-cooled engine, 4-cylinder configuration</li>
 <li>13.3rpm rotation speed for controlled positioning</li>
 <li>70% (35°) gradeability with 485mm ground clearance</li>
 <li>138kN bucket digging force for challenging materials</li>
 <li>360L fuel tank and 240L hydraulic reservoir for full-day operation</li>
 <li>Currently located in Sichuan, China—ready for global export</li>
</ul>

XCMG XE210

Built for demanding excavation work, this 2019 Sany SY205C-10 delivers 21 tons of operational power with a robust 0.93 m³ backhoe bucket. Equipped with a proven 4M50 engine generating 118 kW at 2000 rpm and 580 Nm of torque, this machine handles deep trenching, foundation work, and material loading with confidence. Bucket digging force reaches 148 kN while arm digging force delivers 107 kN—providing the muscle needed for dense soil and challenging ground conditions.

Currently located in Zhejiang Shaoxing, this excavator is site-ready and fully operational. Ground pressure of just 47.6 kPa minimizes surface damage while maintaining stability across varied terrain. With a 70% climbing ability and dual travel speeds (5.4/3.3 km/h), productivity remains high whether navigating slopes or repositioning between dig zones.

<ul>
<li>Working weight: 21,500 kg</li>
<li>Rotation speed: 11 rpm for efficient cycle times</li>
<li>Traditional power configuration</li>
<li>Made in China with proven reliability</li>
</ul>

Ready to deploy on your next excavation, grading, or demolition project.

Sany SY205C-10

Proven reliability meets exceptional value in this 2019 Hitachi ZX210K excavator, currently located in Shaoxing, Zhejiang. Operating in the versatile 21-ton class, this joint venture/import machine delivers consistent performance backed by Hitachi's global reputation for engineering excellence. Traditional power systems ensure straightforward maintenance and compatibility with standard fuel infrastructure across international markets.

<ul>
<li>Year: 2019</li>
<li>Model: Hitachi ZX210K</li>
<li>Operating Weight: 21 tons</li>
<li>Power Type: Traditional power</li>
<li>Configuration: Backhoe</li>
<li>Origin: Joint venture/Import</li>
<li>Location: Shaoxing, Zhejiang, China</li>
</ul>

Hitachi excavators command strong resale values due to widespread parts availability and dealer networks spanning six continents. This ZX210K represents a strategic investment for contractors seeking dependable equipment with predictable ownership costs. Factory backhoe configuration suits general earthmoving, foundation work, and utility installation. Contact Fair Trade Machinery today for detailed specifications, inspection repo

Hitachi ZX210K

Acquire proven power without the premium price tag. This 2021 Sany SY375H excavator delivers 37-ton performance with minimal operating hours, offering exceptional value for contractors seeking reliable productivity. Powered by a robust GH-6HK1XKSC engine generating 212kW at 2000rpm, this machine handles demanding excavation tasks with 235kN bucket digging force and a maximum digging depth of 7,155mm. Currently located in Zhejiang Shaoxing, China, it represents a smart alternative to new equipment purchases—providing professional-grade capabilities at a fraction of replacement cost.

<ul>
<li>Operating Weight: 37,500kg with 1.9m³ standard bucket capacity</li>
<li>Performance Specs: 10,750mm maximum digging radius, 9,920mm maximum excavation height</li>
<li>Engine: Water-cooled 6-cylinder turbocharged diesel, 7.79L displacement, 1,080N·m maximum torque</li>
<li>Efficiency Features: 540L fuel tank, 5.5km/h travel speed, 70% climbing ability</li>
<li>Transport Dimensions: 11,425mm length × 3,190mm width × 3,825mm height</li>
</ul>

Invest strategically in late-model heavy equipment that maintains warranty-era reliability while significantly reduc

Sany SY375H

Available now in Zhejiang Shaoxing, this 2012 Kobelco SK350-8 excavator eliminates factory wait times and gets your project moving immediately. Operating at 35 tons with a 34,900 kg working weight, this joint venture/import machine delivers reliable traditional power for demanding earthmoving operations. Skip the months-long procurement process—this backhoe-equipped unit is inspection-ready and positioned for fast deployment to your site.

<ul>
<li>Year: 2012</li>
<li>Model: Kobelco SK350-8</li>
<li>Operating Weight: 34,900 kg (35-ton class)</li>
<li>Power Type: Traditional diesel</li>
<li>Configuration: Backhoe</li>
<li>Origin: Joint venture/Import</li>
<li>Current Location: Zhejiang Shaoxing, China</li>
</ul>

Reduce downtime with immediate acquisition. This SK350-8 offers proven Kobelco engineering and hydraulic efficiency, ready for infrastructure, mining, or large-scale civil works. Logistics coordination from Shaoxing ensures rapid delivery across domestic and international destinations. Secure this machine today and maintain your project timeline without compromise.

Kobelco SK350-8

Built for demanding excavation work, this 2019 Sany SY365C delivers 36 tons of operational power across construction, demolition, and grading applications. Equipped with a robust backhoe attachment and traditional power system, this Chinese-manufactured machine handles deep trenching, foundation excavation, and material handling with consistent performance. Currently positioned in Shaoxing, Zhejiang, it arrives site-ready with proven reliability for contractors requiring immediate deployment.

<ul>
 <li>36-ton operating weight for stable digging and lifting operations</li>
 <li>Traditional power configuration ensures straightforward maintenance and fuel availability</li>
 <li>Backhoe bucket optimized for trenching, foundation work, and precision excavation</li>
 <li>2019 model year with documented operational history</li>
 <li>Made in China by Sany, a globally recognized heavy equipment manufacturer</li>
 <li>Available in Shaoxing, Zhejiang for inspection and immediate acquisition</li>
</ul>

Contractors seeking a mid-range excavator for infrastructure projects, site preparation, or demolition work will find this SY365C ready to integrate into existing fleets. Contact Fair Trade Machinery to arrange equipment inspection

Sany SY365C

Powered by a robust 118kW engine delivering peak torque at 2000rpm, this 2023 Sany SY205C represents precision engineering in the 20-ton excavator class. The hydraulic system generates exceptional digging forces—138kN bucket force and 109kN arm force—enabling efficient material handling across demanding jobsites. Operating at 21,500kg working weight with optimized 47.3kPa ground pressure, this machine balances power with terrain adaptability.

Engineered for performance, the SY205C offers:
<ul>
<li>Maximum digging reach of 10,280mm with 6,600mm depth capability</li>
<li>0.9-1.1m³ backhoe bucket capacity for versatile applications</li>
<li>Dual-speed travel system: 5.4km/h transport, 3.3km/h precision work</li>
<li>70% gradeability (35°) with 11rpm rotation speed for productivity</li>
<li>Compact 2,900mm rear swing radius for confined spaces</li>
<li>600mm track plates on 2,380mm gauge ensuring stability</li>
</ul>

Currently located in Hunan, China, this traditionally-powered excavator combines Sany's manufacturing excellence with proven mechanical reliability. Transport dimensions of 9,680×2,980×3,440mm facilitate logistical efficiency worldwide.

Specifications	Value
No.	1036276
Tonnage (tons)	23
Working weight (kg)	23300
Bucket capacity (m³)	1.19
Boom length (mm)	5700
Rod length (mm)	2900
Country of origin	Japan
power	Traditional power
manufacturer	Joint venture/Import
bucket	backhoe

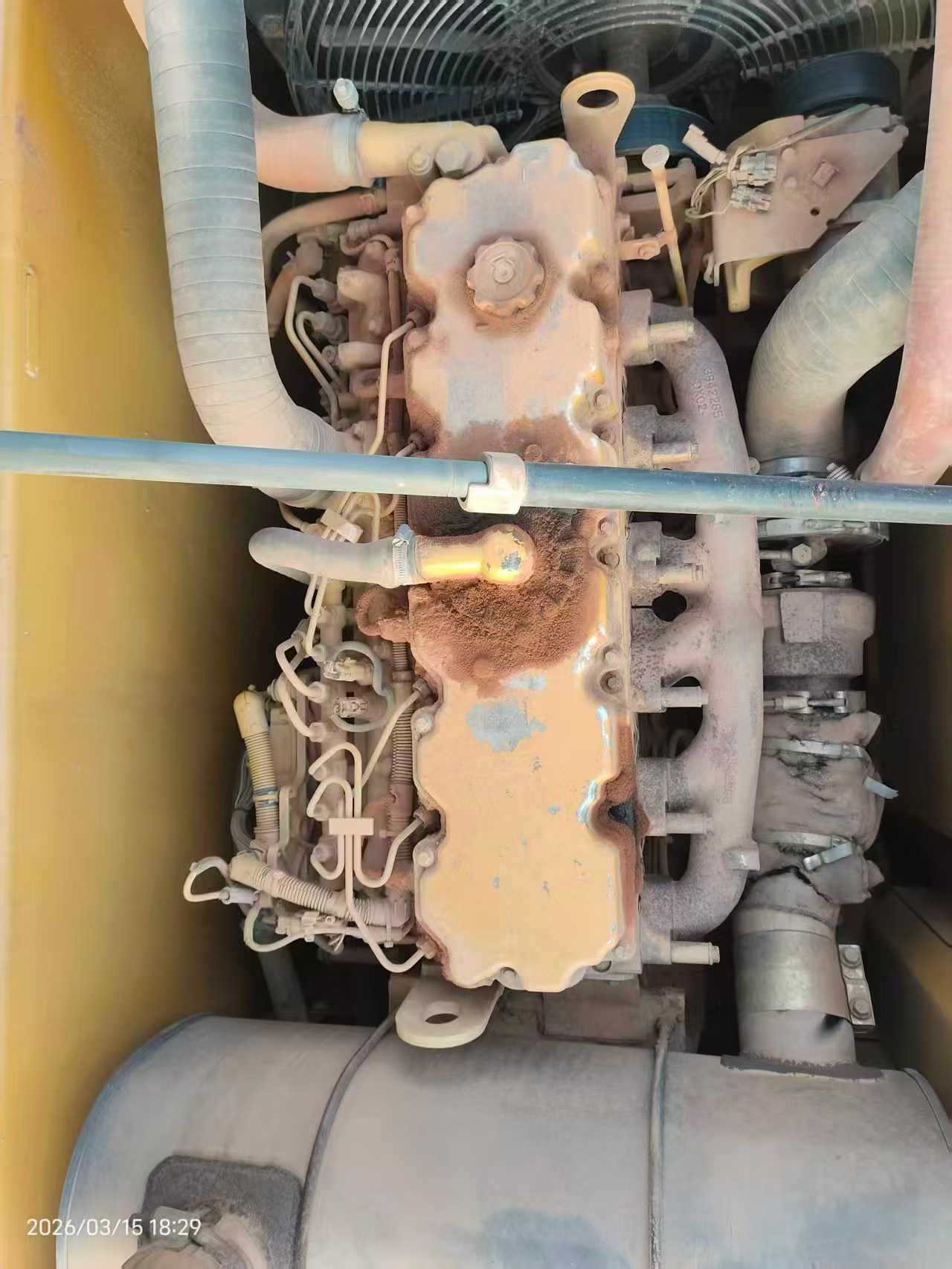

Engine type	Cat C7.1 ACERT
Rated power (kw/rpm)	118/1100
Cylinder diameter × stroke (mm)	105 x 135
Number of cylinders (PCS)	6
Displacement (L)	7.01
Rotation speed (rpm)	10.5
Climbing ability (%)	70/35 °
Bucket digging force (kN)	140
Rod digging force (kN)	107
Maximum tractive force (kN)	205
Travel speed (km/h)	Low: 3.5 / High: 5.6
Turning torque (Nm)	61.8
Main overflow set pressure (Mpa)	35
Maximum flow of main pump (l/min)	214 x 2
Traveling Hydraulic Circuit (Mpa)	35
Rotary Hydraulic Circuit (Mpa)	25
Hydraulic crushing pipeline is standard	no
Working Hydraulic Circuit (Mpa)	35
Pilot Oil Circuit (MPa)	3.92
Pilot pump flow (L/min)	23.1
Bucket cylinders - Number × diameter × stroke (mm)	120 x 1104
Bucket rod cylinders - Number × diameter × stroke (mm)	140 x 1504
Boom cylinders - Number × diameter × stroke (mm)	120 x 1260
Fuel Tank (L)	410
Hydraulic Tank (L)	138
Engine Oil changes (L)	22
Coolant (L)	25
Hydraulic System (L)	260(including fuel tank)
Total transport length (mm)	9460
Total transport width (mm)	2980
Total transport height (mm)	3030
Full cab height (mm)	2950
Counterweight ground clearance (mm)	1020
Minimum ground clearance (mm)	450
Back end turning radius (mm)	2750
Onboard width (mm)	2740

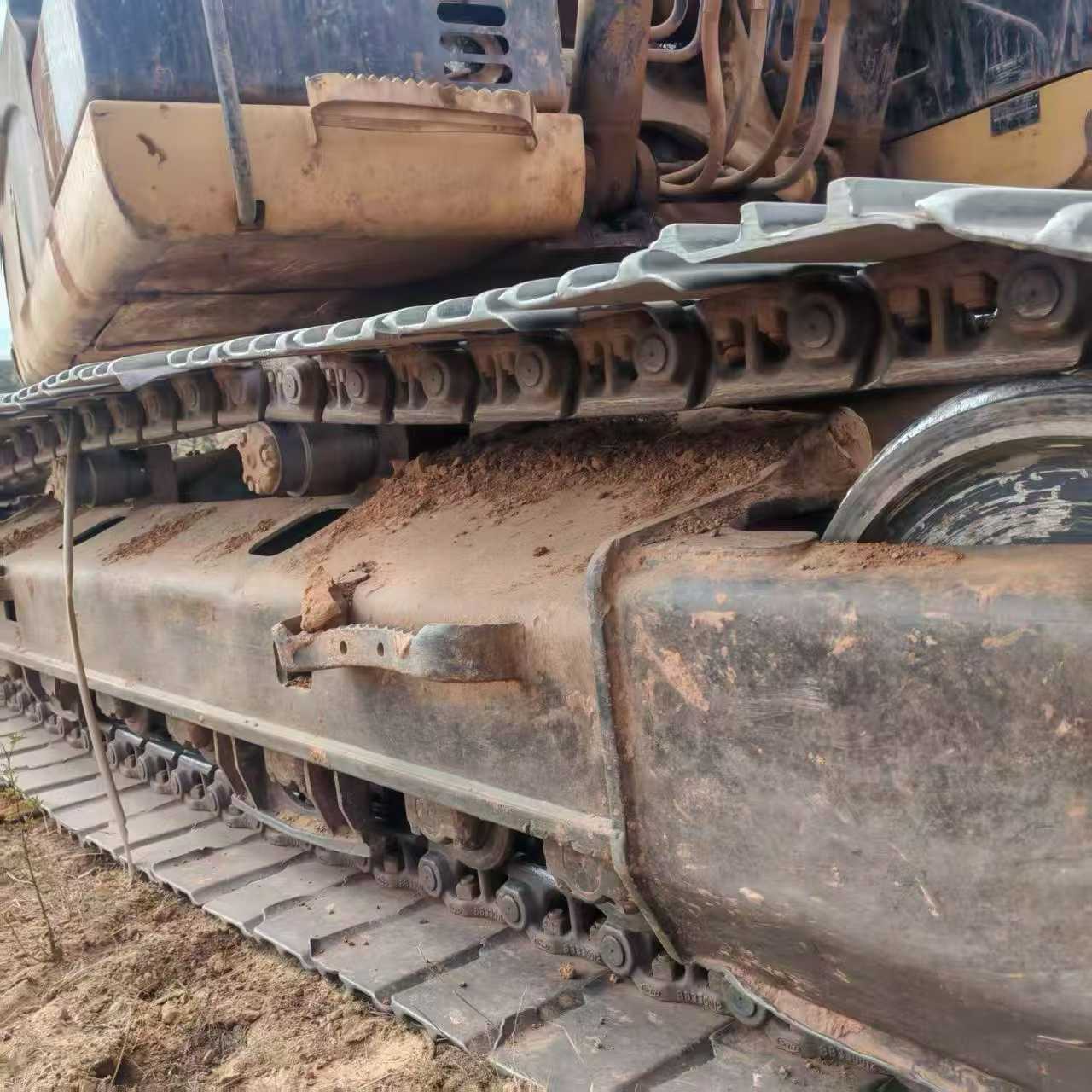

Total track length (mm)	4455
Track gauge (mm)	2380
Track plate width (mm)	600
Total track width (mm)	3180
Track ground length (mm)	3650
Maximum digging depth (mm)	6720
Maximum excavation height (mm)	9490
Maximum unloading height (mm)	6490
Maximum vertical digging depth (mm)	5690
Bulldozer lift or depth (mm)	No bulldozer
Dodging plate width × height (mm)	No bulldozer
Maximum excavation radius of stop surface (mm)	9860
Maximum effective digging depth (mm)	6380

2013 Caterpillar 323D2L
