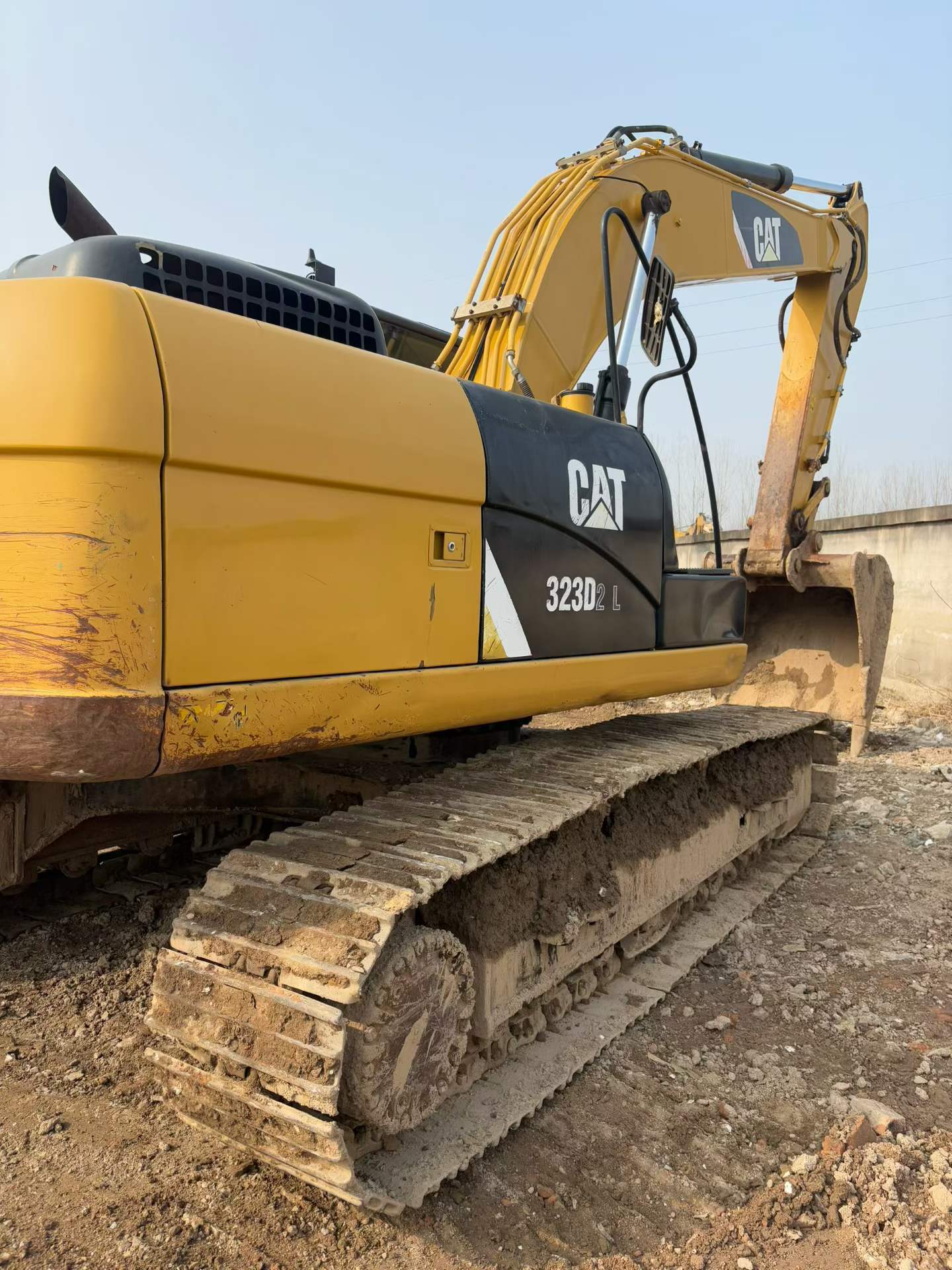

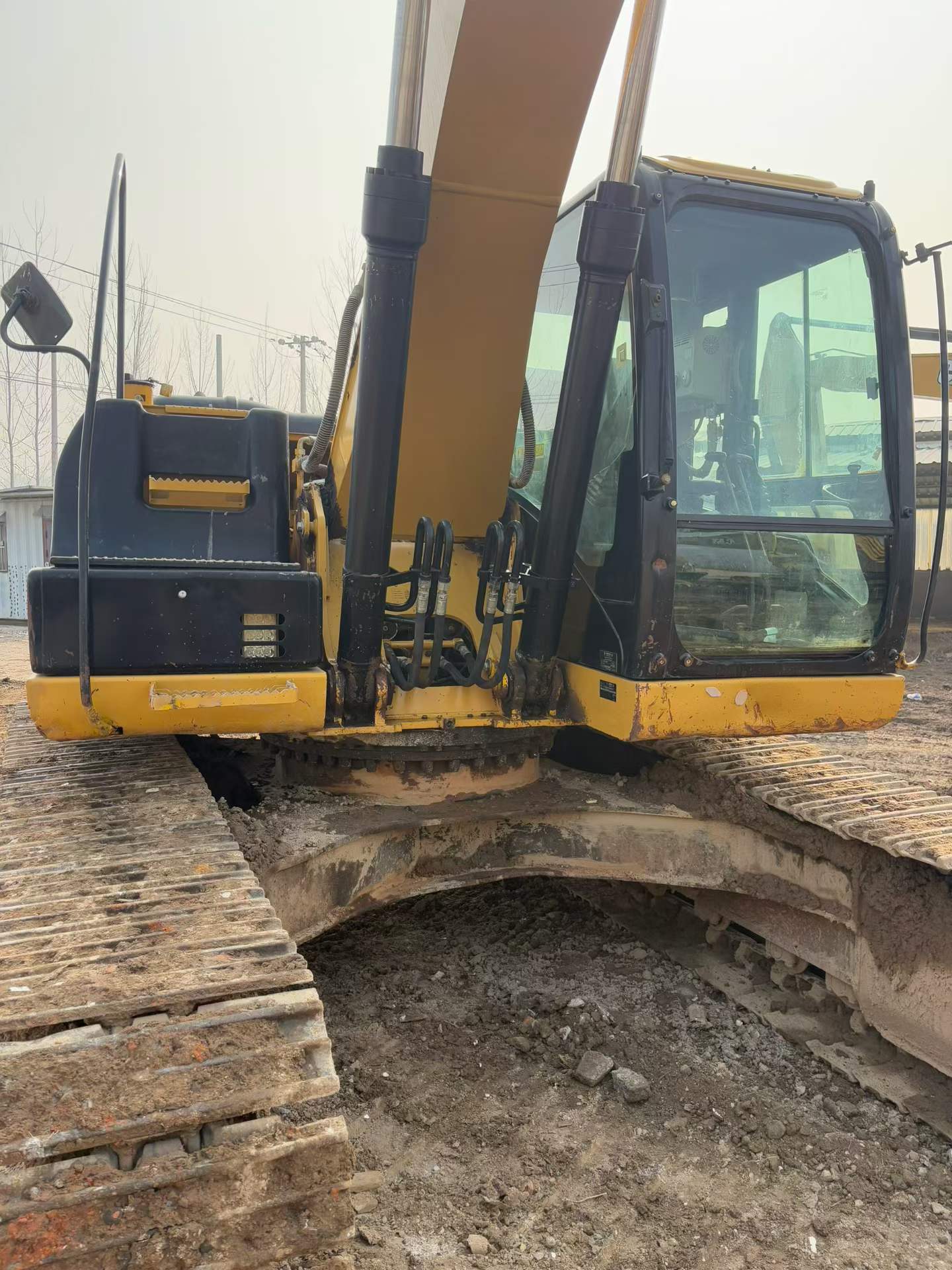

2014 Caterpillar 323D2L
Product Description
Available now in Xuzhou, Jiangsu, this 2014 Caterpillar 323D2L hydraulic excavator delivers immediate deployment without factory wait times. Powered by a Cat C7.1 ACERT engine producing 118 kW at 1100 rpm, this 23-ton workhorse combines proven Japanese engineering with joint venture reliability. Fast-track your project timeline with a machine ready for immediate site delivery.
- Operating weight: 23,300 kg with 1.19 m³ bucket capacity
- Maximum digging depth of 6,720 mm and reach of 9,860 mm

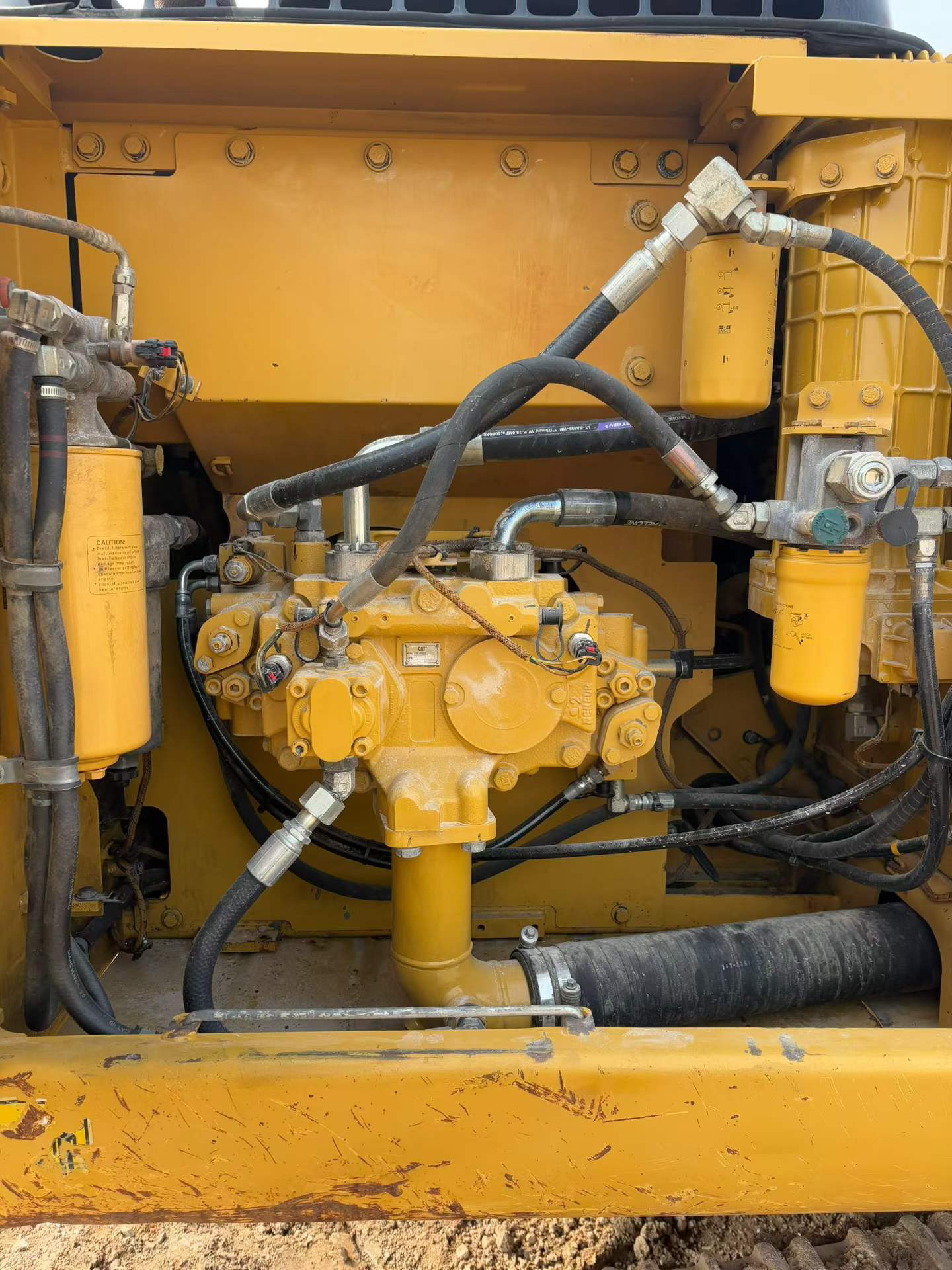

- Dual main pumps delivering 214 L/min each for responsive hydraulics
- Bucket digging force: 140 kN; arm digging force: 107 kN
- Travel speeds: 3.5 km/h (low) / 5.6 km/h (high)
- 410 L fuel capacity for extended operation cycles
- Compact transport dimensions: 9,460 mm × 2,980 mm × 3,030 mm
Skip the lead times. Located in Xuzhou's industrial hub, this excavator offers immediate acquisition for contractors demanding performance and availability. Contact us today for rapid deployment to your construction site.
| Specifications | Value |
|---|---|
| No. | 1004847 |
| Tonnage (tons) | 23 |
| Working weight (kg) | 23300 |
| Bucket capacity (m³) | 1.19 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2900 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

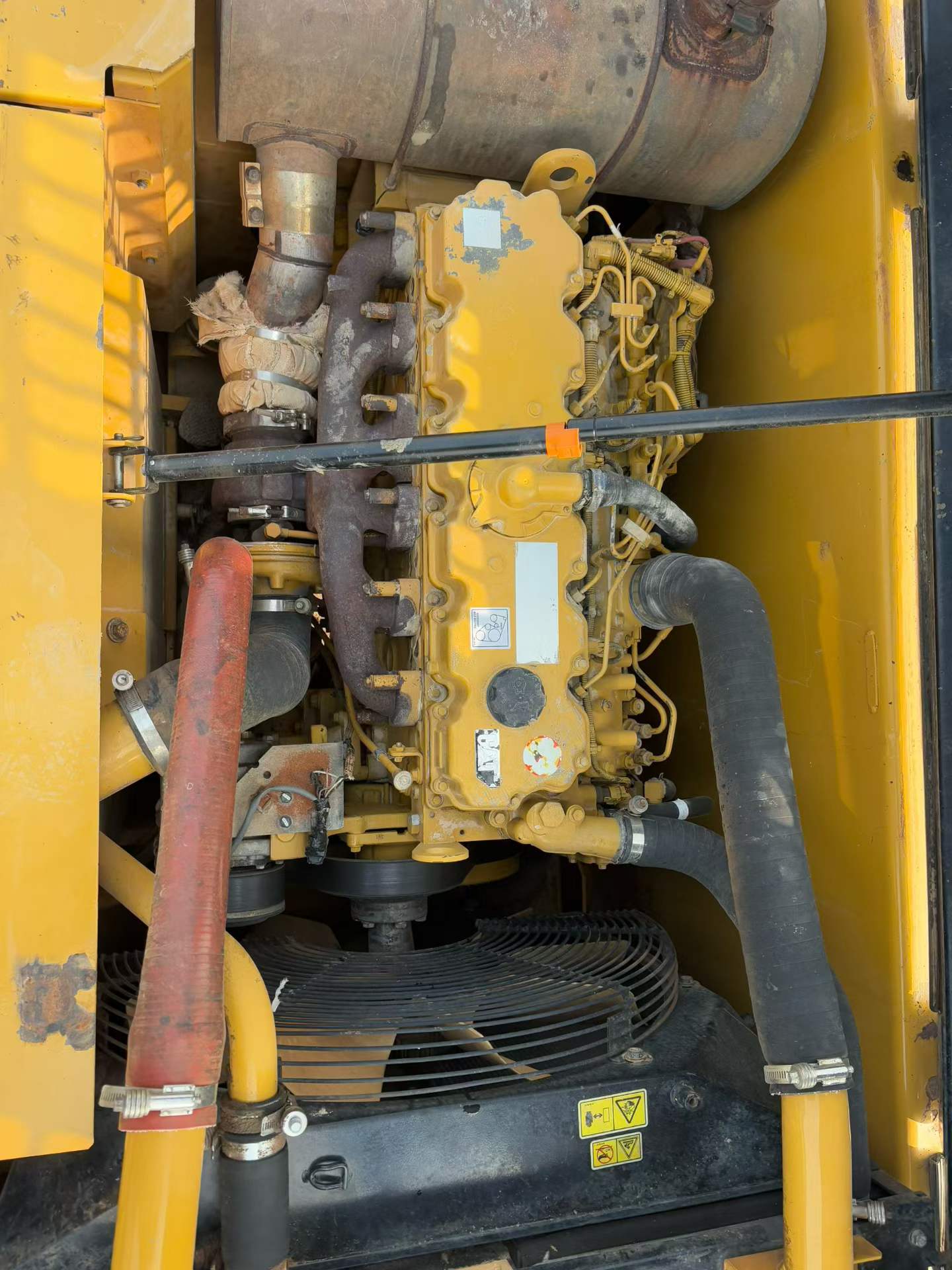

| Engine type | Cat C7.1 ACERT |
| Rated power (kw/rpm) | 118/1100 |
| Cylinder diameter × stroke (mm) | 105 x 135 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.01 |
| Rotation speed (rpm) | 10.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 140 |
| Rod digging force (kN) | 107 |
| Maximum tractive force (kN) | 205 |
| Travel speed (km/h) | Low: 3.5 / High: 5.6 |
| Turning torque (Nm) | 61.8 |
| Main overflow set pressure (Mpa) | 35 |
| Maximum flow of main pump (l/min) | 214 x 2 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 25 |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 35 |
| Pilot Oil Circuit (MPa) | 3.92 |
| Pilot pump flow (L/min) | 23.1 |
| Bucket cylinders - Number × diameter × stroke (mm) | 120 x 1104 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 140 x 1504 |
| Boom cylinders - Number × diameter × stroke (mm) | 120 x 1260 |
| Fuel Tank (L) | 410 |
| Hydraulic Tank (L) | 138 |
| Engine Oil changes (L) | 22 |
| Coolant (L) | 25 |
| Hydraulic System (L) | 260(including fuel tank) |
| Total transport length (mm) | 9460 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3030 |
| Full cab height (mm) | 2950 |
| Counterweight ground clearance (mm) | 1020 |
| Minimum ground clearance (mm) | 450 |
| Back end turning radius (mm) | 2750 |
| Onboard width (mm) | 2740 |

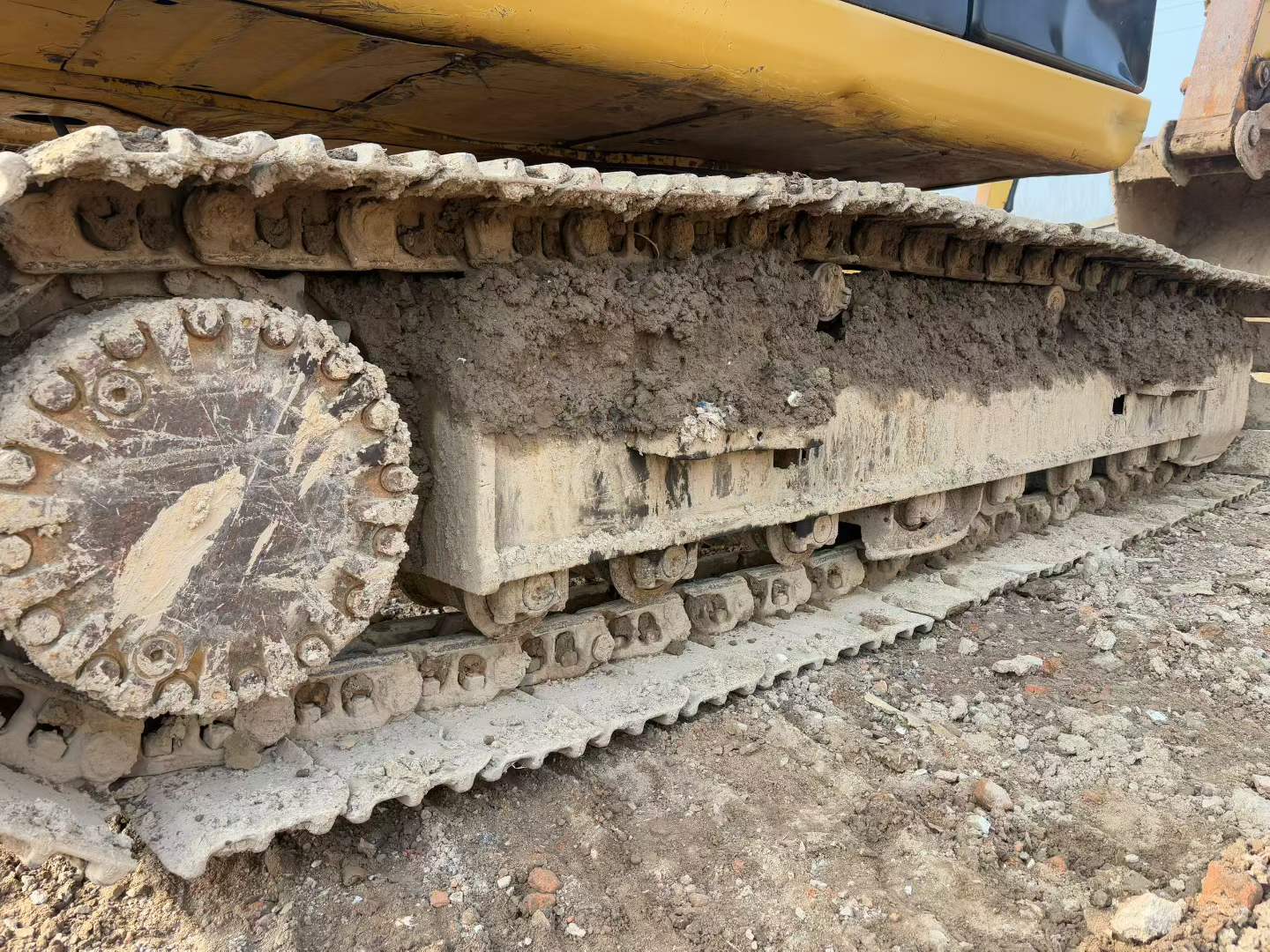

| Total track length (mm) | 4455 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3180 |
| Track ground length (mm) | 3650 |
| Maximum digging depth (mm) | 6720 |
| Maximum excavation height (mm) | 9490 |
| Maximum unloading height (mm) | 6490 |
| Maximum vertical digging depth (mm) | 5690 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 9860 |
| Maximum effective digging depth (mm) | 6380 |
see more
Overview
No.1004847
Brand Name：
CaterpillarModel Number：
323D2LYear：
2014
Location：
Jiangsu China
