2014 Caterpillar 323D2L
Product Description
Built for serious excavation work, this 2014 Caterpillar 323D2L delivers 23 tons of proven performance on demanding job sites. Powered by a Cat C7.1 ACERT engine producing 118 kW at 1100 rpm, this machine handles deep trenching, foundation work, and heavy material handling with authority. Maximum digging depth reaches 6,720 mm while the 9,860 mm excavation radius covers extensive working areas without repositioning.
Hydraulic power backs every operation with dual main pumps flowing 214 liters per minute each, driving 140 kN bucket digging force and 107 kN rod digging force through robust cylinders. Track-mounted stability on 600 mm plates supports confident work on slopes up to 70% grade, while 5.6 km/h high-speed travel moves efficiently between cuts.
- Operating weight: 23,300 kg with 1.19 m³ bucket capacity
- Boom reach: 5,700 mm boom, 2,900 mm stick configuration
- Reliable Cat C7.1 engine: 7.01L displacement, 6-cylinder design
- Transport dimensions: 9,460 × 2,980 × 3,030 mm
- Currently located in Kunming, Yunnan
Ready for immediate deployment on excavation, grading, or demolition projects requiring dependable mid-size capacity.
| Specifications | Value |
|---|---|
| No. | 1014937 |
| Tonnage (tons) | 23 |
| Working weight (kg) | 23300 |
| Bucket capacity (m³) | 1.19 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2900 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

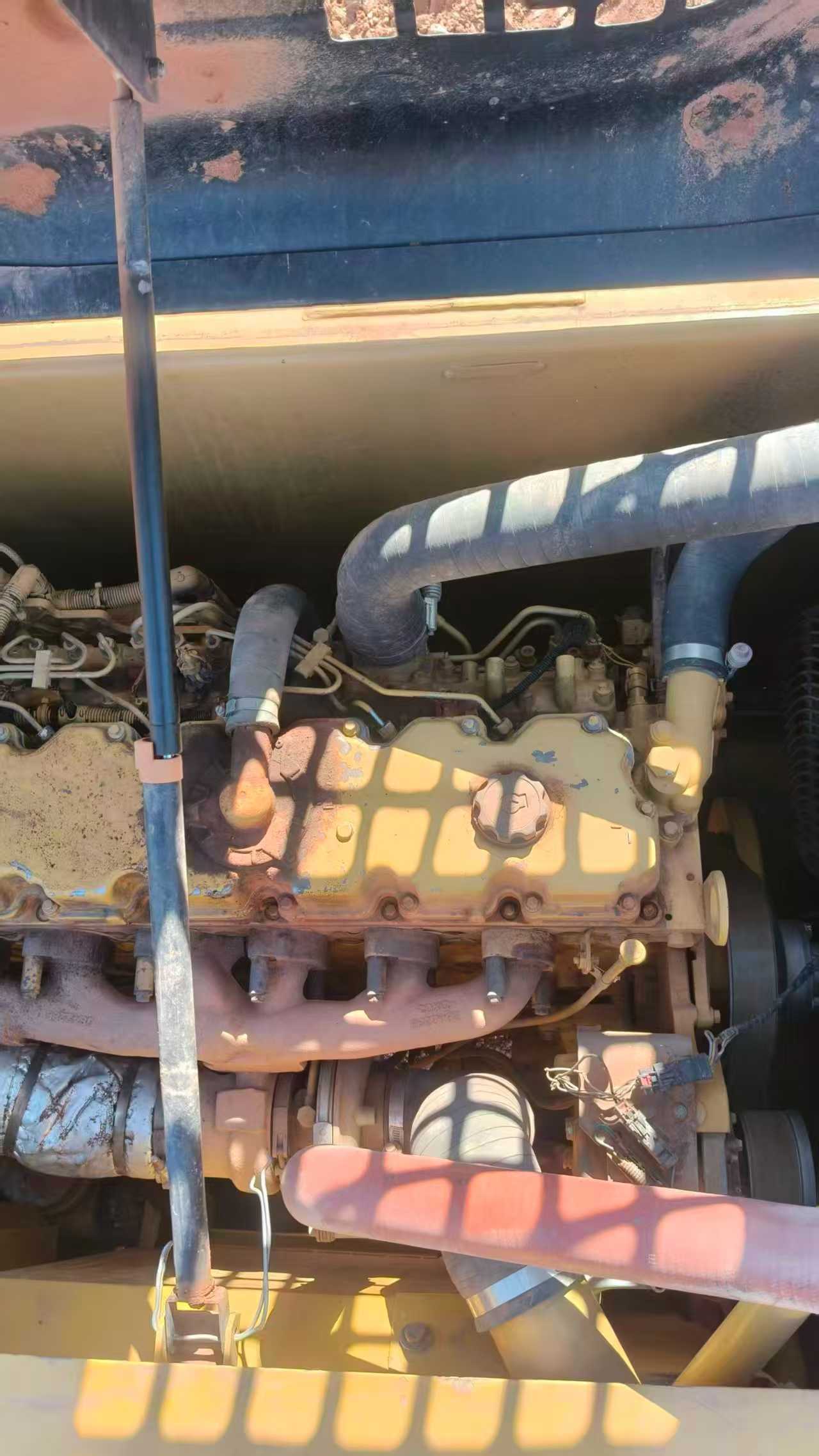

| Engine type | Cat C7.1 ACERT |
| Rated power (kw/rpm) | 118/1100 |
| Cylinder diameter × stroke (mm) | 105 x 135 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.01 |
| Rotation speed (rpm) | 10.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 140 |
| Rod digging force (kN) | 107 |
| Maximum tractive force (kN) | 205 |
| Travel speed (km/h) | Low: 3.5 / High: 5.6 |
| Turning torque (Nm) | 61.8 |
| Main overflow set pressure (Mpa) | 35 |
| Maximum flow of main pump (l/min) | 214 x 2 |
| Traveling Hydraulic Circuit (Mpa) | 35 |

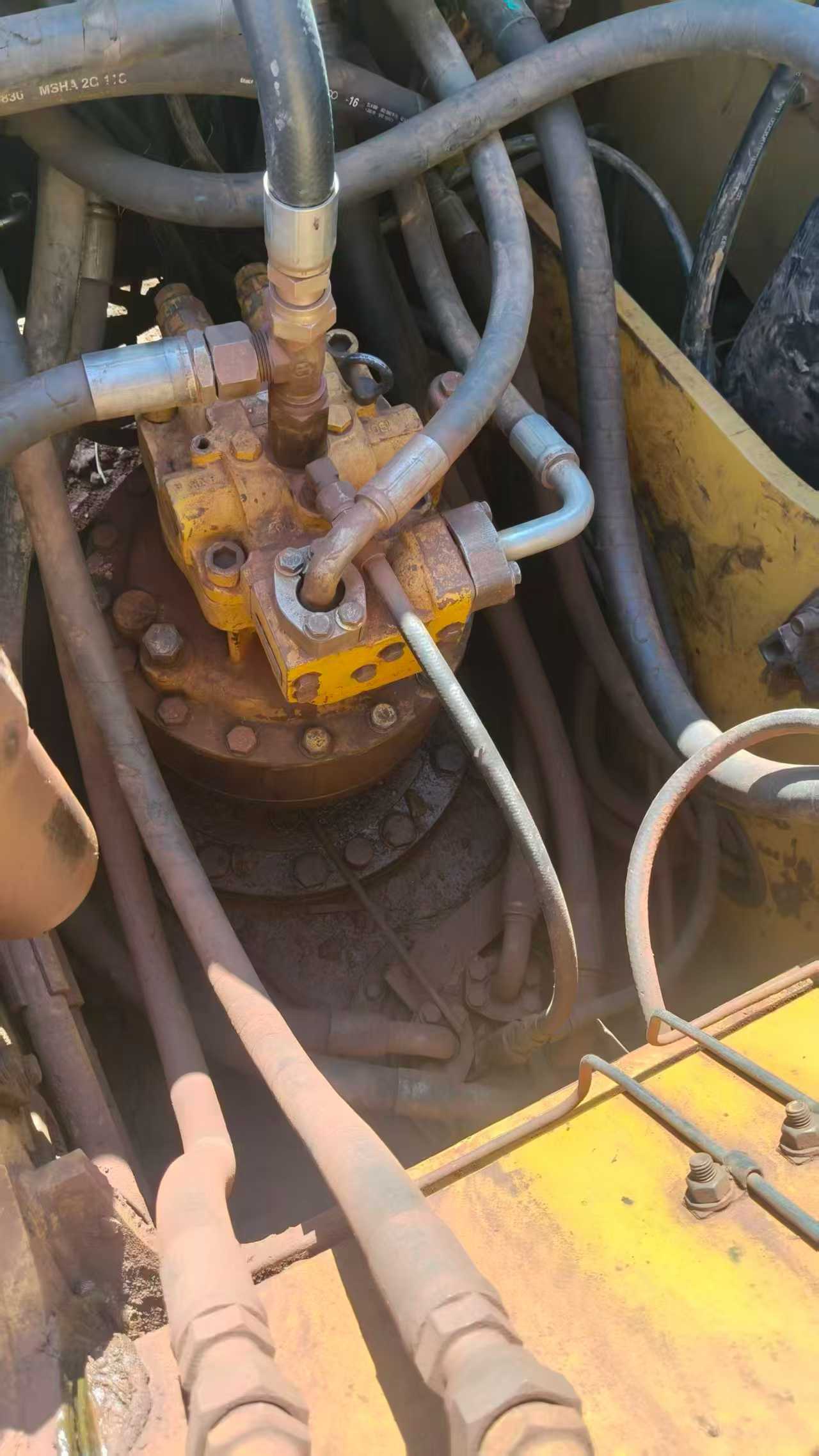

| Rotary Hydraulic Circuit (Mpa) | 25 |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 35 |
| Pilot Oil Circuit (MPa) | 3.92 |
| Pilot pump flow (L/min) | 23.1 |
| Bucket cylinders - Number × diameter × stroke (mm) | 120 x 1104 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 140 x 1504 |
| Boom cylinders - Number × diameter × stroke (mm) | 120 x 1260 |
| Fuel Tank (L) | 410 |
| Hydraulic Tank (L) | 138 |
| Engine Oil changes (L) | 22 |
| Coolant (L) | 25 |
| Hydraulic System (L) | 260(including fuel tank) |
| Total transport length (mm) | 9460 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3030 |
| Full cab height (mm) | 2950 |
| Counterweight ground clearance (mm) | 1020 |
| Minimum ground clearance (mm) | 450 |
| Back end turning radius (mm) | 2750 |
| Onboard width (mm) | 2740 |

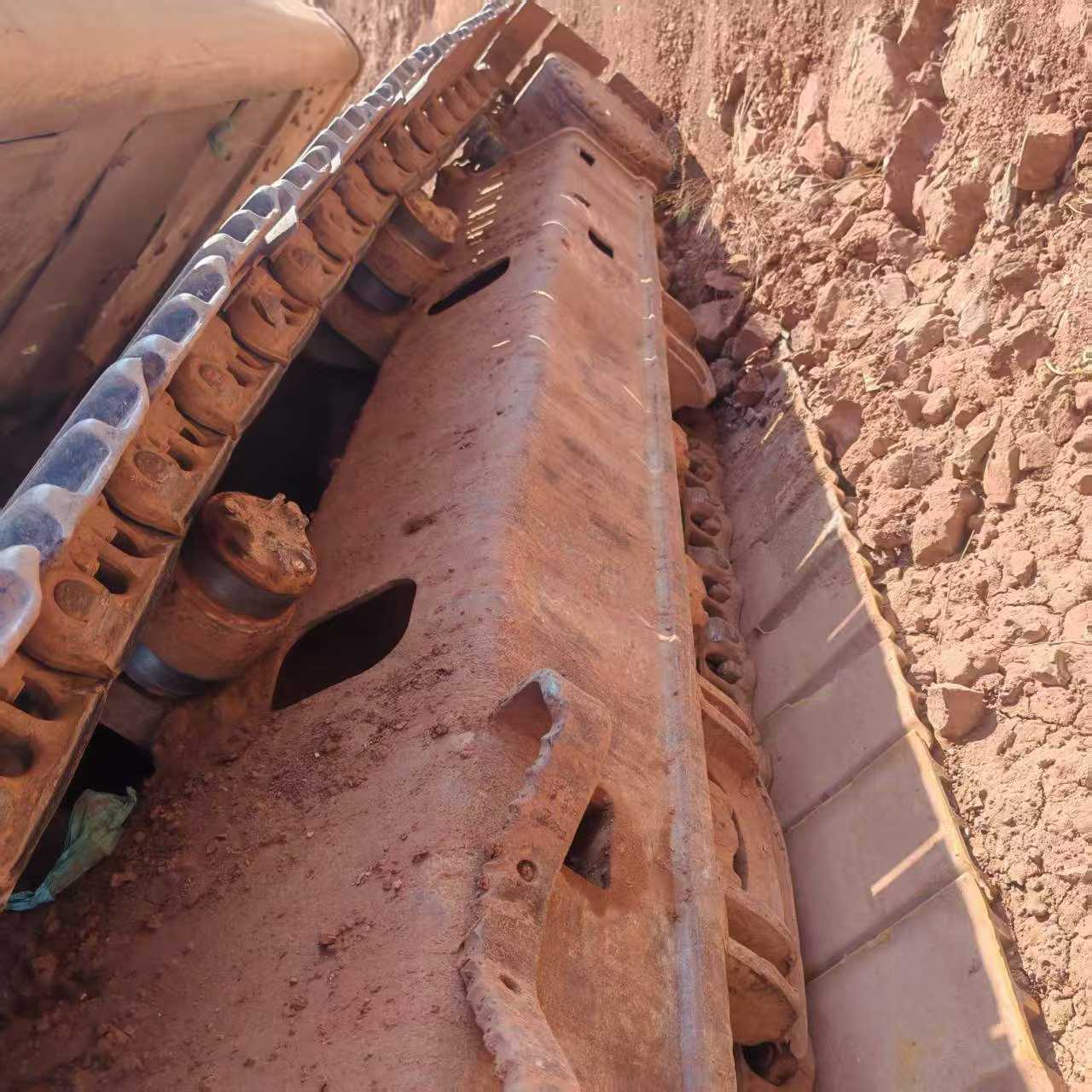

| Total track length (mm) | 4455 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3180 |
| Track ground length (mm) | 3650 |
| Maximum digging depth (mm) | 6720 |
| Maximum excavation height (mm) | 9490 |
| Maximum unloading height (mm) | 6490 |
| Maximum vertical digging depth (mm) | 5690 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 9860 |
| Maximum effective digging depth (mm) | 6380 |
Overview
No.1014937
Brand Name：
CaterpillarModel Number：
323D2LYear：
2014
Location：
Yunnan China
Pub Date：
