2014 Caterpillar 323D2L
Product Description

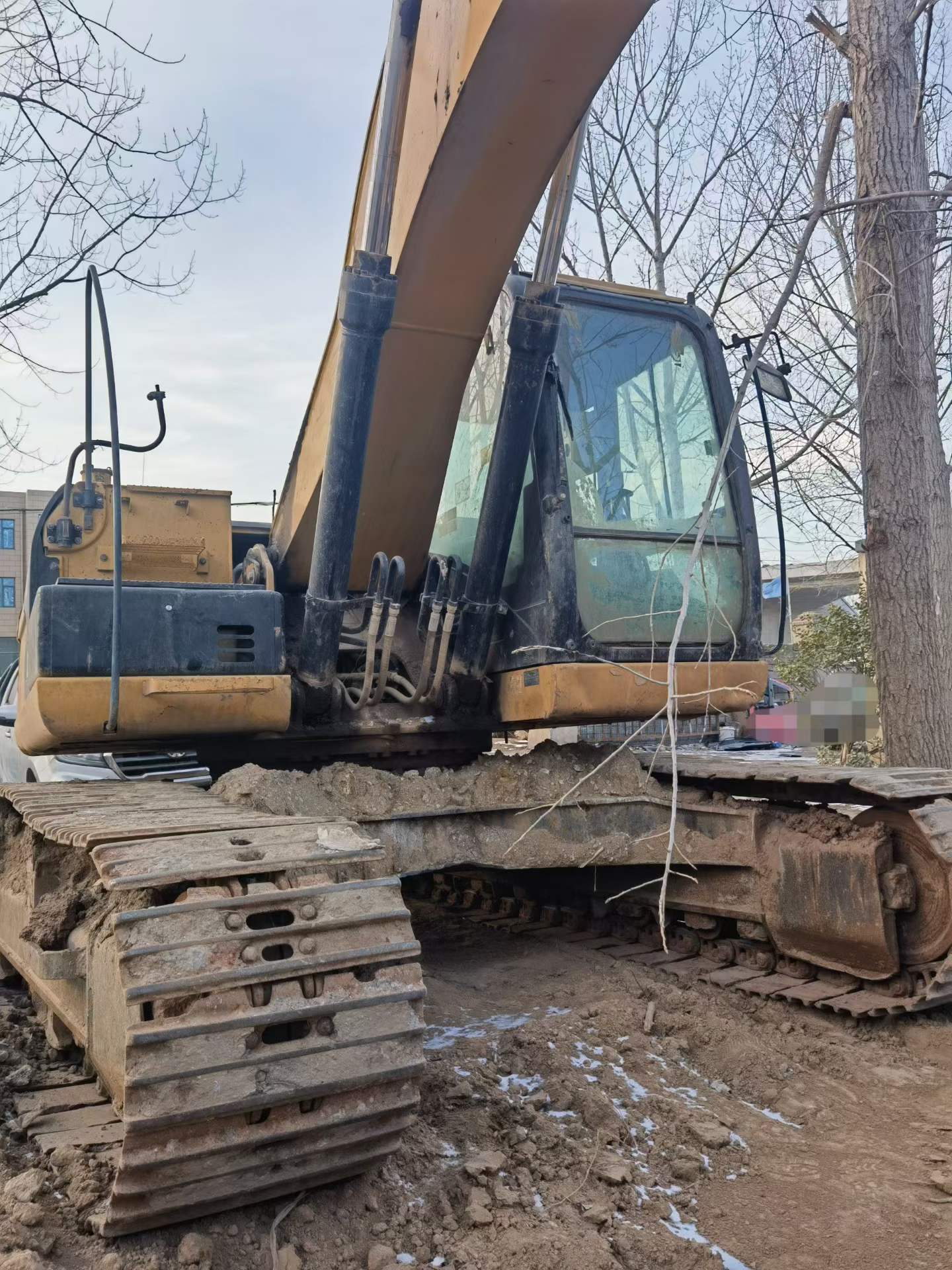

Strengthen your fleet with this 2014 Caterpillar 323D2L excavator, currently located in Shandong. Operating at 23 tons with a robust Cat C7.1 ACERT engine delivering 118 kW at 1100 rpm, this machine provides the reliable performance contractors demand when primary equipment is deployed elsewhere. Its 1.19 m³ bucket capacity and 6,720 mm maximum digging depth handle a wide range of earthmoving tasks efficiently.

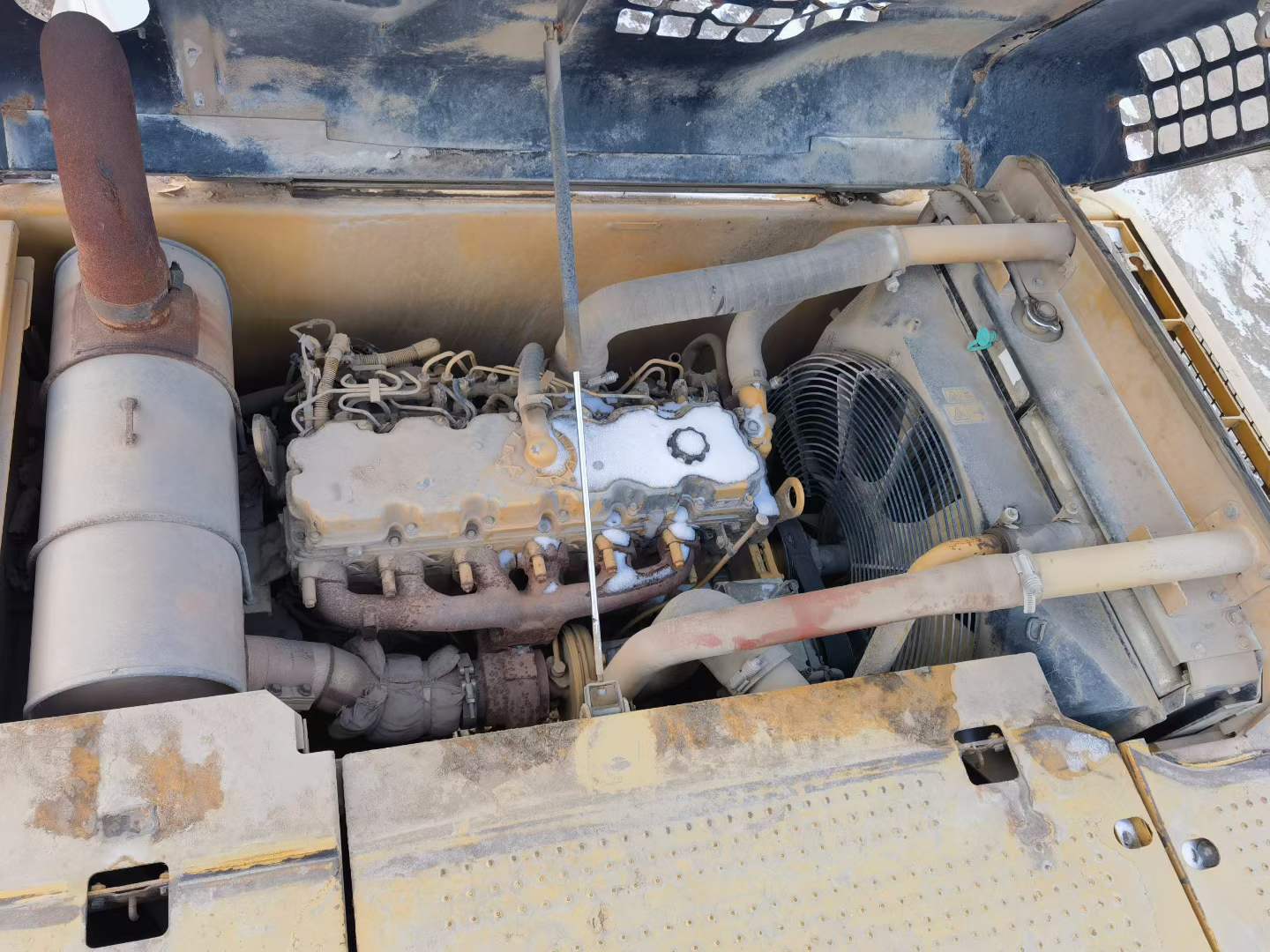

- Proven Cat C7.1 ACERT engine with 7.01L displacement for consistent power delivery
- Impressive 9,860 mm maximum excavation radius extends operational reach

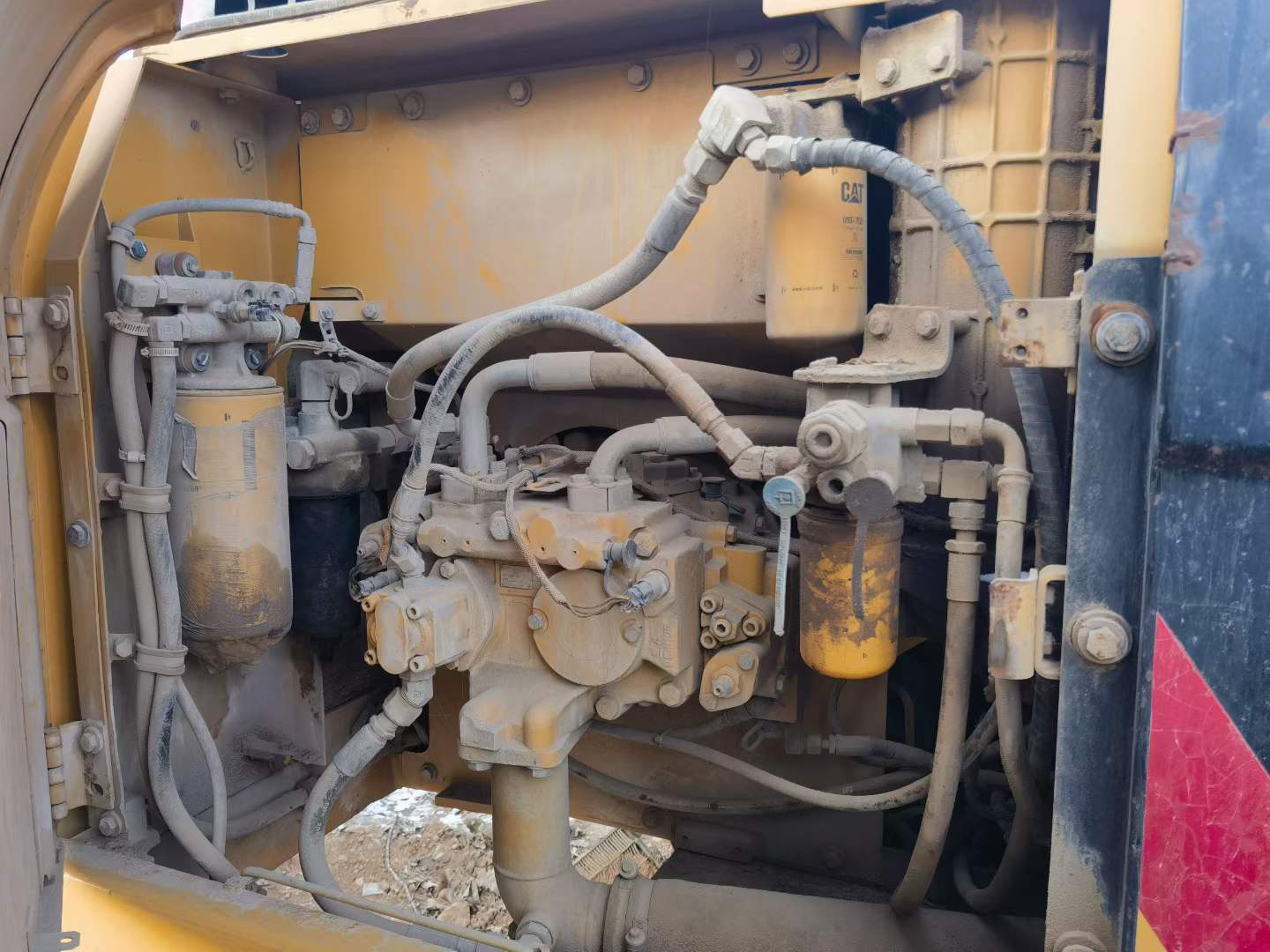

- Dual main pumps flowing 214 L/min each ensure responsive hydraulic performance
- 140 kN bucket digging force tackles demanding soil conditions
- Compact 2,750 mm rear turning radius improves maneuverability on congested sites
- 5,700 mm boom and 2,900 mm arm configuration balances reach and breakout force
Built through joint venture manufacturing with Japanese engineering standards, this 323D2L integrates seamlessly into existing Caterpillar fleets. With 410L fuel capacity and established service support, it minimizes downtime while maximizing productivity across multiple job sites simultaneousl
| Specifications | Value |
|---|---|
| No. | 994222 |
| Tonnage (tons) | 23 |
| Working weight (kg) | 23300 |
| Bucket capacity (m³) | 1.19 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2900 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Cat C7.1 ACERT |
| Rated power (kw/rpm) | 118/1100 |
| Cylinder diameter × stroke (mm) | 105 x 135 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.01 |
| Rotation speed (rpm) | 10.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 140 |
| Rod digging force (kN) | 107 |
| Maximum tractive force (kN) | 205 |
| Travel speed (km/h) | Low: 3.5 / High: 5.6 |
| Turning torque (Nm) | 61.8 |
| Main overflow set pressure (Mpa) | 35 |
| Maximum flow of main pump (l/min) | 214 x 2 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 25 |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 35 |
| Pilot Oil Circuit (MPa) | 3.92 |
| Pilot pump flow (L/min) | 23.1 |
| Bucket cylinders - Number × diameter × stroke (mm) | 120 x 1104 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 140 x 1504 |
| Boom cylinders - Number × diameter × stroke (mm) | 120 x 1260 |
| Fuel Tank (L) | 410 |
| Hydraulic Tank (L) | 138 |
| Engine Oil changes (L) | 22 |
| Coolant (L) | 25 |
| Hydraulic System (L) | 260(including fuel tank) |
| Total transport length (mm) | 9460 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3030 |
| Full cab height (mm) | 2950 |
| Counterweight ground clearance (mm) | 1020 |
| Minimum ground clearance (mm) | 450 |
| Back end turning radius (mm) | 2750 |
| Onboard width (mm) | 2740 |
| Total track length (mm) | 4455 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3180 |
| Track ground length (mm) | 3650 |
| Maximum digging depth (mm) | 6720 |
| Maximum excavation height (mm) | 9490 |
| Maximum unloading height (mm) | 6490 |
| Maximum vertical digging depth (mm) | 5690 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 9860 |
| Maximum effective digging depth (mm) | 6380 |
Overview
No.994222
Brand Name：
CaterpillarModel Number：
323D2LYear：
2014
Location：
Shandong China
Pub Date：
