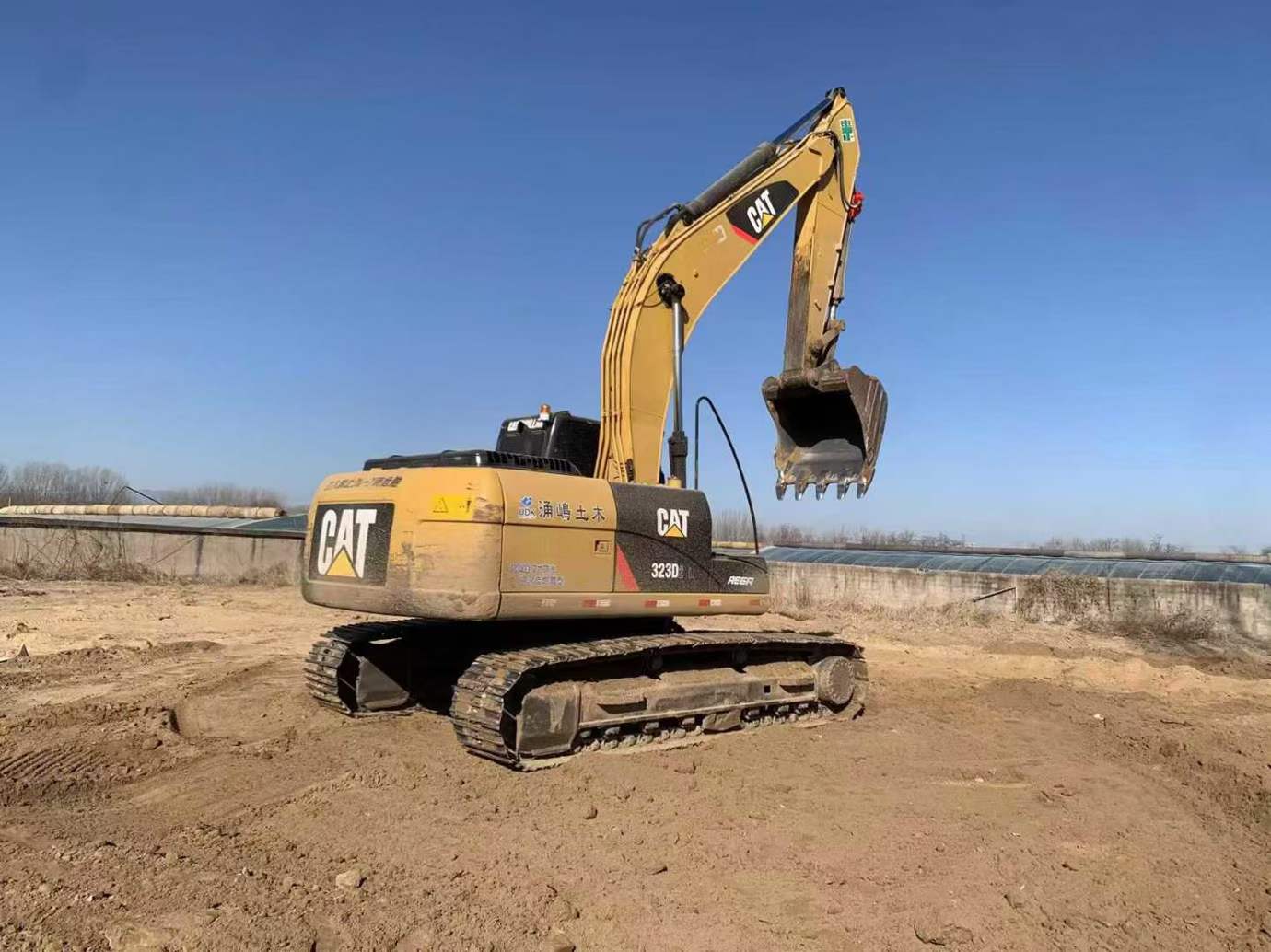

2016 Caterpillar 323D2L
Product Description
Built to endure the toughest jobsites, this 2016 Caterpillar 323D2L stands as a proven workhorse in the 23-ton excavator class. Powered by the reliable Cat C7.1 ACERT engine delivering 118 kW at 1100 rpm, this machine combines robust performance with exceptional fuel efficiency. With a 1.19 m³ bucket capacity and impressive digging forces of 140 kN (bucket) and 107 kN (rod), it tackles demanding excavation tasks with confidence.
Key specifications demonstrate its capability:
- Maximum digging depth: 6,720 mm with 9,860 mm reach at ground level
- Operating weight: 23,300 kg for superior stability
- Dual main pumps: 214 L/min each for responsive hydraulic performance
- 70% gradeability (35°) for challenging terrain
- Travel speeds: 3.5 km/h (low) / 5.6 km/h (high)
Currently located in Beijing, this Japanese-manufactured excavator represents Caterpillar's commitment to durability and long-term reliability. Years of proven service validate its construction quality, making it a dependable choice for contractors seeking a battle-tested machine that continues to deliver consistent results.
| Specifications | Value |
|---|---|
| No. | 1007326 |
| Tonnage (tons) | 23 |
| Working weight (kg) | 23300 |
| Bucket capacity (m³) | 1.19 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2900 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Cat C7.1 ACERT |
| Rated power (kw/rpm) | 118/1100 |
| Cylinder diameter × stroke (mm) | 105 x 135 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.01 |
| Rotation speed (rpm) | 10.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 140 |
| Rod digging force (kN) | 107 |
| Maximum tractive force (kN) | 205 |
| Travel speed (km/h) | Low: 3.5 / High: 5.6 |
| Turning torque (Nm) | 61.8 |
| Main overflow set pressure (Mpa) | 35 |
| Maximum flow of main pump (l/min) | 214 x 2 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 25 |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 35 |
| Pilot Oil Circuit (MPa) | 3.92 |
| Pilot pump flow (L/min) | 23.1 |
| Bucket cylinders - Number × diameter × stroke (mm) | 120 x 1104 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 140 x 1504 |
| Boom cylinders - Number × diameter × stroke (mm) | 120 x 1260 |
| Fuel Tank (L) | 410 |
| Hydraulic Tank (L) | 138 |
| Engine Oil changes (L) | 22 |
| Coolant (L) | 25 |
| Hydraulic System (L) | 260(including fuel tank) |
| Total transport length (mm) | 9460 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3030 |
| Full cab height (mm) | 2950 |
| Counterweight ground clearance (mm) | 1020 |
| Minimum ground clearance (mm) | 450 |
| Back end turning radius (mm) | 2750 |
| Onboard width (mm) | 2740 |
| Total track length (mm) | 4455 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3180 |
| Track ground length (mm) | 3650 |
| Maximum digging depth (mm) | 6720 |
| Maximum excavation height (mm) | 9490 |
| Maximum unloading height (mm) | 6490 |
| Maximum vertical digging depth (mm) | 5690 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 9860 |
| Maximum effective digging depth (mm) | 6380 |
Overview
No.1007326
Brand Name：
CaterpillarModel Number：
323D2LYear：
2016
Location：
Peking China
Pub Date：
