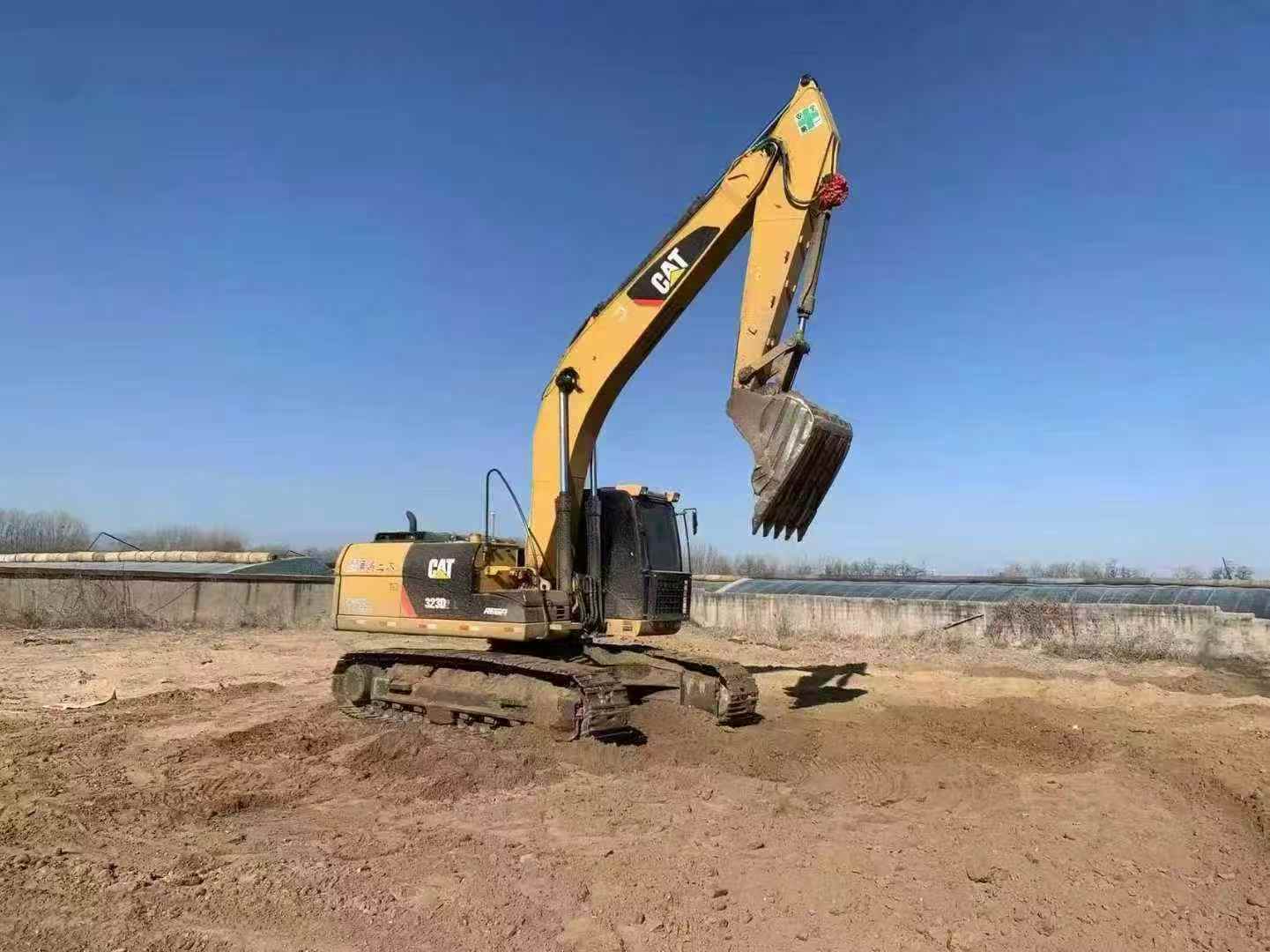

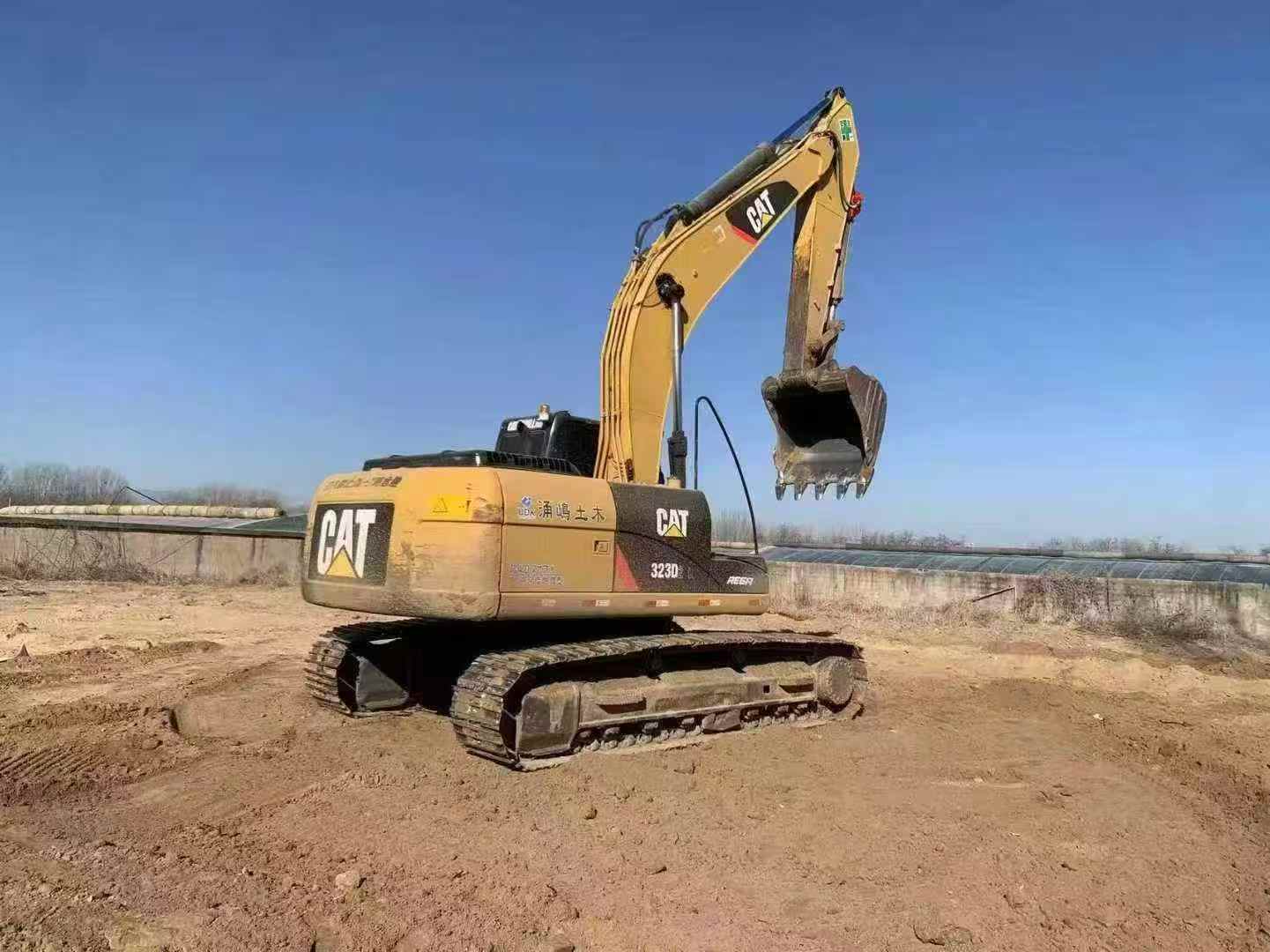

2016 Caterpillar 323D2L
Product Description
Commanding a 23-ton workhorse from Hebei, operators benefit from the refined ergonomics and proven stability of this 2016 Caterpillar 323D2L excavator. Powered by the Cat C7.1 ACERT engine delivering 118 kW at 1100 rpm, this machine combines responsive hydraulics with exceptional control precision. Dual main pumps supply 214 L/min each, ensuring smooth simultaneous functions across boom, arm, and bucket operations.
Operator-focused features include:

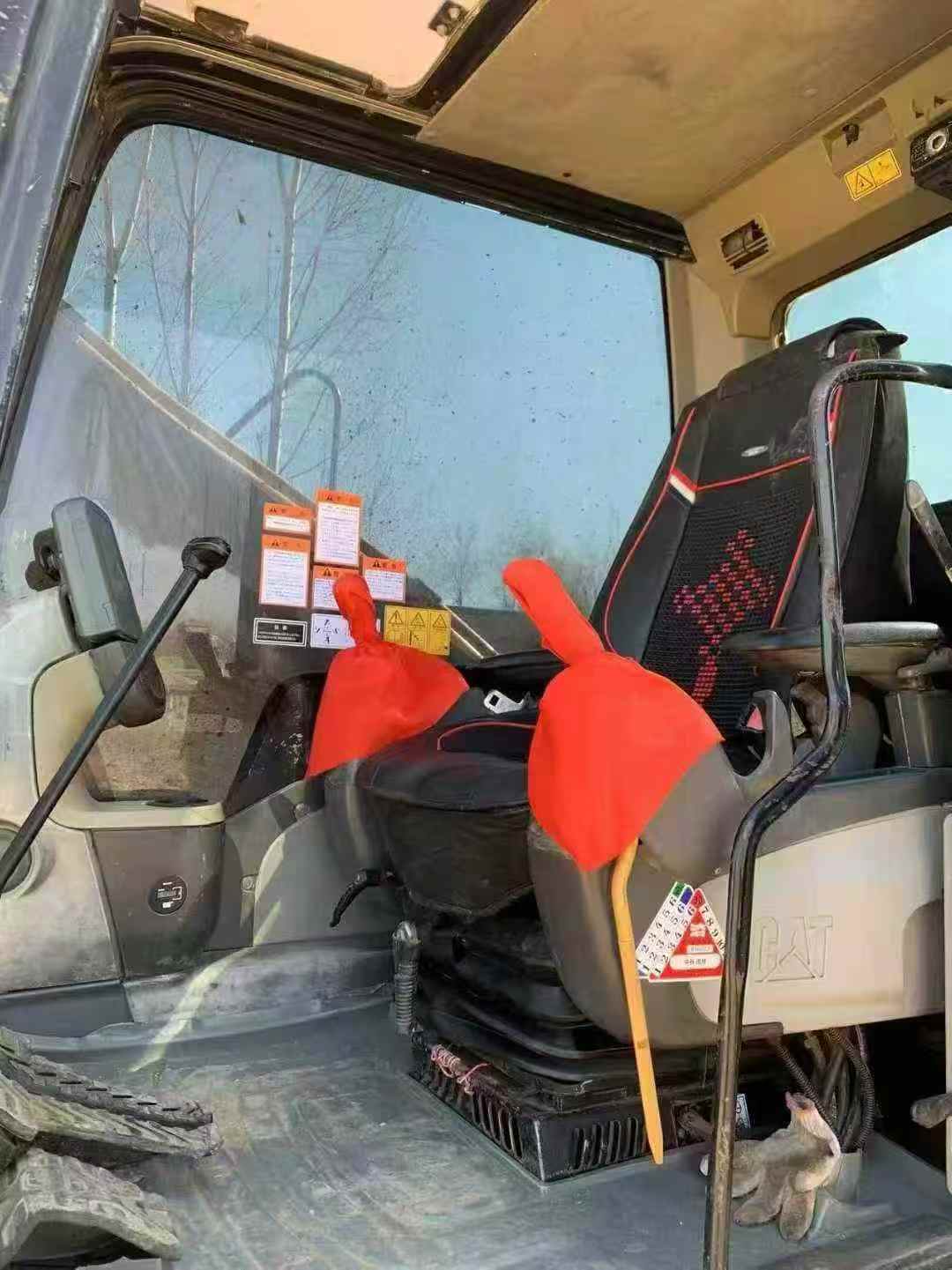

- Spacious cab design with panoramic visibility for enhanced site awareness
- 10.5 rpm rotation speed enabling precise positioning around obstacles
- Stable 2380 mm track gauge with 600 mm-wide shoes for secure footing on varied terrain
- Intuitive pilot controls operating at 3.92 MPa for reduced fatigue during extended shifts
- Impressive 70% (35°) climbing ability maintaining traction on challenging grades

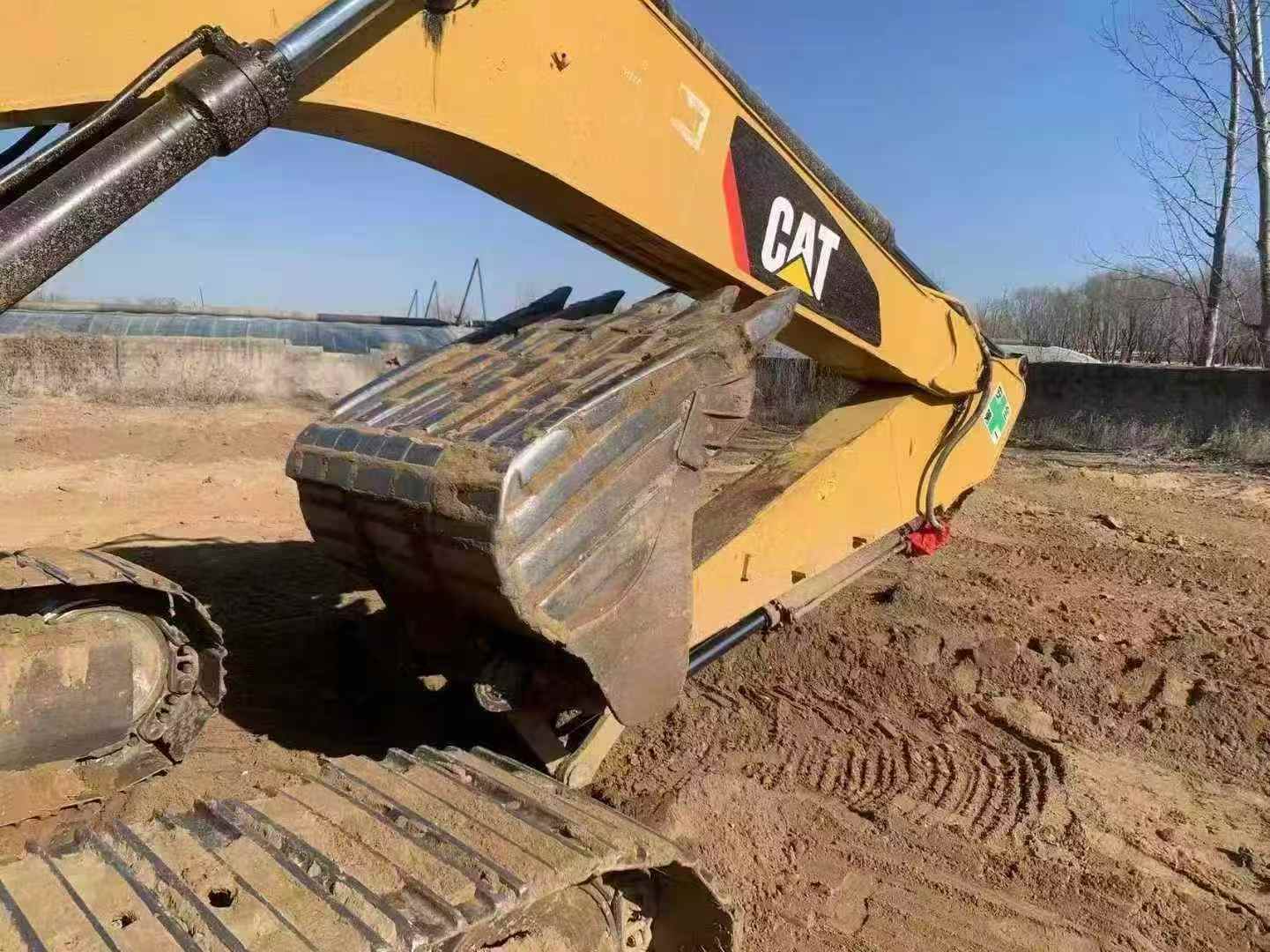

With a maximum digging reach of 9860 mm and 6720 mm depth capacity, this joint venture-manufactured excavator handles demanding excavation tasks while maintaining operator comfort. The 1.19 m³ bucket capacity, backed by 140 kN digging force, ensures productive cycle times without compromising machine control or stability.<
| Specifications | Value |
|---|---|
| No. | 1008795 |
| Tonnage (tons) | 23 |
| Working weight (kg) | 23300 |
| Bucket capacity (m³) | 1.19 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2900 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Cat C7.1 ACERT |
| Rated power (kw/rpm) | 118/1100 |
| Cylinder diameter × stroke (mm) | 105 x 135 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.01 |
| Rotation speed (rpm) | 10.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 140 |
| Rod digging force (kN) | 107 |
| Maximum tractive force (kN) | 205 |
| Travel speed (km/h) | Low: 3.5 / High: 5.6 |
| Turning torque (Nm) | 61.8 |
| Main overflow set pressure (Mpa) | 35 |
| Maximum flow of main pump (l/min) | 214 x 2 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 25 |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 35 |
| Pilot Oil Circuit (MPa) | 3.92 |
| Pilot pump flow (L/min) | 23.1 |
| Bucket cylinders - Number × diameter × stroke (mm) | 120 x 1104 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 140 x 1504 |
| Boom cylinders - Number × diameter × stroke (mm) | 120 x 1260 |
| Fuel Tank (L) | 410 |
| Hydraulic Tank (L) | 138 |
| Engine Oil changes (L) | 22 |
| Coolant (L) | 25 |
| Hydraulic System (L) | 260(including fuel tank) |
| Total transport length (mm) | 9460 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3030 |
| Full cab height (mm) | 2950 |
| Counterweight ground clearance (mm) | 1020 |
| Minimum ground clearance (mm) | 450 |
| Back end turning radius (mm) | 2750 |
| Onboard width (mm) | 2740 |
| Total track length (mm) | 4455 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3180 |
| Track ground length (mm) | 3650 |
| Maximum digging depth (mm) | 6720 |
| Maximum excavation height (mm) | 9490 |
| Maximum unloading height (mm) | 6490 |
| Maximum vertical digging depth (mm) | 5690 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 9860 |
| Maximum effective digging depth (mm) | 6380 |
Overview
No.1008795
Brand Name：
CaterpillarModel Number：
323D2LYear：
2016
Location：
Hebei China
Pub Date：
