2017 Caterpillar 323D2L
Product Description

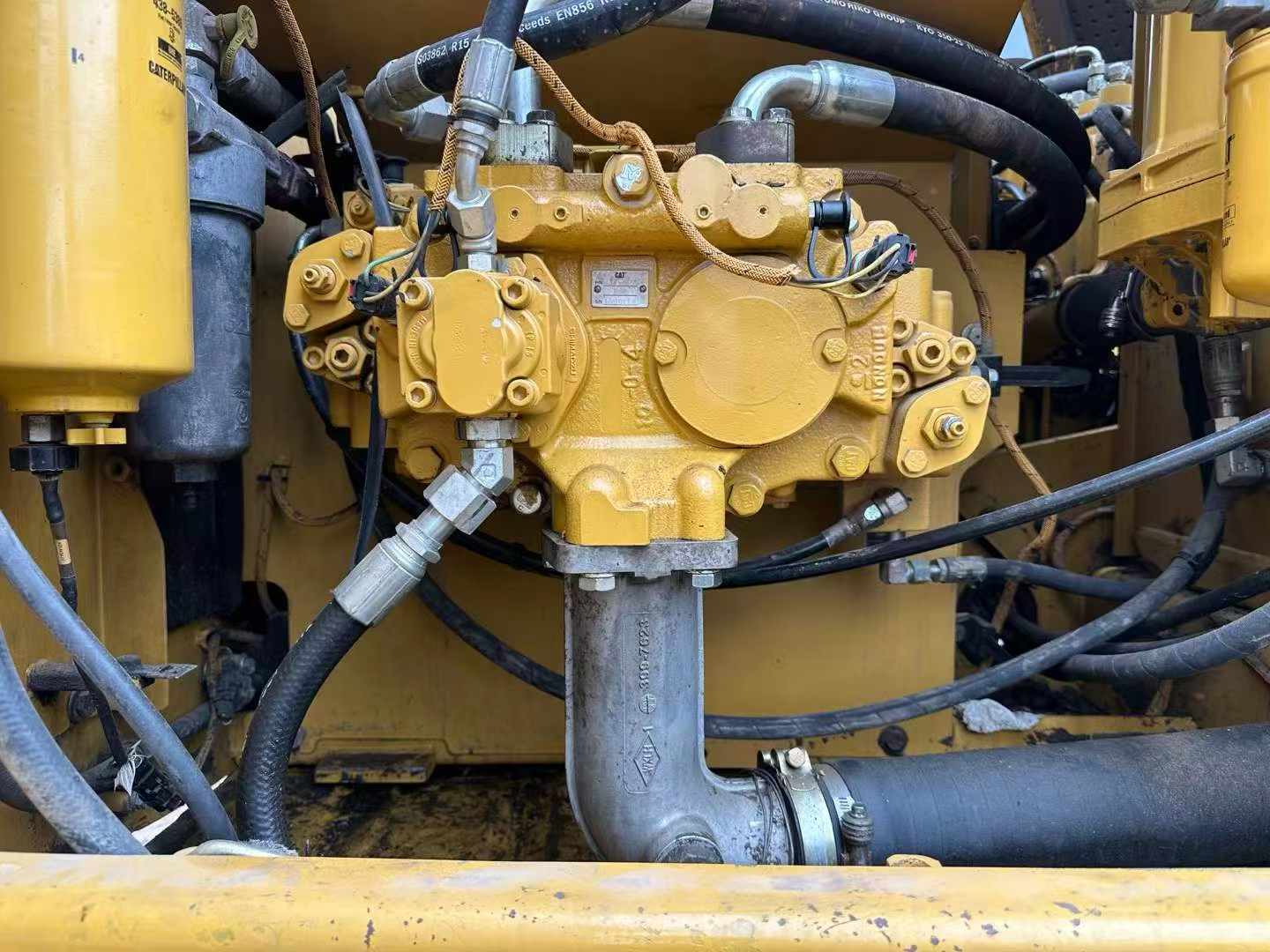

Engineered with Caterpillar's proven Cat C7.1 ACERT engine delivering 118 kW at 1100 rpm, this 2017 323D2L excavator combines robust hydraulic performance with exceptional operational efficiency. Dual main pumps supply 214 L/min each at 35 MPa working pressure, ensuring consistent power delivery across all functions. With a 23-ton operating weight and 1.19 m³ bucket capacity, this Japanese-manufactured machine handles demanding excavation tasks with precision.
- Maximum digging depth of 6,720 mm with 9,860 mm reach at ground level
- Powerful digging forces: 140 kN bucket and 107 kN arm for penetrating hard materials
- Advanced hydraulic system with 260L total capacity and 35 MPa circuit pressure
- 70% gradeability (35°) and 205 kN maximum tractive force for challenging terrain
- Efficient 7.01L displacement engine with 10.5 rpm rotation speed
- Dual-speed travel: 3.5 km/h (low) and 5.6 km/h (high) for site mobility
Currently located in Liuzhou, Guangxi, this joint venture/import model represents Caterpillar's commitment to hydraulic engineering excellence and reliable performance in heavy-duty applications.
| Specifications | Value |
|---|---|
| No. | 1014920 |
| Tonnage (tons) | 23 |
| Working weight (kg) | 23300 |
| Bucket capacity (m³) | 1.19 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2900 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Cat C7.1 ACERT |
| Rated power (kw/rpm) | 118/1100 |
| Cylinder diameter × stroke (mm) | 105 x 135 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.01 |
| Rotation speed (rpm) | 10.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 140 |
| Rod digging force (kN) | 107 |
| Maximum tractive force (kN) | 205 |
| Travel speed (km/h) | Low: 3.5 / High: 5.6 |
| Turning torque (Nm) | 61.8 |
| Main overflow set pressure (Mpa) | 35 |
| Maximum flow of main pump (l/min) | 214 x 2 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 25 |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 35 |
| Pilot Oil Circuit (MPa) | 3.92 |
| Pilot pump flow (L/min) | 23.1 |
| Bucket cylinders - Number × diameter × stroke (mm) | 120 x 1104 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 140 x 1504 |
| Boom cylinders - Number × diameter × stroke (mm) | 120 x 1260 |
| Fuel Tank (L) | 410 |
| Hydraulic Tank (L) | 138 |
| Engine Oil changes (L) | 22 |
| Coolant (L) | 25 |
| Hydraulic System (L) | 260(including fuel tank) |
| Total transport length (mm) | 9460 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3030 |
| Full cab height (mm) | 2950 |
| Counterweight ground clearance (mm) | 1020 |
| Minimum ground clearance (mm) | 450 |
| Back end turning radius (mm) | 2750 |
| Onboard width (mm) | 2740 |
| Total track length (mm) | 4455 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3180 |
| Track ground length (mm) | 3650 |
| Maximum digging depth (mm) | 6720 |
| Maximum excavation height (mm) | 9490 |
| Maximum unloading height (mm) | 6490 |
| Maximum vertical digging depth (mm) | 5690 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 9860 |
| Maximum effective digging depth (mm) | 6380 |
