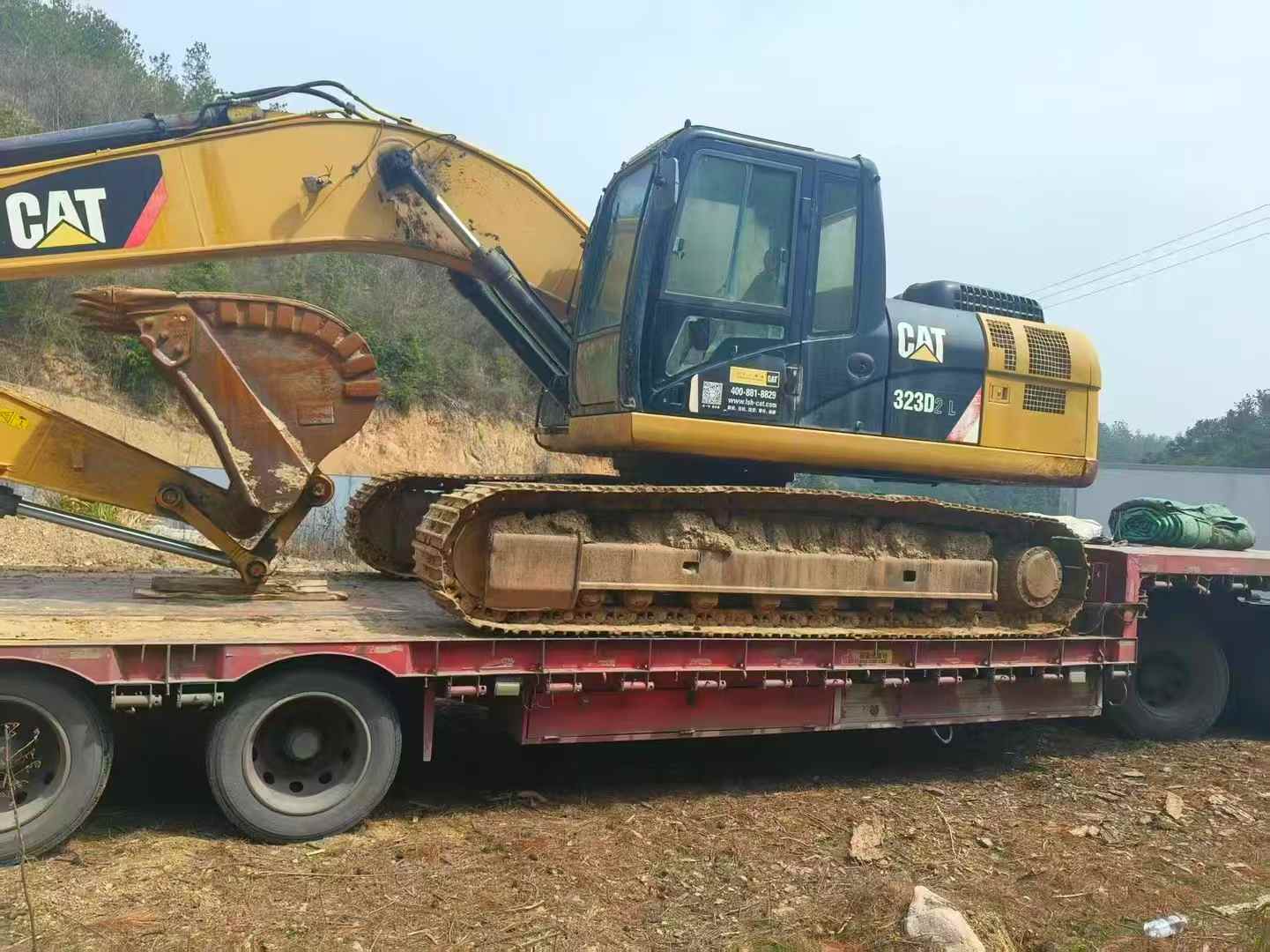

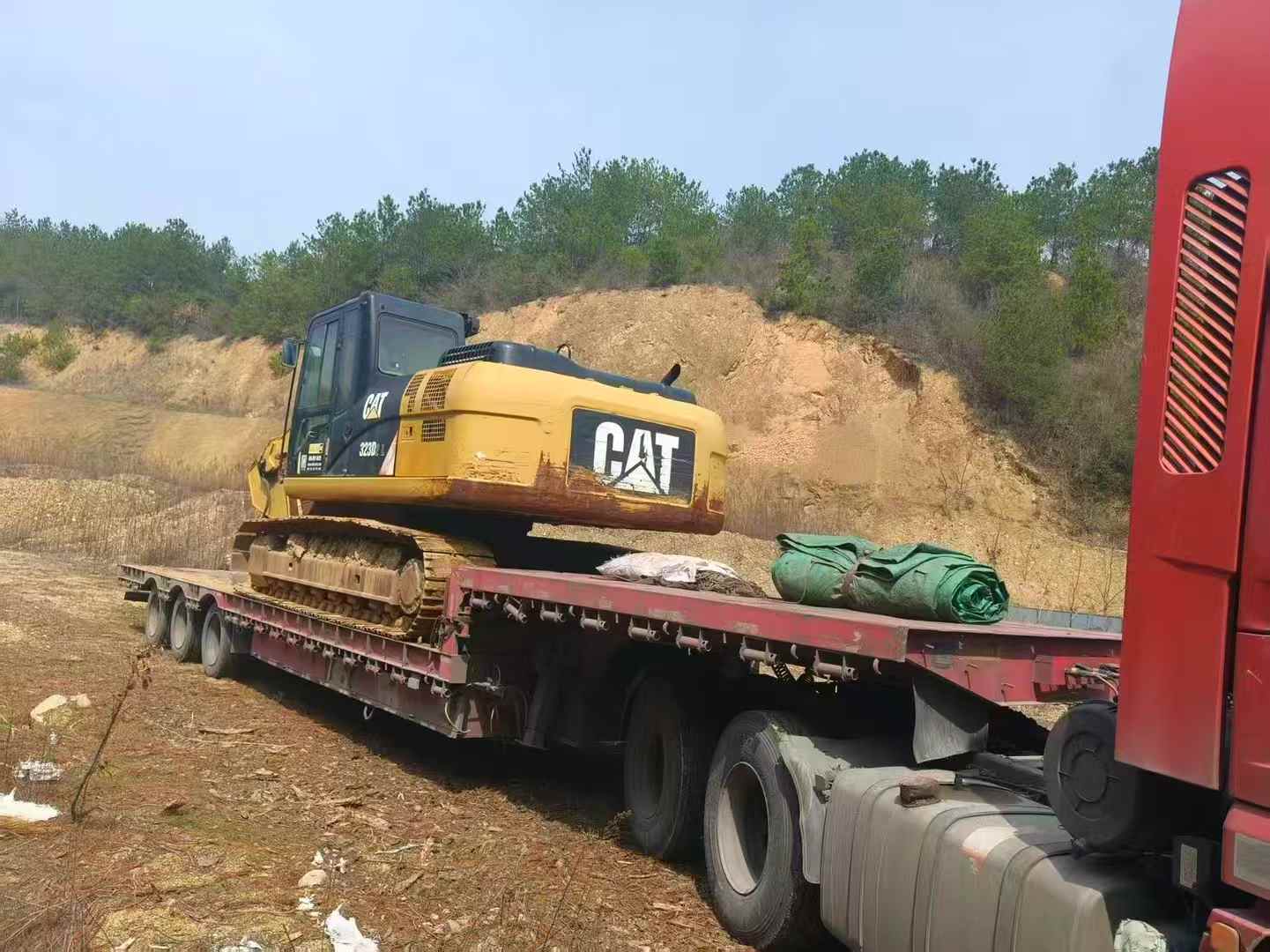

2017 Caterpillar 323D2L
Product Description
Engineered with precision, this 2017 Caterpillar 323D2L delivers 23 tons of proven excavation performance powered by the robust Cat C7.1 ACERT engine. Generating 118 kW at 1,100 rpm across six cylinders and 7.01L displacement, this machine combines exceptional hydraulic efficiency with field-tested reliability. Dual main pumps supply 214 l/min each at 35 MPa, providing commanding bucket digging force of 140 kN and stick force of 107 kN for demanding earthmoving applications.
- Maximum digging reach: 9,860 mm with 6,720 mm depth capability
- 1.19 m³ bucket capacity optimized for high-volume material handling
- 5,700 mm boom and 2,900 mm stick configuration for versatile working range
- 10.5 rpm swing speed with 61.8 Nm turning torque for efficient cycle times
- 70% (35°) grading ability and 205 kN maximum tractive force
- Dual-speed travel: 3.5 km/h (low) / 5.6 km/h (high)
- Japanese-origin quality from joint venture manufacturing
Currently located in Xuzhou, Jiangsu, this hydraulic excavator represents Caterpillar's commitment to durable construction equipment built for professional contractors and rental fleets worldwide.
| Specifications | Value |
|---|---|
| No. | 1026054 |
| Tonnage (tons) | 23 |
| Working weight (kg) | 23300 |
| Bucket capacity (m³) | 1.19 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2900 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Cat C7.1 ACERT |
| Rated power (kw/rpm) | 118/1100 |
| Cylinder diameter × stroke (mm) | 105 x 135 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.01 |
| Rotation speed (rpm) | 10.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 140 |
| Rod digging force (kN) | 107 |
| Maximum tractive force (kN) | 205 |
| Travel speed (km/h) | Low: 3.5 / High: 5.6 |
| Turning torque (Nm) | 61.8 |
| Main overflow set pressure (Mpa) | 35 |
| Maximum flow of main pump (l/min) | 214 x 2 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 25 |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 35 |
| Pilot Oil Circuit (MPa) | 3.92 |
| Pilot pump flow (L/min) | 23.1 |
| Bucket cylinders - Number × diameter × stroke (mm) | 120 x 1104 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 140 x 1504 |
| Boom cylinders - Number × diameter × stroke (mm) | 120 x 1260 |
| Fuel Tank (L) | 410 |
| Hydraulic Tank (L) | 138 |
| Engine Oil changes (L) | 22 |
| Coolant (L) | 25 |
| Hydraulic System (L) | 260(including fuel tank) |
| Total transport length (mm) | 9460 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3030 |
| Full cab height (mm) | 2950 |
| Counterweight ground clearance (mm) | 1020 |
| Minimum ground clearance (mm) | 450 |
| Back end turning radius (mm) | 2750 |
| Onboard width (mm) | 2740 |
| Total track length (mm) | 4455 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3180 |
| Track ground length (mm) | 3650 |
| Maximum digging depth (mm) | 6720 |
| Maximum excavation height (mm) | 9490 |
| Maximum unloading height (mm) | 6490 |
| Maximum vertical digging depth (mm) | 5690 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 9860 |
| Maximum effective digging depth (mm) | 6380 |
Overview
No.1026054
Brand Name：
CaterpillarModel Number：
323D2LYear：
2017
Location：
Jiangsu China
