2017 Caterpillar 323D2L
Product Description
This 2017 Caterpillar 323D2L hydraulic excavator presents an excellent opportunity for contractors seeking reliable performance in demanding applications. Currently located in Jiangsu, China, this machine has accumulated approximately 10,800 operating hours while maintaining its original factory paint finish, indicating careful operation and proper maintenance throughout its service life.
Key attributes include:

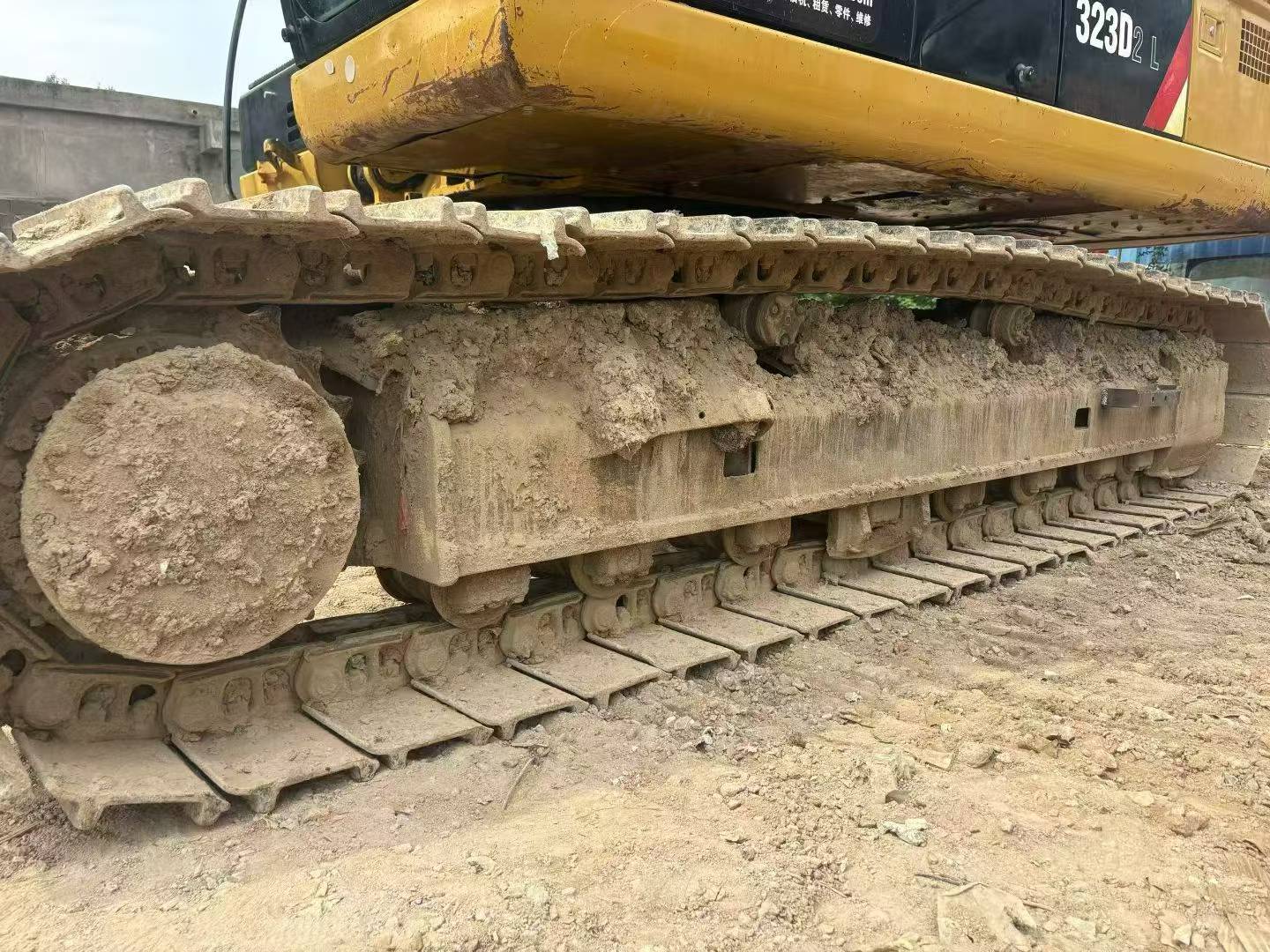

- Original mining-grade undercarriage designed for heavy-duty operations
- No breaker attachment history, reducing hydraulic system wear
- Major components remain unrepaired, demonstrating mechanical integrity
- Complete documentation available for transparent ownership transfer
- Field-tested performance confirms operational readiness
The Cat 323D2L is recognized for its 23-metric-ton operating weight, fuel-efficient C7.1 ACERT engine, and versatile application range. This unit offers dependable service for earthmoving, excavation, and material handling projects.
| Specifications | Value |
|---|---|
| No. | 1119530 |
| Tonnage (tons) | 23 |
| Working weight (kg) | 23300 |
| Bucket capacity (m³) | 1.19 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2900 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

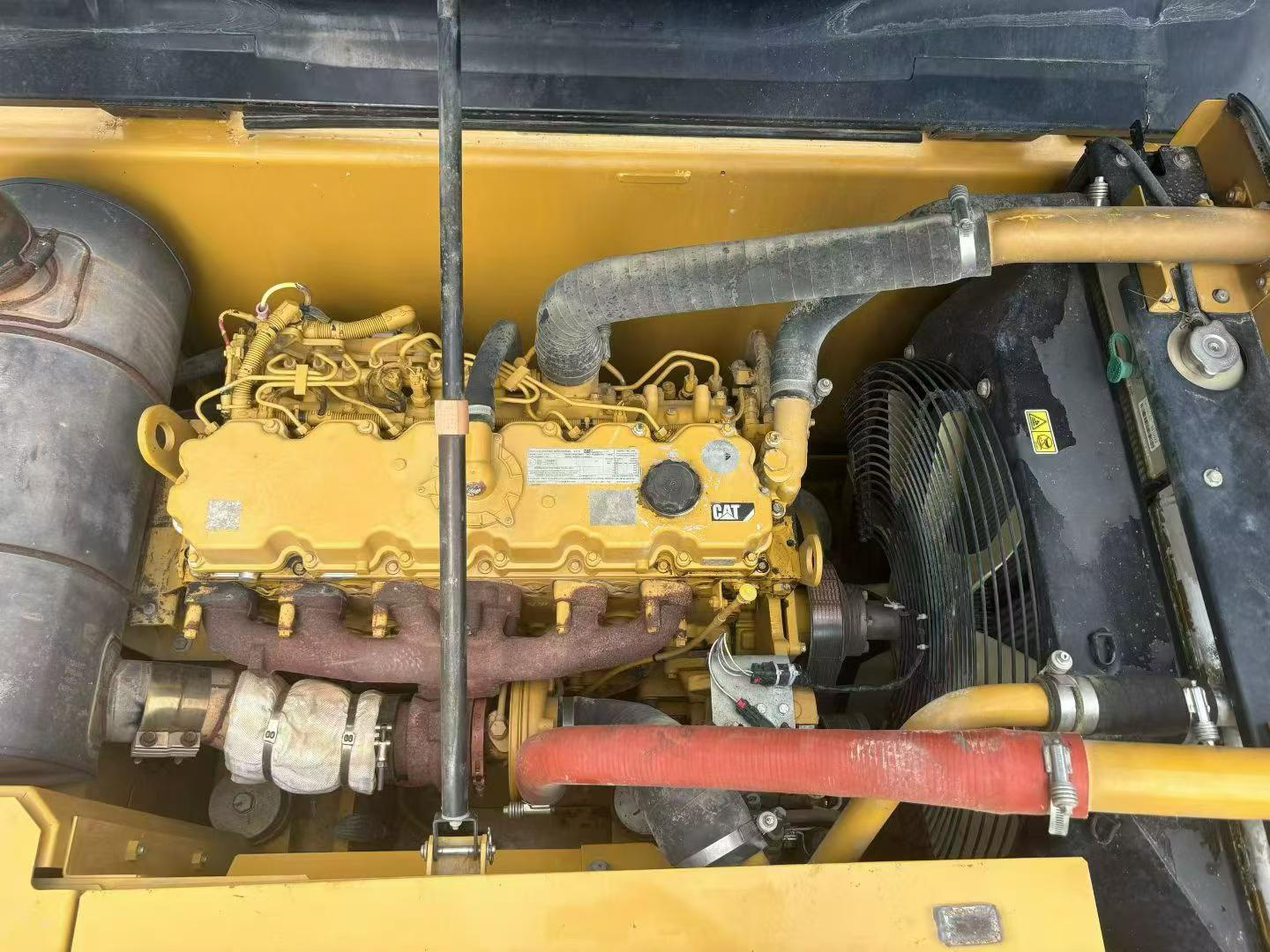

| Engine type | Cat C7.1 ACERT |
| Rated power (kw/rpm) | 118/1100 |
| Cylinder diameter × stroke (mm) | 105 x 135 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.01 |
| Rotation speed (rpm) | 10.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 140 |
| Rod digging force (kN) | 107 |
| Maximum tractive force (kN) | 205 |
| Travel speed (km/h) | Low: 3.5 / High: 5.6 |
| Turning torque (Nm) | 61.8 |
| Main overflow set pressure (Mpa) | 35 |
| Maximum flow of main pump (l/min) | 214 x 2 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 25 |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 35 |
| Pilot Oil Circuit (MPa) | 3.92 |
| Pilot pump flow (L/min) | 23.1 |
| Bucket cylinders - Number × diameter × stroke (mm) | 120 x 1104 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 140 x 1504 |
| Boom cylinders - Number × diameter × stroke (mm) | 120 x 1260 |
| Fuel Tank (L) | 410 |
| Hydraulic Tank (L) | 138 |
| Engine Oil changes (L) | 22 |
| Coolant (L) | 25 |
| Hydraulic System (L) | 260(including fuel tank) |
| Total transport length (mm) | 9460 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3030 |
| Full cab height (mm) | 2950 |
| Counterweight ground clearance (mm) | 1020 |
| Minimum ground clearance (mm) | 450 |
| Back end turning radius (mm) | 2750 |
| Onboard width (mm) | 2740 |
| Total track length (mm) | 4455 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3180 |
| Track ground length (mm) | 3650 |
| Maximum digging depth (mm) | 6720 |
| Maximum excavation height (mm) | 9490 |
| Maximum unloading height (mm) | 6490 |
| Maximum vertical digging depth (mm) | 5690 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 9860 |
| Maximum effective digging depth (mm) | 6380 |
