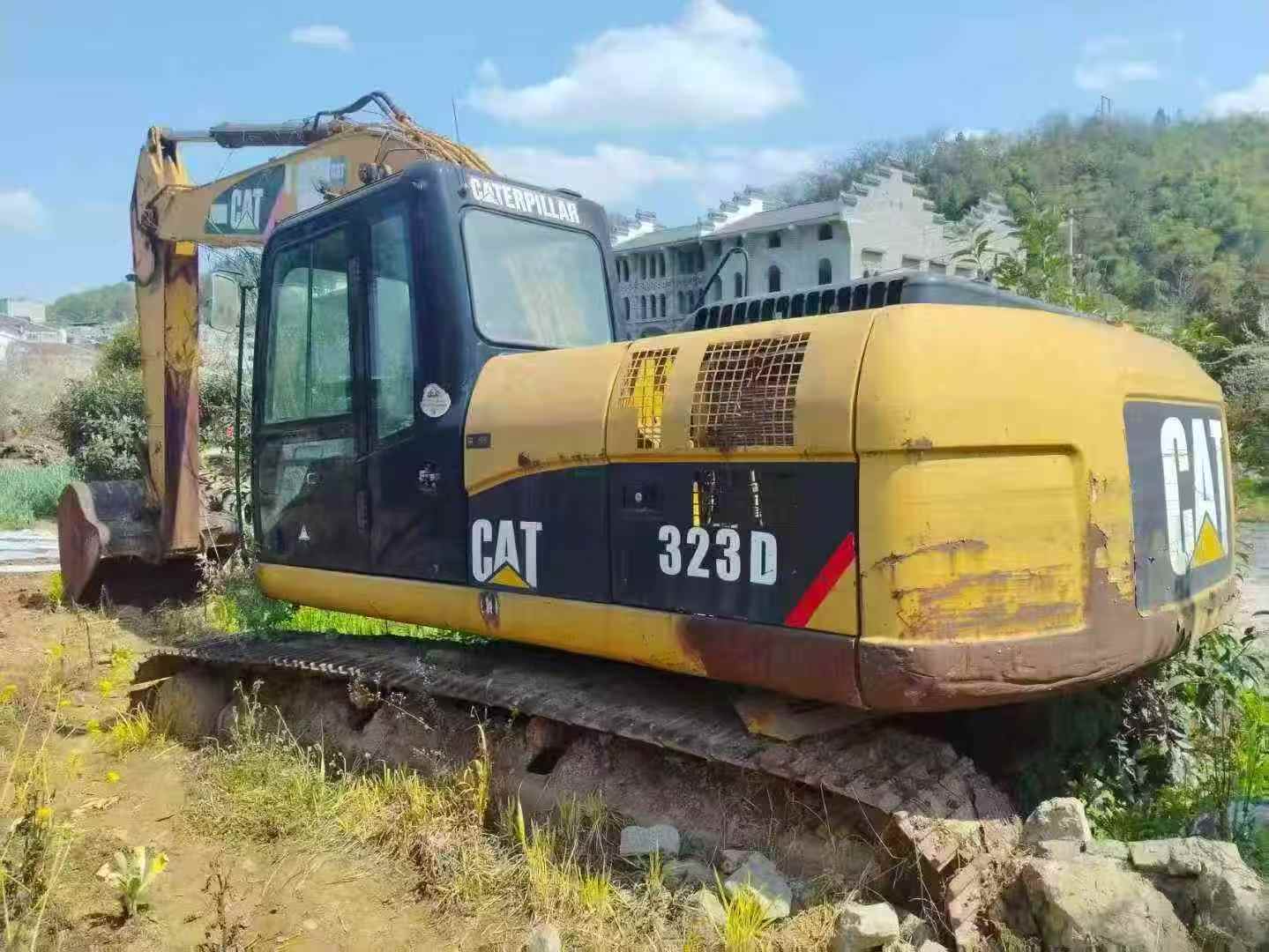

2010 Caterpillar 323DL
Product Description
Engineered with Caterpillar's proven C6.4 ACERT engine delivering 110 kW at 2000 rpm, this 2010 323DL excavator represents a benchmark in 23-ton class performance. Water-cooled six-cylinder architecture ensures sustained power delivery across demanding job sites, while the advanced hydraulic system—featuring a 205 l/min main pump and 35 MPa operating pressure—provides exceptional responsiveness and productivity.
Hydraulic performance drives operational efficiency in this model:
- Bucket digging force reaches 140 kN with 106 kN rod force for challenging excavation
- 9,850 mm maximum reach and 6,710 mm dig depth expand working envelope
- 11.5 rpm rotation speed optimizes cycle times
- 1.2 m³ bucket capacity balances payload and fuel economy
Built to joint venture/import standards with Japanese-origin quality control, the 323DL features a 5,700 mm boom and 2,900 mm arm configuration ideal for utility work, foundation projects, and general earthmoving. Currently located in Jiangsu, this machine combines proven Caterpillar durability with the technical refinement expected from globally-manufactured equipment.
| Specifications | Value |
|---|---|
| No. | 1030326 |
| Tonnage (tons) | 23 |
| Working weight (kg) | 22300-23100 |
| Bucket capacity (m³) | 1.2 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2900 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | C6.4ACERT |
| Rated power (kw/rpm) | 110/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.4 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 140 |
| Rod digging force (kN) | 106 |
| Travel speed (km/h) | 3.5/5.7 |
| Main overflow set pressure (Mpa) | 3.5 |
| Maximum flow of main pump (l/min) | 205 |
| Traveling Hydraulic Circuit (Mpa) | 3.5 |
| Rotary Hydraulic Circuit (Mpa) | 2.5 |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 3.5 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 120 x 1104 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 140 x 1504 |
| Boom cylinders - Number × diameter × stroke (mm) | 120 x 1260 |
| Fuel Tank (L) | 410 |
| Hydraulic Tank (L) | 120 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 25 |
| Hydraulic System (L) | 260(including fuel tank) |
| Total transport length (mm) | 9460 |
| Total transport width (mm) | 3180 |
| Total transport height (mm) | 3050 |
| Full cab height (mm) | 2950 |
| Counterweight ground clearance (mm) | 1020 |
| Minimum ground clearance (mm) | 450 |
| Back end turning radius (mm) | 2940 |
| Total track length (mm) | 4455 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3180 |
| Track ground length (mm) | 3650 |
| Maximum digging depth (mm) | 6710 |
| Maximum excavation height (mm) | 9470 |
| Maximum unloading height (mm) | 6500 |
| Maximum vertical digging depth (mm) | 5860 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 9850 |
| Maximum effective digging depth (mm) | 6380 |
Overview
No.1030326
Brand Name：
CaterpillarModel Number：
323DLYear：
2010
Location：
Jiangsu China
