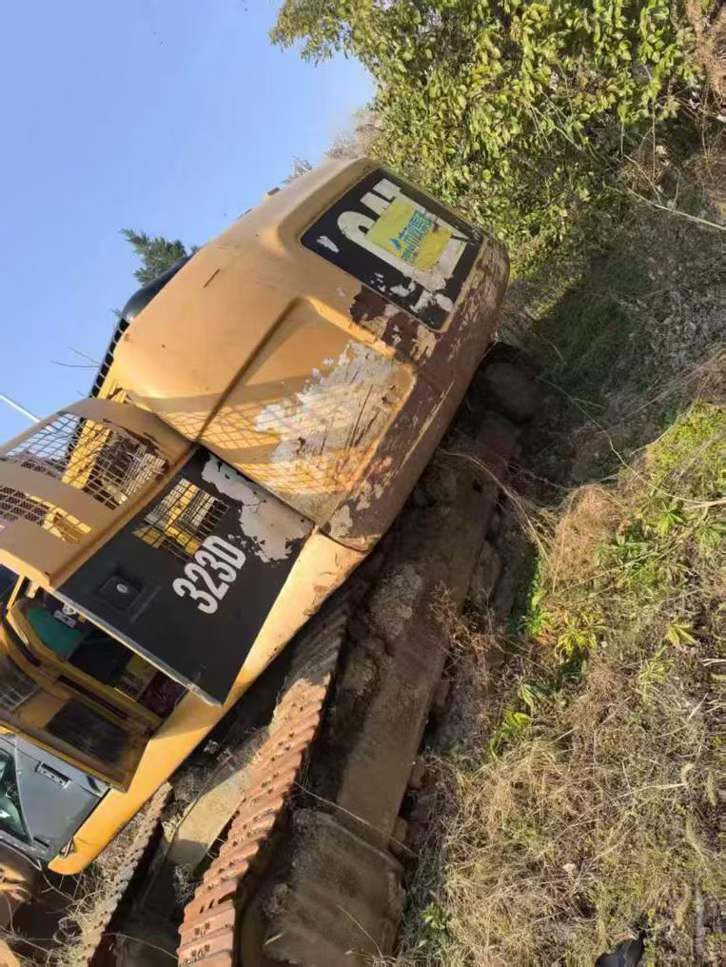

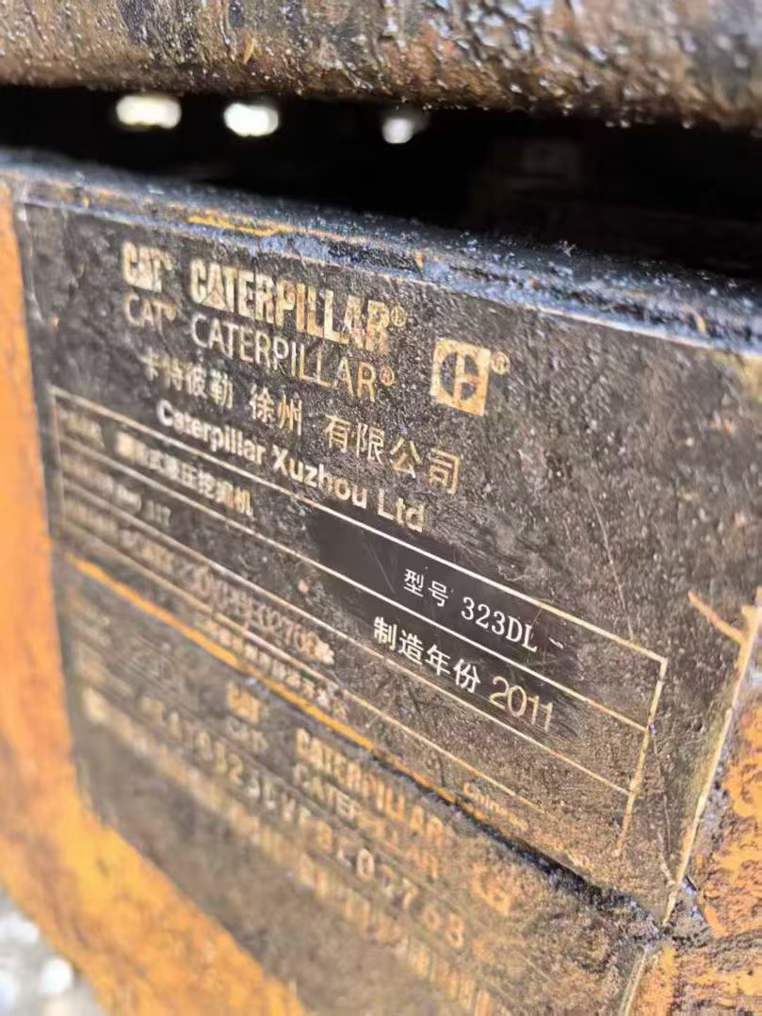

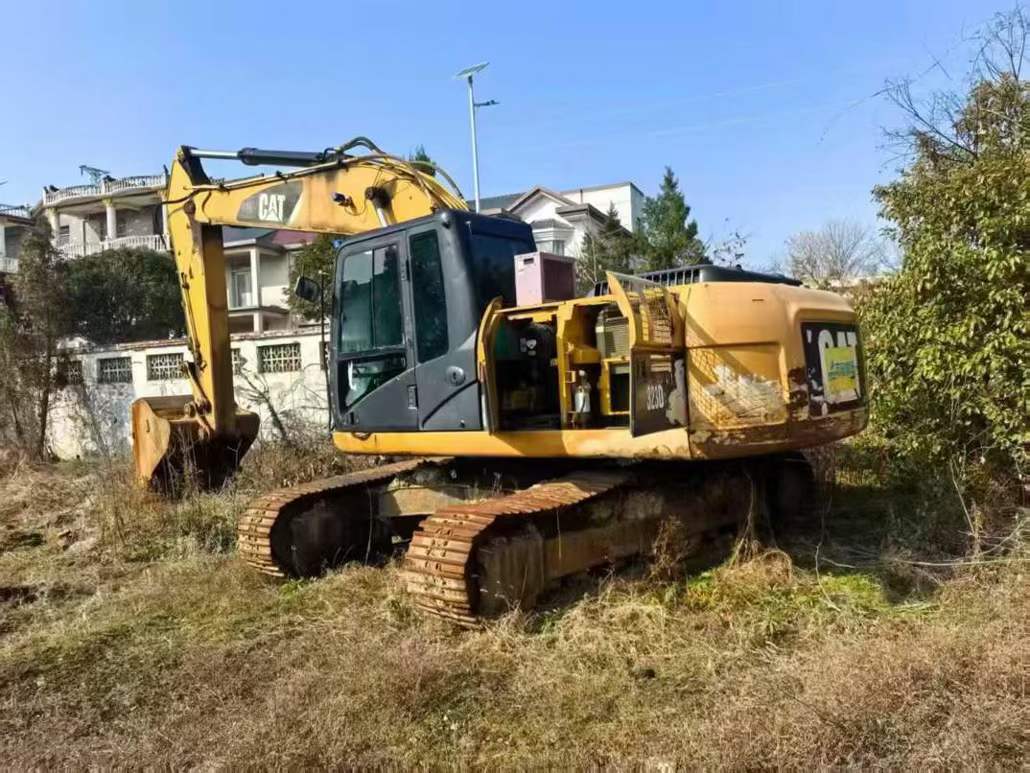

2011 Caterpillar 323DL
Product Description
Built to endure the toughest jobsites, this 2011 Caterpillar 323DL remains a proven workhorse over a decade into service. Operating at 23 tons with a robust C6.4 ACERT engine delivering 110kW, this excavator demonstrates the legendary durability Caterpillar is known for worldwide. With maximum digging depth reaching 6,710mm and excavation radius extending to 9,850mm, it tackles demanding earth-moving tasks with consistent reliability.
Currently located in Hefei, Anhui, this machine features:
- Water-cooled 6-cylinder engine with 6.4L displacement for sustained power delivery
- 1.2m³ bucket capacity with 140kN digging force

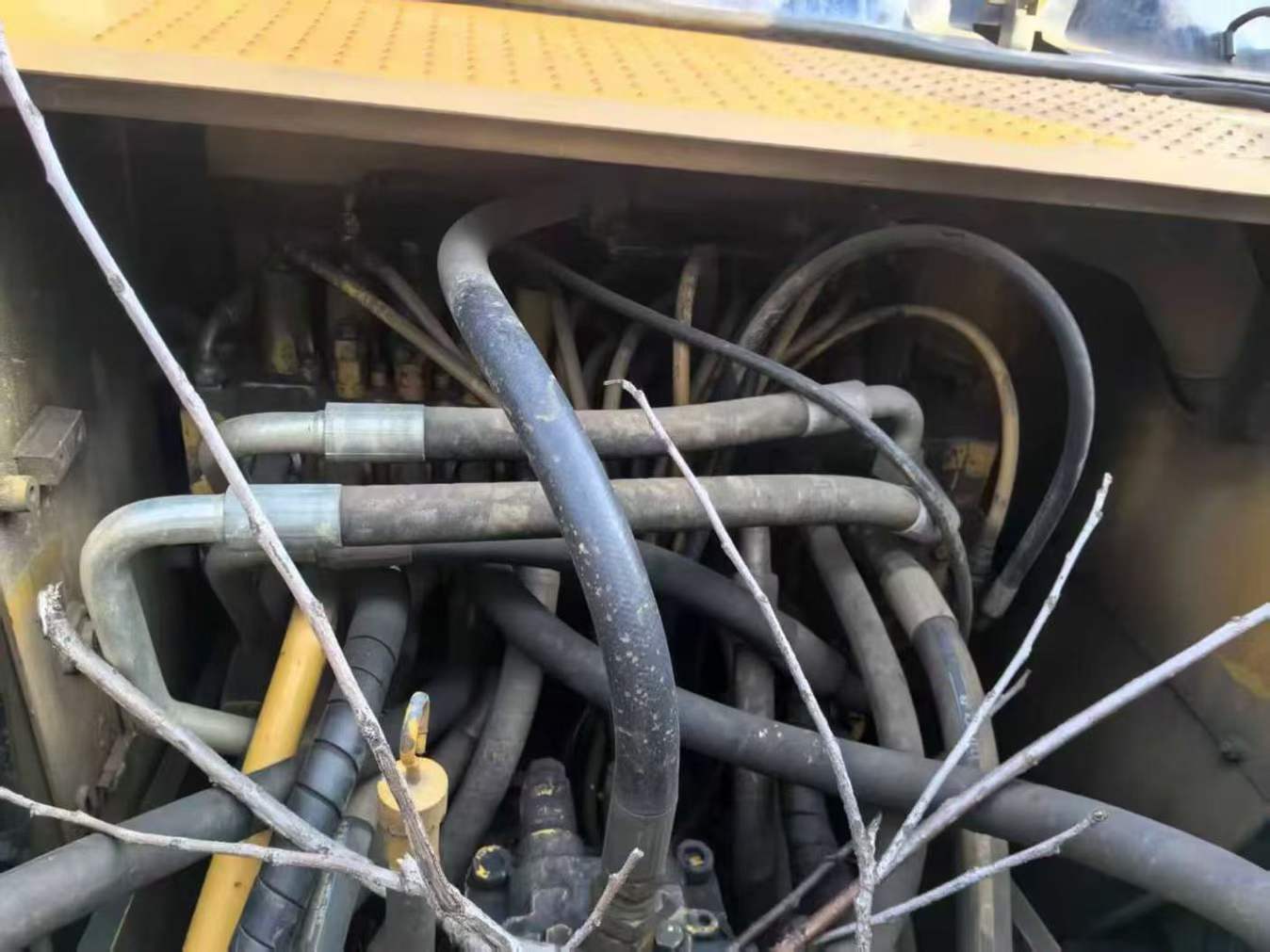

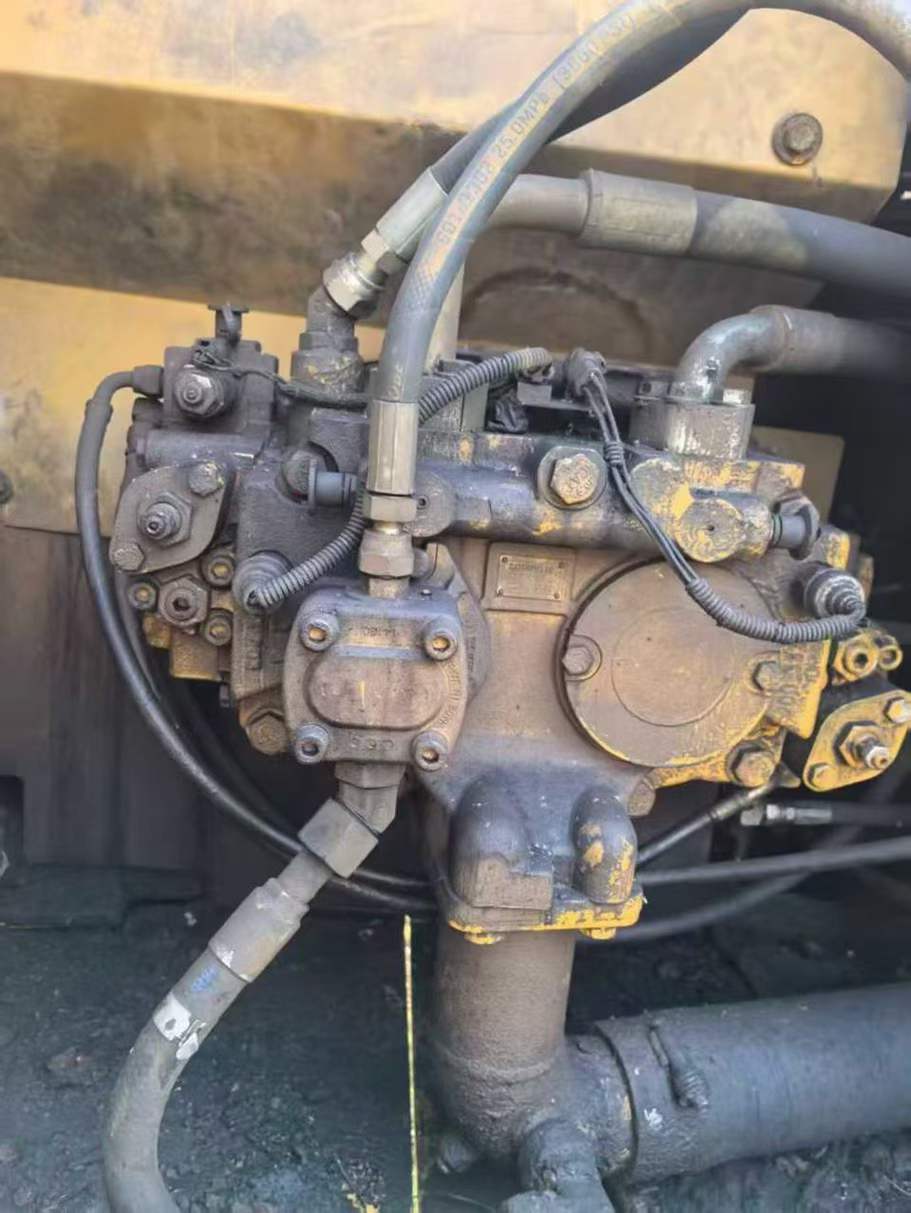

- Hydraulic system optimized at 205 L/min maximum flow
- 5,700mm boom and 2,900mm arm for versatile reach
- 11.5 rpm rotation speed ensuring productive cycle times
Designed for longevity and manufactured to exacting joint-venture standards, this 323DL represents time-tested engineering that continues performing when projects demand dependability. Its proven track record speaks to Caterpillar's commitment to building machines that work year after year.
| Specifications | Value |
|---|---|
| No. | 1016876 |
| Tonnage (tons) | 23 |
| Working weight (kg) | 22300-23100 |
| Bucket capacity (m³) | 1.2 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2900 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | C6.4ACERT |
| Rated power (kw/rpm) | 110/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.4 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 140 |
| Rod digging force (kN) | 106 |
| Travel speed (km/h) | 3.5/5.7 |
| Main overflow set pressure (Mpa) | 3.5 |
| Maximum flow of main pump (l/min) | 205 |
| Traveling Hydraulic Circuit (Mpa) | 3.5 |
| Rotary Hydraulic Circuit (Mpa) | 2.5 |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 3.5 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 120 x 1104 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 140 x 1504 |
| Boom cylinders - Number × diameter × stroke (mm) | 120 x 1260 |
| Fuel Tank (L) | 410 |
| Hydraulic Tank (L) | 120 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 25 |
| Hydraulic System (L) | 260(including fuel tank) |
| Total transport length (mm) | 9460 |
| Total transport width (mm) | 3180 |
| Total transport height (mm) | 3050 |
| Full cab height (mm) | 2950 |
| Counterweight ground clearance (mm) | 1020 |
| Minimum ground clearance (mm) | 450 |
| Back end turning radius (mm) | 2940 |
| Total track length (mm) | 4455 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3180 |
| Track ground length (mm) | 3650 |
| Maximum digging depth (mm) | 6710 |
| Maximum excavation height (mm) | 9470 |
| Maximum unloading height (mm) | 6500 |
| Maximum vertical digging depth (mm) | 5860 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 9850 |
| Maximum effective digging depth (mm) | 6380 |
Overview
No.1016876
Brand Name：
CaterpillarModel Number：
323DLYear：
2011
Location：
Anhui China
Pub Date：
