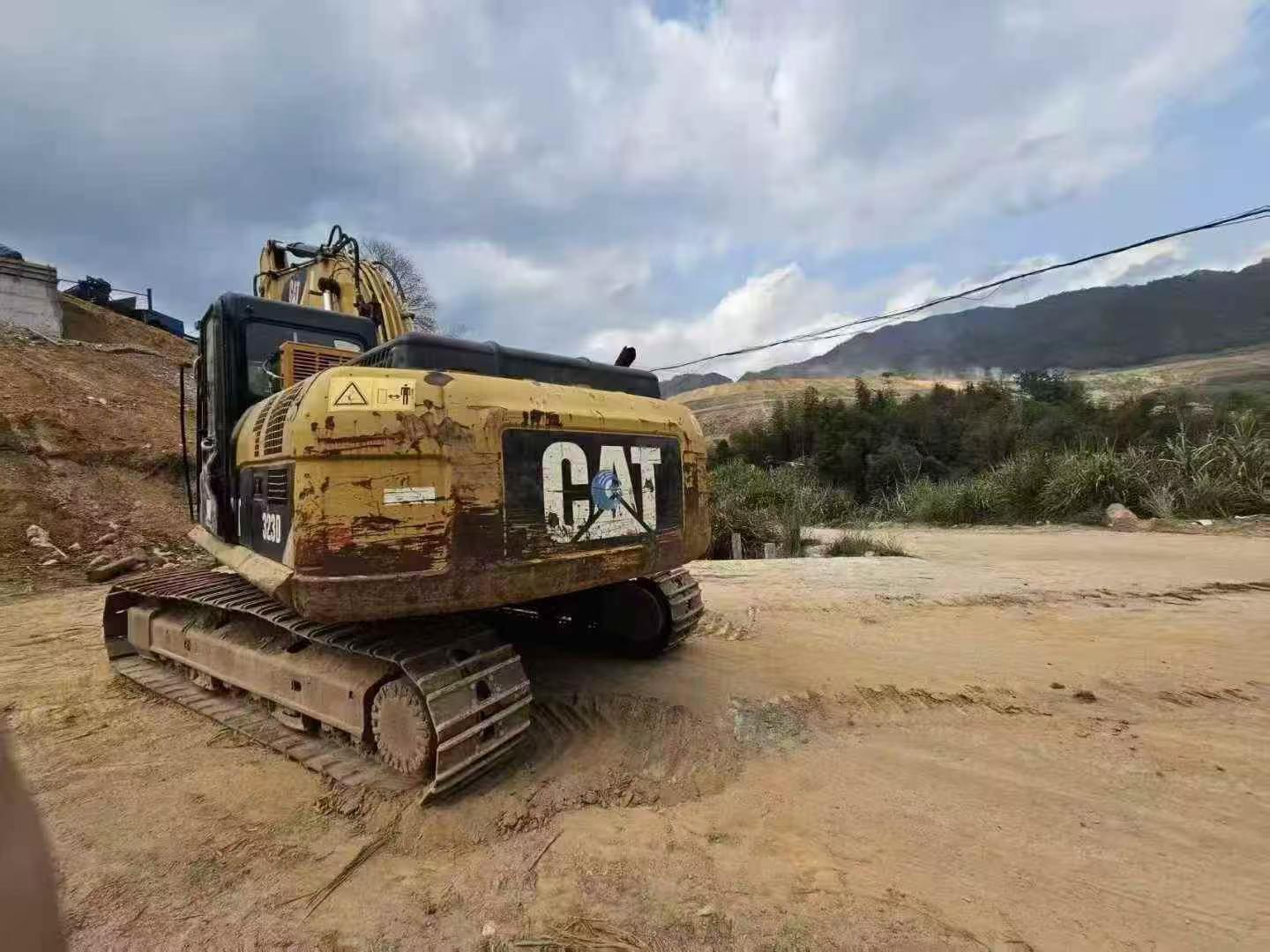

2012 Caterpillar 323DL
Product Description
Built for precision and productivity, this 2012 Caterpillar 323DL medium excavator delivers 23 tons of working weight with exceptional operator-centered design. Powered by a reliable C6.4 ACERT engine generating 110 kW at 2000 rpm, this joint venture-manufactured machine combines proven hydraulics with intuitive controls for demanding jobsite conditions.
Operators benefit from enhanced visibility and ergonomic cabin layout, critical for managing the 9,850 mm maximum digging reach and 6,710 mm maximum digging depth. Hydraulic precision is maintained through a 205 l/min main pump flow and 3.5 MPa working circuit pressure, enabling smooth bucket and boom movements during extended shifts.
- Working weight: 22,300–23,100 kg with 1.2 m³ bucket capacity
- Superior stability: 2,380 mm track gauge and 3,650 mm ground contact length
- Efficient digging forces: 140 kN bucket, 106 kN stick
- Dual travel speeds: 3.5/5.7 km/h for versatile site mobility
- Comprehensive reach: 5,700 mm boom and 2,900 mm stick configuration
Currently located in Hunan, this water-cooled, 6-cylinder excavator represents reliable Japanese engineering adapted for continuous operation in construction and ear
| Specifications | Value |
|---|---|
| No. | 1034969 |
| Tonnage (tons) | 23 |
| Working weight (kg) | 22300-23100 |
| Bucket capacity (m³) | 1.2 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2900 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | C6.4ACERT |
| Rated power (kw/rpm) | 110/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.4 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 140 |
| Rod digging force (kN) | 106 |
| Travel speed (km/h) | 3.5/5.7 |
| Main overflow set pressure (Mpa) | 3.5 |
| Maximum flow of main pump (l/min) | 205 |
| Traveling Hydraulic Circuit (Mpa) | 3.5 |
| Rotary Hydraulic Circuit (Mpa) | 2.5 |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 3.5 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 120 x 1104 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 140 x 1504 |
| Boom cylinders - Number × diameter × stroke (mm) | 120 x 1260 |
| Fuel Tank (L) | 410 |
| Hydraulic Tank (L) | 120 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 25 |
| Hydraulic System (L) | 260(including fuel tank) |
| Total transport length (mm) | 9460 |
| Total transport width (mm) | 3180 |
| Total transport height (mm) | 3050 |
| Full cab height (mm) | 2950 |
| Counterweight ground clearance (mm) | 1020 |
| Minimum ground clearance (mm) | 450 |
| Back end turning radius (mm) | 2940 |

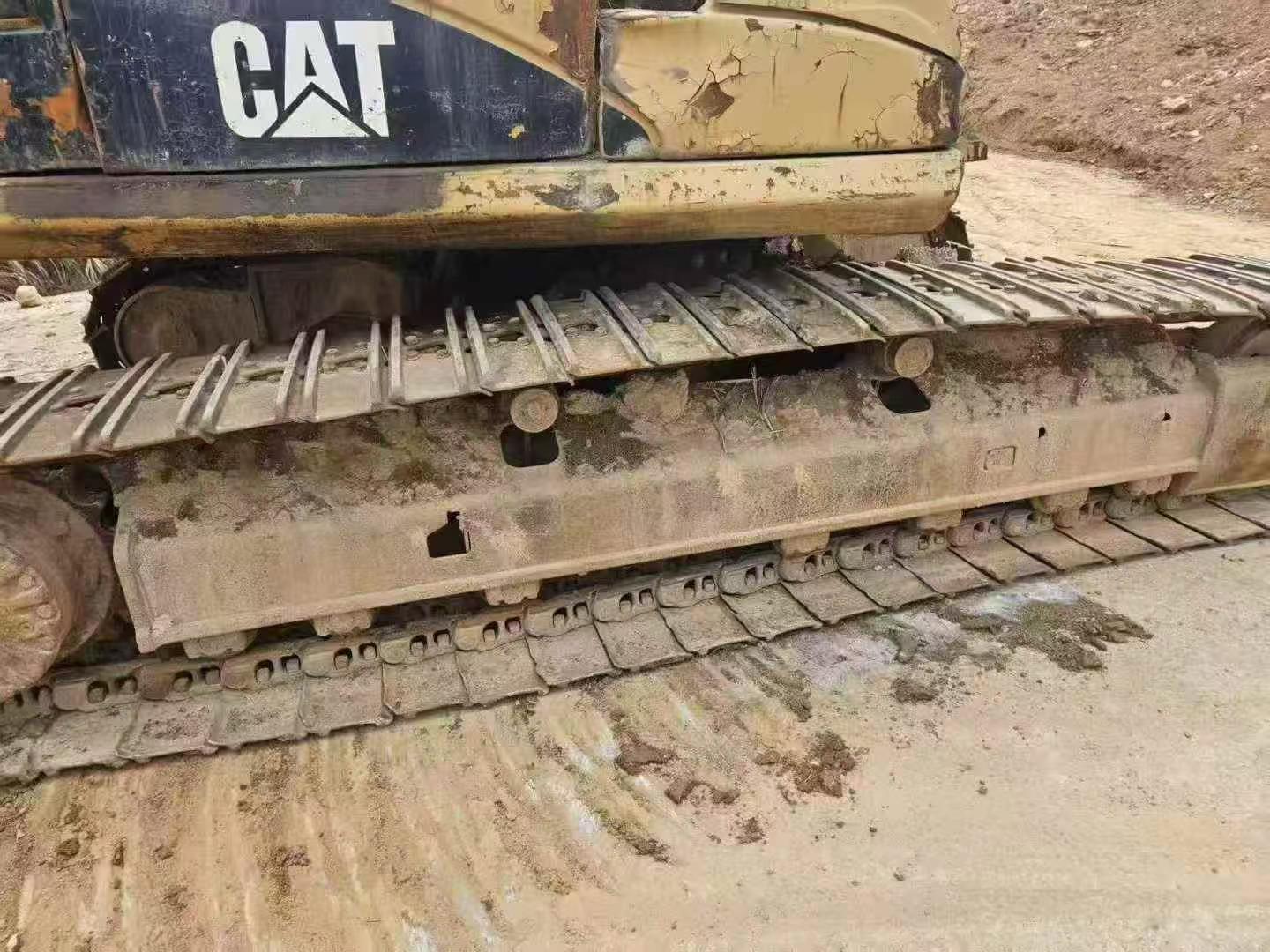

| Total track length (mm) | 4455 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3180 |
| Track ground length (mm) | 3650 |
| Maximum digging depth (mm) | 6710 |
| Maximum excavation height (mm) | 9470 |
| Maximum unloading height (mm) | 6500 |
| Maximum vertical digging depth (mm) | 5860 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 9850 |
| Maximum effective digging depth (mm) | 6380 |
Overview
No.1034969
Brand Name：
CaterpillarModel Number：
323DLYear：
2012
Location：
Hunan China
Pub Date：
