2013 Caterpillar 323DL
Product Description

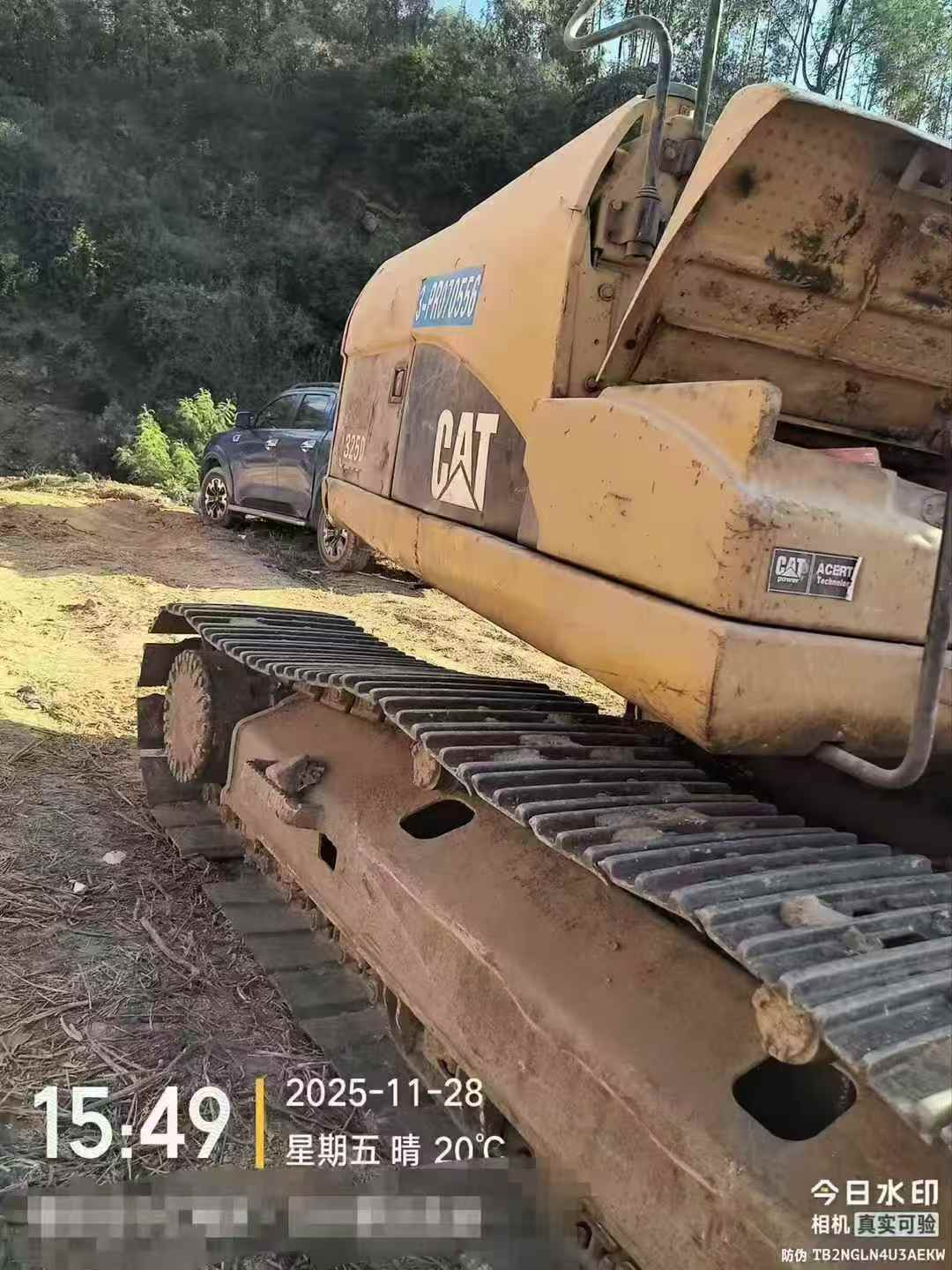

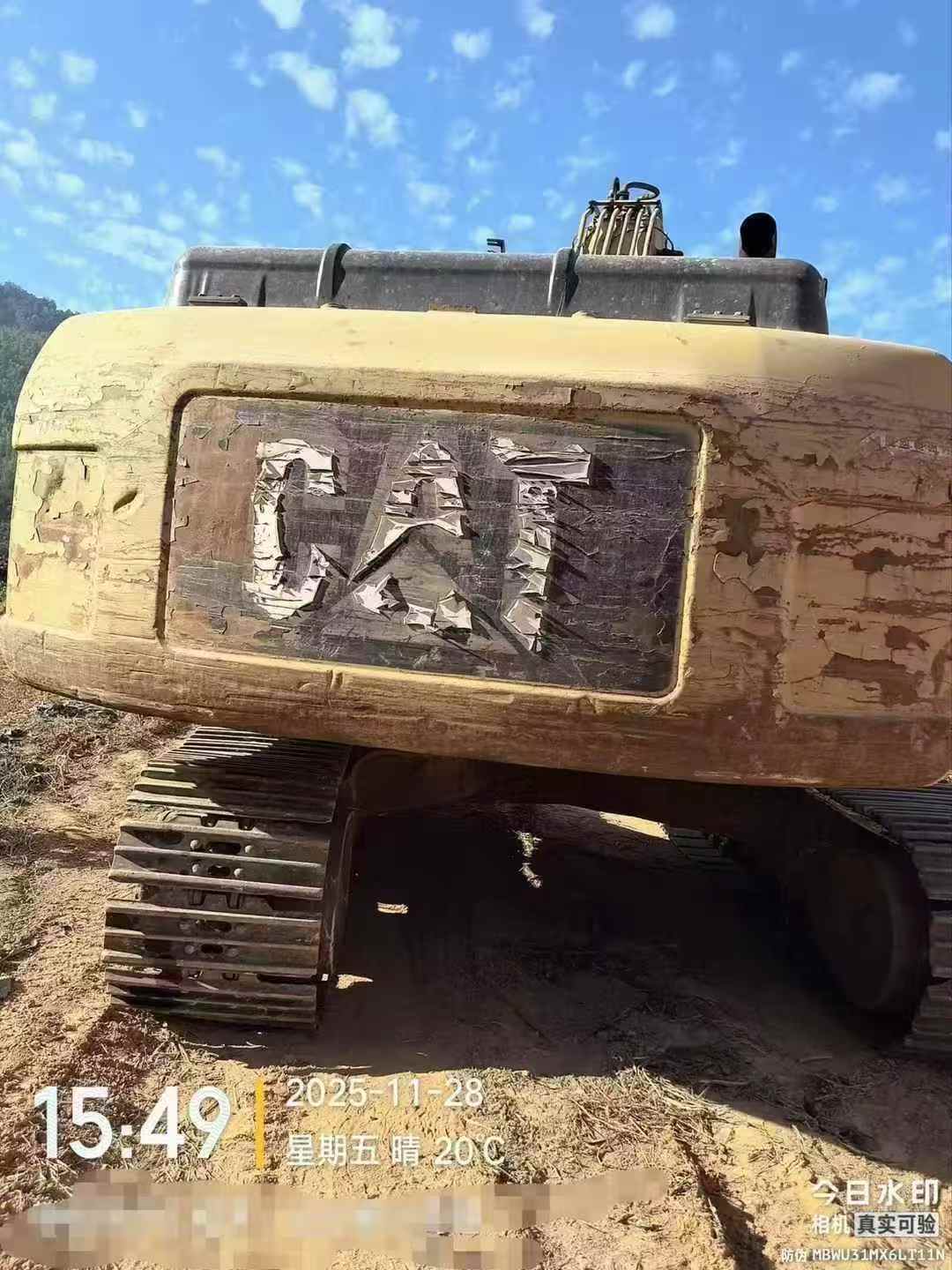

Maximize your equipment budget with this 2013 Caterpillar 323DL excavator, currently located in Guizhou. Delivering 23-ton performance at a fraction of new equipment costs, this machine represents a strategic investment for contractors seeking proven reliability without premium pricing. Powered by the robust C6.4 ACERT engine producing 110kW at 2000rpm, this joint venture-manufactured unit combines Japanese engineering standards with practical operational efficiency.
Performance specifications include a 1.2m³ bucket capacity, 6710mm maximum digging depth, and 9850mm excavation radius—ideal for medium to large-scale earthmoving projects. The hydraulic system features 205 l/min main pump flow and 3.5MPa working circuit pressure, ensuring consistent productivity across demanding applications. With 140kN bucket digging force and 106kN rod digging force, this excavator handles tough ground conditions effectively.
- Operating weight: 22,300-23,100kg with 5700mm boom and 2900mm stick

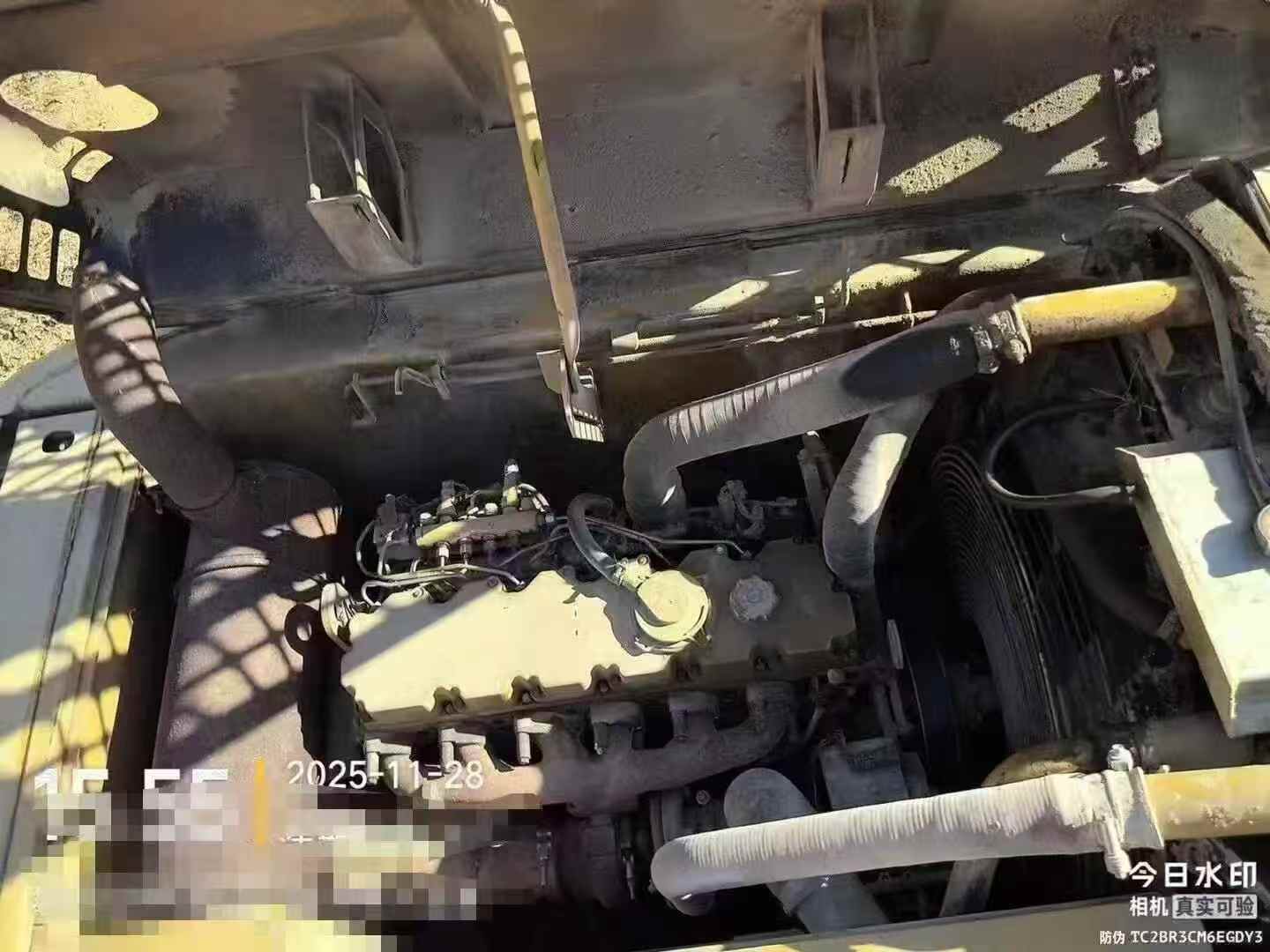

- Water-cooled 6-cylinder engine with 6.4L displacement
- 11.5rpm rotation speed and 70% climbing capability
- 410L fuel capacity for extended operation cycles
- Compact transport dimensions: 9460mm × 3180mm × 30
| Specifications | Value |
|---|---|
| No. | 1005349 |
| Tonnage (tons) | 23 |
| Working weight (kg) | 22300-23100 |
| Bucket capacity (m³) | 1.2 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2900 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | C6.4ACERT |
| Rated power (kw/rpm) | 110/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.4 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 140 |
| Rod digging force (kN) | 106 |
| Travel speed (km/h) | 3.5/5.7 |
| Main overflow set pressure (Mpa) | 3.5 |
| Maximum flow of main pump (l/min) | 205 |
| Traveling Hydraulic Circuit (Mpa) | 3.5 |
| Rotary Hydraulic Circuit (Mpa) | 2.5 |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 3.5 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 120 x 1104 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 140 x 1504 |
| Boom cylinders - Number × diameter × stroke (mm) | 120 x 1260 |
| Fuel Tank (L) | 410 |
| Hydraulic Tank (L) | 120 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 25 |
| Hydraulic System (L) | 260(including fuel tank) |
| Total transport length (mm) | 9460 |
| Total transport width (mm) | 3180 |
| Total transport height (mm) | 3050 |
| Full cab height (mm) | 2950 |
| Counterweight ground clearance (mm) | 1020 |
| Minimum ground clearance (mm) | 450 |
| Back end turning radius (mm) | 2940 |
| Total track length (mm) | 4455 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3180 |
| Track ground length (mm) | 3650 |
| Maximum digging depth (mm) | 6710 |
| Maximum excavation height (mm) | 9470 |
| Maximum unloading height (mm) | 6500 |
| Maximum vertical digging depth (mm) | 5860 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 9850 |
| Maximum effective digging depth (mm) | 6380 |
Overview
No.1005349
Brand Name：
CaterpillarModel Number：
323DLYear：
2013
Location：
Guizhou China
