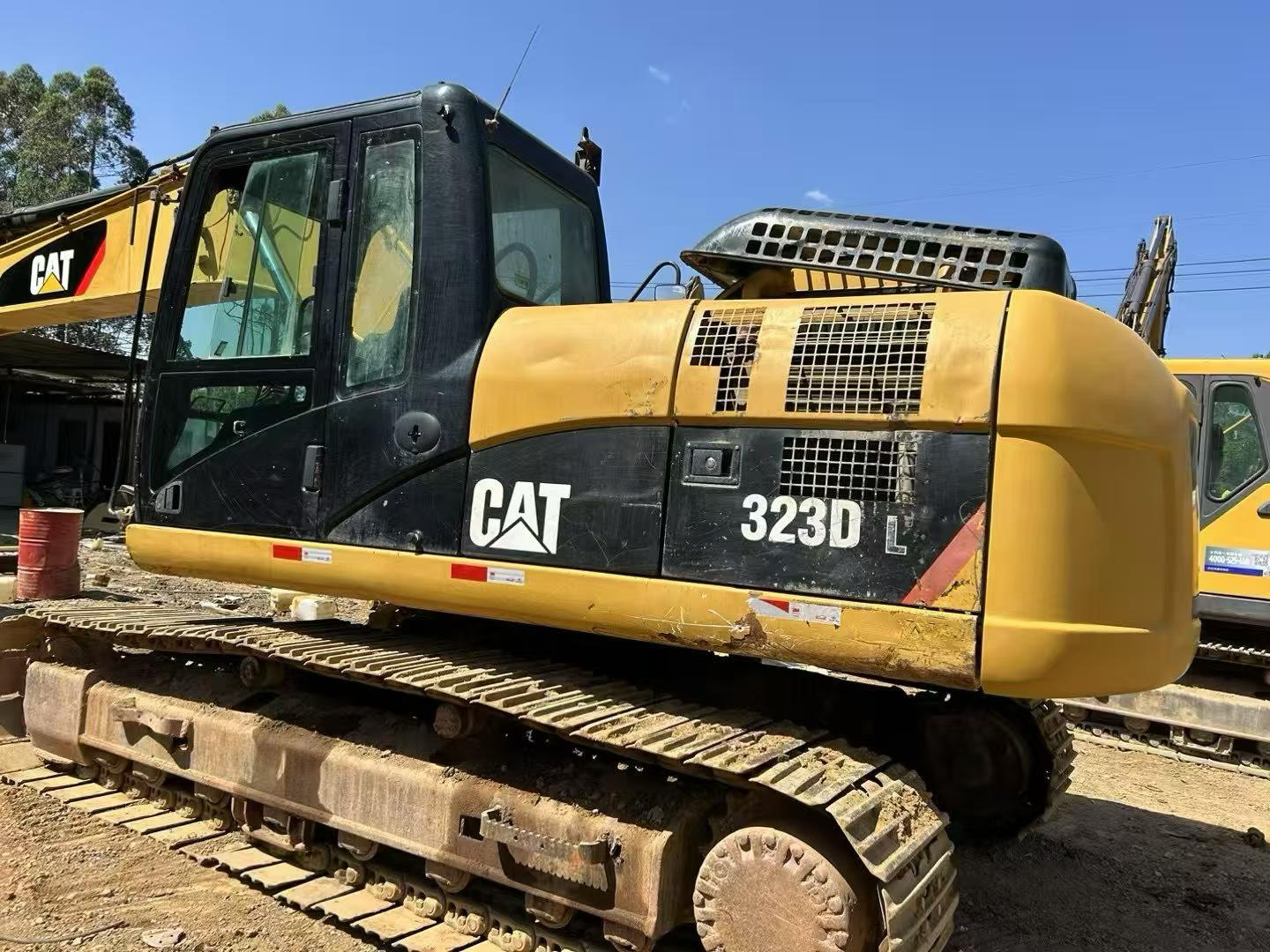

2013 Caterpillar 323DL
Product Description
Available for sale is a 2013 Caterpillar 323DL excavator, currently located in Guangdong, China. This machine is equipped with a 1.2 cubic meter bucket and powered by a reliable 6.6 engine, ensuring robust performance on any job site. Regularly maintained and ready to work, this unit is suitable for immediate deployment. It features an original air conditioning system, enhancing operator comfort during operation. Ideal for both purchase and rental options, it's priced affordably at around 100,000 RMB. This Caterpillar 323DL is a proven workhorse, perfect for clients looking for a dependable and efficient machine. Financing options are available.
- Year: 2013
- Brand: Caterpillar
- Model: 323DL
- Bucket Capacity: 1.2 cubic meters
- Engine: 6.6
- Location: Guangdong, China
- Condition: Well-maintained, ready to work

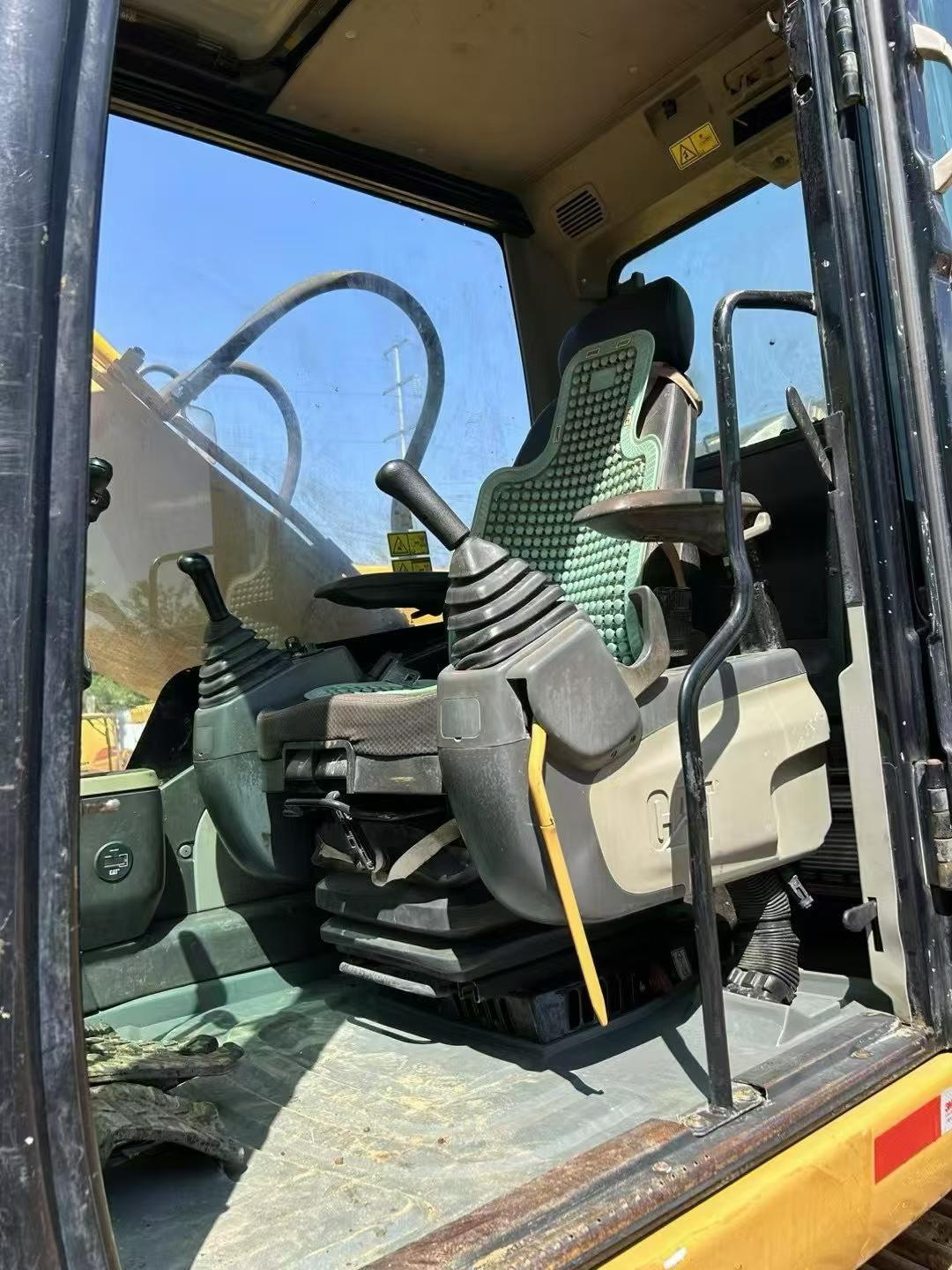

- Features: Original air conditioning system
- Price: Approximately 100,000 RMB
- Options: Available for purchase or rent
| Specifications | Value |
|---|---|
| No. | 1132793 |
| Tonnage (tons) | 23 |
| Working weight (kg) | 22300-23100 |
| Bucket capacity (m³) | 1.2 |

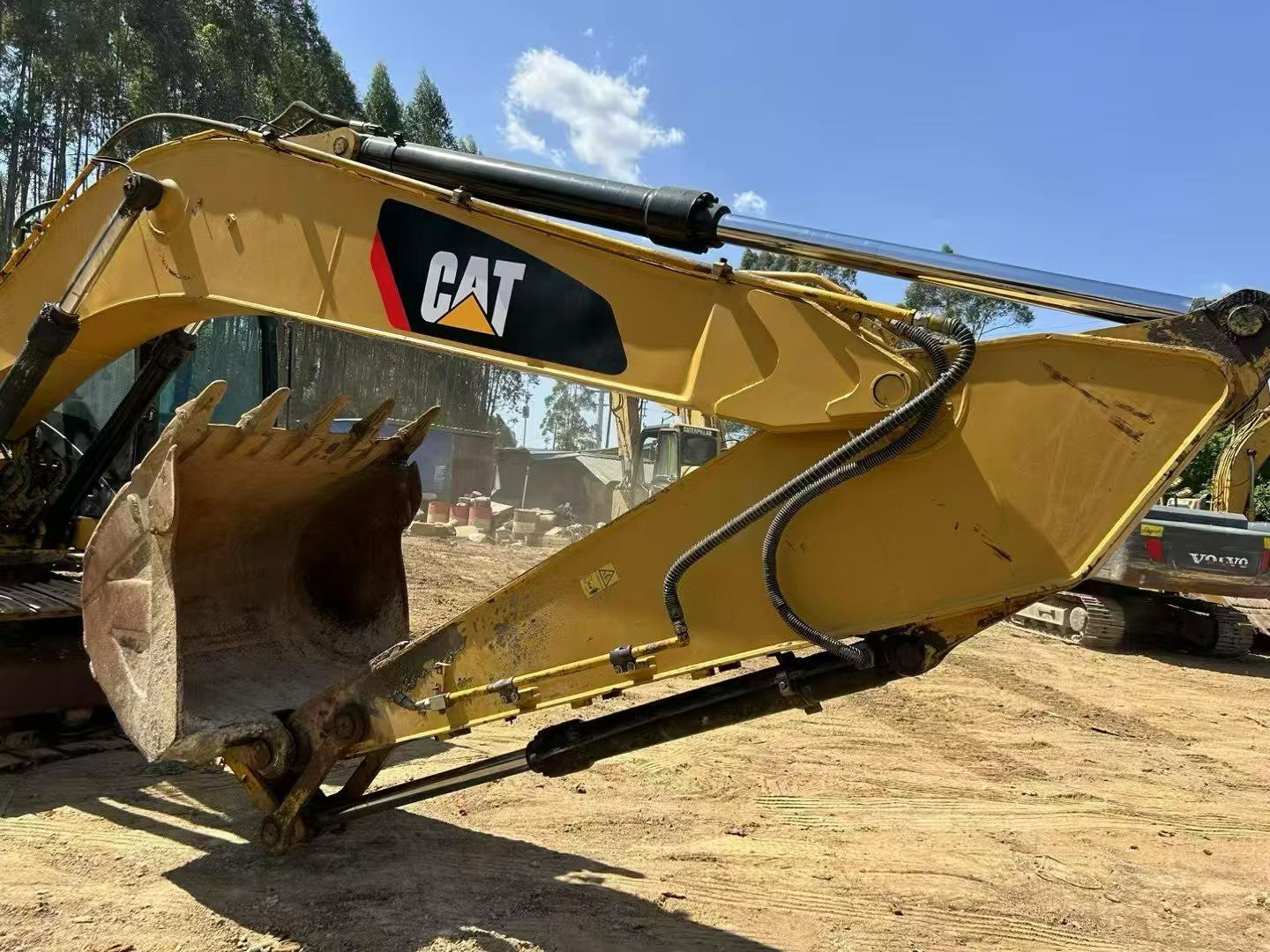

| Boom length (mm) | 5700 |
| Rod length (mm) | 2900 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

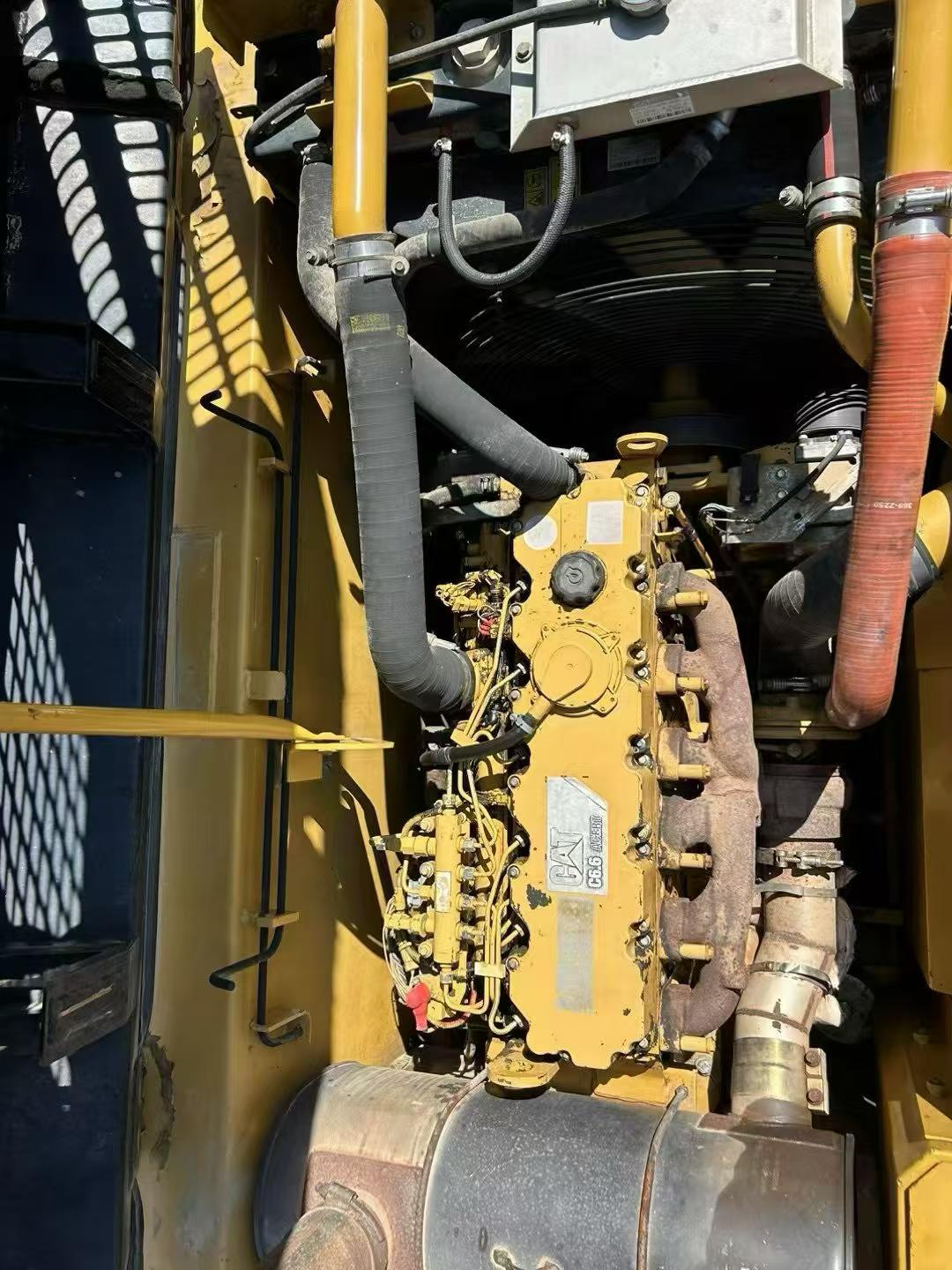

| Engine type | C6.4ACERT |
| Rated power (kw/rpm) | 110/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.4 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 140 |
| Rod digging force (kN) | 106 |
| Travel speed (km/h) | 3.5/5.7 |
| Main overflow set pressure (Mpa) | 3.5 |
| Maximum flow of main pump (l/min) | 205 |
| Traveling Hydraulic Circuit (Mpa) | 3.5 |
| Rotary Hydraulic Circuit (Mpa) | 2.5 |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 3.5 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 120 x 1104 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 140 x 1504 |
| Boom cylinders - Number × diameter × stroke (mm) | 120 x 1260 |
| Fuel Tank (L) | 410 |
| Hydraulic Tank (L) | 120 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 25 |
| Hydraulic System (L) | 260(including fuel tank) |
| Total transport length (mm) | 9460 |
| Total transport width (mm) | 3180 |
| Total transport height (mm) | 3050 |
| Full cab height (mm) | 2950 |
| Counterweight ground clearance (mm) | 1020 |
| Minimum ground clearance (mm) | 450 |
| Back end turning radius (mm) | 2940 |

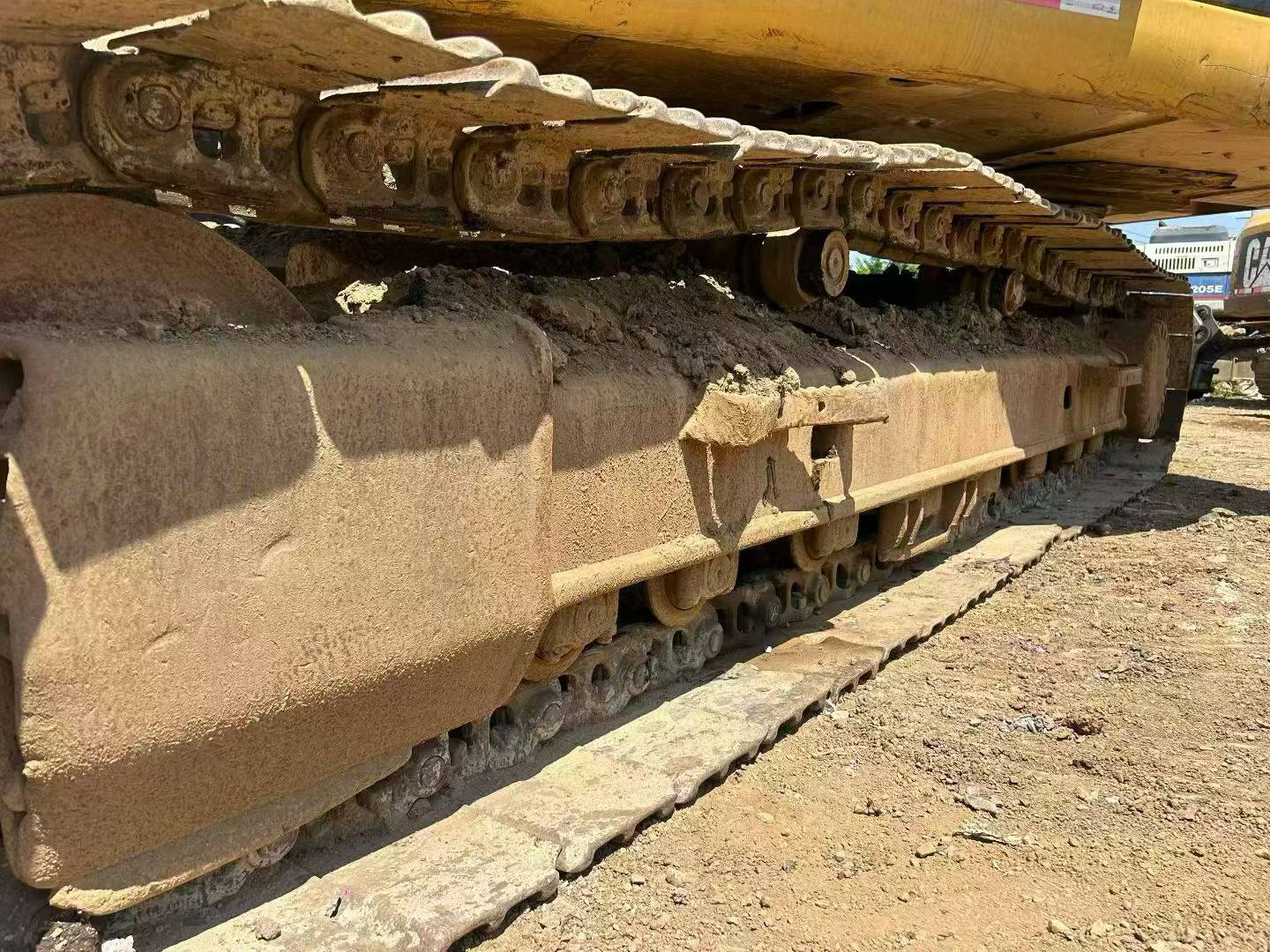

| Total track length (mm) | 4455 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3180 |
| Track ground length (mm) | 3650 |
| Maximum digging depth (mm) | 6710 |
| Maximum excavation height (mm) | 9470 |
| Maximum unloading height (mm) | 6500 |
| Maximum vertical digging depth (mm) | 5860 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 9850 |
| Maximum effective digging depth (mm) | 6380 |
