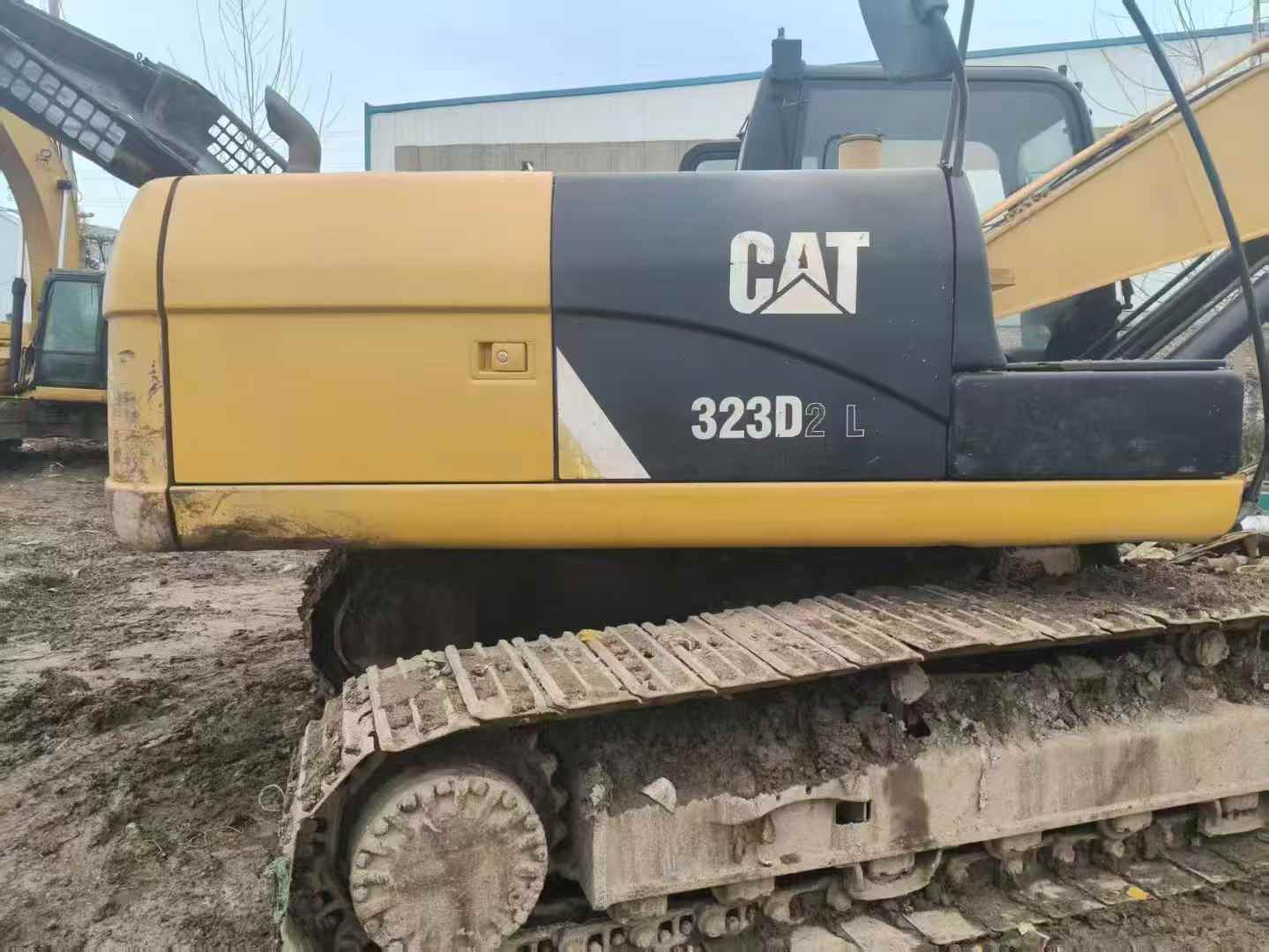

2014 Caterpillar 323DL
Product Description
Built in 2014, this Caterpillar 323DL excavator delivers proven performance in the 23-ton class with Caterpillar's legendary reliability behind every component. Powered by the robust C6.4 ACERT engine producing 110kW at 2000rpm, this machine combines exceptional digging force—140kN bucket and 106kN arm—with a maximum dig depth of 6,710mm and reach of 9,850mm. Currently located in Xuzhou, Jiangsu, this joint-venture manufactured unit represents solid value in the used equipment market.
Why Caterpillar remains the industry standard for used machinery buyers:
- Global parts network ensures minimal downtime and cost-effective maintenance
- Superior resale value protects your investment compared to lesser brands

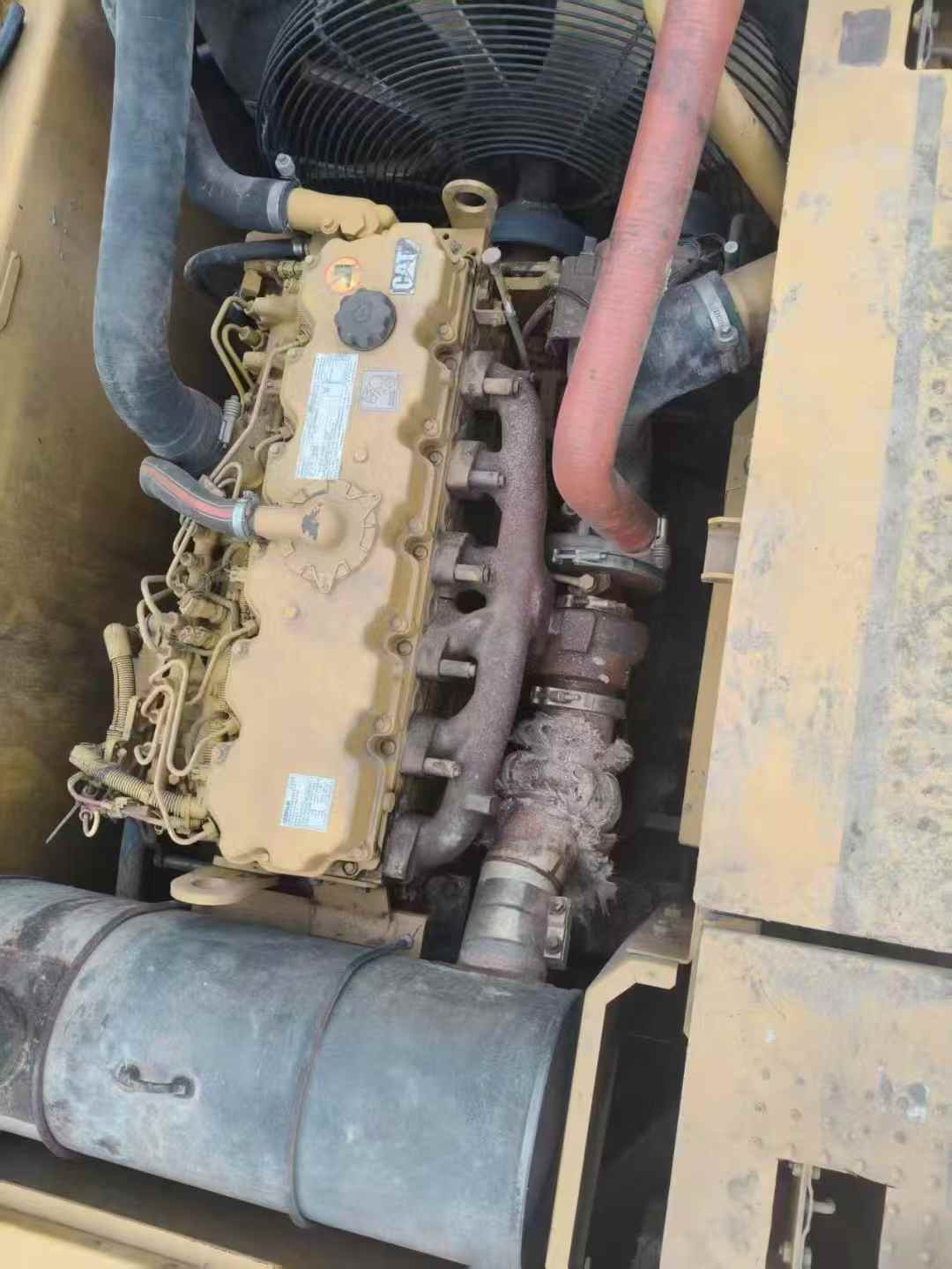

- Water-cooled 6-cylinder engine proven across thousands of jobsites worldwide

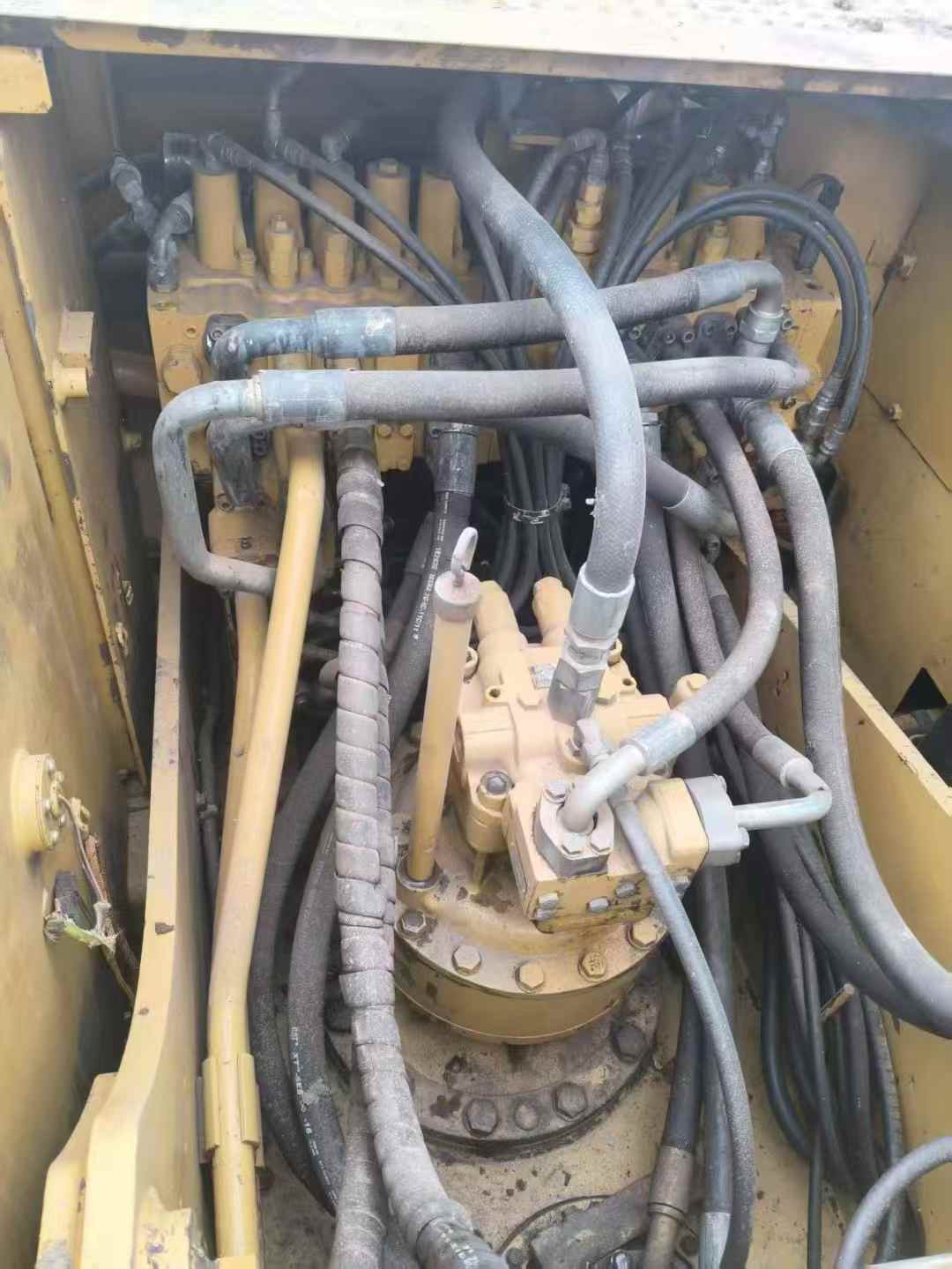

- Comprehensive hydraulic system with 205 L/min main pump flow for consistent productivity

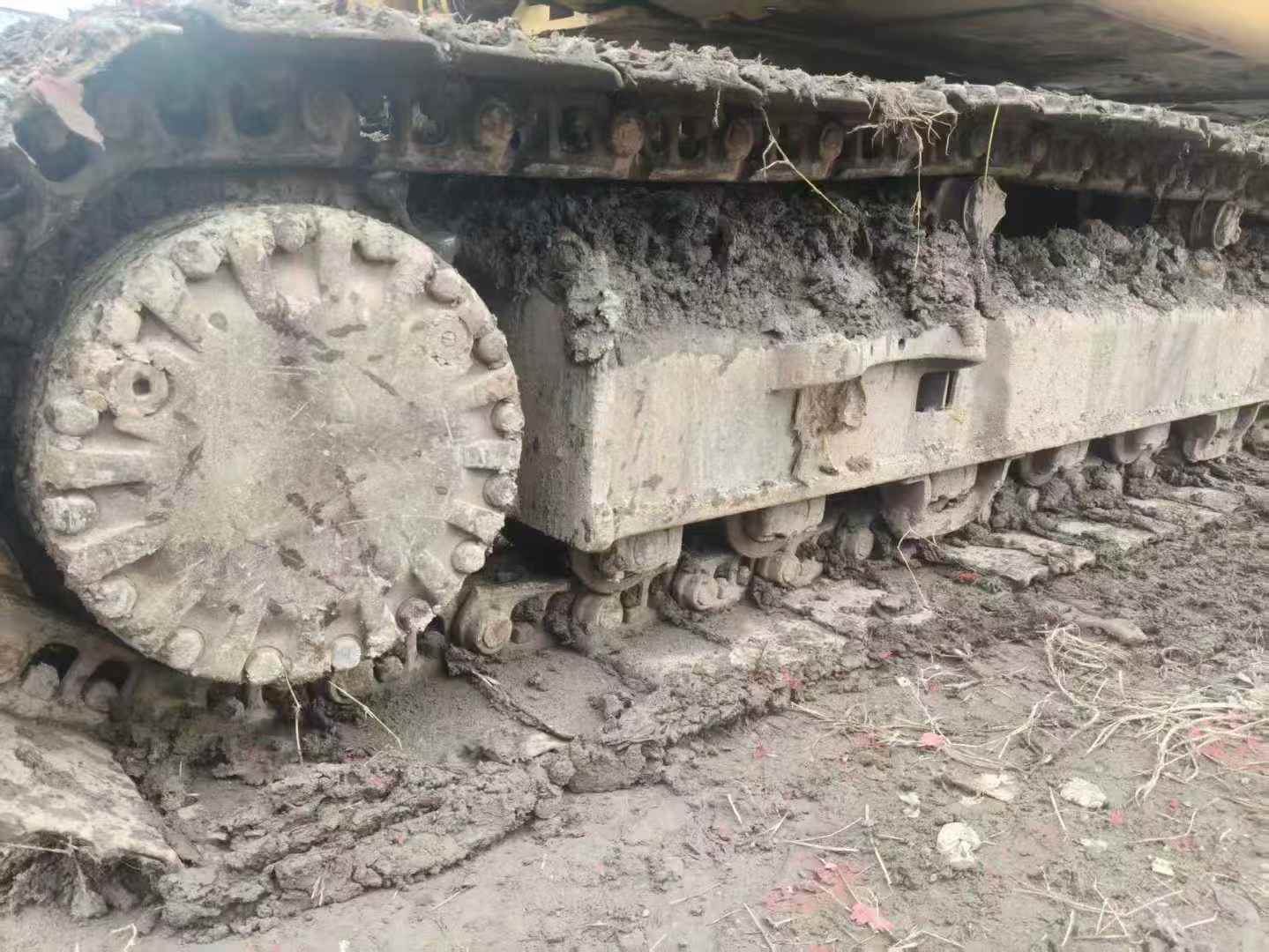

- Track-type undercarriage with 600mm shoes provides stability on varied terrain
With a 1.2m³ bucket capacity and 410L fuel tank for extended operation, this 323DL offers the performance contractors demand with the Caterpillar name they trust.
| Specifications | Value |
|---|---|
| No. | 1019205 |
| Tonnage (tons) | 23 |
| Working weight (kg) | 22300-23100 |
| Bucket capacity (m³) | 1.2 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2900 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | C6.4ACERT |
| Rated power (kw/rpm) | 110/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.4 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 140 |
| Rod digging force (kN) | 106 |
| Travel speed (km/h) | 3.5/5.7 |
| Main overflow set pressure (Mpa) | 3.5 |
| Maximum flow of main pump (l/min) | 205 |
| Traveling Hydraulic Circuit (Mpa) | 3.5 |
| Rotary Hydraulic Circuit (Mpa) | 2.5 |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 3.5 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 120 x 1104 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 140 x 1504 |
| Boom cylinders - Number × diameter × stroke (mm) | 120 x 1260 |
| Fuel Tank (L) | 410 |
| Hydraulic Tank (L) | 120 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 25 |
| Hydraulic System (L) | 260(including fuel tank) |
| Total transport length (mm) | 9460 |
| Total transport width (mm) | 3180 |
| Total transport height (mm) | 3050 |
| Full cab height (mm) | 2950 |
| Counterweight ground clearance (mm) | 1020 |
| Minimum ground clearance (mm) | 450 |
| Back end turning radius (mm) | 2940 |
| Total track length (mm) | 4455 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3180 |
| Track ground length (mm) | 3650 |
| Maximum digging depth (mm) | 6710 |
| Maximum excavation height (mm) | 9470 |
| Maximum unloading height (mm) | 6500 |
| Maximum vertical digging depth (mm) | 5860 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 9850 |
| Maximum effective digging depth (mm) | 6380 |
Overview
No.1019205
Brand Name：
CaterpillarModel Number：
323DLYear：
2014
Location：
Jiangsu China
Pub Date：
