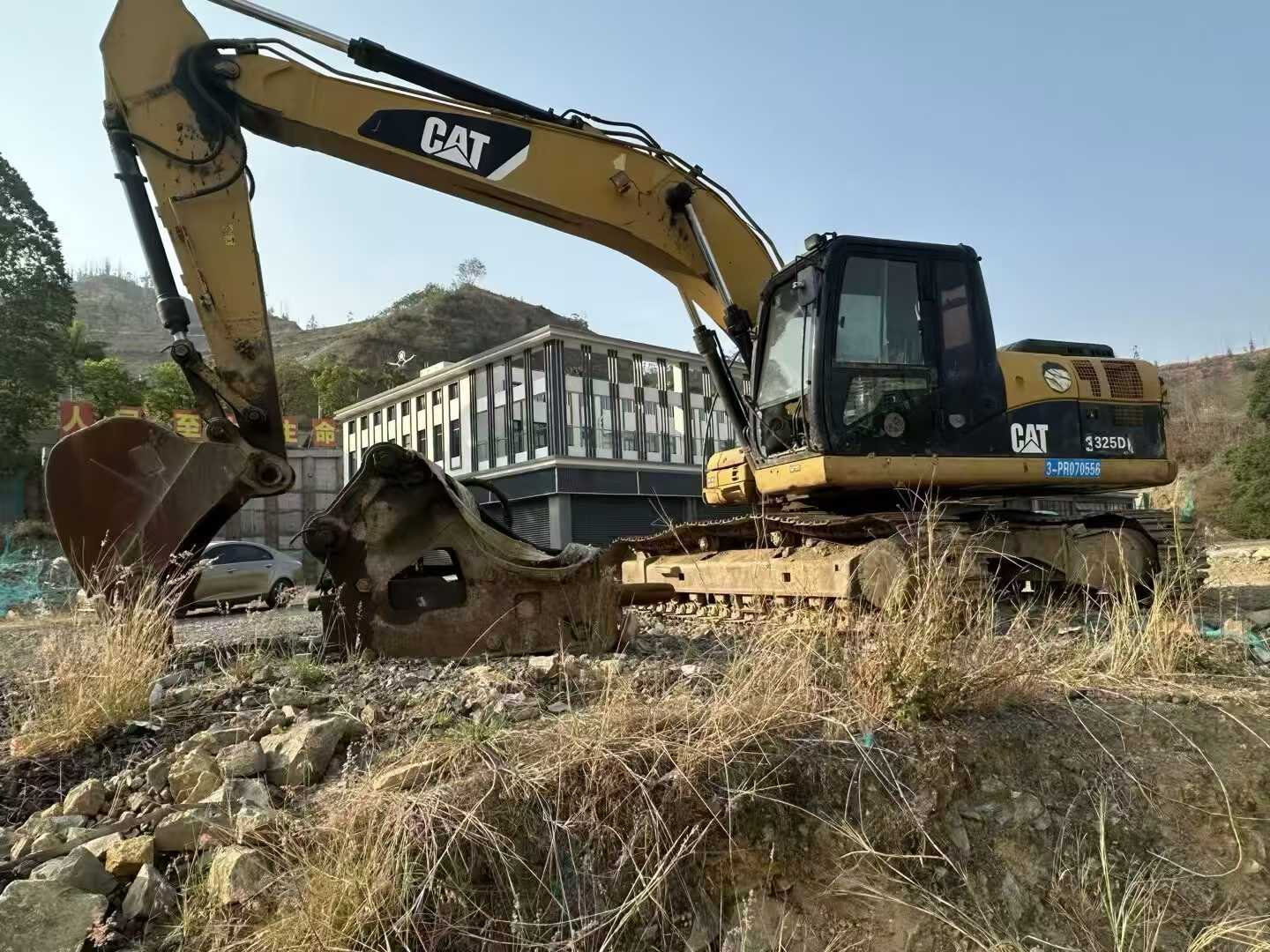

2014 Caterpillar 323DL
Product Description
Commanding a 23-ton workhorse demands precision and confidence. This 2014 Caterpillar 323DL, currently located in Kunming, Yunnan, delivers both through its operator-centric design and robust hydraulic performance. Powered by a C6.4 ACERT engine generating 110 kW at 2000 rpm, this excavator combines reliable power with responsive control across demanding job sites.
Operator advantages include:
- Enhanced visibility from a spacious cab positioned 2950mm high, providing clear sightlines to the 9850mm maximum excavation radius
- Smooth 11.5 rpm rotation speed enabling precise positioning without constant repositioning
- Stable platform with 2380mm track gauge and 3650mm ground contact length for confident operation on slopes up to 35°
- Intuitive hydraulic response through 205 l/min main pump flow, supporting 140 kN bucket digging force
- Dual travel speeds (3.5/5.7 km/h) for efficient site navigation
With a 6710mm maximum digging depth and 1.2m³ bucket capacity, this joint-venture manufactured machine balances productivity with operational comfort. The water-cooled 6-cylinder engine ensures consistent performance during extended shifts, while the 410L fuel tank minimizes re
| Specifications | Value |
|---|---|
| No. | 994492 |
| Tonnage (tons) | 23 |
| Working weight (kg) | 22300-23100 |
| Bucket capacity (m³) | 1.2 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2900 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | C6.4ACERT |
| Rated power (kw/rpm) | 110/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.4 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 140 |
| Rod digging force (kN) | 106 |
| Travel speed (km/h) | 3.5/5.7 |
| Main overflow set pressure (Mpa) | 3.5 |
| Maximum flow of main pump (l/min) | 205 |
| Traveling Hydraulic Circuit (Mpa) | 3.5 |
| Rotary Hydraulic Circuit (Mpa) | 2.5 |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 3.5 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 120 x 1104 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 140 x 1504 |
| Boom cylinders - Number × diameter × stroke (mm) | 120 x 1260 |
| Fuel Tank (L) | 410 |
| Hydraulic Tank (L) | 120 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 25 |
| Hydraulic System (L) | 260(including fuel tank) |
| Total transport length (mm) | 9460 |
| Total transport width (mm) | 3180 |
| Total transport height (mm) | 3050 |
| Full cab height (mm) | 2950 |
| Counterweight ground clearance (mm) | 1020 |
| Minimum ground clearance (mm) | 450 |
| Back end turning radius (mm) | 2940 |
| Total track length (mm) | 4455 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3180 |
| Track ground length (mm) | 3650 |
| Maximum digging depth (mm) | 6710 |
| Maximum excavation height (mm) | 9470 |
| Maximum unloading height (mm) | 6500 |
| Maximum vertical digging depth (mm) | 5860 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 9850 |
| Maximum effective digging depth (mm) | 6380 |
