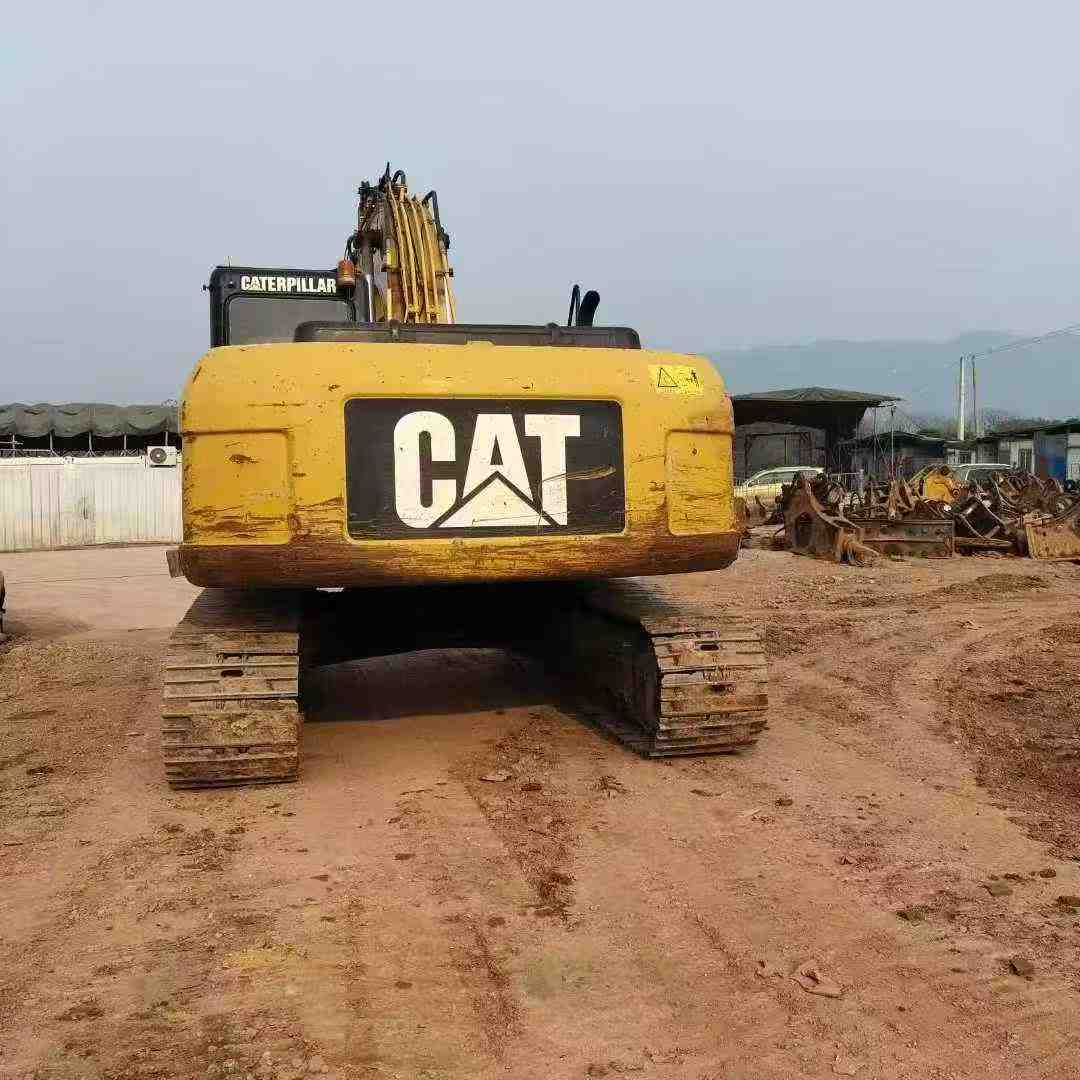

2016 Caterpillar 323DL
Product Description
Engineered with precision and built for demanding applications, this 23-ton excavator delivers exceptional performance through advanced hydraulic systems and proven powertrain technology. The C6.4 ACERT engine generates 110 kW at 2000 rpm, providing reliable output through a water-cooled, 6-cylinder configuration with 6.4L displacement. Hydraulic efficiency stands at the core of operational capability, featuring a main pump flow of 205 l/min and working circuit pressure of 35 MPa, ensuring responsive control across all functions.
Performance specifications demonstrate superior capability:
- Maximum digging depth of 6,710 mm with 9,850 mm reach at ground level
- Bucket digging force: 140 kN; rod digging force: 106 kN
- Operating weight: 22,300-23,100 kg with 1.2 m³ bucket capacity
- Rotation speed of 11.5 rpm for efficient cycle times
- Climbing ability: 70% (35°) for challenging terrain
Located in Luzhou, Sichuan, this joint venture/import unit represents Caterpillar's commitment to engineering excellence. The 323DL series combines robust construction with intelligent hydraulic management, making it suitable for heavy-duty excavation, loading, and site development operati
| Specifications | Value |
|---|---|
| No. | 998307 |
| Tonnage (tons) | 23 |
| Working weight (kg) | 22300-23100 |
| Bucket capacity (m³) | 1.2 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2900 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | C6.4ACERT |
| Rated power (kw/rpm) | 110/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.4 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 140 |
| Rod digging force (kN) | 106 |
| Travel speed (km/h) | 3.5/5.7 |
| Main overflow set pressure (Mpa) | 3.5 |
| Maximum flow of main pump (l/min) | 205 |
| Traveling Hydraulic Circuit (Mpa) | 3.5 |
| Rotary Hydraulic Circuit (Mpa) | 2.5 |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 3.5 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 120 x 1104 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 140 x 1504 |
| Boom cylinders - Number × diameter × stroke (mm) | 120 x 1260 |
| Fuel Tank (L) | 410 |
| Hydraulic Tank (L) | 120 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 25 |
| Hydraulic System (L) | 260(including fuel tank) |
| Total transport length (mm) | 9460 |
| Total transport width (mm) | 3180 |
| Total transport height (mm) | 3050 |
| Full cab height (mm) | 2950 |
| Counterweight ground clearance (mm) | 1020 |
| Minimum ground clearance (mm) | 450 |
| Back end turning radius (mm) | 2940 |
| Total track length (mm) | 4455 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3180 |
| Track ground length (mm) | 3650 |
| Maximum digging depth (mm) | 6710 |
| Maximum excavation height (mm) | 9470 |
| Maximum unloading height (mm) | 6500 |
| Maximum vertical digging depth (mm) | 5860 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 9850 |
| Maximum effective digging depth (mm) | 6380 |
Overview
No.998307
Brand Name：
CaterpillarModel Number：
323DLYear：
2016
Location：
Sichuan China
Pub Date：
