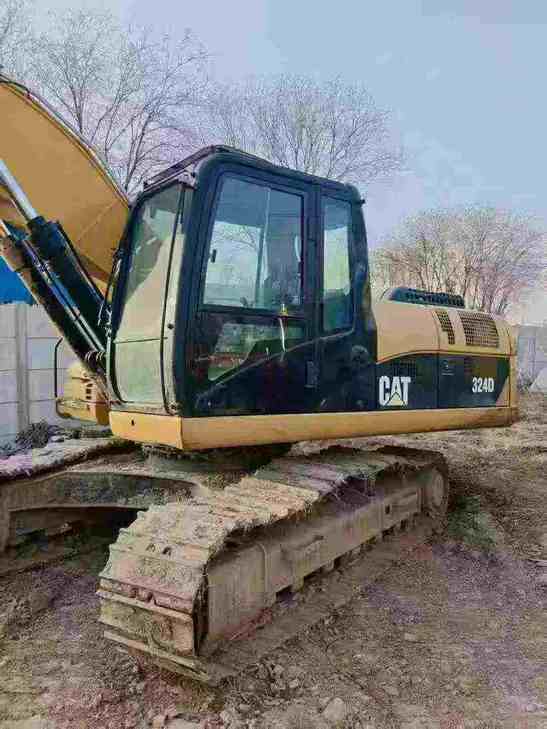

2012 Caterpillar 324D
Product Description
Powered by the proven C7 ACERT engine delivering 140 kW at 2000 rpm, this 2012 Caterpillar 324D combines robust hydraulic performance with precision engineering. The machine operates with a 235 l/min main pump flow and 35 MPa working pressure, ensuring responsive control across demanding excavation tasks. At 24 tons operating weight with a 1 m³ bucket capacity, this mid-size excavator delivers exceptional balance between power and fuel efficiency.
Key technical specifications include:
- Maximum digging depth of 6740 mm with 10030 mm reach at ground level
- Hydraulic system capacity of 300 L supporting consistent performance during extended shifts
- Water-cooled 6-cylinder engine with 7.2 L displacement for reliable operation
- 9.6 rpm rotation speed with dedicated 24.5 MPa swing circuit
- Dual boom cylinders (135 mm diameter) providing stable lifting force
Currently located in Fujian, this Japan-manufactured unit represents Caterpillar's joint-venture quality standards. The 324D series is recognized for durability in infrastructure, mining support, and general construction applications where uptime matters.
| Specifications | Value |
|---|---|
| No. | 1018574 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 24240 |
| Bucket capacity (m³) | 1 |
| Boom length (mm) | 5900 |
| Rod length (mm) | 2950 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | C7 ACERT |
| Rated power (kw/rpm) | 140/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.2 |
| Rotation speed (rpm) | 9.6 |
| Climbing ability (%) | 70/35 ° |
| Travel speed (km/h) | 3.5/5.5 |
| Main overflow set pressure (Mpa) | 35 |
| Maximum flow of main pump (l/min) | 235 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 24.5 |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 35 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-120 x 1104 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-140 x 1660 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-135 x 1305 |
| Fuel Tank (L) | 520 |
| Hydraulic Tank (L) | 145 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 30 |
| Hydraulic System (L) | 300(including fuel tank) |
| Total transport length (mm) | 10060 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 3170 |
| Full cab height (mm) | 2980 |
| Counterweight ground clearance (mm) | 1060 |
| Minimum ground clearance (mm) | 470 |
| Back end turning radius (mm) | 2940 |
| Total track length (mm) | 4250 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2990 |
| Track ground length (mm) | 3450 |
| Maximum digging depth (mm) | 6740 |
| Maximum excavation height (mm) | 9660 |
| Maximum unloading height (mm) | 6700 |
| Maximum vertical digging depth (mm) | 5830 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 10030 |
| Maximum effective digging depth (mm) | 6560 |
Overview
No.1018574
Brand Name：
CaterpillarModel Number：
324DYear：
2012
Location：
Fujian China
Pub Date：
