Name: Used Excavators 2012 Caterpillar 324D
Brand: Caterpillar
SKU: USED-1037682
Availability: InStock
Rating: 4.8 (26 reviews)

Sany

Caterpillar

XCMG

Hitachi

Komatsu

Doosan

Kobelco

Hyundai

Volvo

Sumitomo

Kato

Case

Yanmar

JohnDeere

Liebherr

Built for high-output earthmoving and excavation work, this 2012 Caterpillar 324D delivers 24-ton performance with a proven C7 ACERT engine generating 140kW at 2000 rpm. Currently located in Lishui, Zhejiang, this Japan-origin excavator arrives site-ready with a 1m³ backhoe bucket, 5900mm boom, and 2950mm stick configuration for maximum reach and digging force.

Hydraulic power comes from a 235 L/min main pump operating at 35 MPa across working circuits, providing the muscle needed for demanding trenching, foundation work, and material handling. Dig to 6740mm depth or reach 10030mm from center—specs that translate directly into productivity on grading, utility installation, and demolition projects.

Key Performance Specifications:
<ul>
<li>Operating weight: 24,240kg with superior stability</li>
<li>Maximum digging height: 9660mm for loading operations</li>
<li>Travel speeds: 3.5/5.5 km/h with 70% gradeability</li>
<li>520L fuel capacity for extended runtime</li>
<li>Water-cooled 6-cylinder engine with 7.2L displacement</li>
<li>9.6 rpm swing speed for efficient cycle times</li>
</ul>

Ready to move dirt, load trucks, and handle site preparation tasks from day one.

Built for demanding jobsites, this 2013 Caterpillar 323DL delivers proven performance with its robust 23-ton operating weight and powerful C6.4 ACERT engine generating 110kW at 2000 RPM. Located in Guangdong Maoming, this Japanese-manufactured machine combines reliability with impressive digging capabilities.

Key operational specifications include:
<ul>
<li>Maximum digging depth of 6.71m and excavation height of 9.47m</li>
<li>1.2m³ bucket capacity with 140kN digging force</li>
<li>9.85m maximum excavation radius for extended reach applications</li>
<li>Dual travel speeds (3.5/5.7 km/h) for efficient site mobility</li>
<li>410L fuel capacity supporting extended operating periods</li>
</ul>

Equipped with water-cooled 6-cylinder engine and comprehensive hydraulic system featuring 205 L/min main pump flow, this excavator handles grading, trenching, and demolition tasks with precision. The 5.7m boom and 2.9m arm configuration provides optimal working geometry for construction and earthmoving operations. Ready for immediate deployment with standard hydraulic connections and proven Caterpillar engineering.

Caterpillar 323DL

With a tonnage of 5 tons, the 2016 Hitachi ZX50 offers exceptional handling and stability, making it ideal for operators who value precision and control. Manufactured as a joint venture/import, this model is equipped with traditional power, ensuring reliable performance on any job site.
<ul>
<li>Experience superior visibility from the operator's cabin, designed to enhance situational awareness and operational safety.</li>
<li>Utilize the backhoe bucket for versatile digging and loading tasks, supported by the machine’s robust construction.</li>
<li>Located in 浙江宁波, this excavator is ready for immediate deployment, providing you with a dependable solution for your construction needs.</li>
</ul>

Hitachi ZX50

With a robust 21-ton working weight and a powerful Mitsubishi 4M50 engine, this 2013 Sany SY215C excavator is site-ready for your most demanding projects. Featuring a 1.1 m³ bucket capacity, it excels in digging, grading, and demolition tasks. Equipped with a water-cooled system, the machine maintains optimal performance under various conditions.
<ul>
<li>Rated power of 118 kW at 2000 rpm ensures reliable operation.</li>
<li>Maximum torque of 580 N.m at 1600 rpm delivers strong digging forces: 138 kN for the bucket and 103 kN for the rod.</li>
<li>Travel speed up to 5.4 km/h and a 70% climbing ability (35°) make it versatile on challenging terrains.</li>
<li>Fuel and hydraulic tanks hold 390 L and 239 L, respectively, reducing downtime for refueling and maintenance.</li>
<li>Total transport dimensions of 9680 mm x 2980 mm x 3440 mm ensure easy mobility between sites.</li>
</ul>
Located in 广东茂名, this excavator is ready to tackle your next project with efficiency and precision.

Sany SY215C

Available now from our Hubei facility, this 2016 Doosan DH80 mini excavator eliminates factory lead times and accelerates your project timeline. Powered by a reliable Kubota V3300-DI engine delivering 45.8kW at 2200rpm, this 8-ton machine combines proven performance with immediate deployment capability. Water-cooled efficiency and fuel consumption of just 163g/ps.hr keep operating costs predictable across extended shifts.

Engineered for versatility, the DH80 delivers a maximum digging depth of 4,060mm and digging radius of 6,170mm. Hydraulic crushing pipeline comes standard, expanding jobsite applications without delay. Compact dimensions—5,920mm transport length and 2,200mm width—ensure fast mobilization through congested urban environments or tight access points.

<ul>
<li>Working weight: 7,830kg with 0.28-0.32m³ bucket capacity</li>
<li>Bucket digging force: 55kN / Rod digging force: 38kN</li>
<li>Main pump flow: 162.8 l/min for responsive hydraulics</li>
<li>Track width: 400mm for stable operation on varied terrain</li>
<li>Ready for immediate shipment from Hubei—skip months of factory wait times</li>
</ul>

Fast-track your equipment acquisition. Contact our team today for expedited logistics coordination.

Doosan DH80

Maximize your equipment budget with this 2016 Sumitomo SH80-6 excavator from Hubei—delivering proven 8-ton performance at a fraction of new equipment costs. Powered by a reliable Isuzu AU-4LE2X engine producing 40kW at 2000 rpm, this compact workhorse combines Japanese engineering with exceptional value retention. At 7,460 kg working weight and a 0.38 m³ bucket capacity, it tackles demanding jobsites while maintaining a competitive operating footprint of just 2,320 mm width.

<ul>
 <li>Maximum Reach: 6,460 mm digging radius with 4,050 mm depth capability</li>
 <li>Robust Power: 56.4 kN bucket digging force and 39.3 kN rod digging force</li>
 <li>Efficient Operation: 120L fuel tank, 29.4 MPa hydraulic system, 5.1 km/h travel speed</li>
 <li>Compact Mobility: 1,750 mm rear turning radius for confined work areas</li>
 <li>Smart Investment: Joint venture quality with proven 1,690 mm rod length for versatile applications</li>
</ul>

Secure high-performance excavation capability without the premium price tag. This well-maintained unit offers immediate deployment potential for contractors seeking reliable productivity and superior ROI.

Sumitomo SH80-6

Proven performance meets exceptional value in this 2018 Doosan DH150 excavator, currently located in Hubei. Operating at 15 tons with traditional power, this joint venture/imported machine delivers the reliability Doosan is renowned for across global construction and mining operations. Equipped with a standard backhoe bucket, it's engineered for versatile earthmoving tasks where uptime and productivity matter most.

Doosan's reputation in the used equipment market stems from three critical advantages:

<ul>
<li>Parts Availability: Extensive dealer networks and aftermarket support ensure minimal downtime, even years after production</li>
<li>Resale Value: Doosan machines consistently retain stronger market value compared to lesser-known brands</li>
<li>Service Documentation: Well-established maintenance protocols and diagnostic systems reduce ownership costs</li>
</ul>

For contractors seeking dependable mid-size excavation power without the premium of new equipment, this DH150 represents a calculated investment. Contact Fair Trade Machinery today for detailed specifications, inspection reports, and competitive export pricing to your destination.

Doosan DH150

Engineered with precision hydraulics and proven ISUZU power, this 2013 Kobelco SK75 delivers consistent performance across demanding jobsites. At its core sits the ISUZU AU4LE2X engine—a water-cooled, 4-cylinder powerplant generating 41 kW at 2200 rpm through 2.179L displacement. Hydraulic architecture features a double variable displacement axial piston pump working at 29.4 Mpa, supported by dedicated circuits: 27.5 Mpa for travel, 14.5 Mpa for rotation, ensuring responsive control under load.

Built to joint venture/import standards in Chengdu, this 7-ton excavator combines compact dimensions with impressive reach capabilities. Maximum digging radius extends to 6,460 mm while maintaining a tight 1,760 mm front turning radius—critical for confined spaces. Vertical digging depth reaches 3,450 mm, backed by a maximum excavation height of 7,390 mm. Dual travel speeds (2.8/5.3 km/h) optimize productivity between positioning and transport modes.

Key Technical Specifications:
<ul>
<li>Working weight: 7,000 kg (approximate)</li>
<li>Hydraulic oil capacity: 120L system volume</li>
<li>Fuel capacity: 120L for extended operation</li>
<li>Transport height: 2,630 mm</li>
<li>Currently located in Hubei Provin

Kobelco SK75

Built for precision and control, this 2021 XCMG XE135B crawler excavator delivers exceptional operator performance in demanding construction environments. Operating at 13 tons with a robust ISUZU BB-4BG1TRP engine producing 69.6 kW, this machine combines reliable power with refined handling characteristics. Dual plunger pumps supply 2×123 L/min hydraulic flow, ensuring responsive control across all functions while maintaining smooth operation during extended shifts.

Operators benefit from excellent stability thanks to 2910mm track ground contact and optimized 42 kPa ground pressure distribution. The spacious cabin provides commanding visibility across the 8296mm maximum digging radius, with intuitive pilot controls operating at 3.9 MPa for precise bucket and boom positioning. Equipped with a 0.4-0.52 m³ bucket, 85 kN bucket digging force, and 5538mm maximum digging depth, this Xuzhou-manufactured excavator handles varied excavation tasks with consistent reliability.

<ul>
<li>Water-cooled 4-cylinder turbocharged engine for sustained performance</li>
<li>Low-effort pilot hydraulics reduce operator fatigue</li>
<li>Wide 500mm track plates enhance stability on soft ground</li>
<li>Currently located in Hubei, ready for globa

XCMG XE135B

Expand your operational capacity with this 2012 Kobelco SK250 excavator, currently positioned in Shandong Linyi and ready for immediate fleet integration. Built as a joint venture/import model, this 25-ton hydraulic excavator delivers the proven reliability contractors demand when scaling operations or maintaining job-site continuity during peak workloads.

Traditional power systems ensure straightforward maintenance protocols across your existing equipment roster. The backhoe configuration provides versatile trenching, grading, and material handling capabilities that complement heavier machinery without operational redundancy.

<ul>
<li>Operating Weight: 25 tons</li>
<li>Power Type: Traditional diesel engine</li>
<li>Configuration: Backhoe attachment</li>
<li>Origin: Joint venture/Import manufacturing</li>
<li>Year: 2012</li>
<li>Current Location: Shandong Linyi</li>
</ul>

Strategic fleet managers recognize the value of maintaining backup units that minimize downtime risk. This SK250 offers cost-effective insurance against equipment failure during critical project phases while providing surge capacity for overlapping

Kobelco SK250

Proven in demanding conditions since 2016, this Komatsu PC160-6 excavator delivers the reliability serious contractors demand. With over seven years of field-tested performance, this 16-ton workhorse demonstrates the legendary durability Komatsu built into every PC160-6. Powered by the robust SA4D102E engine producing 84.7kW at 2100 rpm, this machine combines proven traditional power with efficient hydraulics to tackle excavation, loading, and site preparation tasks day after day.

<ul>
 <li>Operating weight: 16,300 kg with 0.67 m³ bucket capacity</li>
 <li>Maximum digging depth: 5,240 mm; reach: 8,190 mm</li>
 <li>Bucket digging force: 135.3 kN for tough material penetration</li>
 <li>Compact swing radius: 2,417 mm for confined job sites</li>
 <li>Fuel capacity: 250L for extended operation periods</li>
 <li>Currently located in Hunan, China</li>
</ul>

Built to last through multiple ownership cycles, this PC160-6 represents proven engineering that continues delivering productivity. Joint venture manufacturing ensures quality components throughout, while straightforward maintenance access keeps downtime minimal and operating costs predictable.

Komatsu PC160-6

Available now in 湖北, this 2016 Volvo EC200 excavator delivers 20-ton performance without factory wait times. Powered by proven traditional diesel technology and engineered to joint venture/import standards, this machine is ready for immediate deployment to your job site. Skip months of lead time and mobilize your operations faster with equipment that's inspection-ready and prepared for shipment.

<ul>
<li>Year: 2016</li>
<li>Model: Volvo EC200</li>
<li>Operating Weight: 20 tons</li>
<li>Power Type: Traditional diesel</li>
<li>Configuration: Backhoe</li>
<li>Origin: Joint venture/Import manufacturer</li>
<li>Current Location: 湖北, China</li>
</ul>

Secure this field-proven EC200 today and eliminate downtime caused by new equipment procurement delays. Fast logistics coordination available for domestic and international buyers requiring urgent earthmoving capacity.

Volvo EC200

Engineered in Kunshan with precision hydraulics and a robust SANY D03S3 engine, this 2016 SY65C delivers 42kW of rated power at 2100 rpm with water-cooling efficiency. The variable swashplate plunger pump system generates 149 L/min maximum flow, driving a main overflow pressure of 26 MPa for consistent performance across demanding excavation tasks. With a 6-ton working weight and 6700 kg operational capacity, this compact excavator combines mobility with substantial digging force.

<ul>
 <li>Bucket digging force: 56 kN; rod digging force: 35.6 kN</li>
 <li>Maximum digging reach: 6160 mm; depth: 3985 mm</li>
 <li>4-cylinder engine with 2.77L displacement, 1900 N·m maximum torque</li>
 <li>Hydraulic system: 145L fuel tank, 120L hydraulic reservoir</li>
 <li>Travel speeds: 2.4/4.8 km/h with 70% (35°) climbing capability</li>
 <li>Compact transport dimensions: 6000×2160×2560 mm</li>
 <li>Currently located in Hubei Province, China</li>
</ul>

Built for operators requiring reliable performance in confined job sites, this model demonstrates SANY's commitment to hydraulic efficiency and structural durability in the 6-ton excavator category.

Sany SY65C

Available now in Shandong Linyi, this 2017 Kobelco SK60 compact excavator eliminates factory wait times and accelerates your project timeline. Rated at 6 tons with traditional power, this joint venture/import machine offers proven reliability for confined job sites requiring precision and maneuverability. Skip months of lead time—this backhoe-equipped unit ships directly to your location.

<ul>
<li>Year: 2017</li>
<li>Model: Kobelco SK60</li>
<li>Operating Weight: 6 tons</li>
<li>Power: Traditional diesel</li>
<li>Origin: Joint venture/Import quality</li>
<li>Configuration: Backhoe attachment included</li>
<li>Current Location: Shandong Linyi, China</li>
</ul>

Positioned in a major logistics hub, fast deployment to construction sites, infrastructure projects, or utility work is guaranteed. Kobelco's compact design delivers full-size performance in restricted access areas. Secure this ready-to-work excavator and bypass the delays plaguing new equipment orders. Contact Fair Trade Machinery today for shipping quotes and immediate availability confirmation.

Kobelco SK60

Maximize your ROI with this 2018 Volvo EC210B excavator—engineered for serious earthmoving at a fraction of new equipment costs. Operating at 21 tons with a robust Volvo D6D engine delivering 107kW, this machine combines proven hydraulic performance with field-tested reliability. Currently located in Shandong Linyi, it offers immediate deployment capability for contractors demanding professional-grade equipment without the premium price tag.

Performance specifications include:
<ul>
<li>Maximum digging reach of 9,940mm with 6,730mm depth capacity</li>
<li>Dual variable axial piston pumps (200L/min each) ensuring responsive hydraulic power</li>
<li>Bucket digging force up to 147.1kN in Extra mode for challenging ground conditions</li>
<li>5.7L turbocharged, electronically-controlled engine with water-cooling system</li>
<li>0.9m³ bucket capacity optimized for medium-scale excavation projects</li>
<li>70% climbing ability (35°) for varied terrain applications</li>
</ul>

Built through joint venture manufacturing standards, this EC210B delivers the durability Volvo is known for while significantly reducing your capital expenditure. Smart buyers recognize that well-maintained used equipment provides comparable productivity

Volvo EC210B

Secure a high-performance excavator without the premium price tag. This 2021 Doosan DX260LC delivers 25-ton operational capacity with just minimal field use, offering immediate ROI that new equipment simply cannot match. Powered by a robust Doosan DE08TIS engine producing 180 kW at 1900 rpm, this machine handles demanding excavation, trenching, and material handling with proven reliability.

Built at Doosan's Yantai facility, this crawler excavator features a 1.2 m³ bucket capacity and impressive reach specifications: 10,207 mm maximum digging radius and 6,826 mm digging depth. Dual variable piston pumps supply 2 x 219 l/min hydraulic flow, ensuring responsive control and efficient cycle times across all operations.

Key Performance Specifications:
<ul>
<li>Operating weight: 24,800 kg with optimal 46.1 kPa ground pressure</li>
<li>Bucket digging force: 182.4 kN maximum</li>
<li>Multiple boom configurations: 5,900 mm with 3,000/2,500/3,500 mm arm options</li>
<li>35% grading capability and 10 rpm swing speed</li>
<li>450L fuel capacity for extended operation</li>
</ul>

Currently located in Zhejiang, this unit represents substantial savings over new pricing while maintaining full operational capa

Doosan DX260LC

Built to withstand the toughest job sites, this 2016 Hitachi ZX260-3G excavator represents proven engineering excellence from a trusted joint venture manufacturer. Operating at 26 tons with traditional power systems, this backhoe-configured machine has demonstrated remarkable durability throughout its service life in Shandong Dongying. Designed as a genuine workhorse for demanding excavation projects, it delivers consistent performance across construction, mining, and infrastructure applications.

<ul>
<li>Proven Reliability: 2016 model year showcasing Hitachi's legendary build quality</li>
<li>Operating Weight: 26-ton class for optimal power-to-weight ratio</li>
<li>Configuration: Backhoe setup for versatile digging operations</li>
<li>Power System: Traditional diesel engine for dependable performance</li>
<li>Manufacturing: Joint venture/Import quality standards</li>
<li>Current Location: Shandong Dongying, China</li>
</ul>

Engineered for longevity, the ZX260-3G continues to serve as a reliable solution for contractors requiring proven machinery with established track records in heavy-duty applications.

Specifications	Value
No.	1037682
Tonnage (tons)	24
Working weight (kg)	24240
Bucket capacity (m³)	1
Boom length (mm)	5900
Rod length (mm)	2950
Country of origin	Japan
power	Traditional power
manufacturer	Joint venture/Import
bucket	backhoe

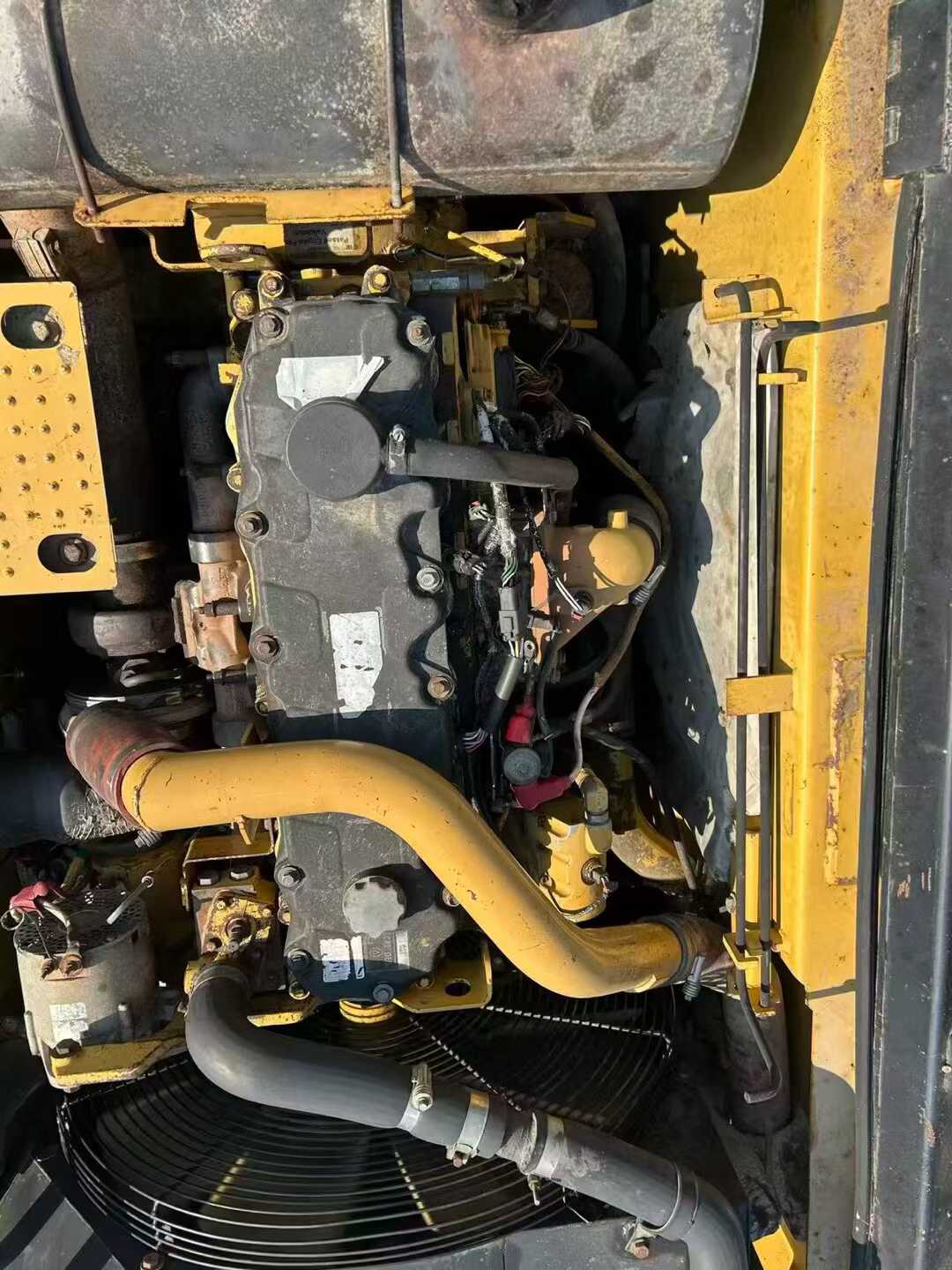

Engine type	C7 ACERT
Rated power (kw/rpm)	140/2000
Cooling mode	water-cooling
Cylinder diameter × stroke (mm)	102 x 130
Number of cylinders (PCS)	6
Displacement (L)	7.2
Rotation speed (rpm)	9.6
Climbing ability (%)	70/35 °
Travel speed (km/h)	3.5/5.5
Main overflow set pressure (Mpa)	35

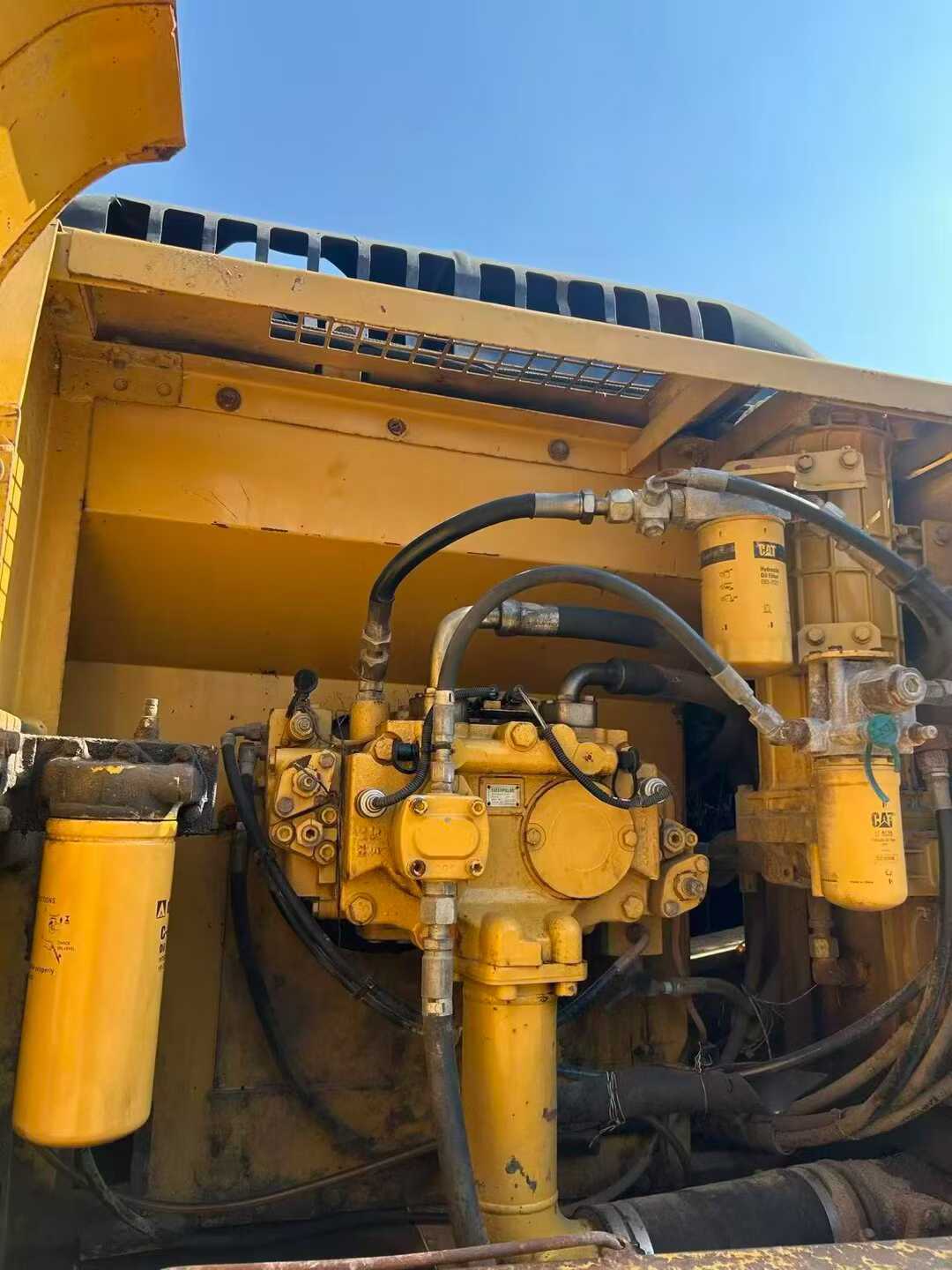

Maximum flow of main pump (l/min)	235
Traveling Hydraulic Circuit (Mpa)	35
Rotary Hydraulic Circuit (Mpa)	24.5
Hydraulic crushing pipeline is standard	no
Working Hydraulic Circuit (Mpa)	35
Pilot Oil Circuit (MPa)	3.9
Bucket cylinders - Number × diameter × stroke (mm)	1-120 x 1104
Bucket rod cylinders - Number × diameter × stroke (mm)	1-140 x 1660
Boom cylinders - Number × diameter × stroke (mm)	2-135 x 1305
Fuel Tank (L)	520
Hydraulic Tank (L)	145
Engine Oil changes (L)	30
Coolant (L)	30
Hydraulic System (L)	300(including fuel tank)
Total transport length (mm)	10060
Total transport width (mm)	2990
Total transport height (mm)	3170
Full cab height (mm)	2980
Counterweight ground clearance (mm)	1060
Minimum ground clearance (mm)	470
Back end turning radius (mm)	2940

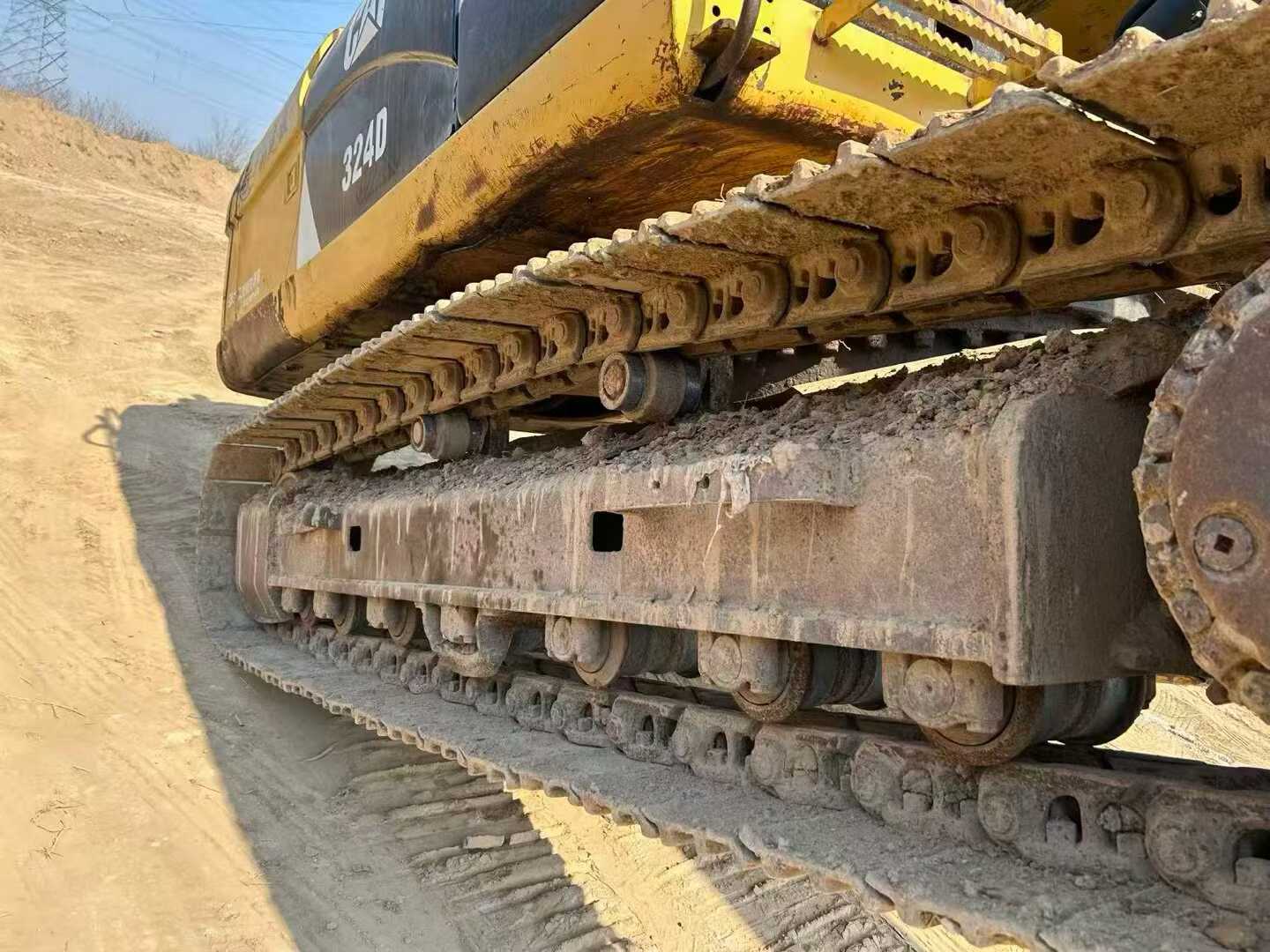

Total track length (mm)	4250
Track gauge (mm)	2380
Track plate width (mm)	600
Total track width (mm)	2990
Track ground length (mm)	3450
Maximum digging depth (mm)	6740
Maximum excavation height (mm)	9660
Maximum unloading height (mm)	6700
Maximum vertical digging depth (mm)	5830
Bulldozer lift or depth (mm)	No bulldozer
Dodging plate width × height (mm)	No bulldozer
Maximum excavation radius of stop surface (mm)	10030
Maximum effective digging depth (mm)	6560

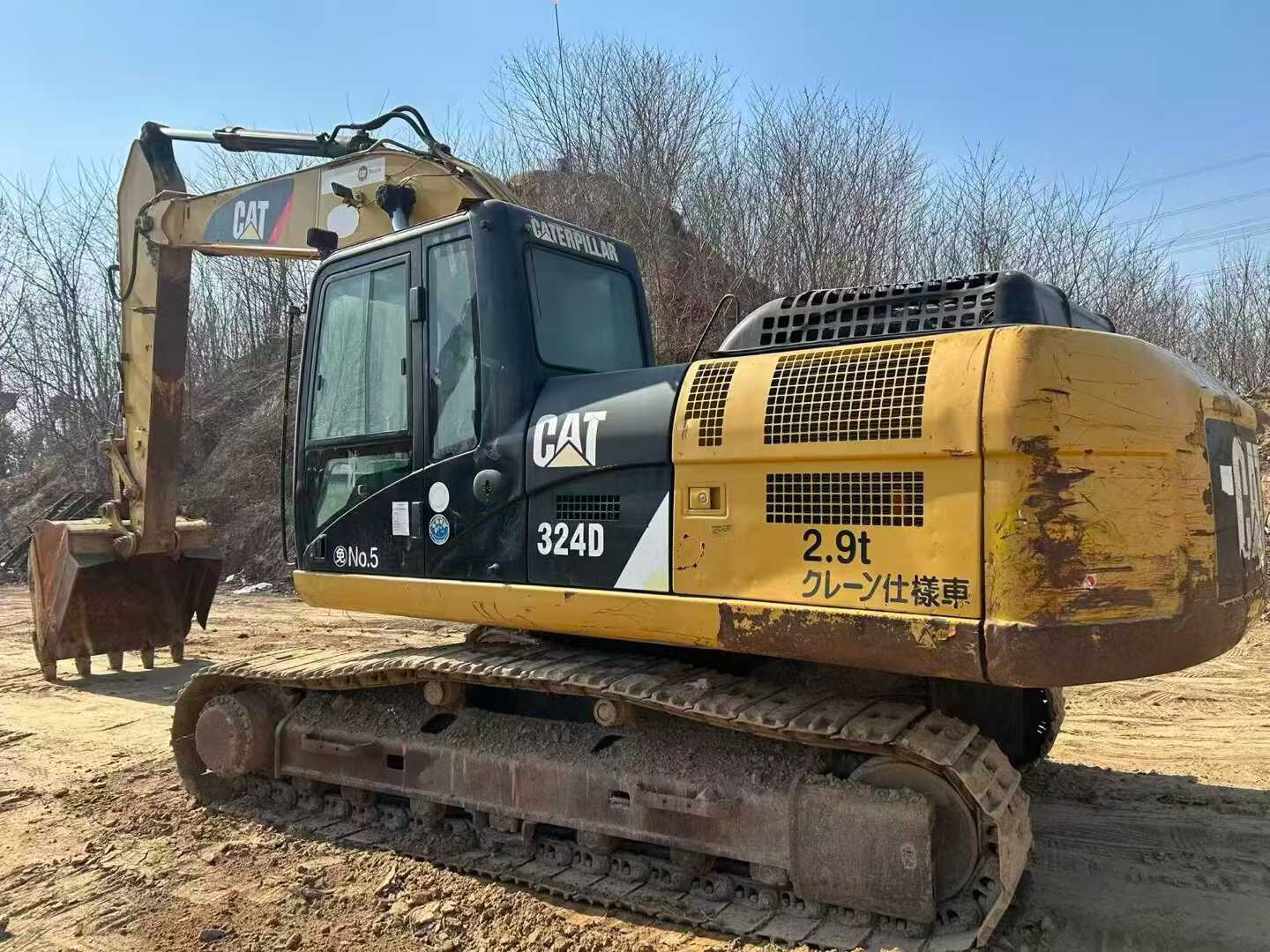

2012 Caterpillar 324D
