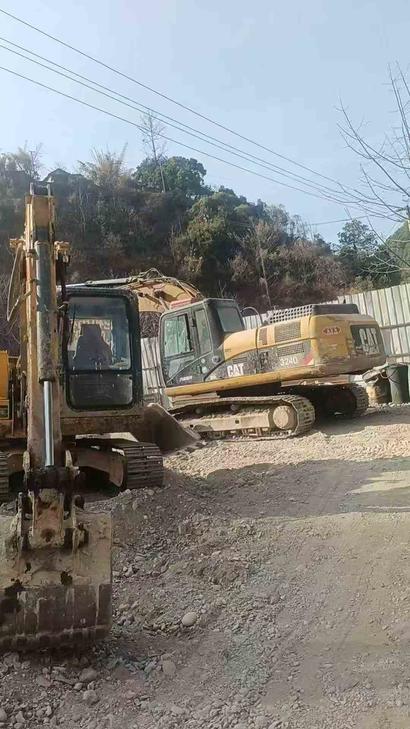

2016 Caterpillar 324D
Product Description
Expand your fleet capacity with this 2016 Caterpillar 324D excavator, a proven 24-ton workhorse engineered for contractors managing multiple job sites. Powered by the reliable C7 ACERT engine delivering 140kW at 2000rpm, this Japan-manufactured machine provides consistent performance across demanding applications. The 5,900mm boom and 2,950mm arm configuration delivers a maximum digging reach of 10,030mm and depth of 6,740mm—ideal for utility work, foundation excavation, and site preparation.
- 24,240kg operating weight with 1.0m³ bucket capacity
- 235 L/min hydraulic flow for responsive cycle times
- Water-cooled 7.2L displacement engine for extended durability
- 3.5/5.5 km/h travel speeds for efficient repositioning
- 520L fuel tank supports full-shift operation
- Currently located in Guangdong, Jieyang for immediate inspection
Built for fleet integration, this 324D fills critical gaps during peak demand periods or serves as reliable backup when primary units require scheduled maintenance. Joint venture quality standards ensure parts availability and straightforward servicing protocols across your equipment roster.
| Specifications | Value |
|---|---|
| No. | 1022681 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 24240 |
| Bucket capacity (m³) | 1 |
| Boom length (mm) | 5900 |
| Rod length (mm) | 2950 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | C7 ACERT |
| Rated power (kw/rpm) | 140/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.2 |
| Rotation speed (rpm) | 9.6 |
| Climbing ability (%) | 70/35 ° |
| Travel speed (km/h) | 3.5/5.5 |
| Main overflow set pressure (Mpa) | 35 |
| Maximum flow of main pump (l/min) | 235 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 24.5 |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 35 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-120 x 1104 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-140 x 1660 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-135 x 1305 |
| Fuel Tank (L) | 520 |
| Hydraulic Tank (L) | 145 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 30 |
| Hydraulic System (L) | 300(including fuel tank) |
| Total transport length (mm) | 10060 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 3170 |
| Full cab height (mm) | 2980 |
| Counterweight ground clearance (mm) | 1060 |
| Minimum ground clearance (mm) | 470 |
| Back end turning radius (mm) | 2940 |
| Total track length (mm) | 4250 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2990 |
| Track ground length (mm) | 3450 |
| Maximum digging depth (mm) | 6740 |
| Maximum excavation height (mm) | 9660 |
| Maximum unloading height (mm) | 6700 |
| Maximum vertical digging depth (mm) | 5830 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 10030 |
| Maximum effective digging depth (mm) | 6560 |
Overview
No.1022681
Brand Name：
CaterpillarModel Number：
324DYear：
2016
Location：
Guangdong China
Pub Date：
