2016 Caterpillar 324D
Product Description
Engineered for demanding excavation operations, this 2016 Caterpillar 324D delivers robust performance through precision hydraulics and proven powertrain technology. At its core, the C7 ACERT engine generates 140 kW at 2000 rpm, paired with a sophisticated hydraulic system featuring 35 MPa working circuit pressure and 235 l/min maximum pump flow. This 24-ton excavator combines a 5900mm boom and 2950mm arm to achieve a maximum digging depth of 6740mm and an impressive 10030mm reach at ground level.
- Water-cooled 6-cylinder engine with 7.2L displacement ensures consistent power delivery
- Advanced hydraulic architecture with dedicated circuits for travel (35 MPa), rotation (24.5 MPa), and working functions

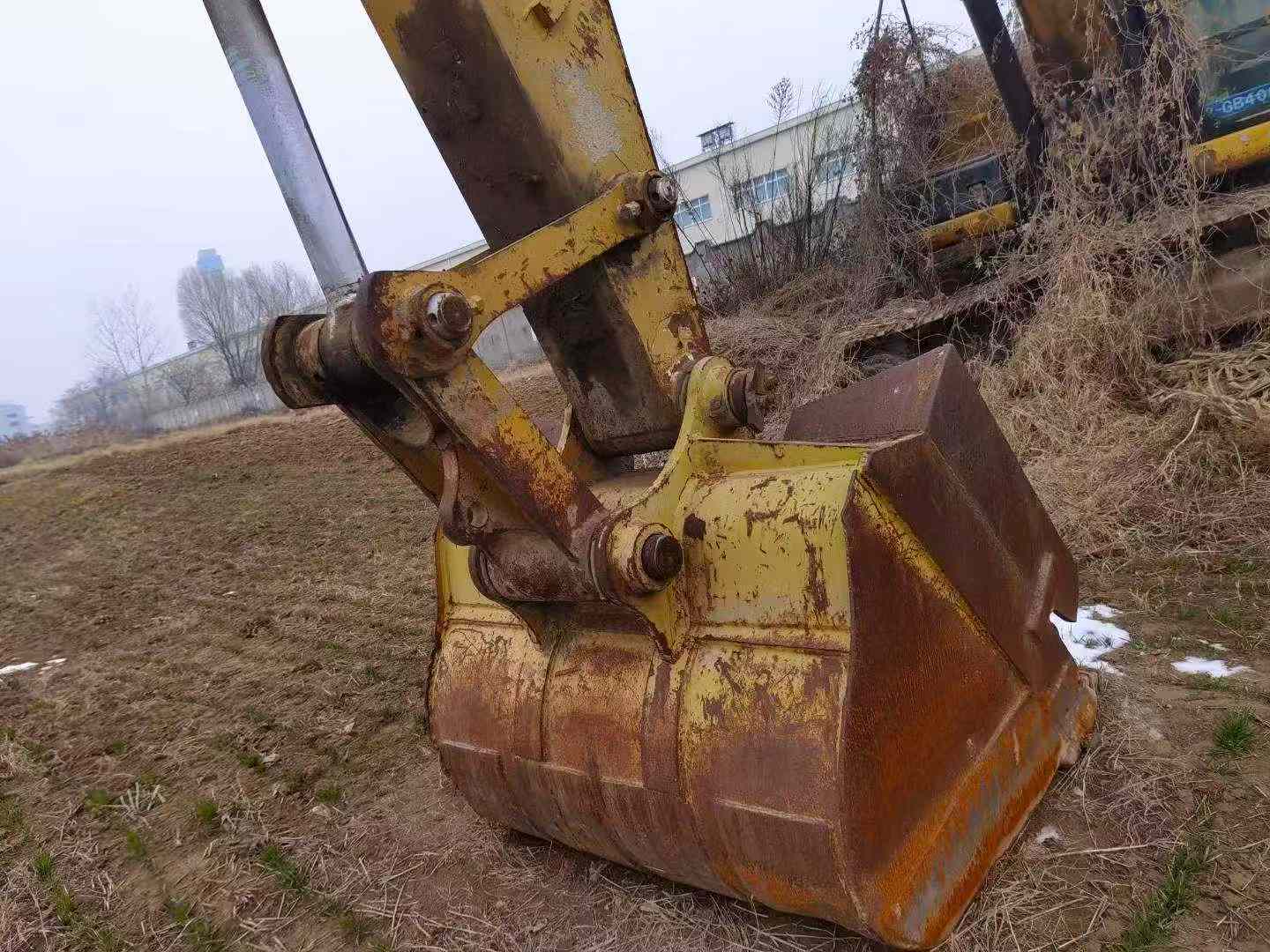

- Substantial 1.0 m³ bucket capacity optimizes material handling efficiency
- Comprehensive fuel capacity (520L) and hydraulic reservoir (300L total system) support extended operation cycles
- Compact transport dimensions (10060mm length) facilitate site mobility while maintaining 24,240 kg operating weight stability
Located in Jiangsu, this joint venture-manufactured machine represents Caterpillar's commitment to engineering excellence, offering contractors a dependable platfo
| Specifications | Value |
|---|---|
| No. | 997728 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 24240 |
| Bucket capacity (m³) | 1 |

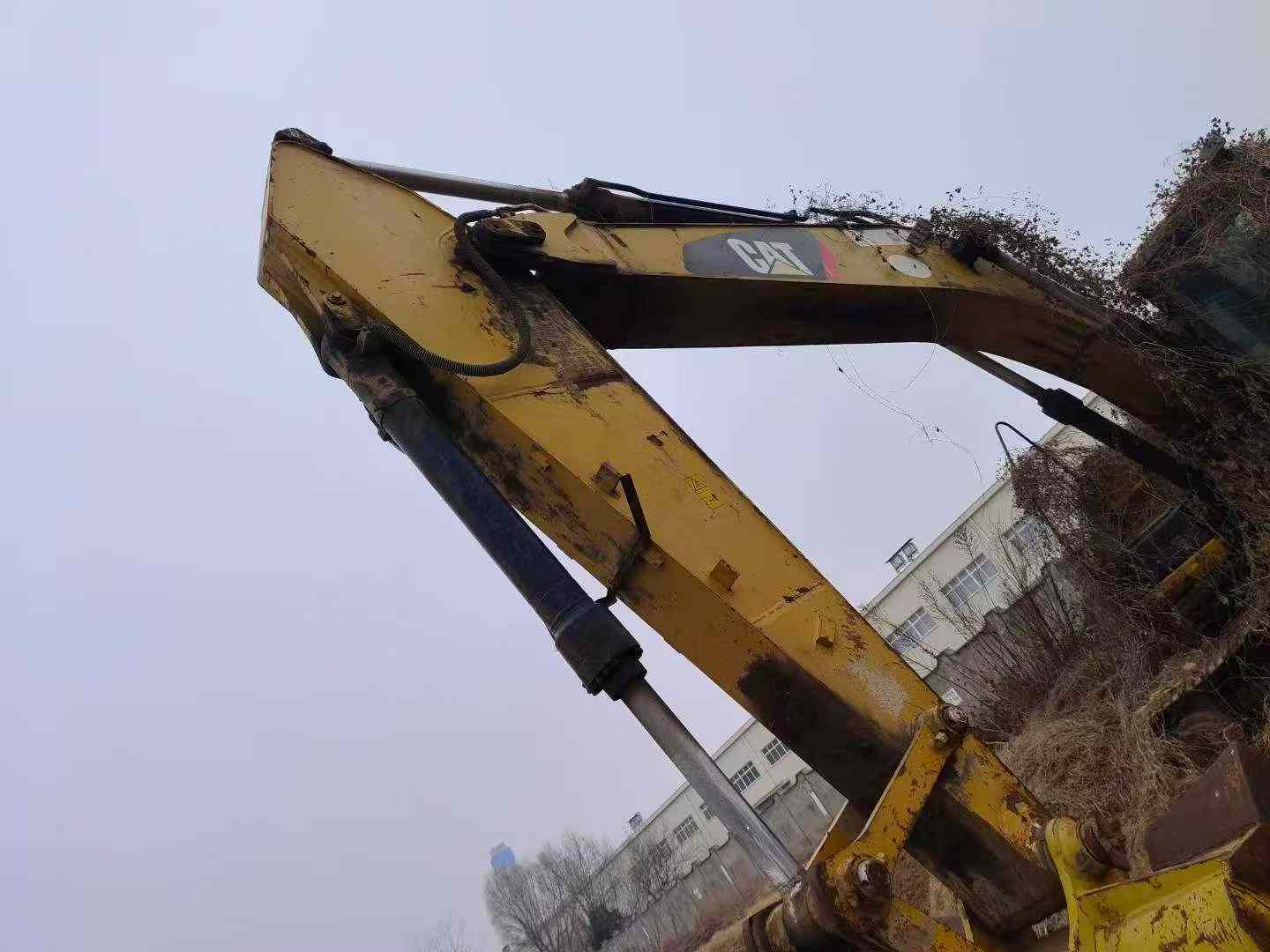

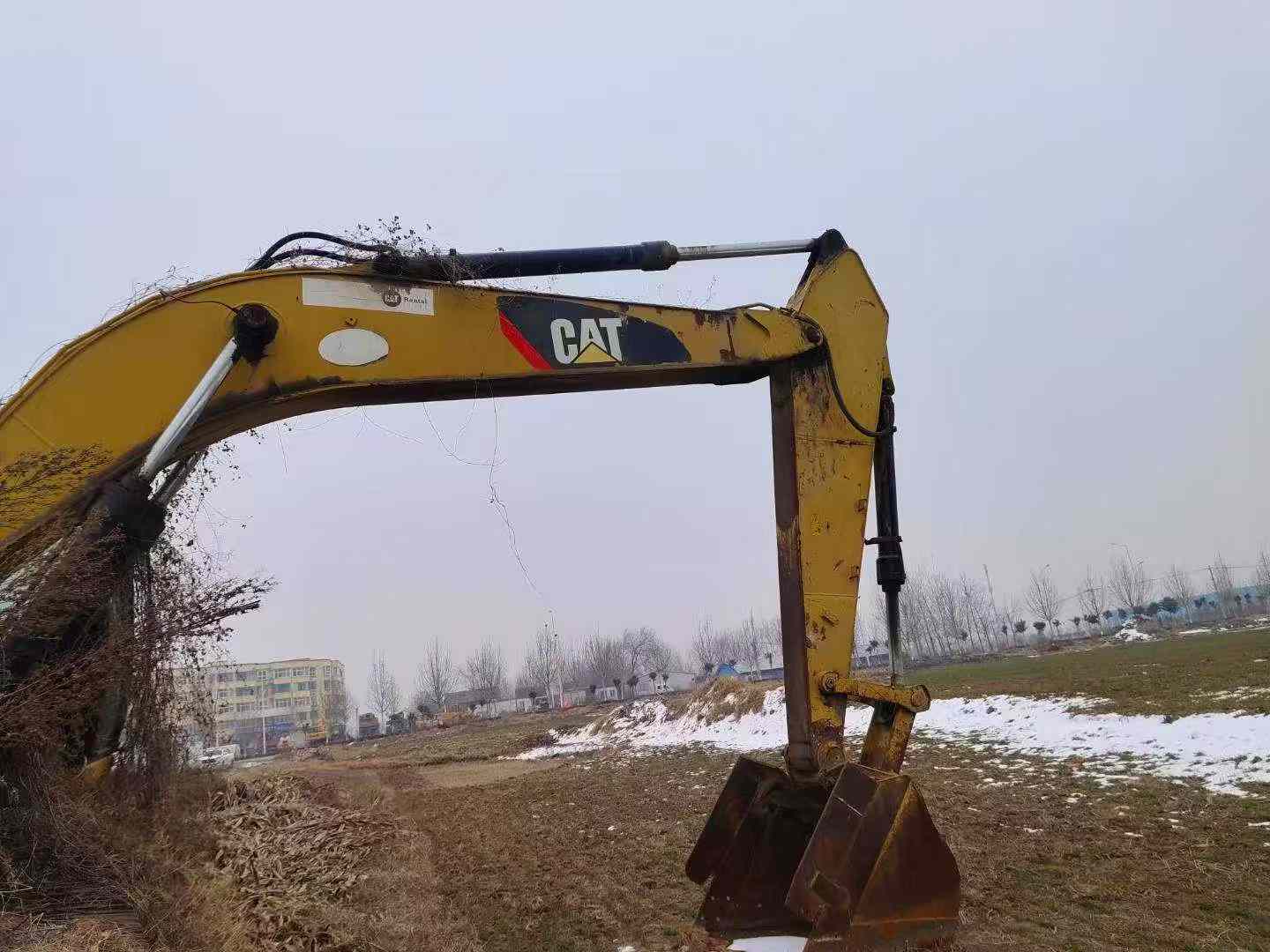

| Boom length (mm) | 5900 |
| Rod length (mm) | 2950 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | C7 ACERT |
| Rated power (kw/rpm) | 140/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.2 |
| Rotation speed (rpm) | 9.6 |
| Climbing ability (%) | 70/35 ° |
| Travel speed (km/h) | 3.5/5.5 |
| Main overflow set pressure (Mpa) | 35 |
| Maximum flow of main pump (l/min) | 235 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 24.5 |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 35 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-120 x 1104 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-140 x 1660 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-135 x 1305 |
| Fuel Tank (L) | 520 |
| Hydraulic Tank (L) | 145 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 30 |
| Hydraulic System (L) | 300(including fuel tank) |
| Total transport length (mm) | 10060 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 3170 |
| Full cab height (mm) | 2980 |
| Counterweight ground clearance (mm) | 1060 |
| Minimum ground clearance (mm) | 470 |
| Back end turning radius (mm) | 2940 |
| Total track length (mm) | 4250 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2990 |
| Track ground length (mm) | 3450 |
| Maximum digging depth (mm) | 6740 |
| Maximum excavation height (mm) | 9660 |
| Maximum unloading height (mm) | 6700 |
| Maximum vertical digging depth (mm) | 5830 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 10030 |
| Maximum effective digging depth (mm) | 6560 |
see more
Overview
No.997728
Brand Name：
CaterpillarModel Number：
324DYear：
2016
Location：
Jiangsu China
