2011 Caterpillar 324DL
Product Description
Engineered with precision hydraulics and robust powertrain architecture, this 2011 Caterpillar 324DL hydraulic excavator represents proven performance in demanding excavation applications. The 324DL series delivers exceptional digging force through its advanced hydraulic system, optimized for fuel efficiency without compromising operational power. Caterpillar's renowned engineering ensures consistent productivity across extended duty cycles.
- Year: 2011
- Brand: Caterpillar
- Model: 324DL Hydraulic Excavator
- Location: Zhejiang, Shaoxing
Built on Caterpillar's legacy of durability, this model features reinforced structural components and precision-machined hydraulic cylinders designed for maximum uptime. The 324DL's hydraulic flow management system provides operators with responsive control and superior breakout force. Currently available in Shaoxing, Zhejiang, this machine offers reliable performance for contractors requiring dependable excavation capacity. Caterpillar's engineering standards ensure component longevity and maintainability throughout the equipment lifecycle.
| Specifications | Value |
|---|---|
| No. | 1007060 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 25560 |
| Bucket capacity (m³) | 1.1 |
| Boom length (mm) | 5900 |
| Rod length (mm) | 2950 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

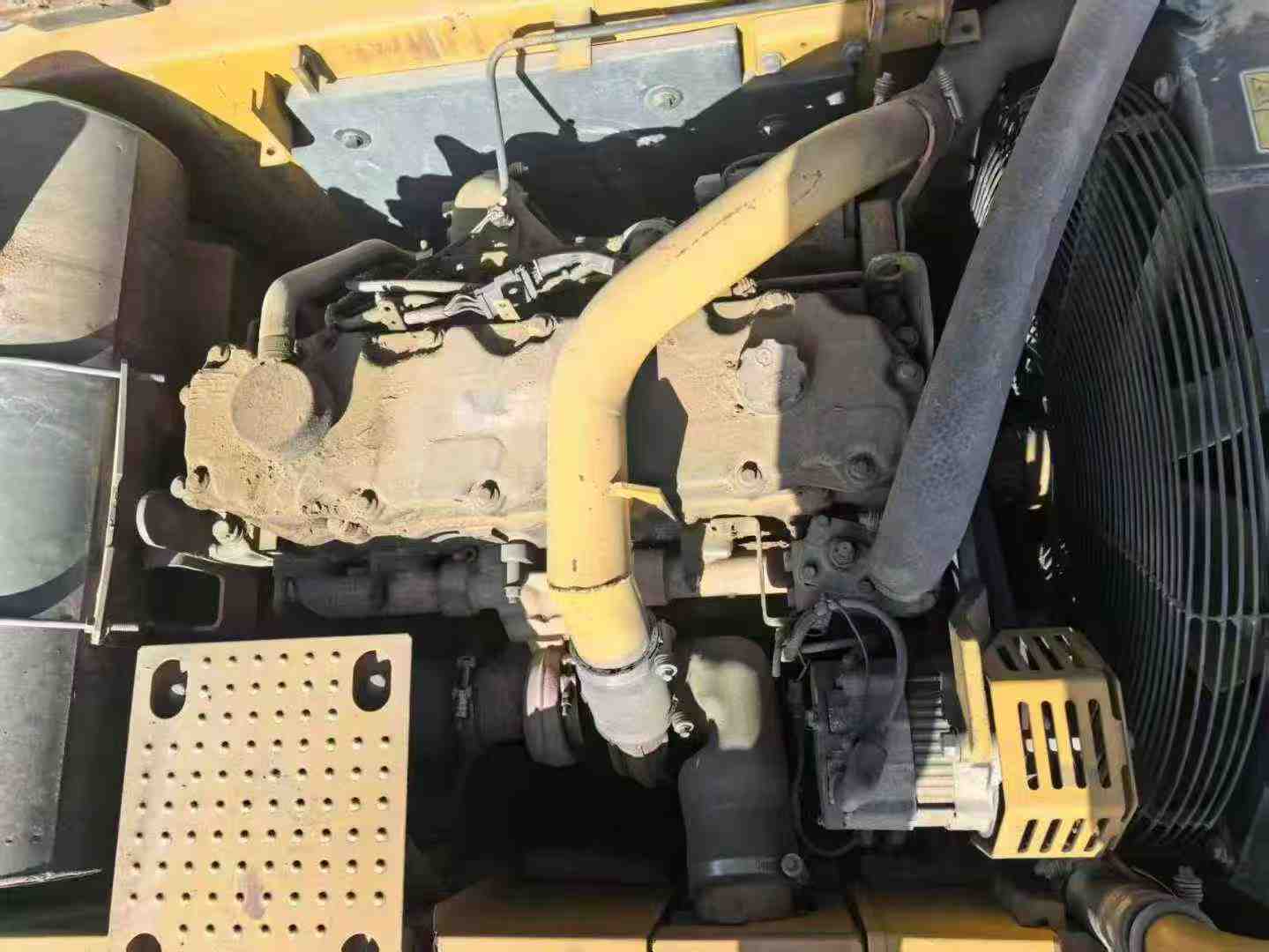

| Engine type | C7ACERT |
| Rated power (kw/rpm) | 140/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.2 |
| Rotation speed (rpm) | 9.6 |
| Climbing ability (%) | 70/35 ° |
| Travel speed (km/h) | 3.5/5.5 |
| Main overflow set pressure (Mpa) | 35 |
| Maximum flow of main pump (l/min) | 235 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 24.5 |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 35 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-120 x 1104 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-140 x 1660 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-135 x 1305 |
| Fuel Tank (L) | 520 |
| Hydraulic Tank (L) | 145 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 30 |
| Hydraulic System (L) | 300(including fuel tank) |
| Total transport length (mm) | 10060 |
| Total transport width (mm) | 3390 |
| Total transport height (mm) | 3170 |
| Full cab height (mm) | 2980 |
| Counterweight ground clearance (mm) | 1060 |
| Minimum ground clearance (mm) | 470 |
| Back end turning radius (mm) | 2940 |
| Total track length (mm) | 4630 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 800 |
| Total track width (mm) | 3390 |
| Track ground length (mm) | 3830 |
| Maximum digging depth (mm) | 6740 |
| Maximum excavation height (mm) | 9660 |
| Maximum unloading height (mm) | 6700 |
| Maximum vertical digging depth (mm) | 5830 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 10030 |
| Maximum effective digging depth (mm) | 6560 |
Overview
No.1007060
Brand Name：
CaterpillarModel Number：
324DLYear：
2011
Location：
Zhejiang China
Pub Date：
