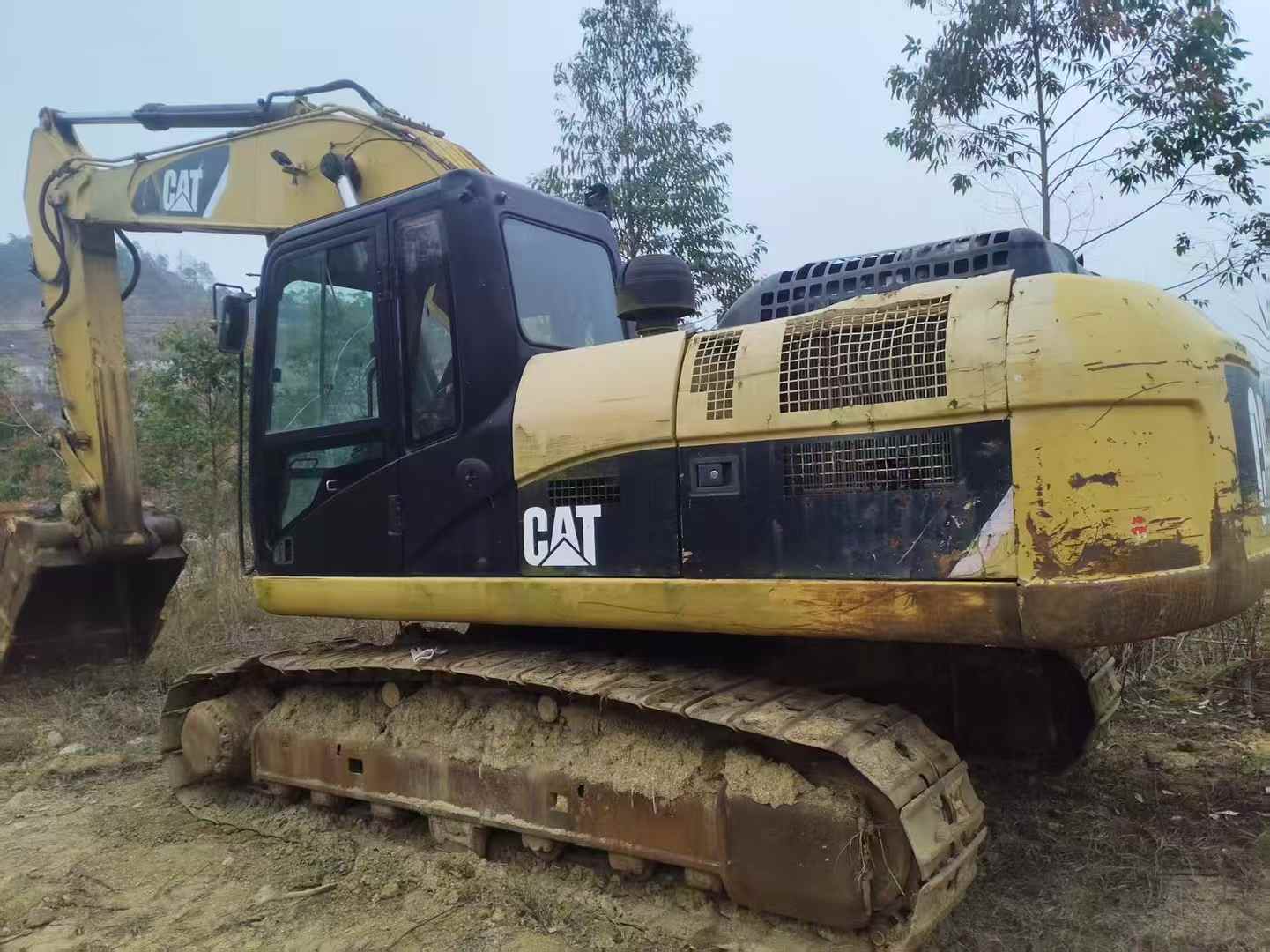

2012 Caterpillar 324DL
Product Description
Built to endure the toughest conditions, this 2012 Caterpillar 324DL hydraulic excavator stands as a proven workhorse in heavy construction. With over a decade of operational history, this machine demonstrates the legendary durability that defines the Caterpillar brand. Currently located in Guangxi, it represents an opportunity to acquire equipment with a documented track record of reliability and performance.
Engineered for demanding applications, the 324DL combines robust hydraulic systems with Cat's time-tested design philosophy. Key advantages include:
- Proven 2012 model year showcasing exceptional build quality and longevity
- Powerful hydraulic performance for efficient material handling and excavation
- Caterpillar's reputation for parts availability and service support
- Ideal for contractors seeking dependable equipment with established performance history
Invest in machinery that has already proven its worth. This 324DL represents value-driven reliability for operations requiring consistent productivity without compromise.
| Specifications | Value |
|---|---|
| No. | 996192 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 25560 |
| Bucket capacity (m³) | 1.1 |
| Boom length (mm) | 5900 |
| Rod length (mm) | 2950 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | C7ACERT |
| Rated power (kw/rpm) | 140/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.2 |
| Rotation speed (rpm) | 9.6 |
| Climbing ability (%) | 70/35 ° |
| Travel speed (km/h) | 3.5/5.5 |
| Main overflow set pressure (Mpa) | 35 |
| Maximum flow of main pump (l/min) | 235 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 24.5 |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 35 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-120 x 1104 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-140 x 1660 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-135 x 1305 |
| Fuel Tank (L) | 520 |
| Hydraulic Tank (L) | 145 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 30 |
| Hydraulic System (L) | 300(including fuel tank) |
| Total transport length (mm) | 10060 |
| Total transport width (mm) | 3390 |
| Total transport height (mm) | 3170 |
| Full cab height (mm) | 2980 |
| Counterweight ground clearance (mm) | 1060 |
| Minimum ground clearance (mm) | 470 |
| Back end turning radius (mm) | 2940 |
| Total track length (mm) | 4630 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 800 |
| Total track width (mm) | 3390 |
| Track ground length (mm) | 3830 |
| Maximum digging depth (mm) | 6740 |
| Maximum excavation height (mm) | 9660 |
| Maximum unloading height (mm) | 6700 |
| Maximum vertical digging depth (mm) | 5830 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 10030 |
| Maximum effective digging depth (mm) | 6560 |
