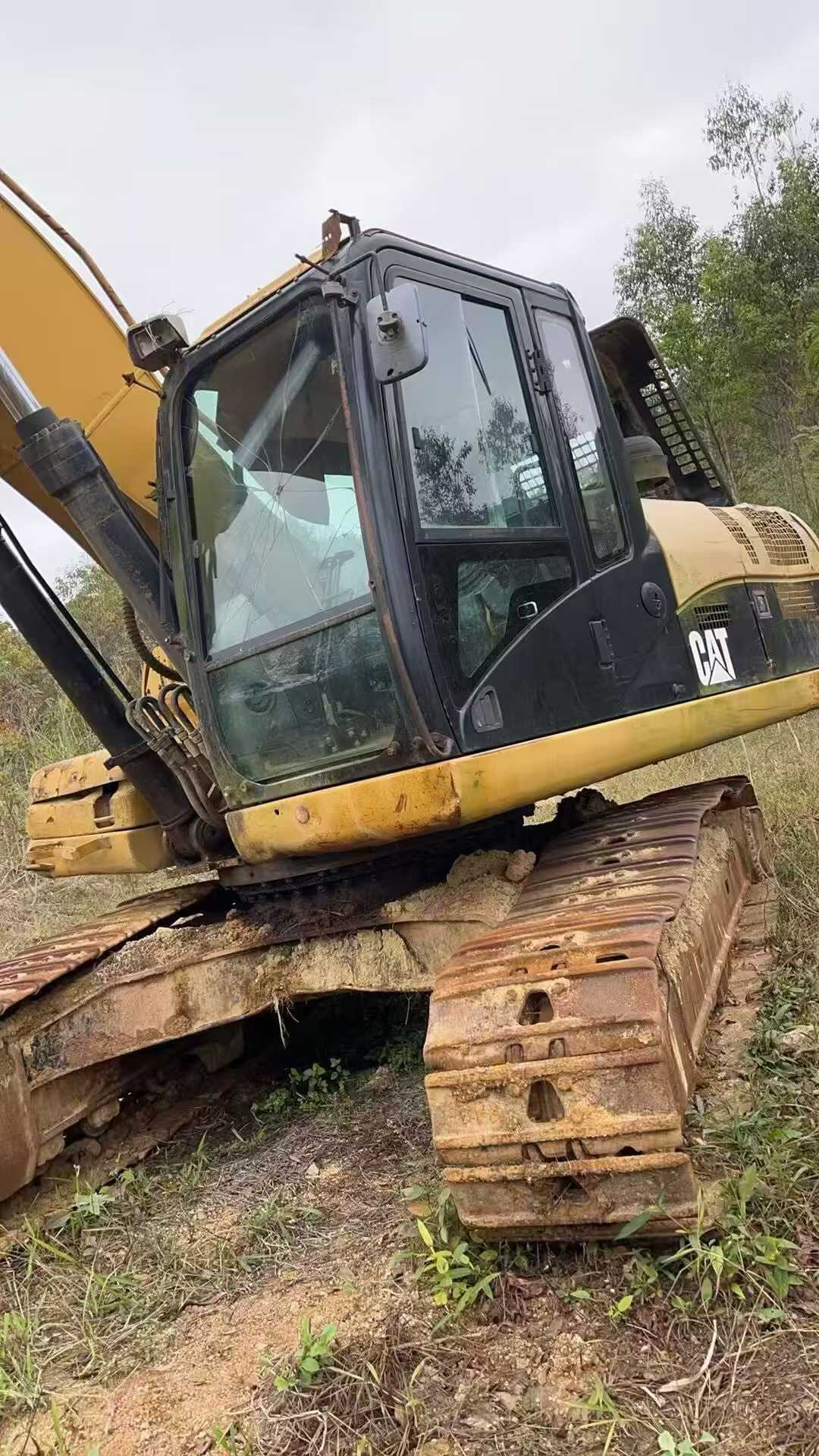

2014 Caterpillar 324DL
Product Description
Engineered for precision and operator efficiency, this 2014 Caterpillar 324DL hydraulic excavator delivers exceptional control in demanding work environments. Positioned in Guangxi, this machine combines proven hydraulic performance with operator-centric design features that maximize productivity throughout extended shifts.
Operator advantages include:
- Enhanced cabin visibility with strategically positioned glass panels for comprehensive site awareness
- Responsive hydraulic controls providing precise bucket and boom movements
- Stable platform design minimizing machine sway during heavy lifting operations

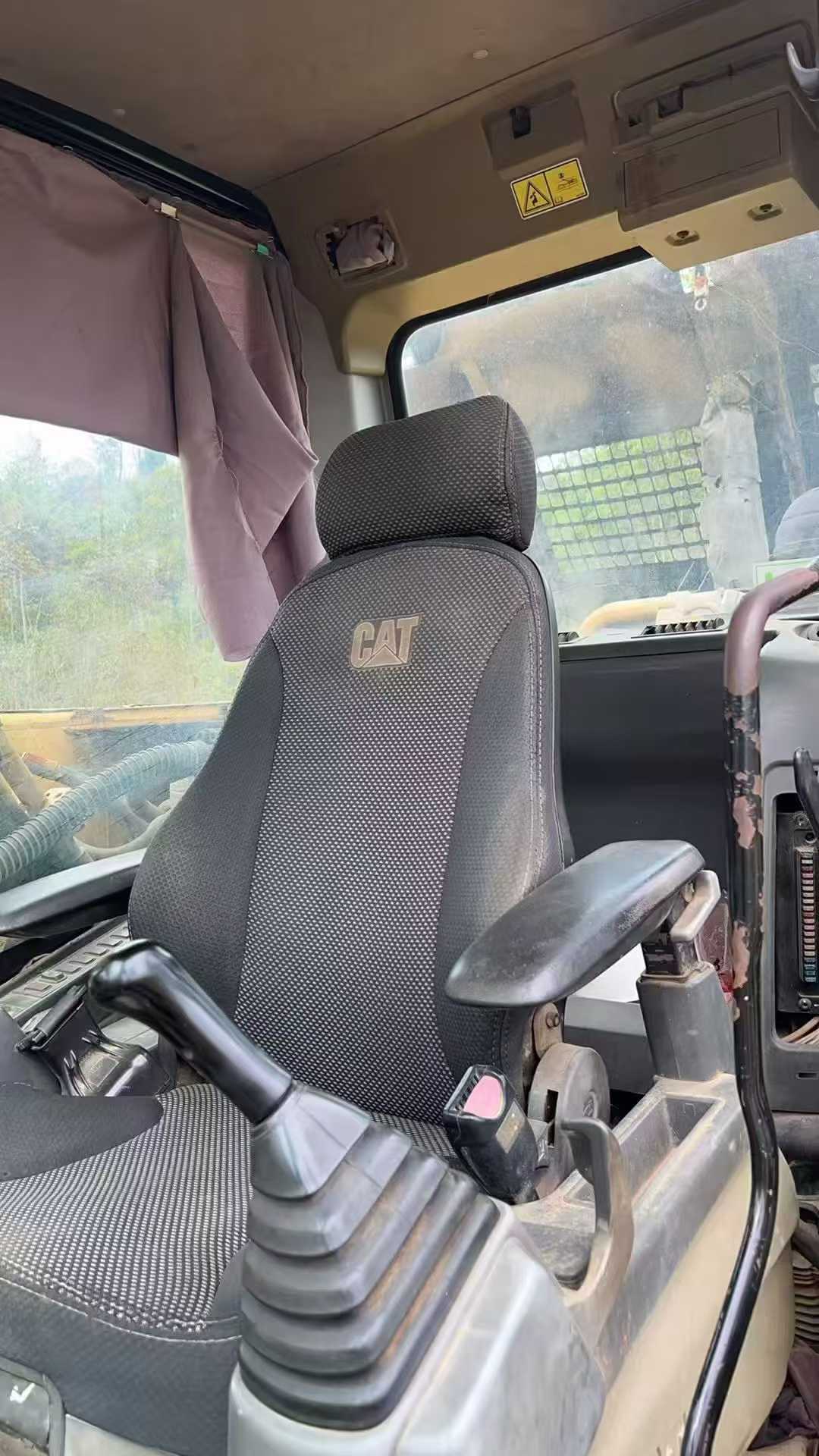

- Ergonomic control layout reducing operator fatigue during continuous operation
- Reinforced undercarriage ensuring balanced weight distribution across varied terrain
Built during Caterpillar's refined D-series production era, this 324DL incorporates field-tested stability systems and intuitive handling characteristics. The hydraulic system responds immediately to operator input, while the cabin configuration maintains clear sightlines to attachment points and surrounding work zones. Suitable for excavation, material handling, and site preparation tasks requiring con
| Specifications | Value |
|---|---|
| No. | 996459 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 25560 |
| Bucket capacity (m³) | 1.1 |
| Boom length (mm) | 5900 |
| Rod length (mm) | 2950 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | C7ACERT |
| Rated power (kw/rpm) | 140/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.2 |
| Rotation speed (rpm) | 9.6 |
| Climbing ability (%) | 70/35 ° |
| Travel speed (km/h) | 3.5/5.5 |
| Main overflow set pressure (Mpa) | 35 |

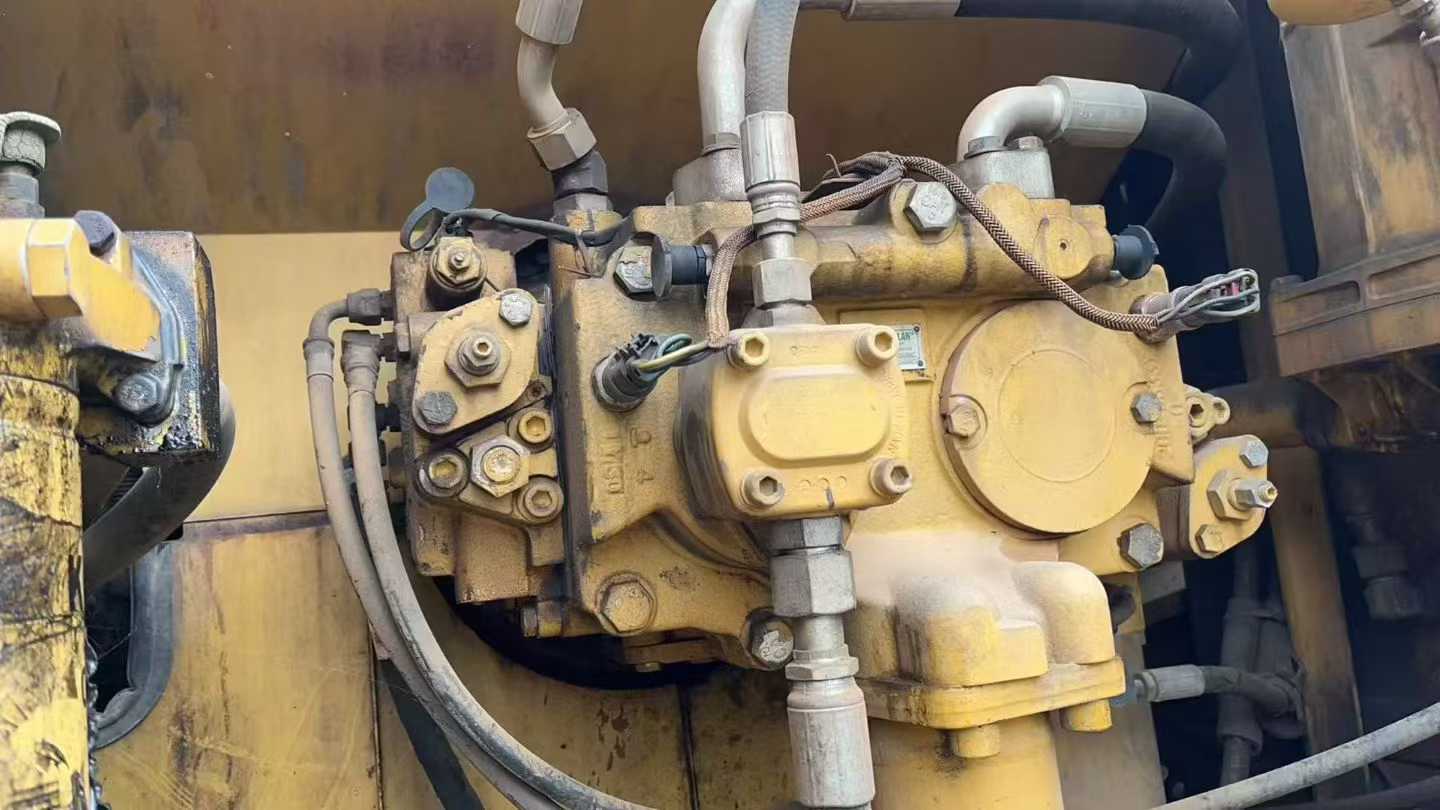

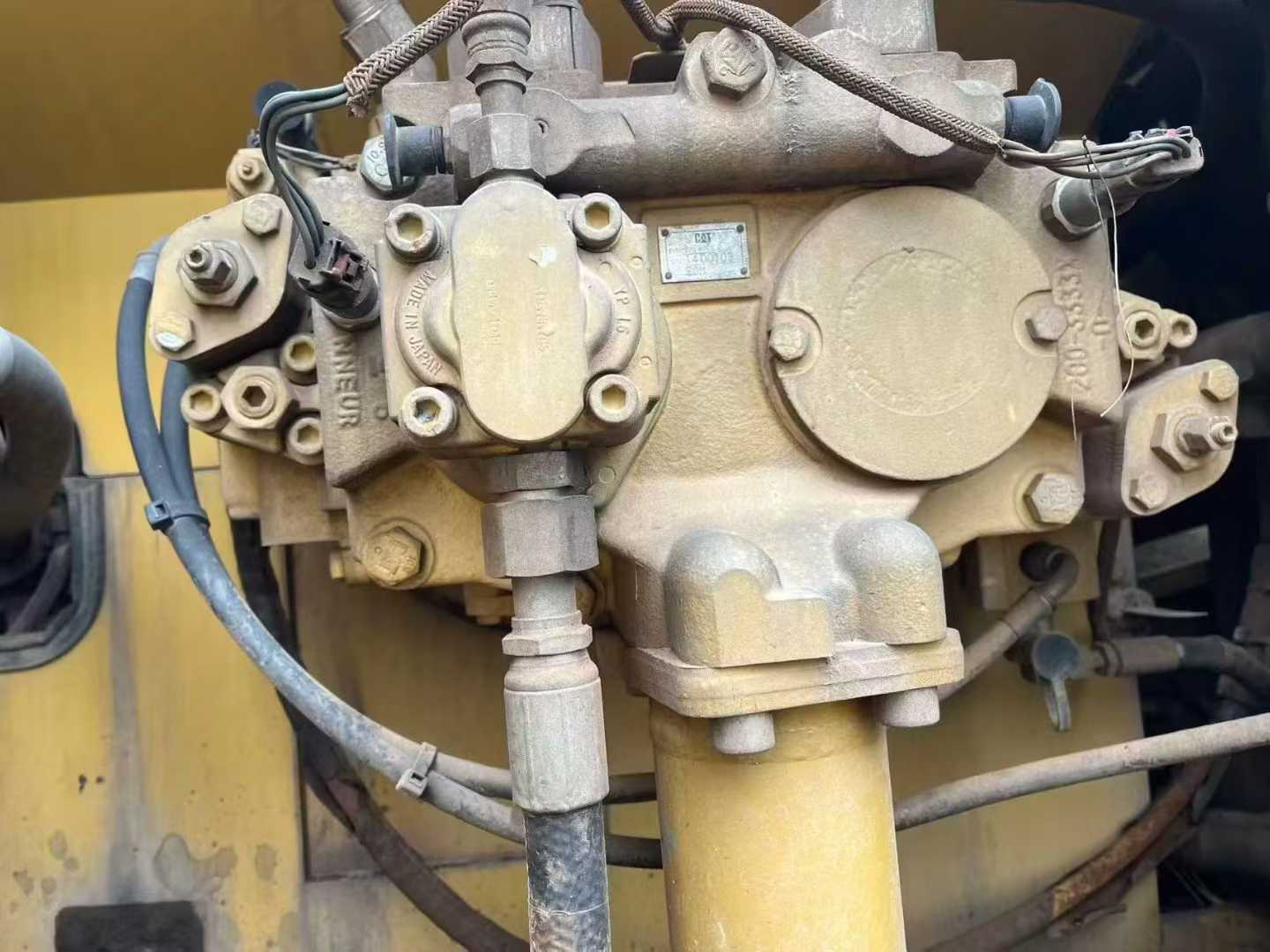

| Maximum flow of main pump (l/min) | 235 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 24.5 |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 35 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-120 x 1104 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-140 x 1660 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-135 x 1305 |
| Fuel Tank (L) | 520 |
| Hydraulic Tank (L) | 145 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 30 |
| Hydraulic System (L) | 300(including fuel tank) |
| Total transport length (mm) | 10060 |
| Total transport width (mm) | 3390 |
| Total transport height (mm) | 3170 |
| Full cab height (mm) | 2980 |
| Counterweight ground clearance (mm) | 1060 |
| Minimum ground clearance (mm) | 470 |
| Back end turning radius (mm) | 2940 |
| Total track length (mm) | 4630 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 800 |
| Total track width (mm) | 3390 |
| Track ground length (mm) | 3830 |
| Maximum digging depth (mm) | 6740 |
| Maximum excavation height (mm) | 9660 |
| Maximum unloading height (mm) | 6700 |
| Maximum vertical digging depth (mm) | 5830 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 10030 |
| Maximum effective digging depth (mm) | 6560 |
Overview
No.996459
Brand Name：
CaterpillarModel Number：
324DLYear：
2014
Location：
Guangxi China
Pub Date：
