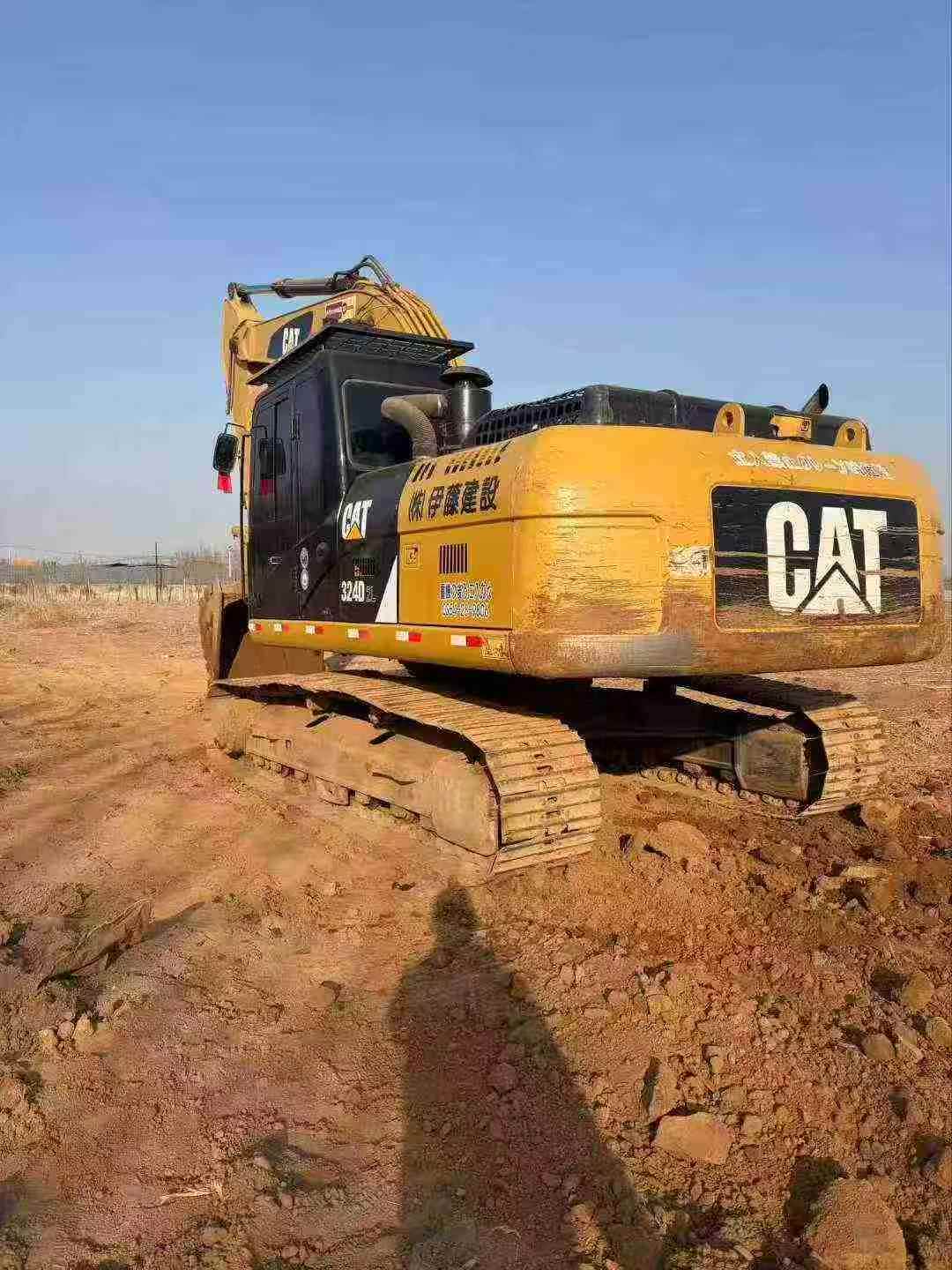

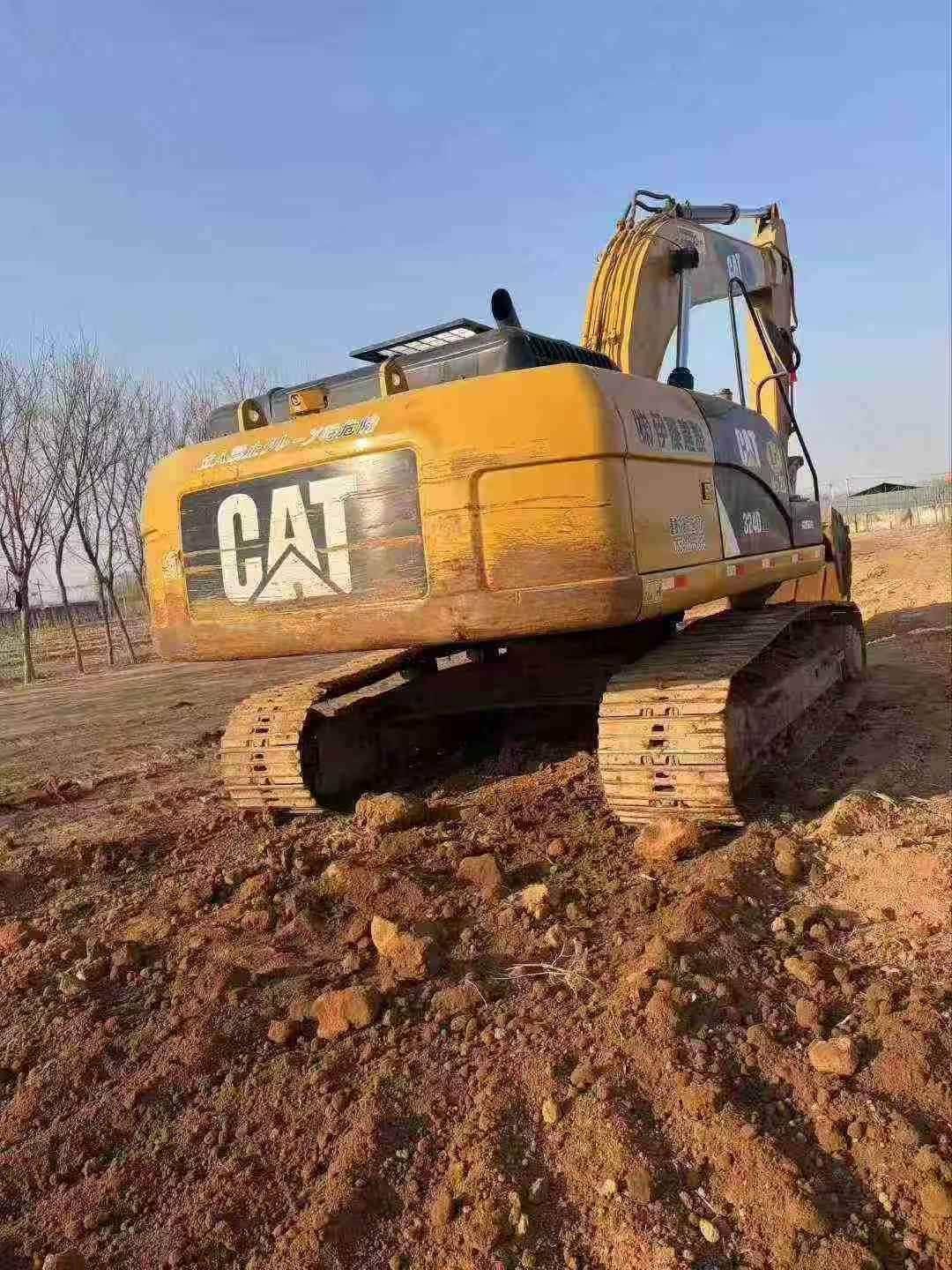

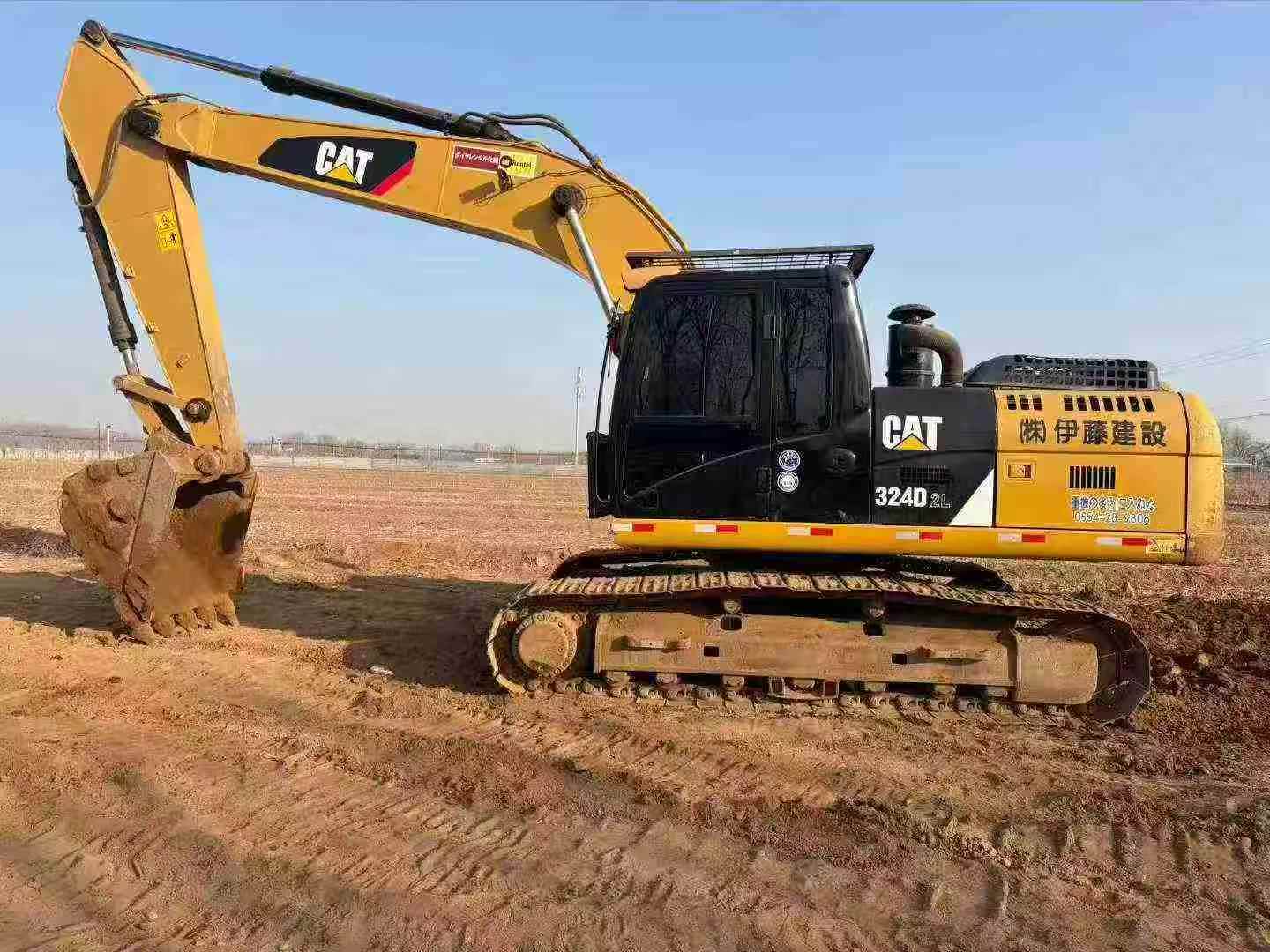

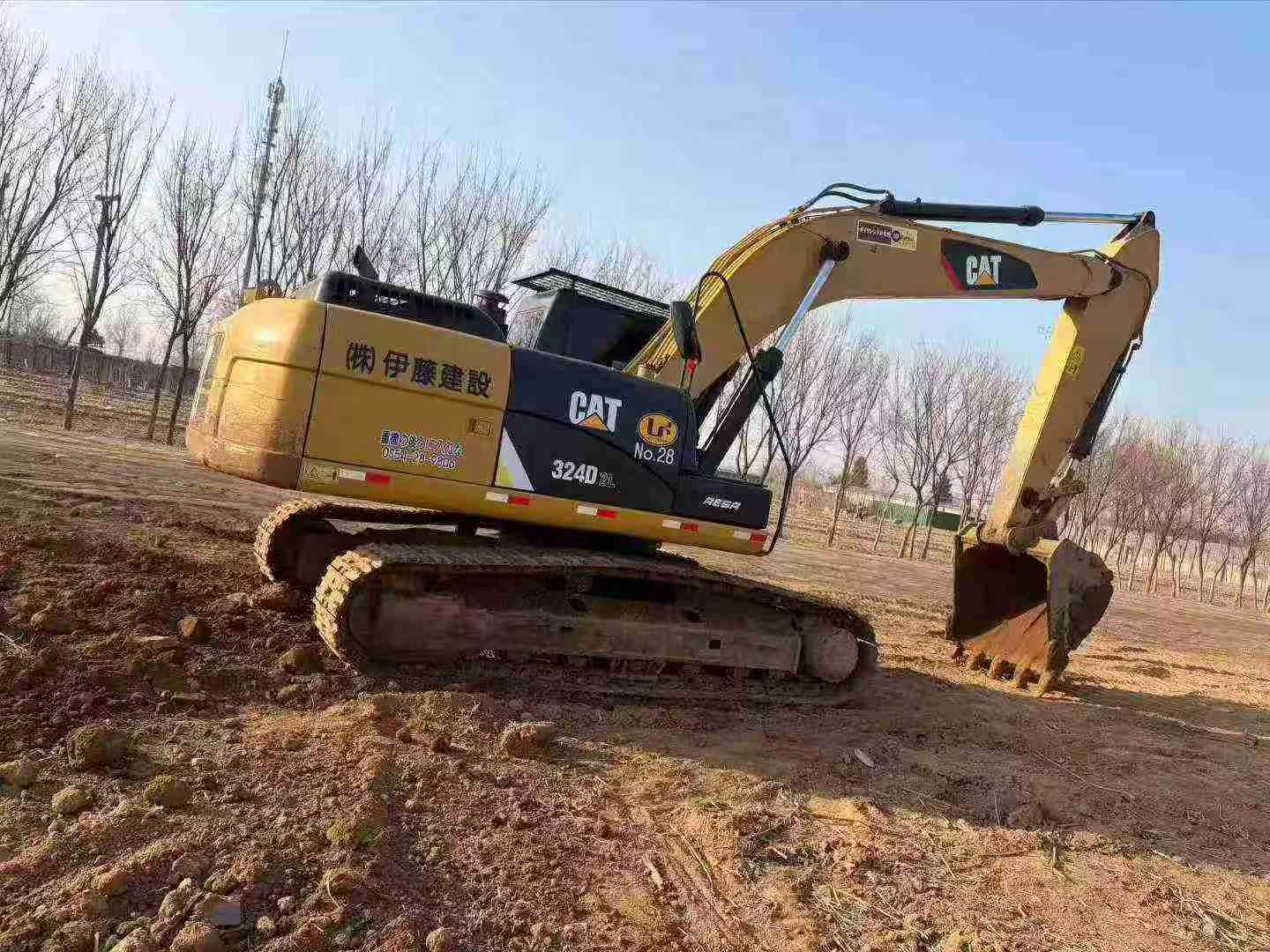

2016 Caterpillar 324DL
Product Description
Invest strategically in proven hydraulic excavation performance without the premium price tag. This 2016 Caterpillar 324DL hydraulic excavator delivers the reliability and productivity your operation demands at a fraction of new equipment costs. Engineered with Cat's renowned hydraulic systems and durable construction, this machine handles demanding earthmoving, trenching, and material handling applications with consistent efficiency.
Currently located in Hebei, this unit represents exceptional value for contractors seeking to expand fleet capacity or replace aging equipment. The 324DL's fuel-efficient engine and optimized hydraulics reduce operational expenses while maintaining the performance standards Caterpillar built its reputation on. With eight years of proven field design behind it, you're acquiring mature technology with established parts availability and service support networks worldwide.
- Substantial cost savings compared to new equipment acquisition
- Caterpillar hydraulic technology for precise control and power
- Ready for deployment in Hebei with potential international shipping
- Reduced depreciation impact on your balance sheet
Maximize your equipment budget
| Specifications | Value |
|---|---|
| No. | 1018613 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 25560 |

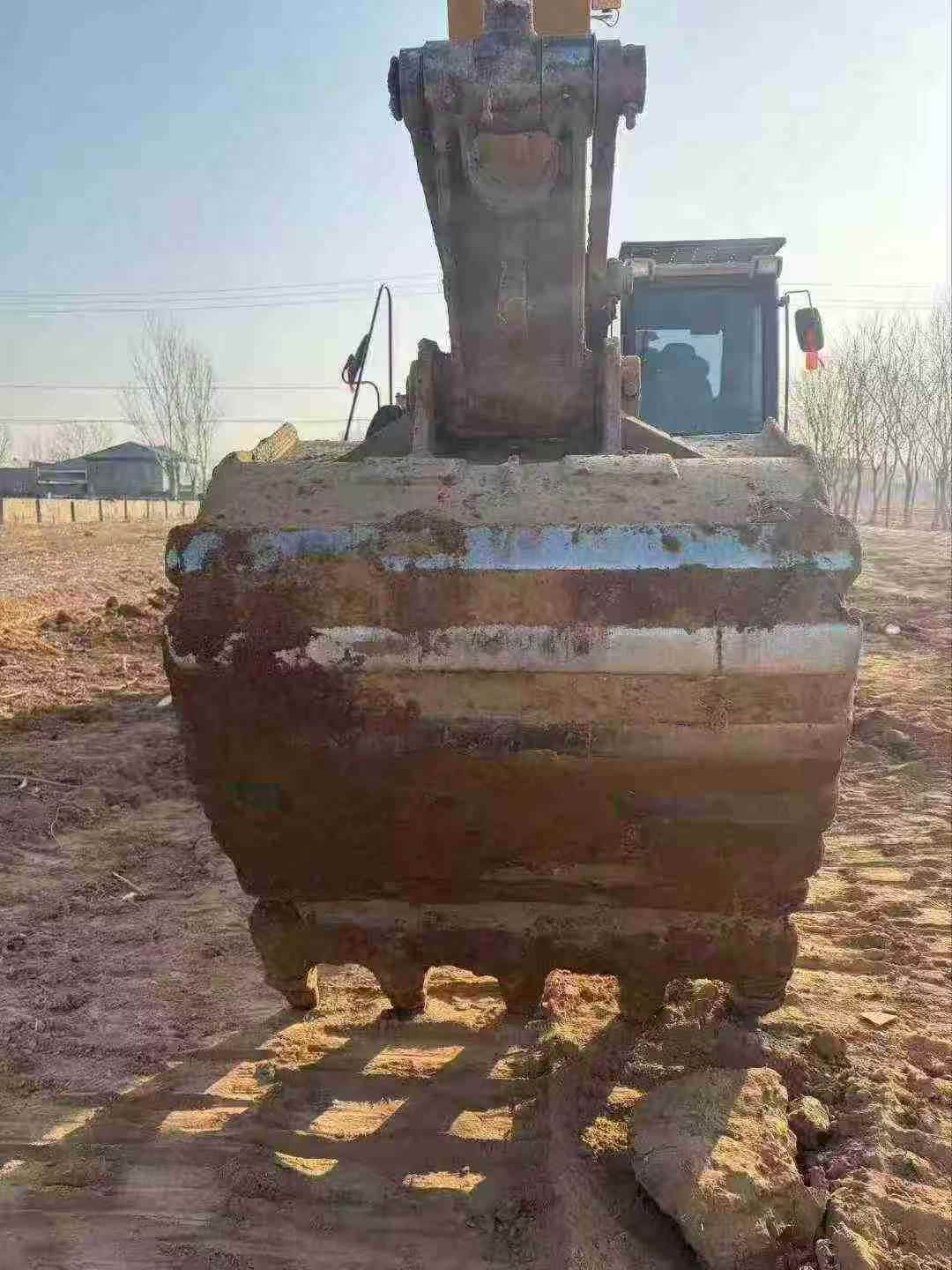

| Bucket capacity (m³) | 1.1 |
| Boom length (mm) | 5900 |
| Rod length (mm) | 2950 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

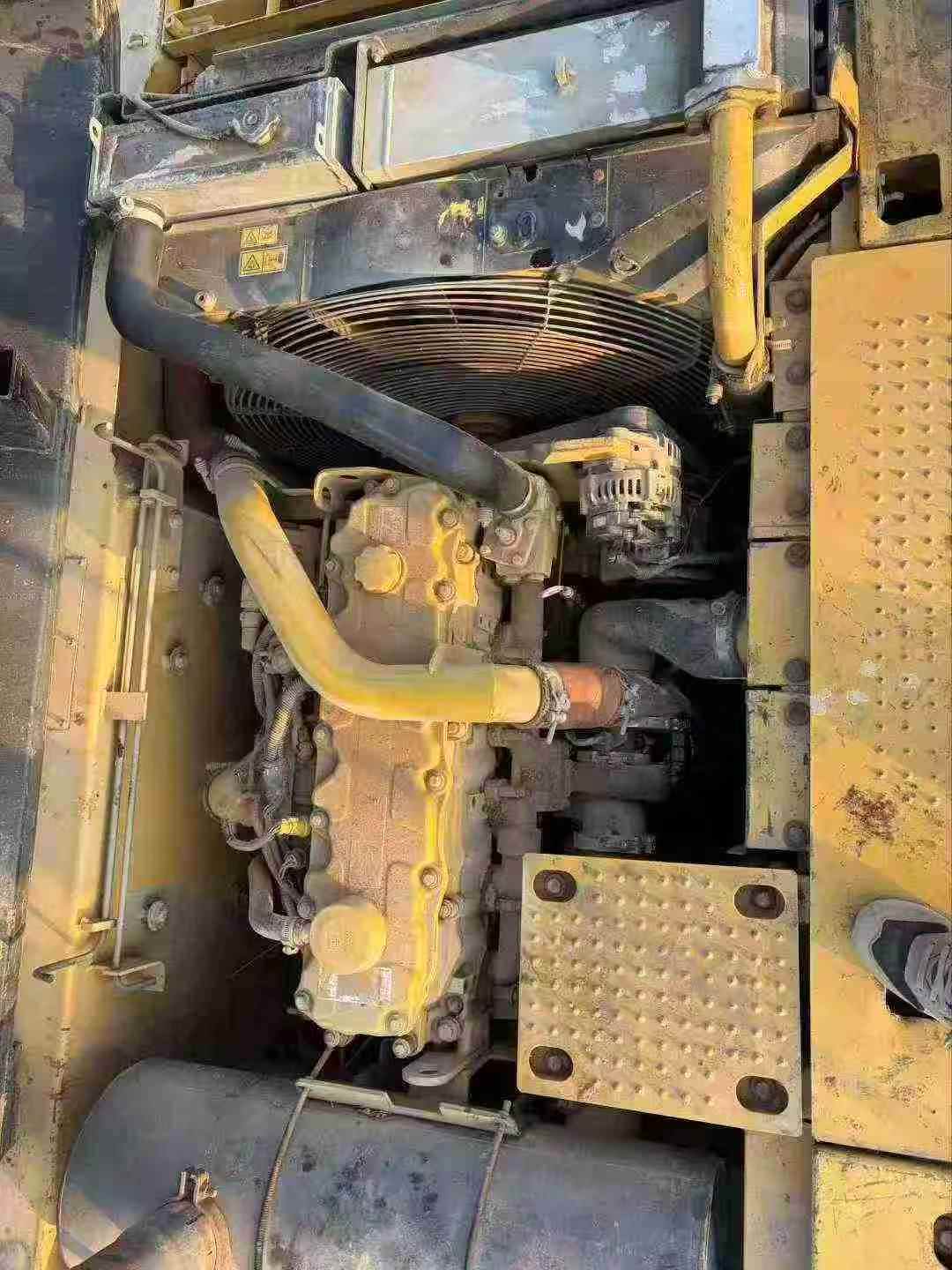

| Engine type | C7ACERT |
| Rated power (kw/rpm) | 140/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.2 |
| Rotation speed (rpm) | 9.6 |
| Climbing ability (%) | 70/35 ° |
| Travel speed (km/h) | 3.5/5.5 |
| Main overflow set pressure (Mpa) | 35 |

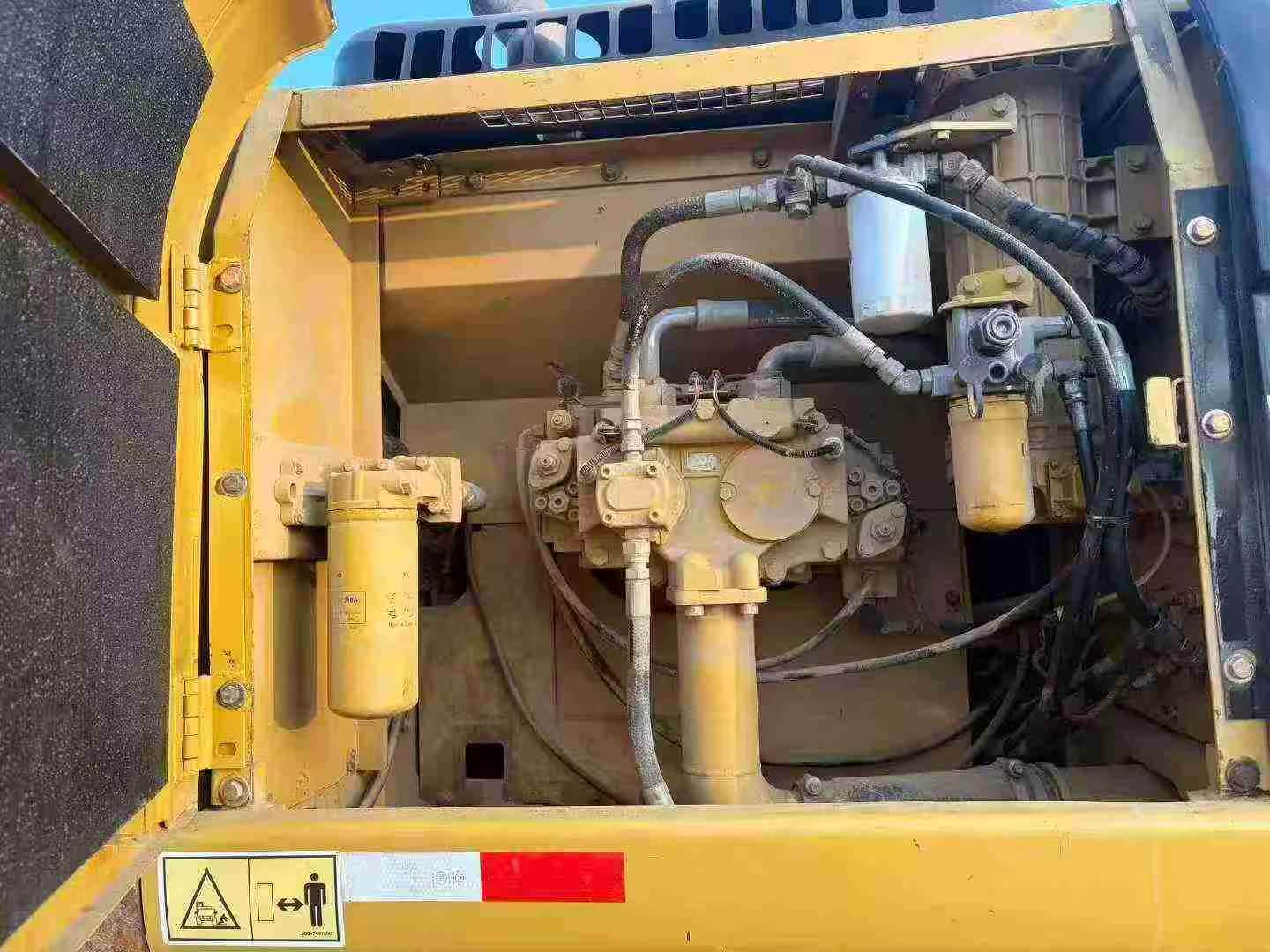

| Maximum flow of main pump (l/min) | 235 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 24.5 |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 35 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-120 x 1104 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-140 x 1660 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-135 x 1305 |
| Fuel Tank (L) | 520 |
| Hydraulic Tank (L) | 145 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 30 |
| Hydraulic System (L) | 300(including fuel tank) |
| Total transport length (mm) | 10060 |
| Total transport width (mm) | 3390 |
| Total transport height (mm) | 3170 |
| Full cab height (mm) | 2980 |
| Counterweight ground clearance (mm) | 1060 |
| Minimum ground clearance (mm) | 470 |
| Back end turning radius (mm) | 2940 |

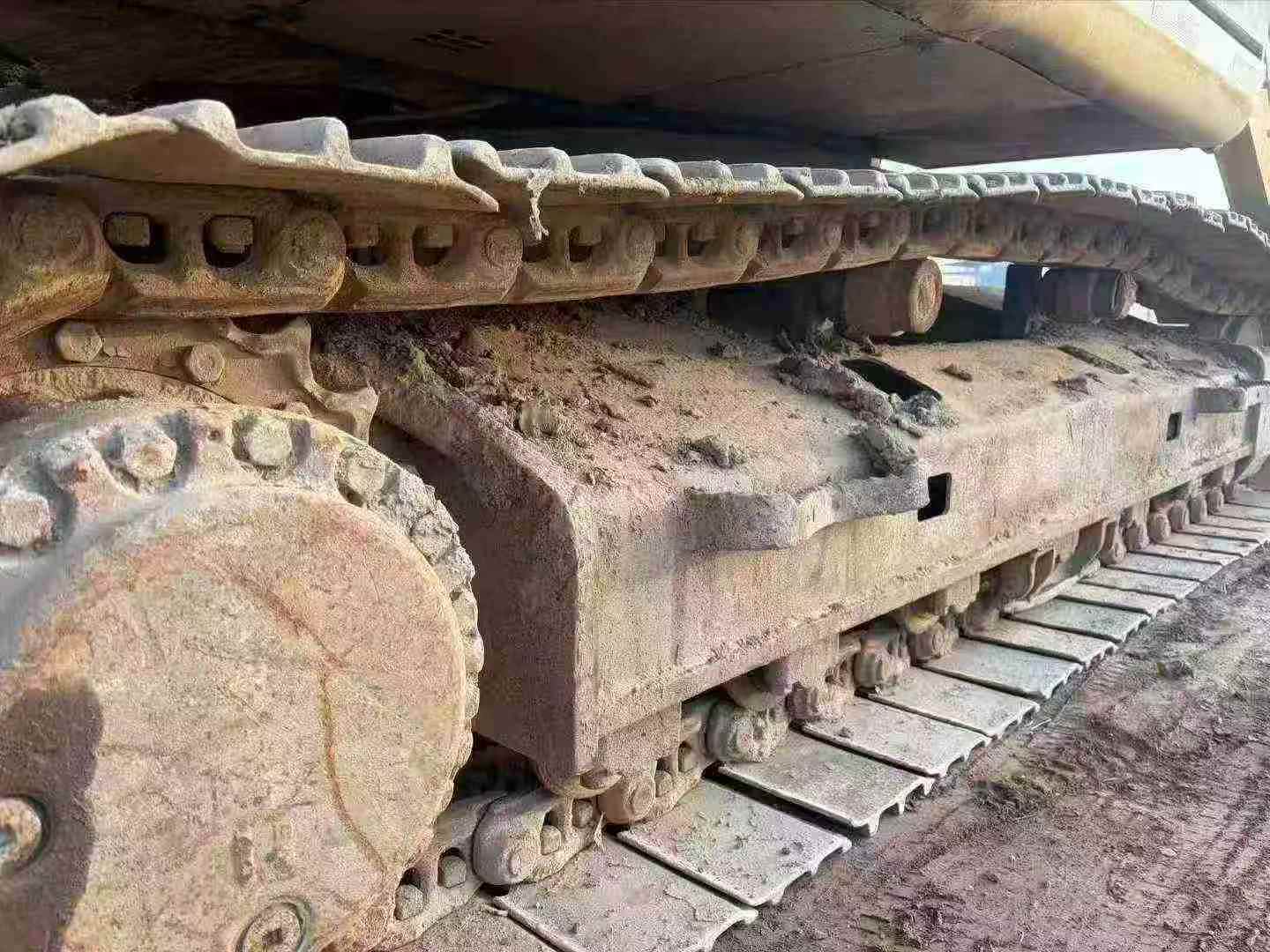

| Total track length (mm) | 4630 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 800 |
| Total track width (mm) | 3390 |
| Track ground length (mm) | 3830 |
| Maximum digging depth (mm) | 6740 |
| Maximum excavation height (mm) | 9660 |
| Maximum unloading height (mm) | 6700 |
| Maximum vertical digging depth (mm) | 5830 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 10030 |
| Maximum effective digging depth (mm) | 6560 |
Overview
No.1018613
Brand Name：
CaterpillarModel Number：
324DLYear：
2016
Location：
Hebei China
Pub Date：
