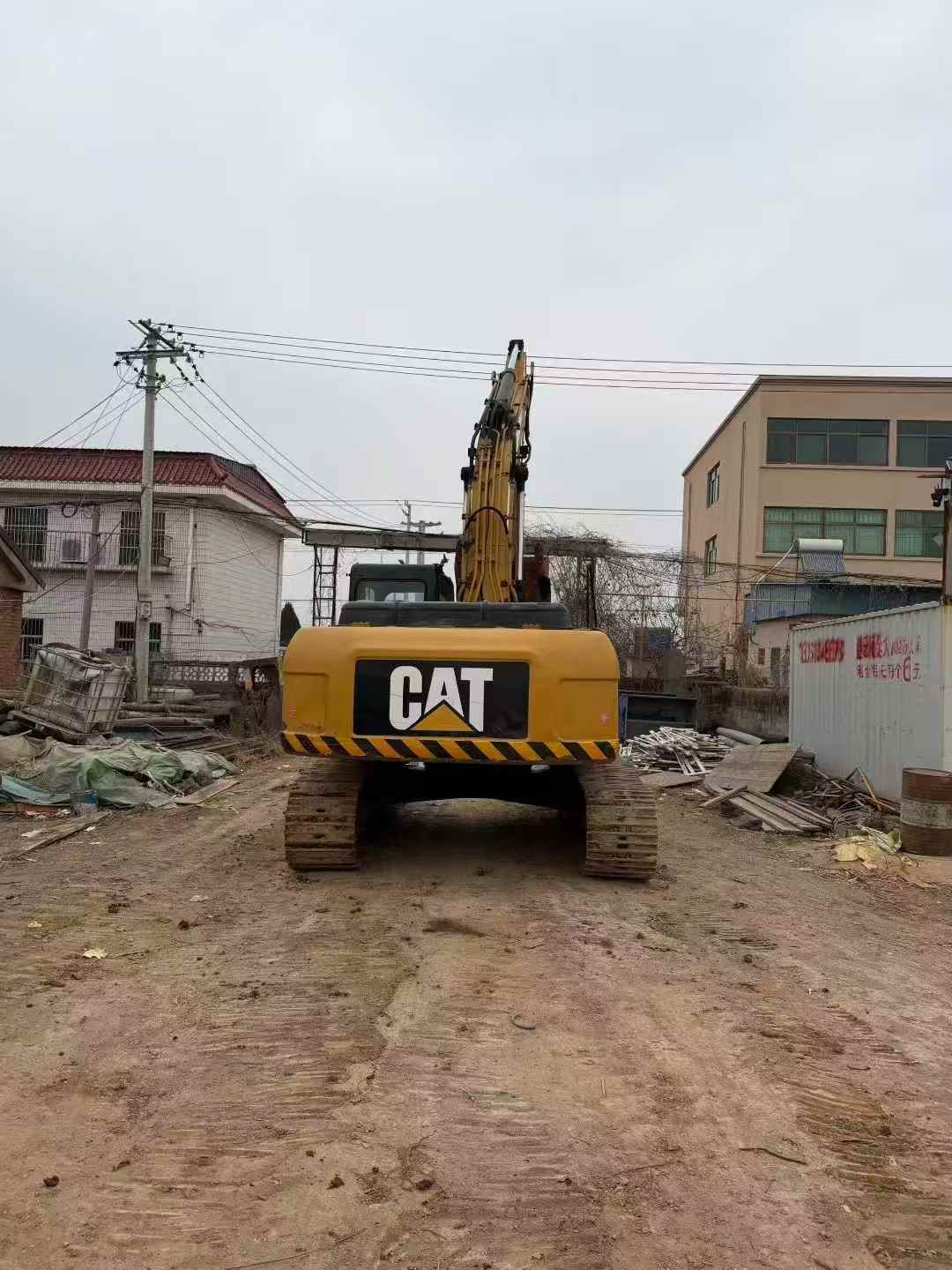

2013 Caterpillar 326DL
Product Description
Proven performance defines this 2013 Caterpillar 326DL excavator, a 26-ton workhorse engineered for demanding jobsites. With over a decade of operational history, this machine demonstrates Caterpillar's legendary build quality and reliability. Powered by the robust C7 ACERT engine delivering 140kW, this excavator combines exceptional digging force with fuel-efficient water-cooled technology.
Key specifications include:
- Operating weight: 25,560 kg with 1.35/1.57 m³ bucket capacity
- Maximum digging depth of 6,740 mm and reach of 10,030 mm
- Bucket digging force: 174 kN for tough excavation tasks
- Hydraulic system: 235 L/min flow at 35 MPa for responsive control
- 520L fuel tank for extended operation between refills
Currently located in Jiangsu, China, this durable excavator has proven its worth across countless projects. Built to withstand rigorous daily use, the 326DL remains a trusted choice for contractors seeking reliable performance without compromise. Its track record speaks volumes about Caterpillar's commitment to engineering excellence.
| Specifications | Value |
|---|---|
| No. | 1010843 |
| Tonnage (tons) | 26 |
| Working weight (kg) | 25560 |

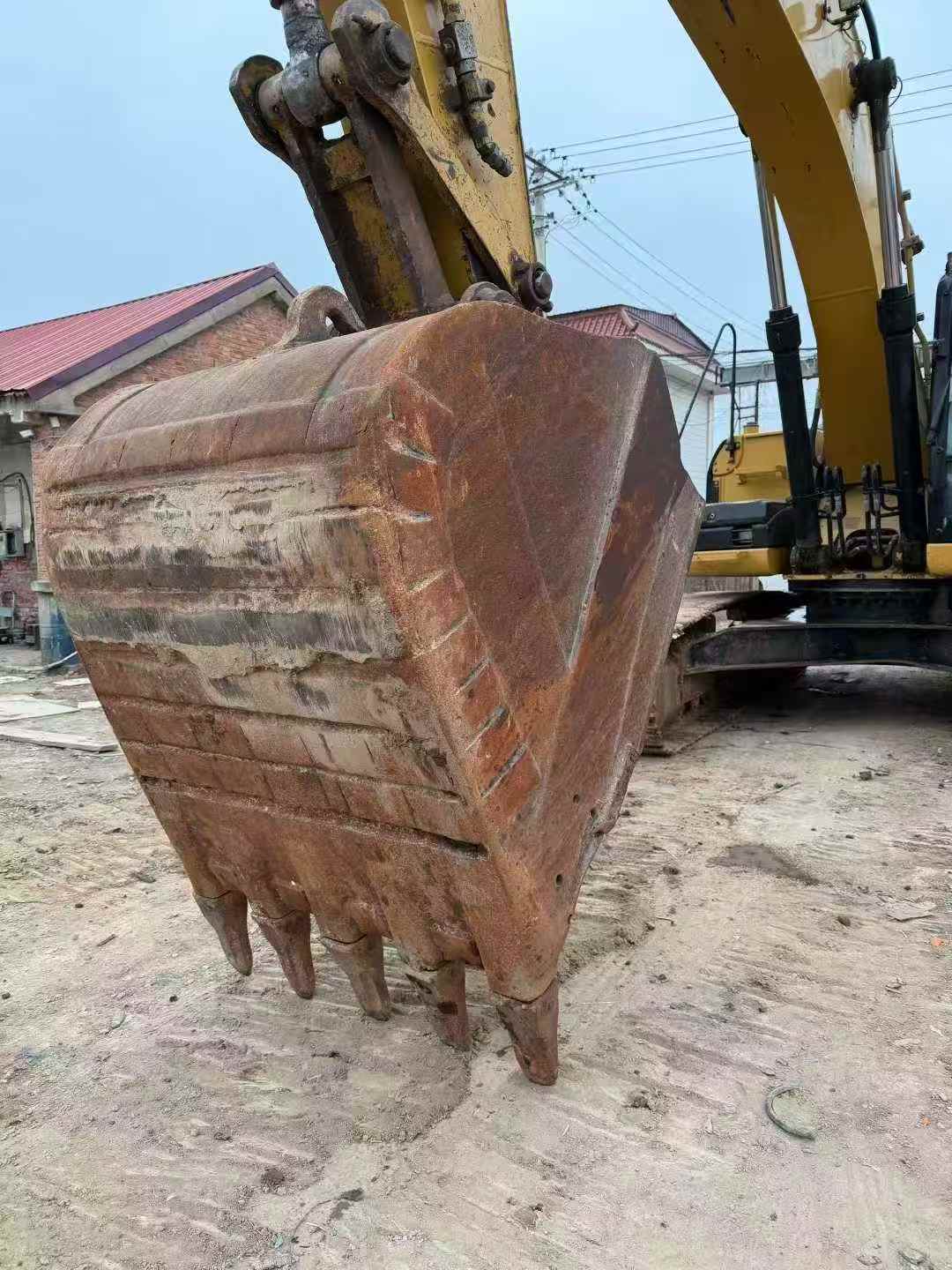

| Bucket capacity (m³) | 1.35/1.57 |
| Boom length (mm) | 5300/5900 |
| Rod length (mm) | 2000/2500/2950 |
| Country of origin | Xuzhou, Jiangsu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

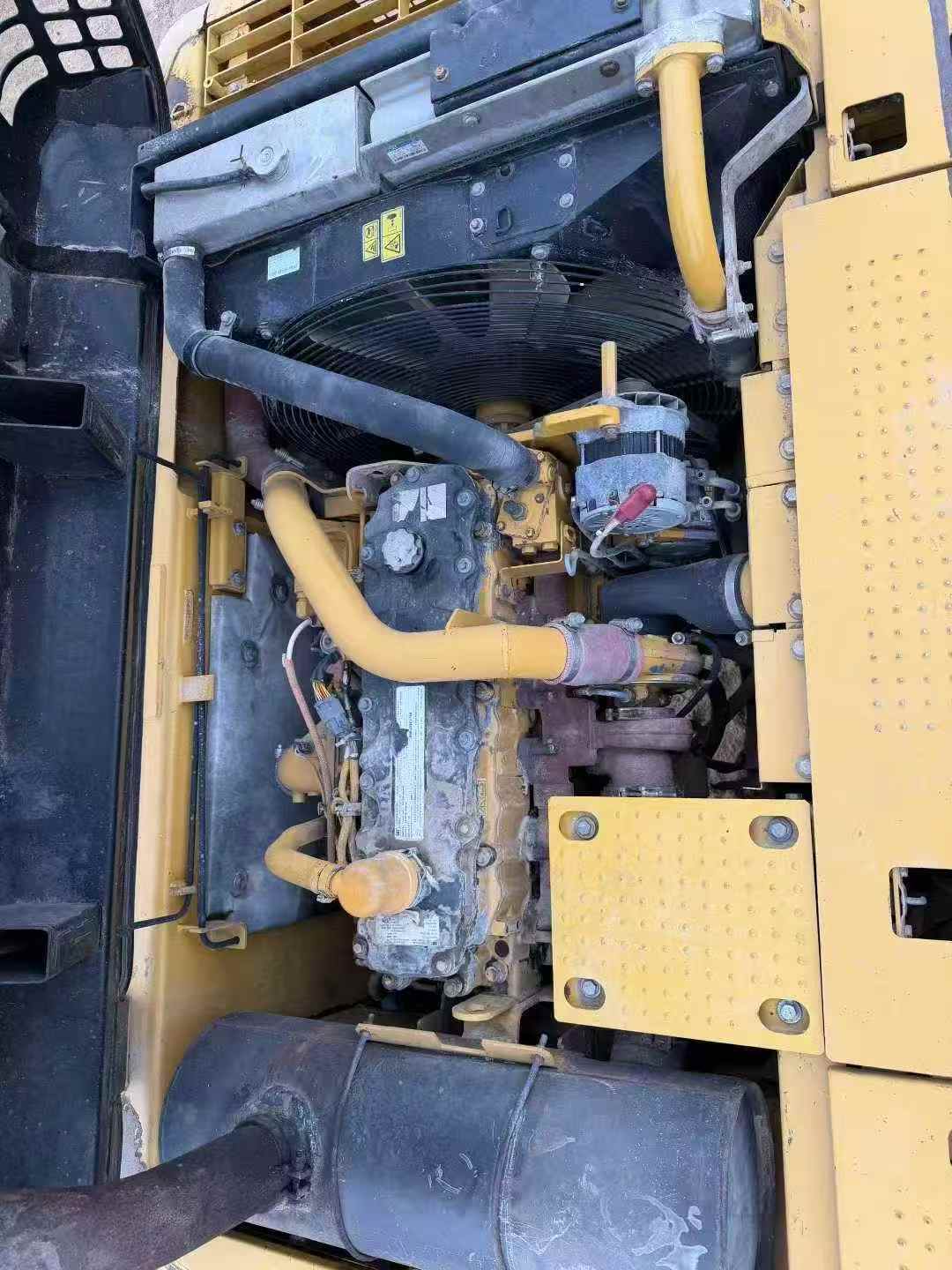

| Engine type | Caterpillar C7 ACERT |
| Rated power (kw/rpm) | 140 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 110 x 127 |
| Displacement (L) | 7.2 |
| Rotation speed (rpm) | 9.6 |
| Bucket digging force (kN) | 174 |
| Rod digging force (kN) | 122 |
| Maximum tractive force (kN) | 227 |
| Travel speed (km/h) | 5.5 |
| Turning torque (Nm) | 73.4 |
| Main overflow set pressure (Mpa) | 35 |
| Rotary hydraulic motor type | 24.5 |
| Type of walking hydraulic motor | 35 |
| Maximum flow of main pump (l/min) | 235 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 150 x 1156 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 140 x 1660 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 135 x 1305 |
| Fuel Tank (L) | 520 |
| Hydraulic Tank (L) | 145 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 30 |
| Hydraulic System (L) | 300 |
| Total transport length (mm) | 10060 |
| Total transport width (mm) | 3390 |
| Total transport height (mm) | 3170 |
| Full cab height (mm) | 2980 |
| Counterweight ground clearance (mm) | 1060 |
| Minimum ground clearance (mm) | 470 |
| Back end turning radius (mm) | 2940 |
| Total track length (mm) | 4630 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3390 |
| Maximum digging depth (mm) | 6740 |
| Maximum excavation height (mm) | 9660 |
| Maximum unloading height (mm) | 6700 |
| Maximum vertical digging depth (mm) | 5830 |
| Maximum excavation radius of stop surface (mm) | 10030 |
| Maximum effective digging depth (mm) | 6560 |
Overview
No.1010843
Brand Name：
CaterpillarModel Number：
326DLYear：
2013
Location：
Jiangsu China
Pub Date：
