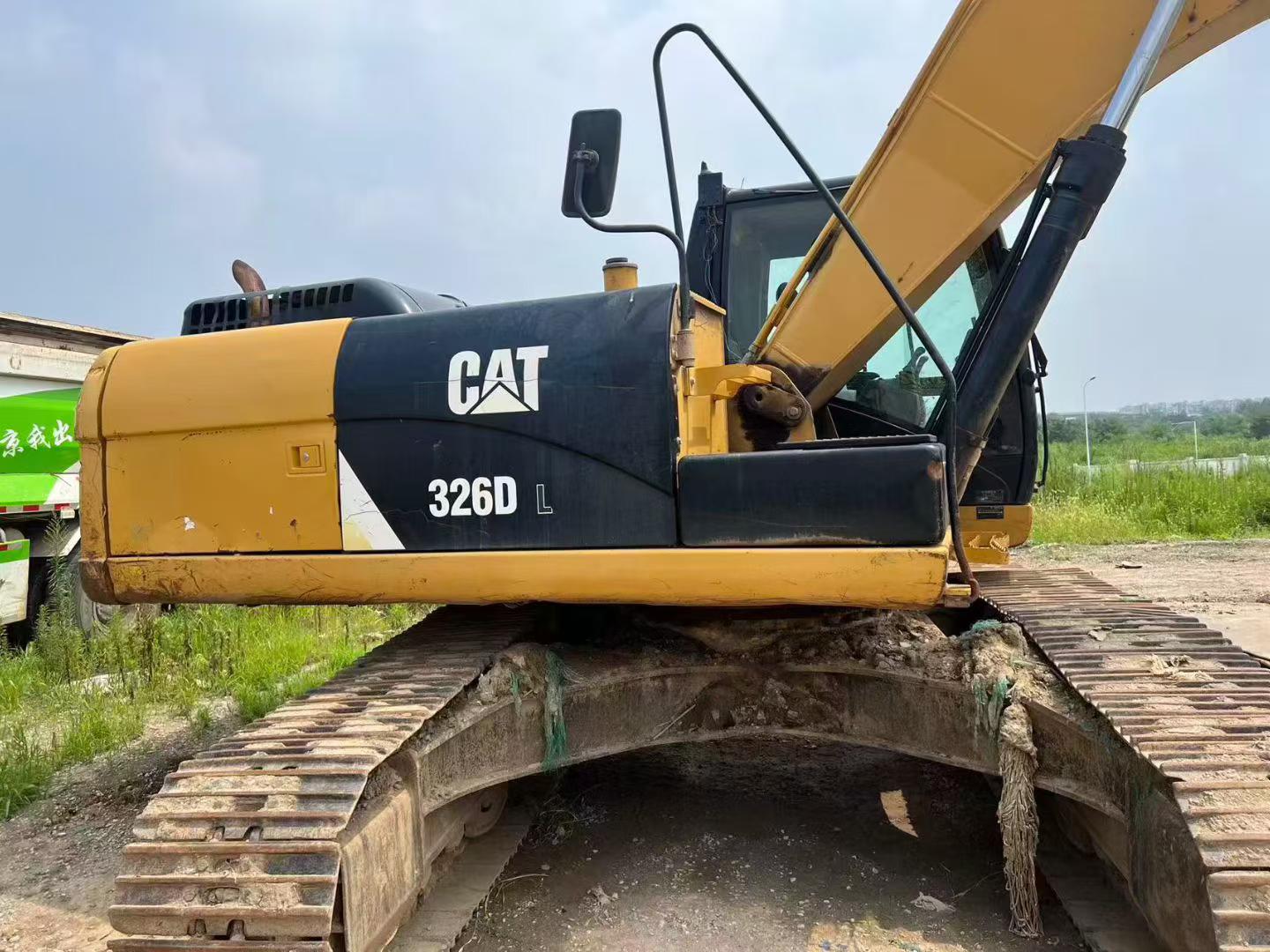

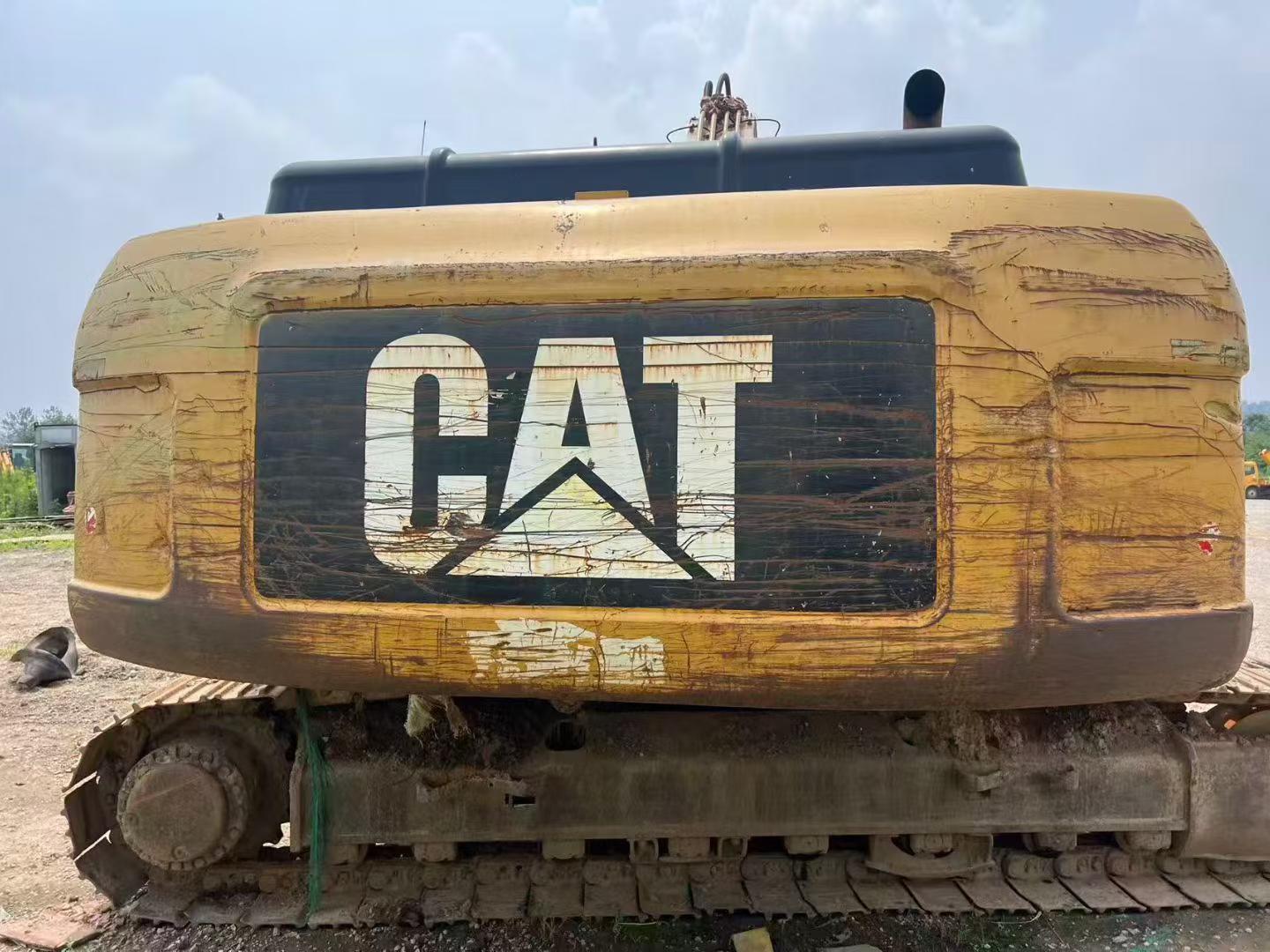

2013 Caterpillar 326DL
Product Description
Engineered with Caterpillar's proven C7 ACERT engine delivering 140 kW of rated power, this 2013 326DL excavator represents joint-venture manufacturing excellence from Xuzhou, Jiangsu. The 26-ton machine operates through a high-capacity hydraulic system featuring 235 l/min maximum main pump flow and 35 MPa main overflow pressure, ensuring consistent performance across demanding applications.
Technical specifications demonstrate superior capability:
- Operating weight: 25,560 kg with 1.35/1.57 m³ bucket capacity
- Digging forces: 174 kN bucket force, 122 kN rod force
- Reach performance: 10,030 mm maximum excavation radius, 6,740 mm digging depth
- Boom configurations: 5,300/5,900 mm options with rod lengths from 2,000-2,950 mm
- Water-cooled 7.2L displacement engine with 110 x 127 mm cylinder bore and stroke
Currently located in Hunan, this water-cooled excavator combines reliable Cat engineering with 520L fuel capacity and 300L hydraulic system volume for extended operational efficiency. The 600 mm track plates and 2,590 mm gauge provide stable platform dynamics for heavy excavation work.
| Specifications | Value |
|---|---|
| No. | 1032814 |
| Tonnage (tons) | 26 |
| Working weight (kg) | 25560 |
| Bucket capacity (m³) | 1.35/1.57 |
| Boom length (mm) | 5300/5900 |
| Rod length (mm) | 2000/2500/2950 |
| Country of origin | Xuzhou, Jiangsu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar C7 ACERT |
| Rated power (kw/rpm) | 140 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 110 x 127 |
| Displacement (L) | 7.2 |
| Rotation speed (rpm) | 9.6 |
| Bucket digging force (kN) | 174 |
| Rod digging force (kN) | 122 |
| Maximum tractive force (kN) | 227 |
| Travel speed (km/h) | 5.5 |
| Turning torque (Nm) | 73.4 |
| Main overflow set pressure (Mpa) | 35 |
| Rotary hydraulic motor type | 24.5 |
| Type of walking hydraulic motor | 35 |
| Maximum flow of main pump (l/min) | 235 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 150 x 1156 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 140 x 1660 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 135 x 1305 |
| Fuel Tank (L) | 520 |
| Hydraulic Tank (L) | 145 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 30 |
| Hydraulic System (L) | 300 |
| Total transport length (mm) | 10060 |
| Total transport width (mm) | 3390 |
| Total transport height (mm) | 3170 |
| Full cab height (mm) | 2980 |
| Counterweight ground clearance (mm) | 1060 |
| Minimum ground clearance (mm) | 470 |
| Back end turning radius (mm) | 2940 |
| Total track length (mm) | 4630 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3390 |
| Maximum digging depth (mm) | 6740 |
| Maximum excavation height (mm) | 9660 |
| Maximum unloading height (mm) | 6700 |
| Maximum vertical digging depth (mm) | 5830 |
| Maximum excavation radius of stop surface (mm) | 10030 |
| Maximum effective digging depth (mm) | 6560 |
Overview
No.1032814
Brand Name：
CaterpillarModel Number：
326DLYear：
2013
Location：
Hunan China
Pub Date：
