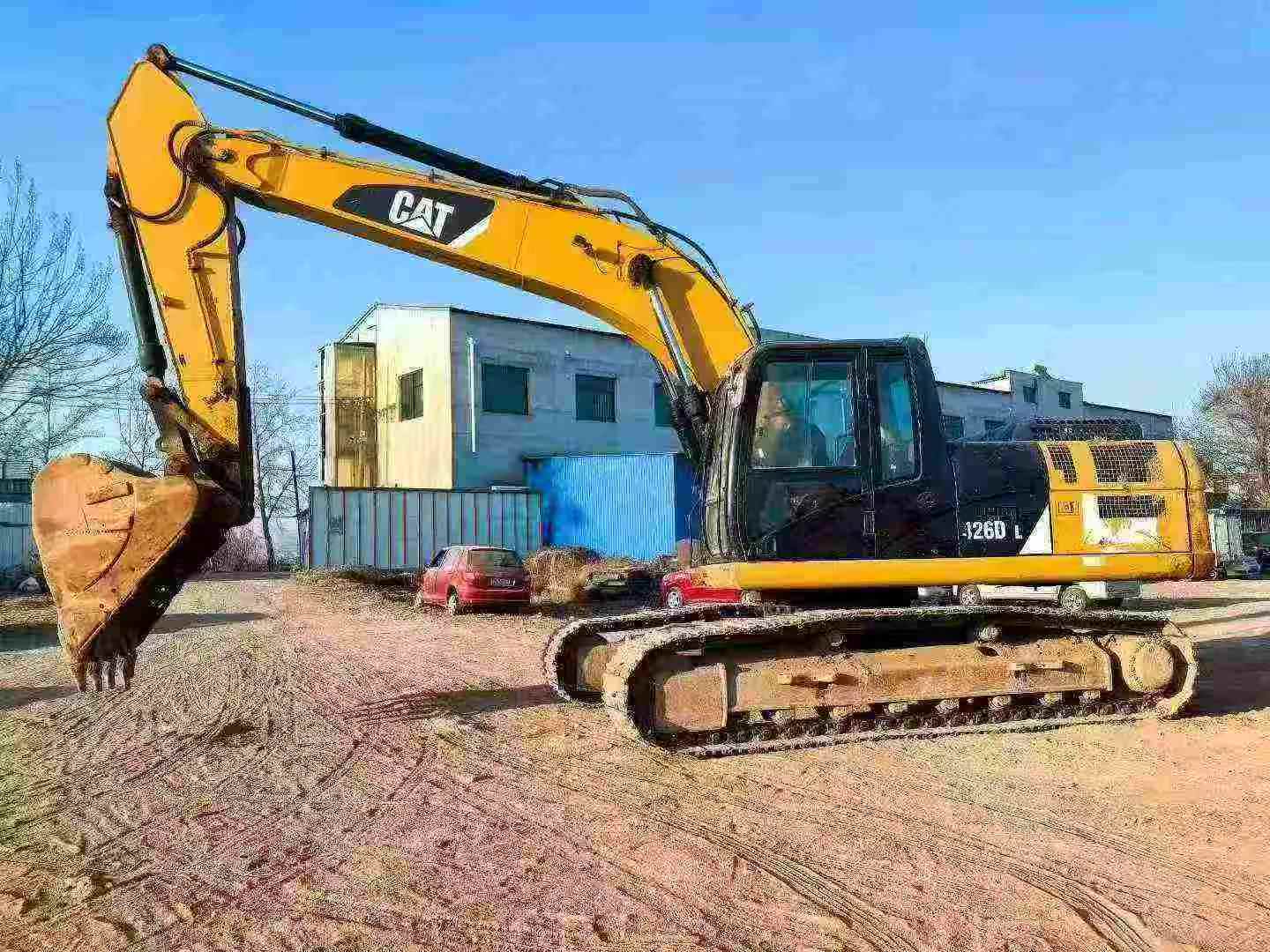

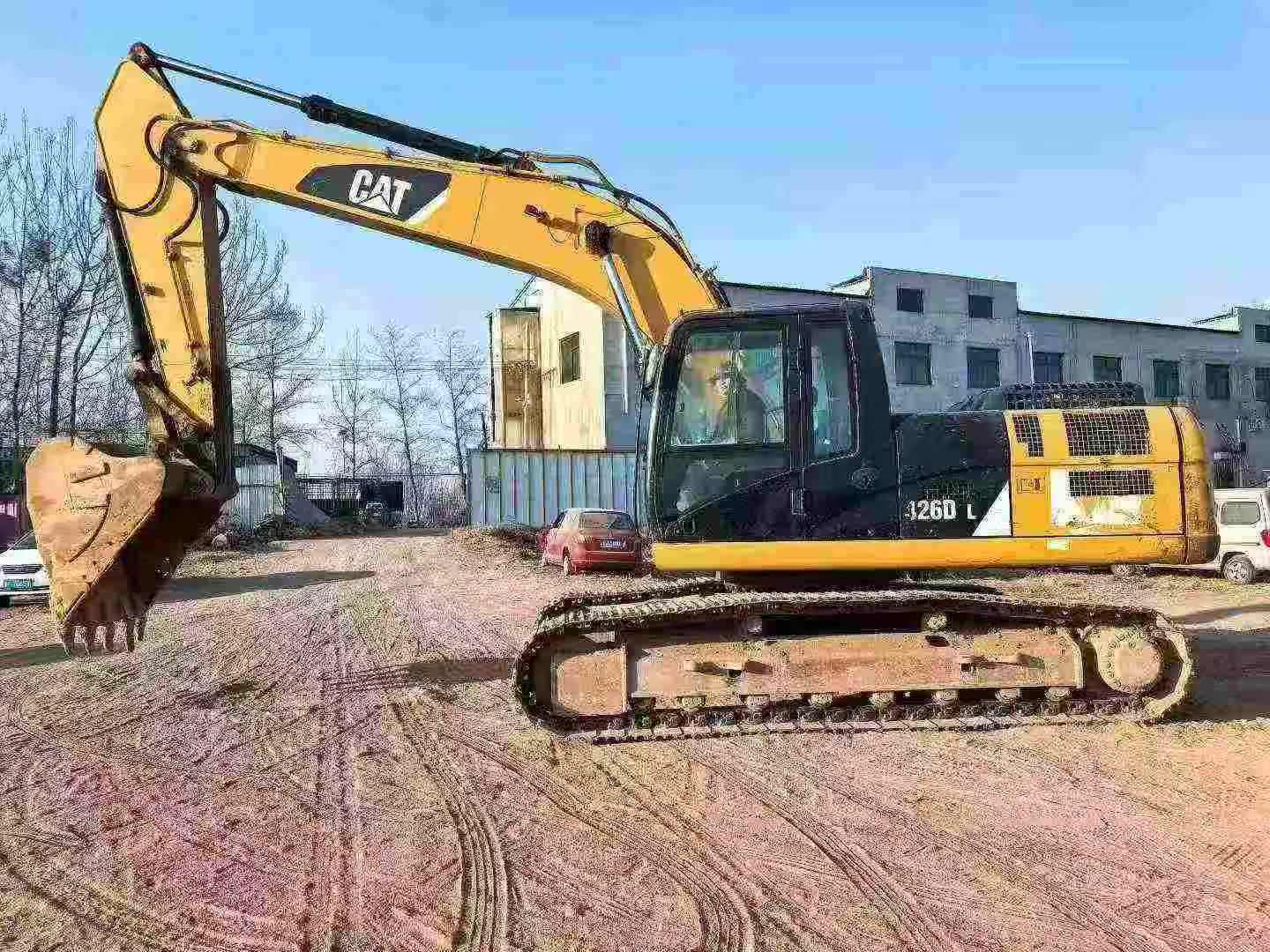

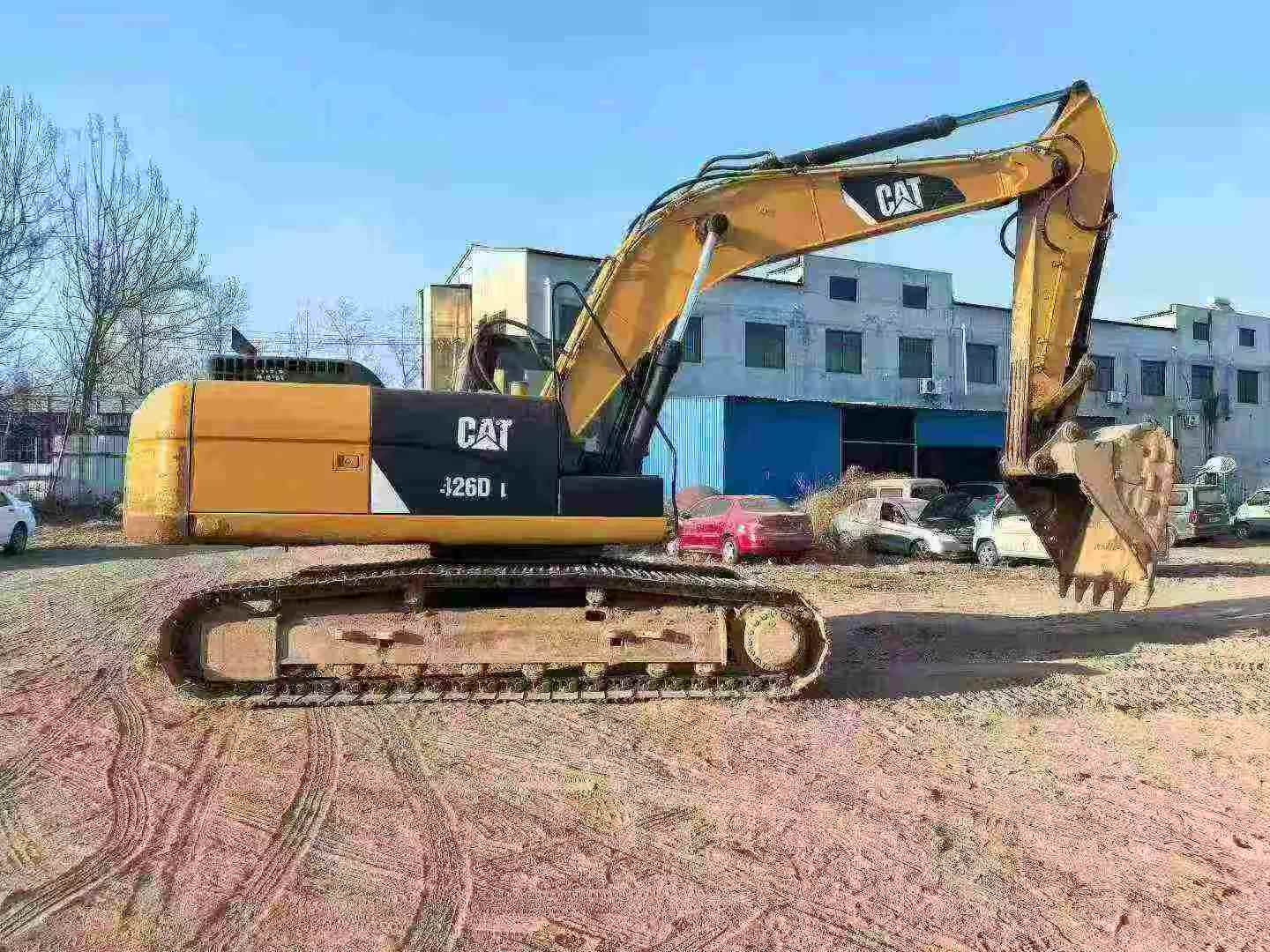

2014 Caterpillar 326DL
Product Description
Commanding a 26-ton workhorse demands precision and confidence. This 2014 Caterpillar 326DL excavator delivers both through its operator-centric design and robust hydraulic performance. Powered by the reliable Caterpillar C7 ACERT engine producing 140 kW, operators benefit from responsive controls backed by a 235 l/min main pump flow and 35 MPa system pressure. Hydraulic stability translates directly to predictable bucket and arm movements, critical when managing a maximum digging depth of 6,740 mm or reaching excavation heights up to 9,660 mm.

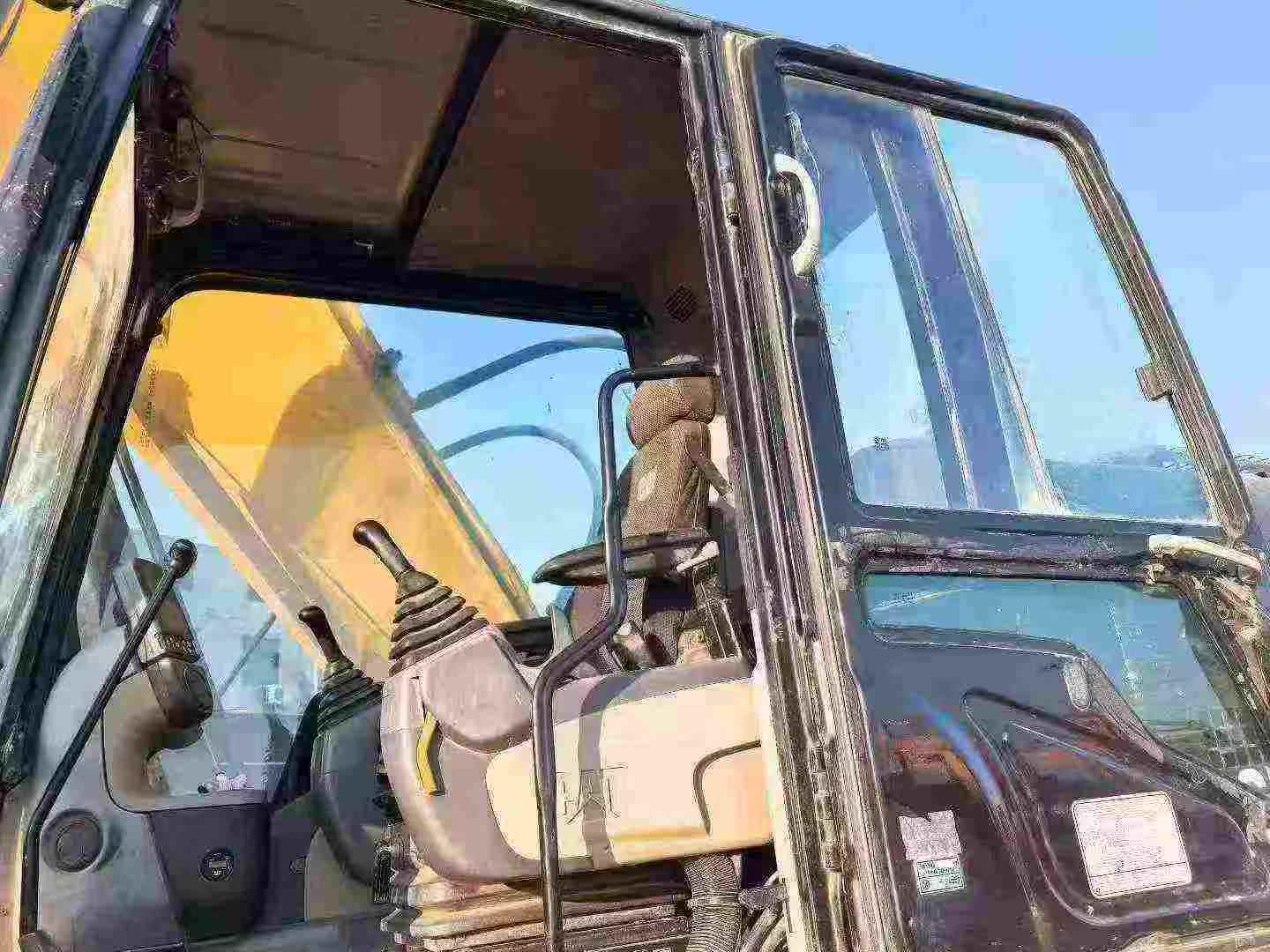

- Spacious cab positioned at 2,980 mm height provides commanding visibility across the 10,030 mm working radius

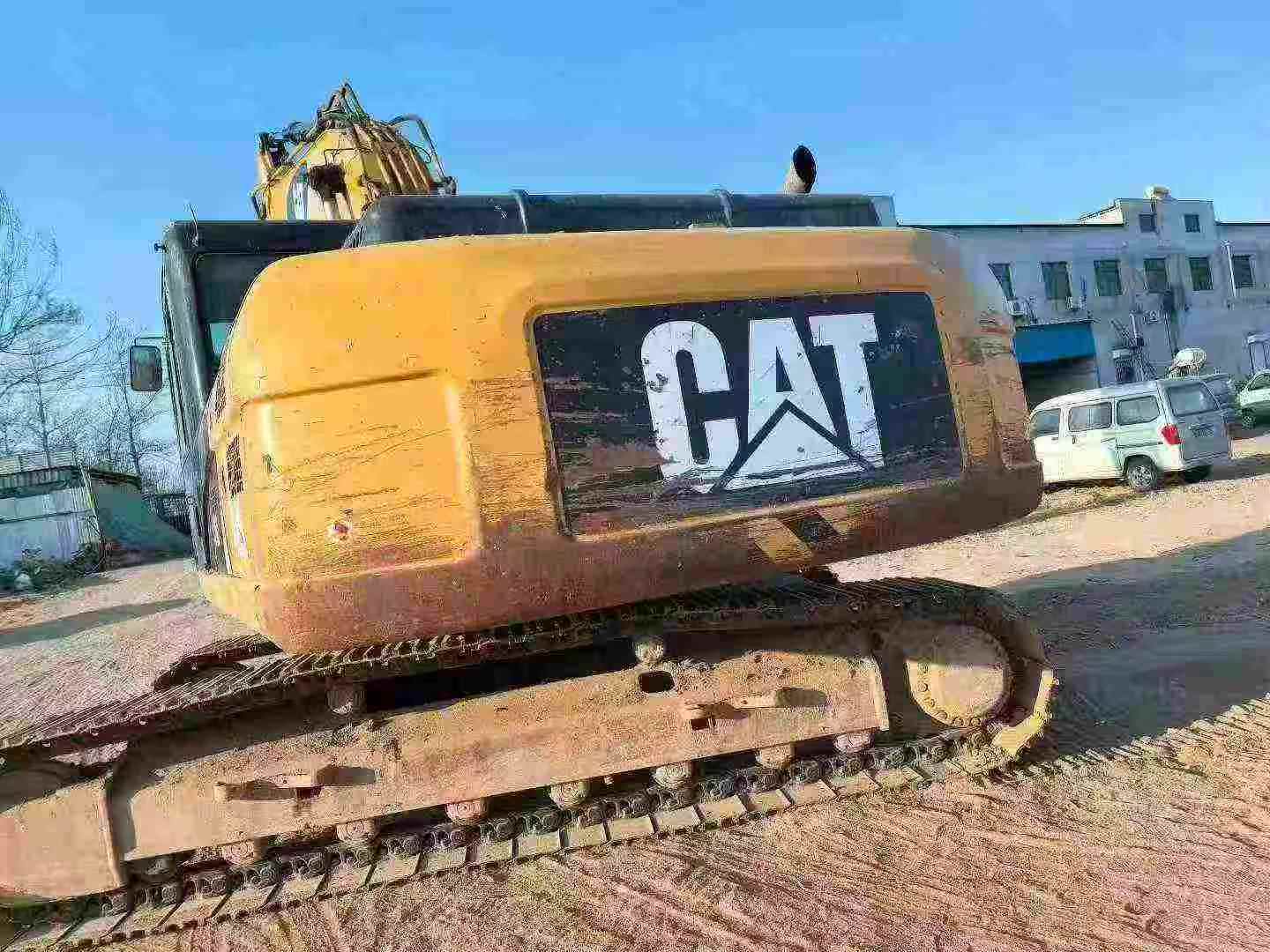

- Generous 1,060 mm counterweight clearance and 2,940 mm rear turning radius enhance maneuverability on confined sites

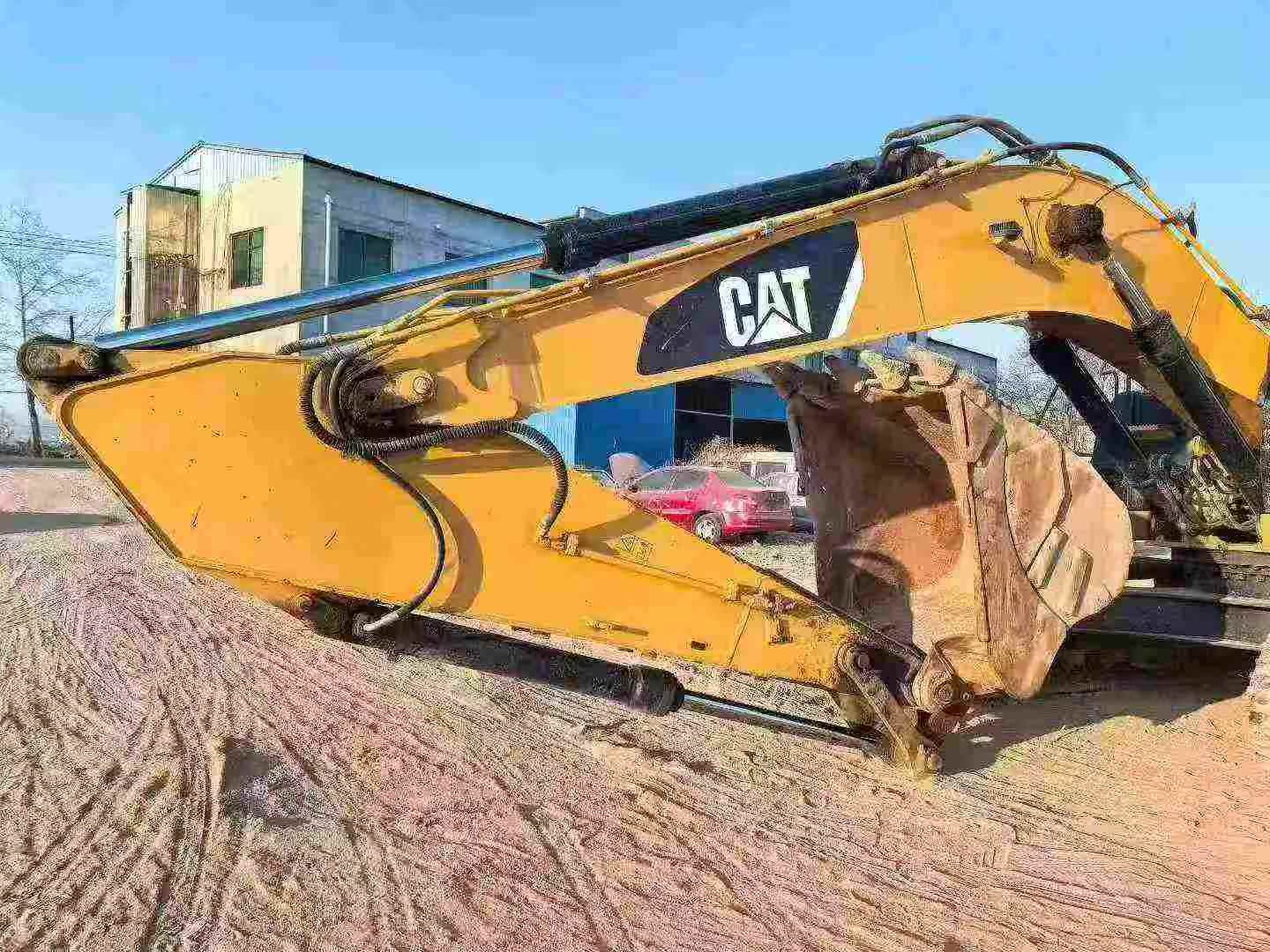

- Dual boom cylinders (2 × 135 mm) ensure balanced lifting stability under load

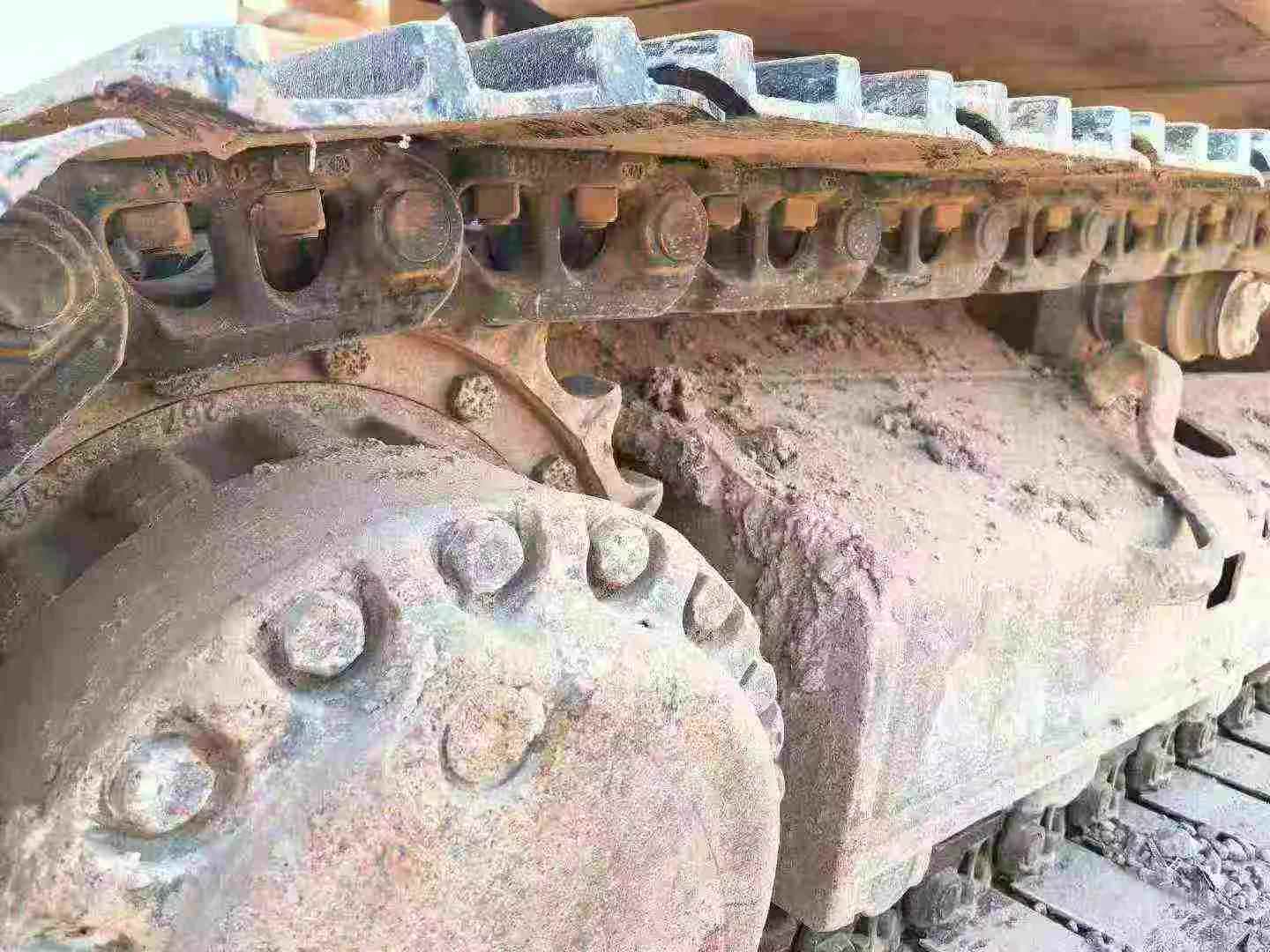

- Wide 600 mm track plates across 2,590 mm gauge deliver secure footing on variable terrain
- 174 kN bucket digging force and 122 kN arm force handle demanding excavation tasks
Currently located in Hebei, this joint-venture manufactured machine represents proven mid-size excavator capability with operator comfort engineered
| Specifications | Value |
|---|---|
| No. | 1009021 |
| Tonnage (tons) | 26 |
| Working weight (kg) | 25560 |
| Bucket capacity (m³) | 1.35/1.57 |
| Boom length (mm) | 5300/5900 |
| Rod length (mm) | 2000/2500/2950 |
| Country of origin | Xuzhou, Jiangsu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar C7 ACERT |
| Rated power (kw/rpm) | 140 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 110 x 127 |
| Displacement (L) | 7.2 |
| Rotation speed (rpm) | 9.6 |
| Bucket digging force (kN) | 174 |
| Rod digging force (kN) | 122 |
| Maximum tractive force (kN) | 227 |
| Travel speed (km/h) | 5.5 |
| Turning torque (Nm) | 73.4 |
| Main overflow set pressure (Mpa) | 35 |
| Rotary hydraulic motor type | 24.5 |
| Type of walking hydraulic motor | 35 |
| Maximum flow of main pump (l/min) | 235 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 150 x 1156 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 140 x 1660 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 135 x 1305 |
| Fuel Tank (L) | 520 |
| Hydraulic Tank (L) | 145 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 30 |
| Hydraulic System (L) | 300 |
| Total transport length (mm) | 10060 |
| Total transport width (mm) | 3390 |
| Total transport height (mm) | 3170 |
| Full cab height (mm) | 2980 |
| Counterweight ground clearance (mm) | 1060 |
| Minimum ground clearance (mm) | 470 |
| Back end turning radius (mm) | 2940 |
| Total track length (mm) | 4630 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3390 |
| Maximum digging depth (mm) | 6740 |
| Maximum excavation height (mm) | 9660 |
| Maximum unloading height (mm) | 6700 |
| Maximum vertical digging depth (mm) | 5830 |
| Maximum excavation radius of stop surface (mm) | 10030 |
| Maximum effective digging depth (mm) | 6560 |
Overview
No.1009021
Brand Name：
CaterpillarModel Number：
326DLYear：
2014
Location：
Hebei China
