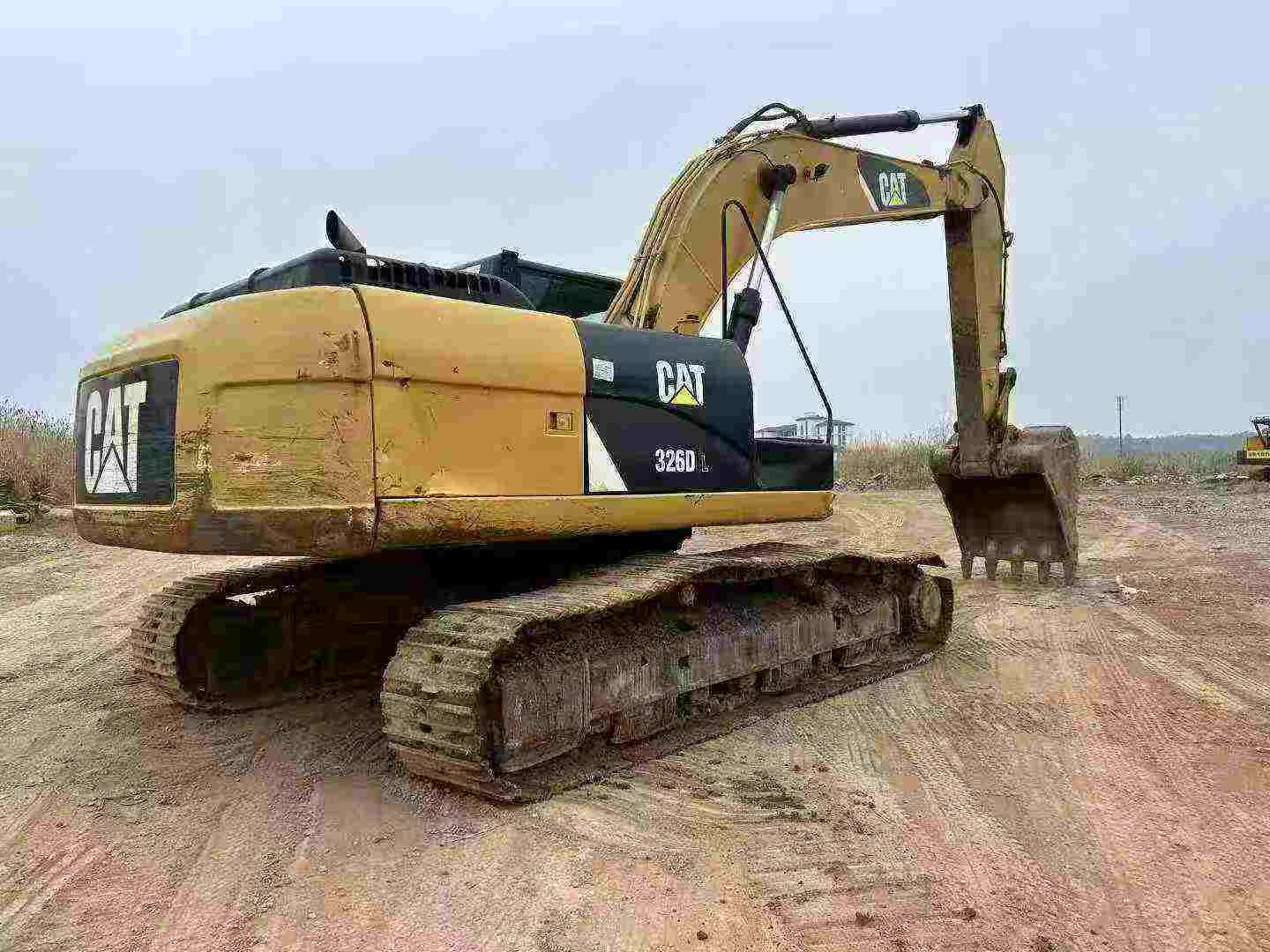

2014 Caterpillar 326DL
Product Description
Proven performance meets legendary durability in this 2014 Caterpillar 326DL excavator, currently located in Huizhou, Guangdong. Powered by the robust Cat C7 ACERT engine delivering 140kW, this 26-ton workhorse combines impressive digging capabilities with the reliability that keeps Caterpillar at the forefront of the used equipment market. With a maximum digging depth of 6,740mm and bucket digging force of 174kN, it handles demanding applications across construction, mining, and infrastructure projects.
Key Specifications:
- Operating Weight: 25,560 kg with 1.35/1.57 m³ bucket capacity
- Reach: 10,030mm maximum excavation radius
- Hydraulic System: 235 L/min main pump flow at 35 MPa
- Fuel Efficiency: 520L tank for extended operation
Investing in Caterpillar means investing in long-term value. Parts availability through global dealer networks ensures minimal downtime, while the brand's strong resale value protects your capital. This joint venture/import model represents a smart acquisition for operators seeking dependable performance backed by world-class engineering and comprehensive aftermarket support.
| Specifications | Value |
|---|---|
| No. | 1014192 |
| Tonnage (tons) | 26 |
| Working weight (kg) | 25560 |
| Bucket capacity (m³) | 1.35/1.57 |
| Boom length (mm) | 5300/5900 |
| Rod length (mm) | 2000/2500/2950 |
| Country of origin | Xuzhou, Jiangsu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

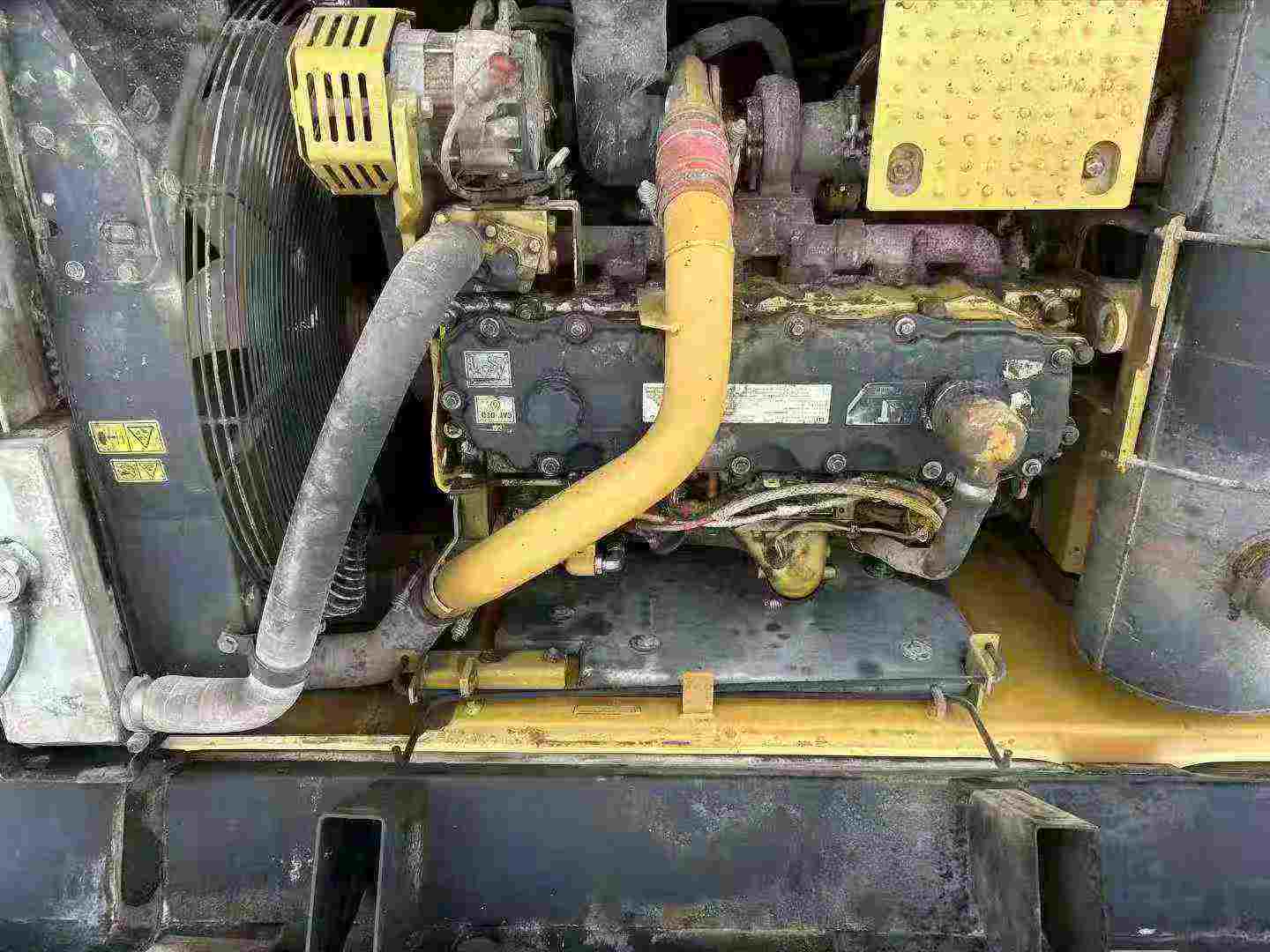

| Engine type | Caterpillar C7 ACERT |
| Rated power (kw/rpm) | 140 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 110 x 127 |
| Displacement (L) | 7.2 |
| Rotation speed (rpm) | 9.6 |
| Bucket digging force (kN) | 174 |
| Rod digging force (kN) | 122 |
| Maximum tractive force (kN) | 227 |
| Travel speed (km/h) | 5.5 |
| Turning torque (Nm) | 73.4 |
| Main overflow set pressure (Mpa) | 35 |

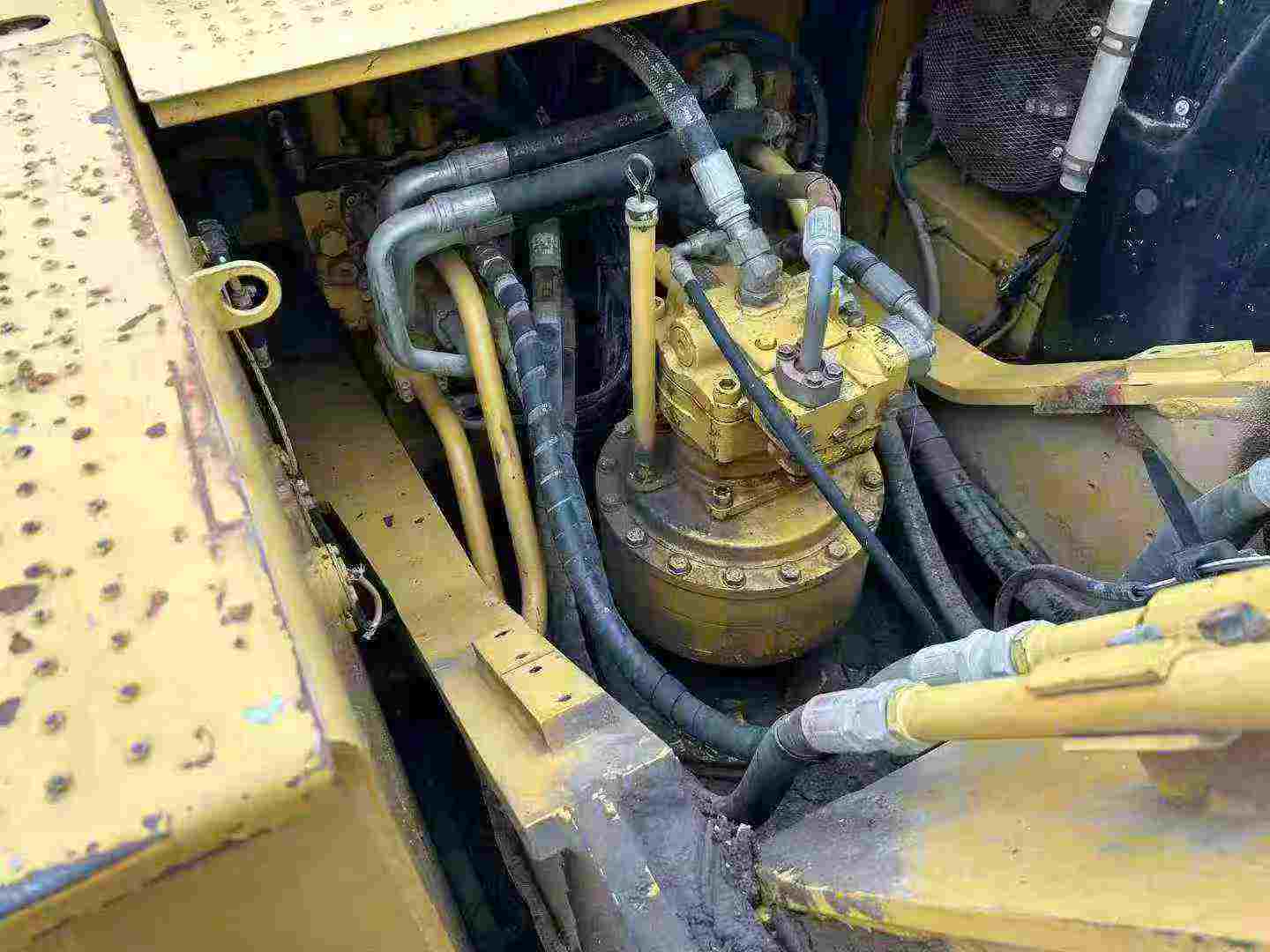

| Rotary hydraulic motor type | 24.5 |
| Type of walking hydraulic motor | 35 |
| Maximum flow of main pump (l/min) | 235 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 150 x 1156 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 140 x 1660 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 135 x 1305 |
| Fuel Tank (L) | 520 |
| Hydraulic Tank (L) | 145 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 30 |
| Hydraulic System (L) | 300 |
| Total transport length (mm) | 10060 |
| Total transport width (mm) | 3390 |
| Total transport height (mm) | 3170 |
| Full cab height (mm) | 2980 |
| Counterweight ground clearance (mm) | 1060 |
| Minimum ground clearance (mm) | 470 |
| Back end turning radius (mm) | 2940 |

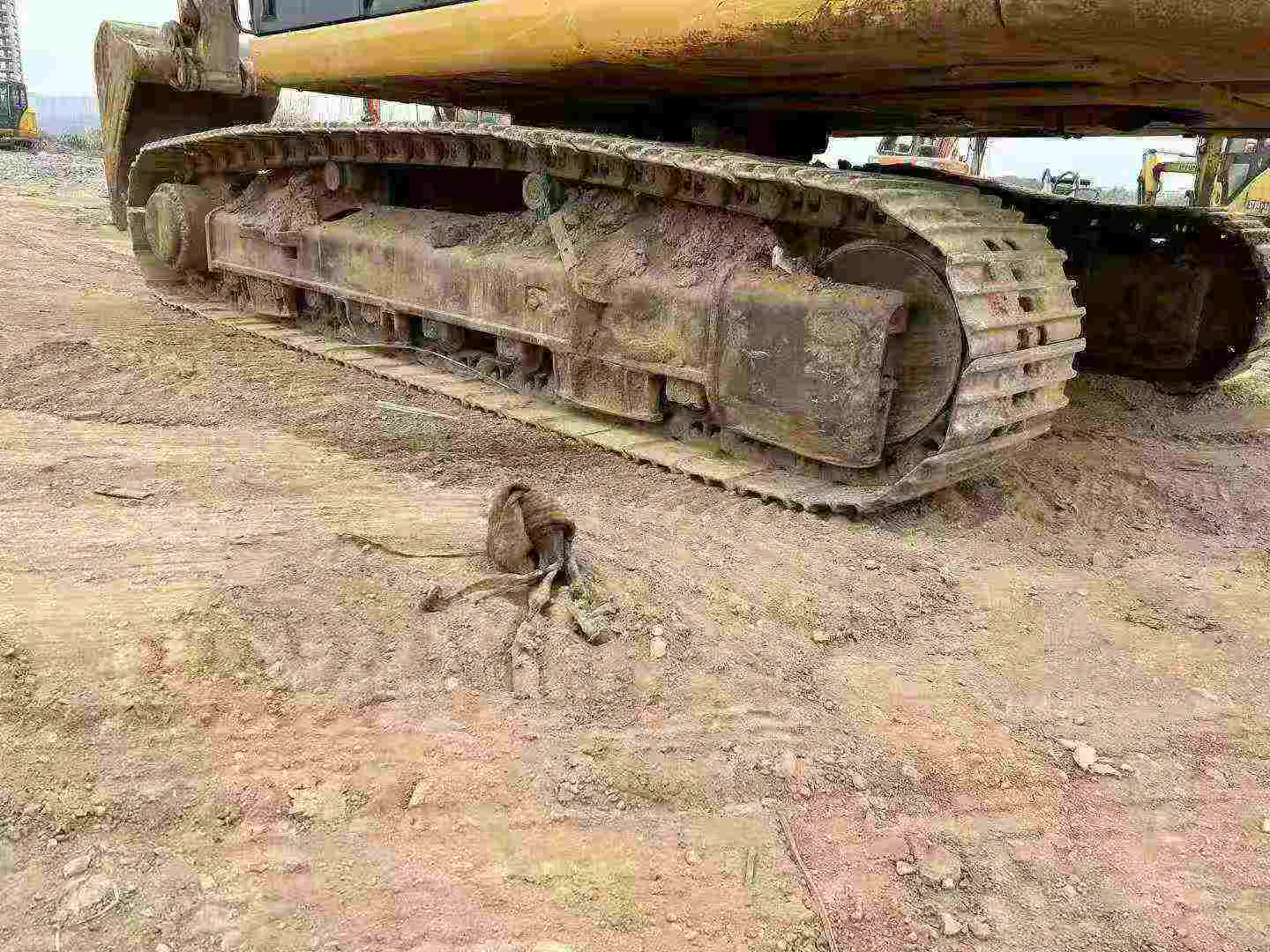

| Total track length (mm) | 4630 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3390 |
| Maximum digging depth (mm) | 6740 |
| Maximum excavation height (mm) | 9660 |
| Maximum unloading height (mm) | 6700 |
| Maximum vertical digging depth (mm) | 5830 |
| Maximum excavation radius of stop surface (mm) | 10030 |
| Maximum effective digging depth (mm) | 6560 |
