2014 Caterpillar 326DL

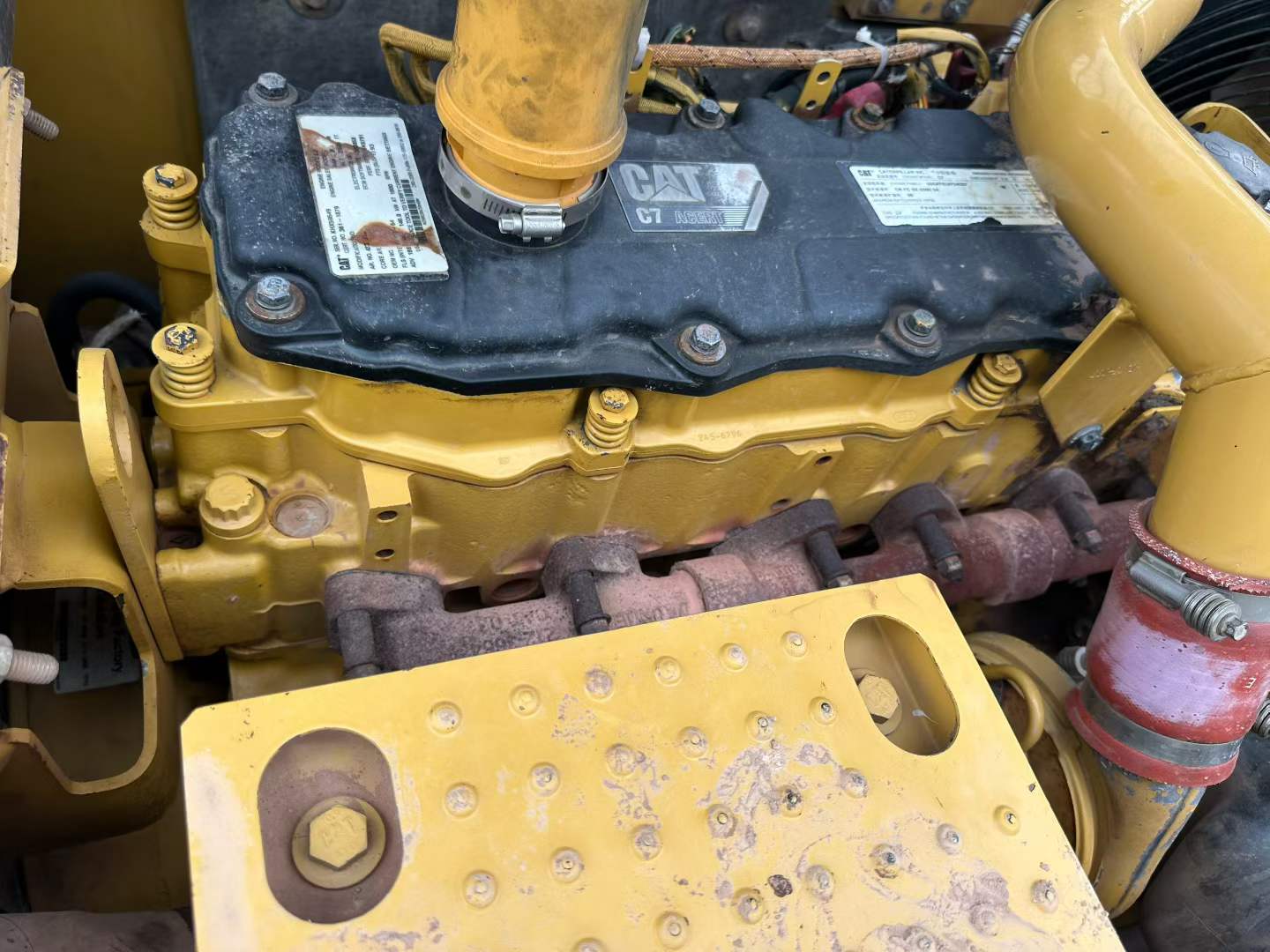

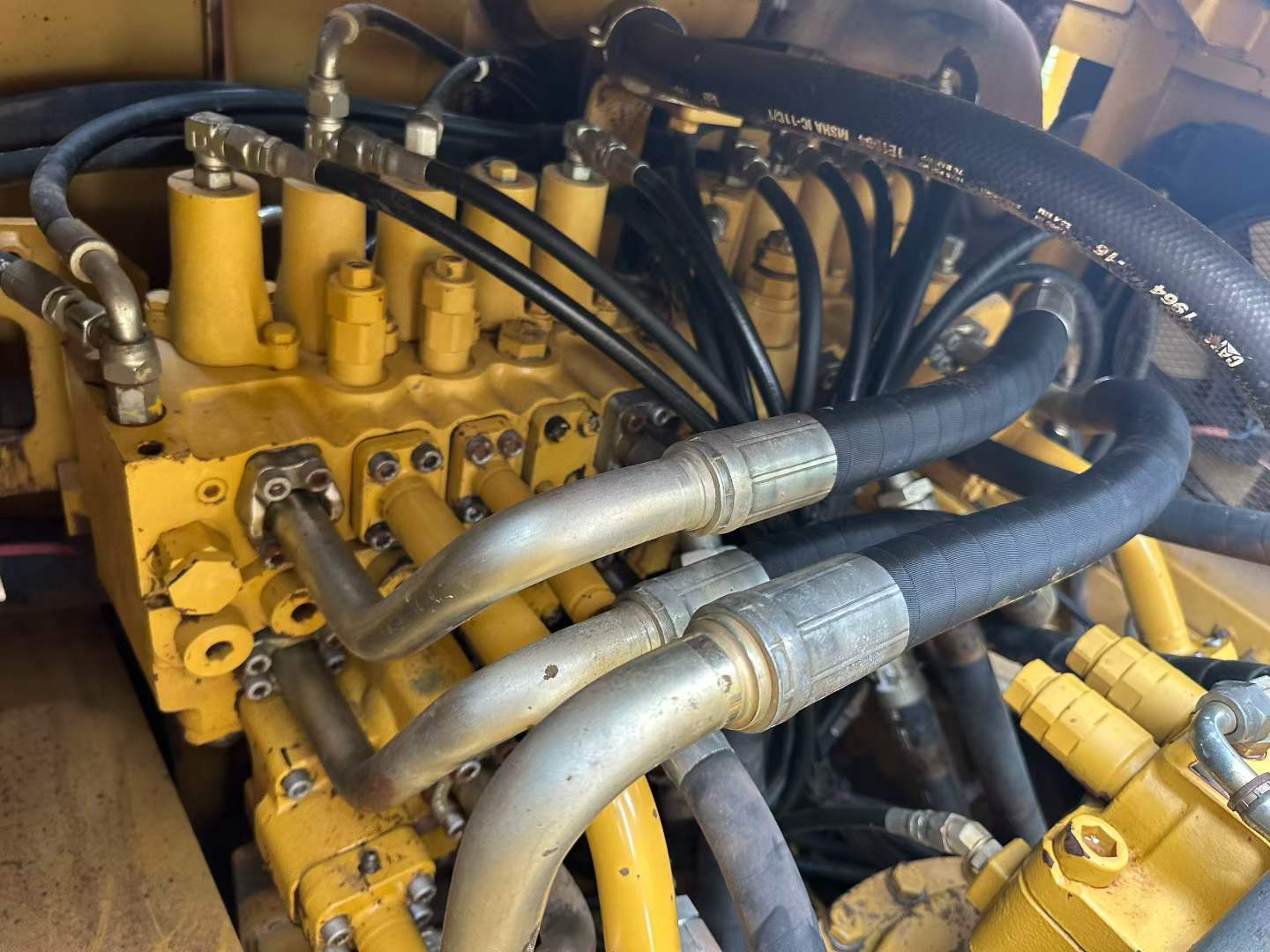

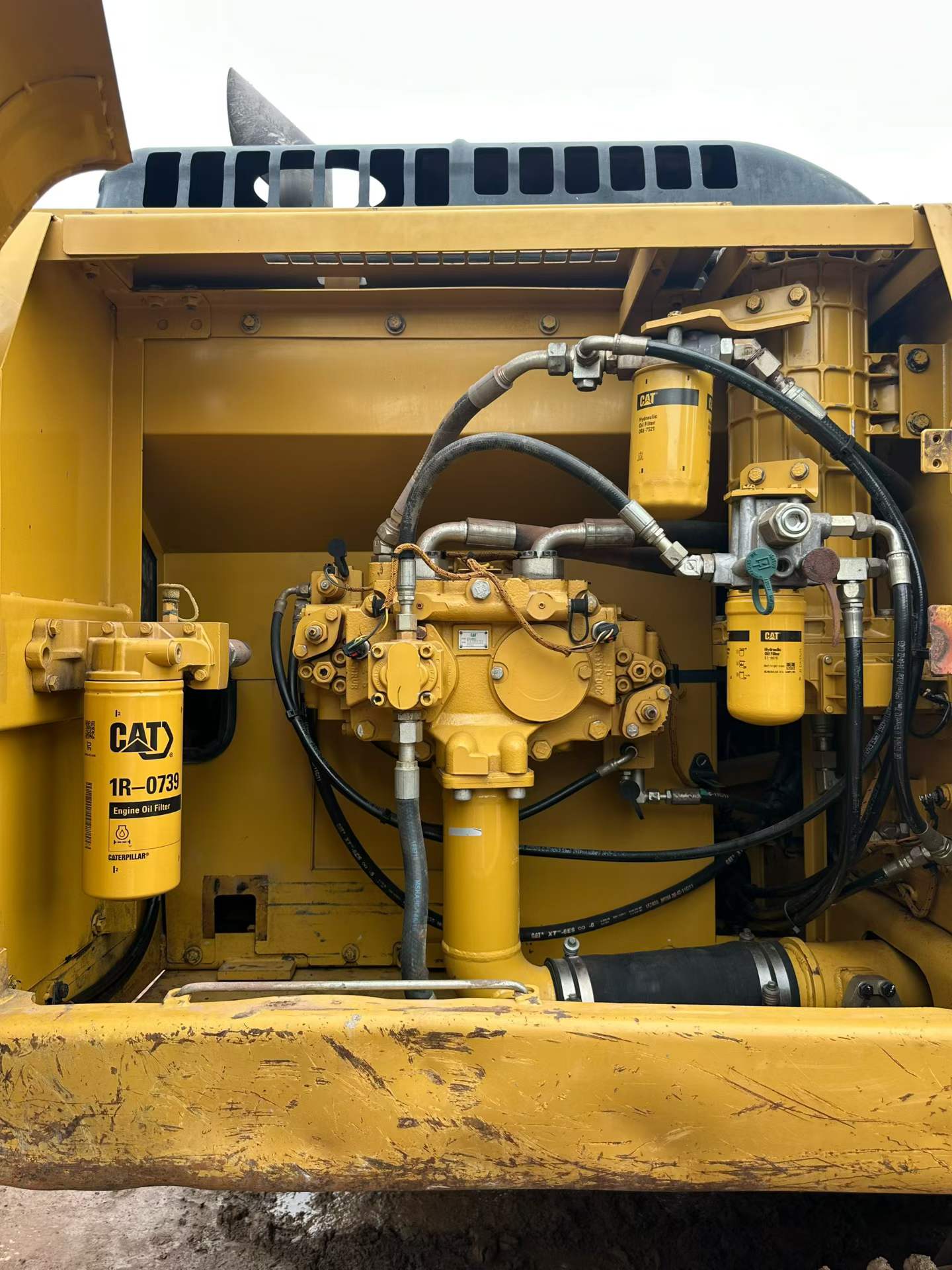

Engineered with Caterpillar's proven C7 ACERT engine delivering 140 kW of rated power, this 2014 326DL excavator combines robust hydraulics with precision control for demanding excavation work. The 26-ton machine operates on a sophisticated hydraulic system with 235 l/min maximum pump flow and 35 MPa main overflow pressure, ensuring consistent performance across all functions. Water-cooled efficiency and a 7.2L displacement provide reliable operation in continuous duty cycles.

Technical specifications demonstrate superior digging capability:

• Bucket digging force: 174 kN with 1.35/1.57 m³ capacity options
• Maximum excavation reach: 10,030 mm from stop surface
• Maximum digging depth: 6,740 mm for deep trenching applications
• Rod digging force: 122 kN for breakout power
• Rotation speed: 9.6 rpm with 73.4 Nm turning torque

Currently located in Nanning, Guangxi, this joint venture-manufactured unit from Xuzhou features dual boom configurations (5,300/5,900 mm) and multiple rod length options (2,000/2,500/2,950 mm) for operational versatility. The 520L fuel tank supports extended work shifts without frequent refueling interruptions.
