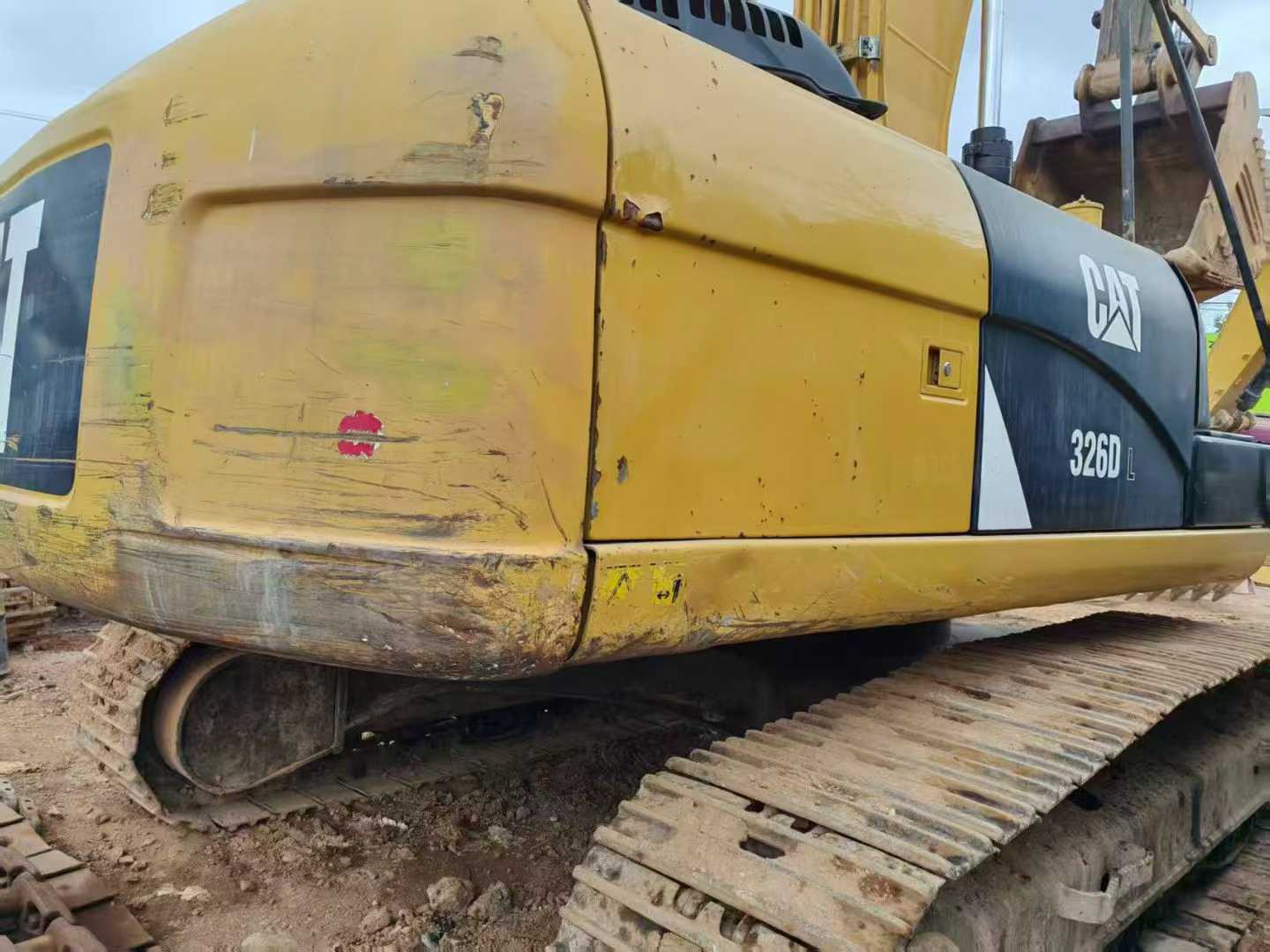

2014 Caterpillar 326DL

Engineered with Caterpillar's renowned C7 ACERT engine delivering 140 kW of rated power, this 2014 326DL excavator represents the pinnacle of mid-size hydraulic excavator design. Operating at 25,560 kg working weight with a robust 1.35/1.57 m³ bucket capacity, this machine combines exceptional digging forces—174 kN bucket force and 122 kN arm force—with a highly efficient hydraulic system featuring 235 l/min maximum pump flow and 35 MPa main overflow pressure.

Built with precision in Xuzhou, Jiangsu as a joint venture/import model, this 26-ton excavator offers superior reach capabilities:

• Maximum digging depth: 6,740 mm with 10,030 mm excavation radius
• Maximum digging height: 9,660 mm for elevated work applications
• Configurable boom options: 5,300/5,900 mm lengths
• Triple arm configurations: 2,000/2,500/2,950 mm for operational versatility
• Water-cooled 7.2L displacement engine ensuring thermal stability

Currently located in Yunnan, this backhoe-equipped machine delivers proven Caterpillar reliability with comprehensive hydraulic integration across all operating functions. Technical documentation and full specifications available upon request.
