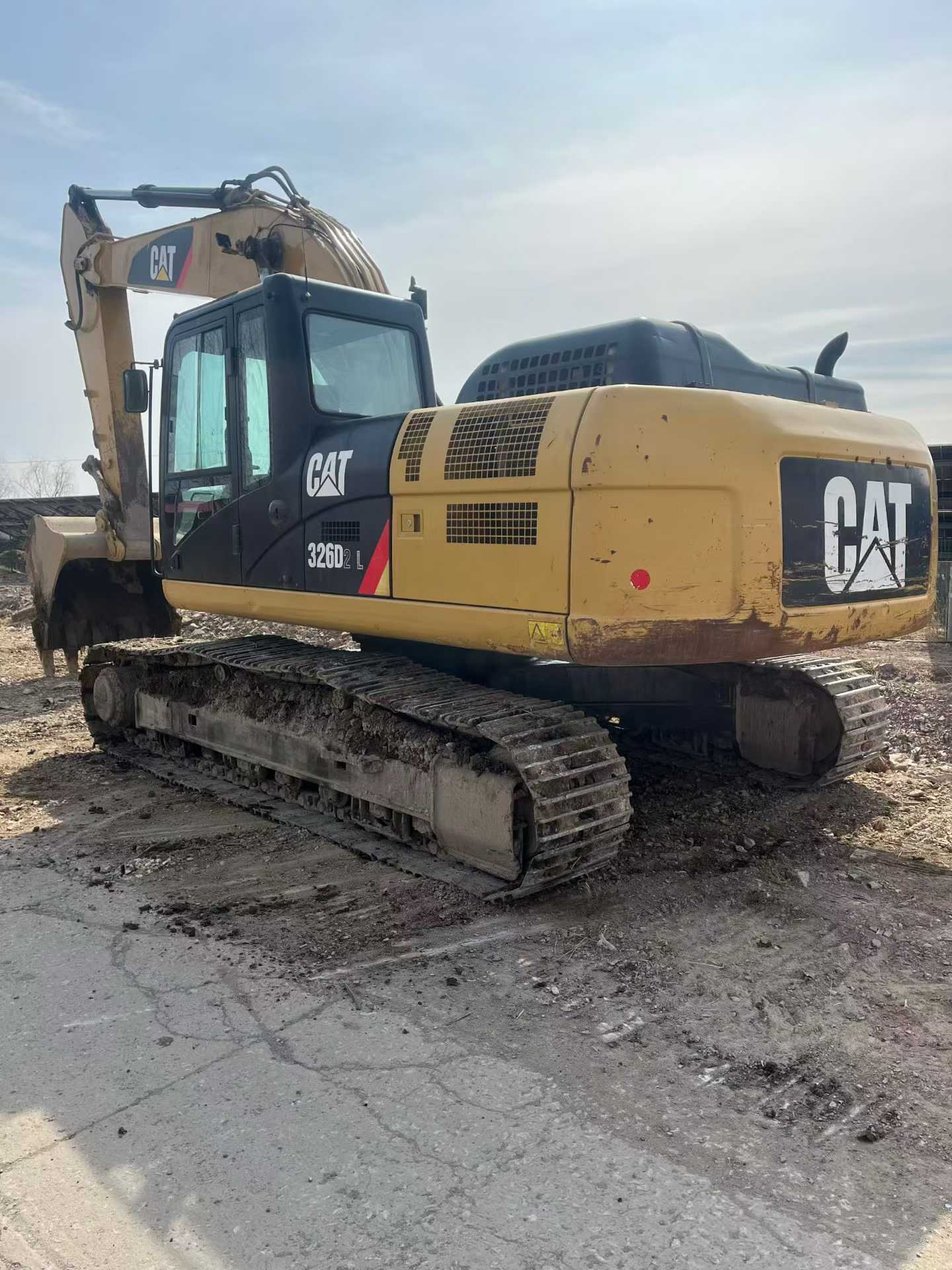

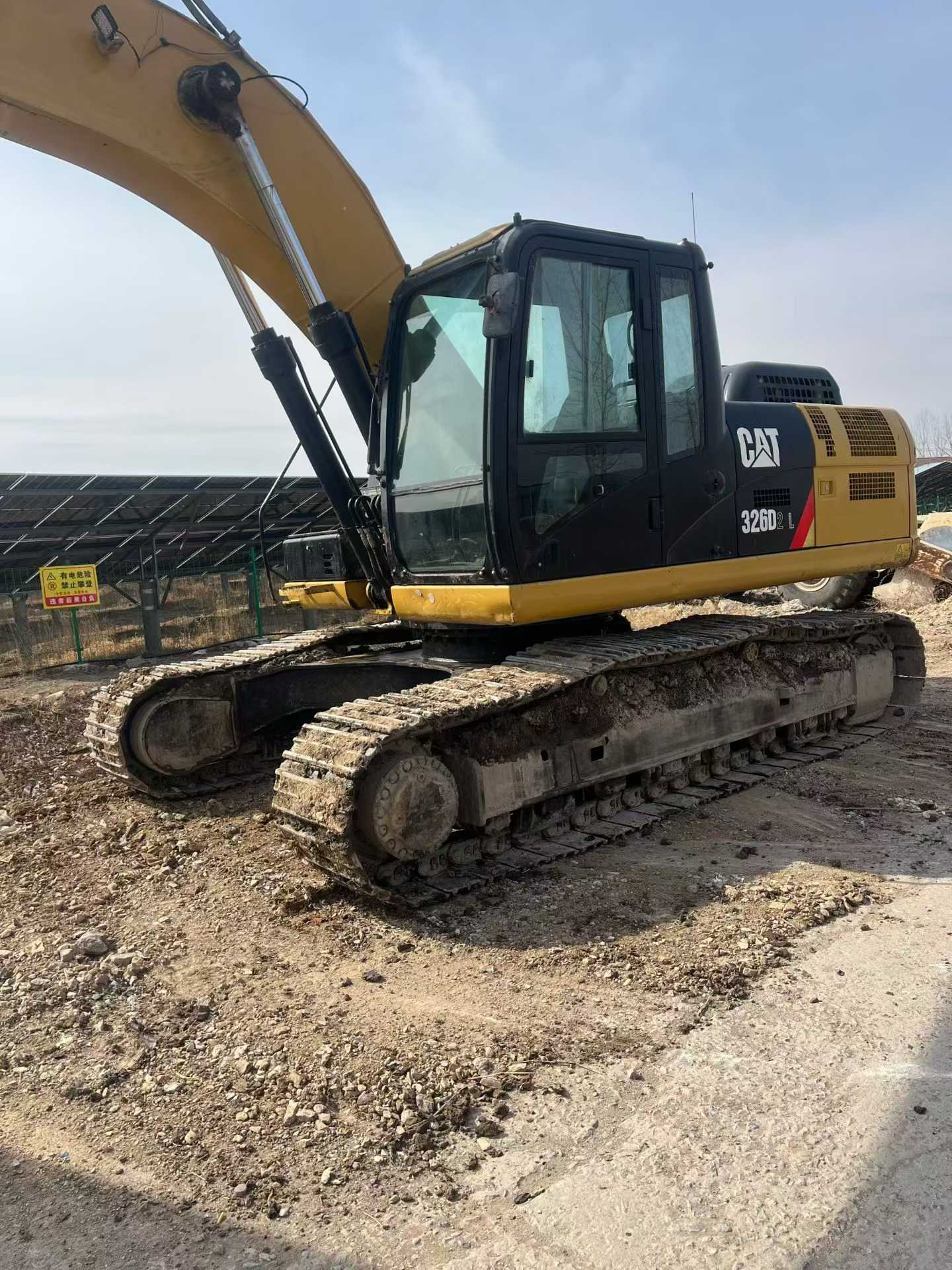

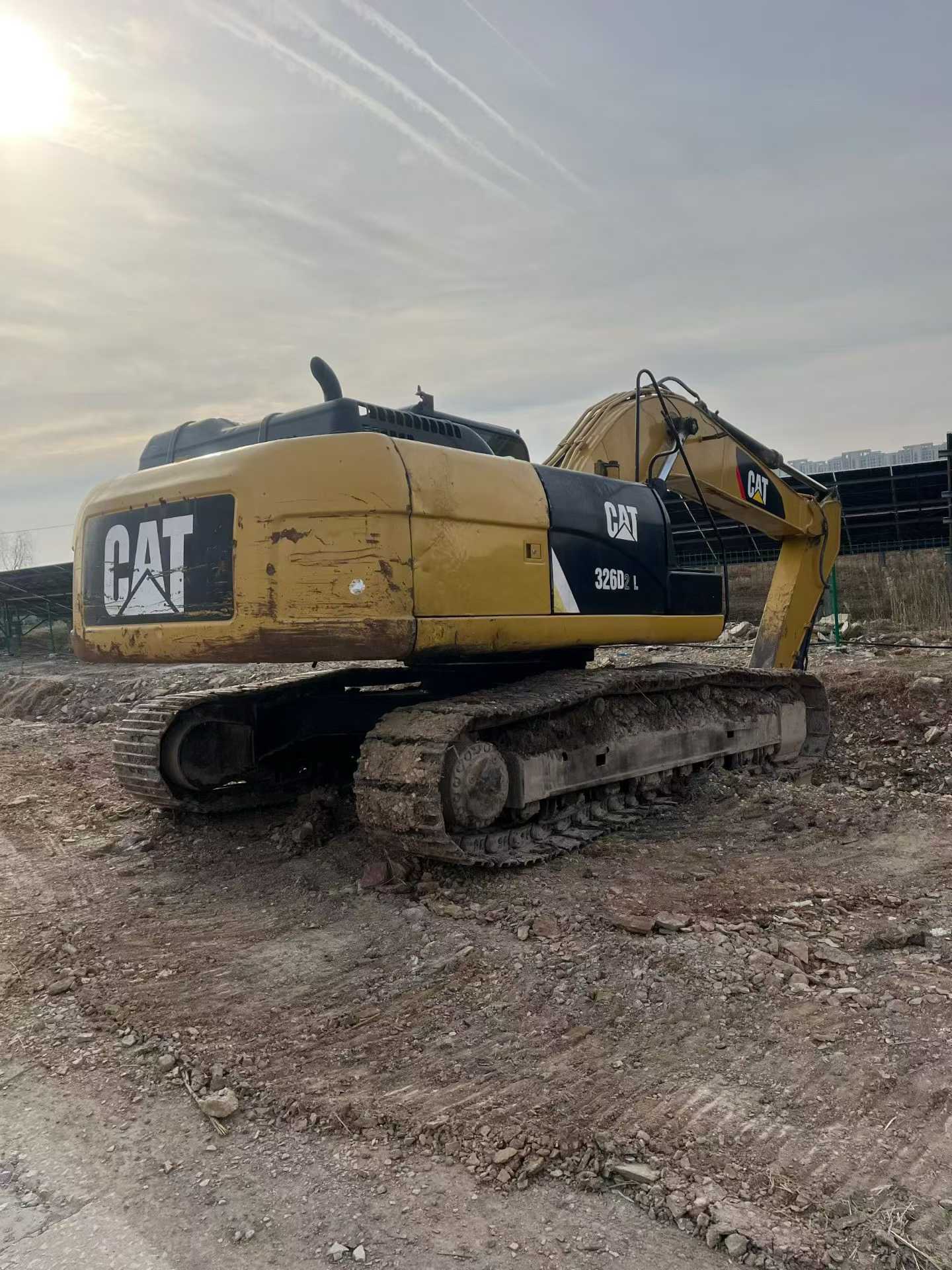

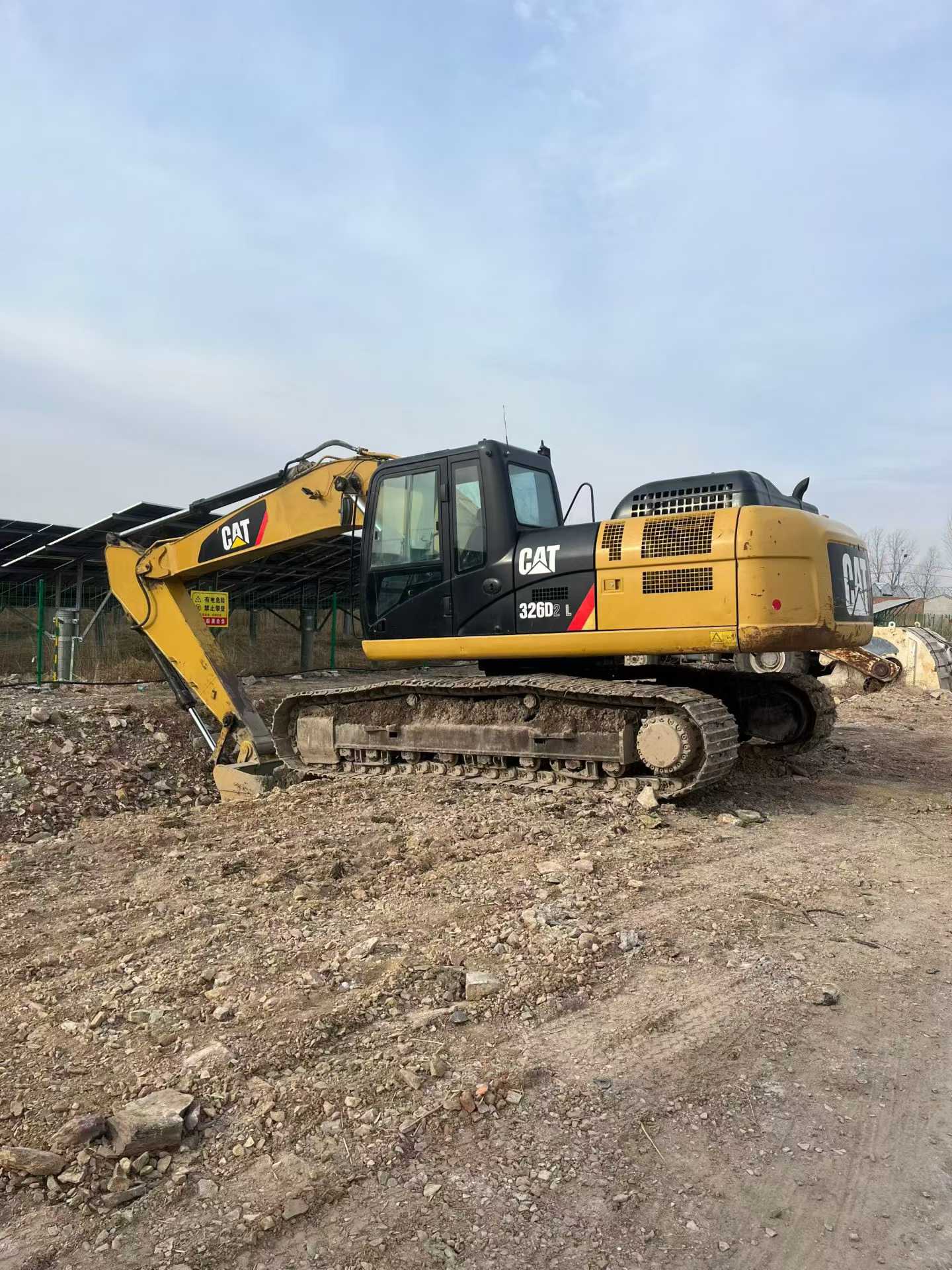

2016 Caterpillar 326DL
Product Description
Built for demanding excavation work, this 26-ton hydraulic excavator delivers immediate productivity on any jobsite. Powered by a Caterpillar C7 ACERT engine generating 140 kW, this machine combines proven reliability with robust performance for digging, grading, and material handling operations. The 1.35/1.57 m³ bucket capacity and 174 kN bucket digging force tackle tough ground conditions with authority, while the 10,030 mm maximum excavation radius provides extensive working range for loading trucks and placing materials.
Operational specifications include:
- Maximum digging depth of 6,740 mm for deep trenching and foundation work
- Maximum excavation height reaching 9,660 mm for elevated loading applications
- 235 L/min hydraulic flow ensuring responsive control and efficient cycle times
- 5.5 km/h travel speed for quick repositioning across the site
- 520 L fuel capacity supporting extended work shifts

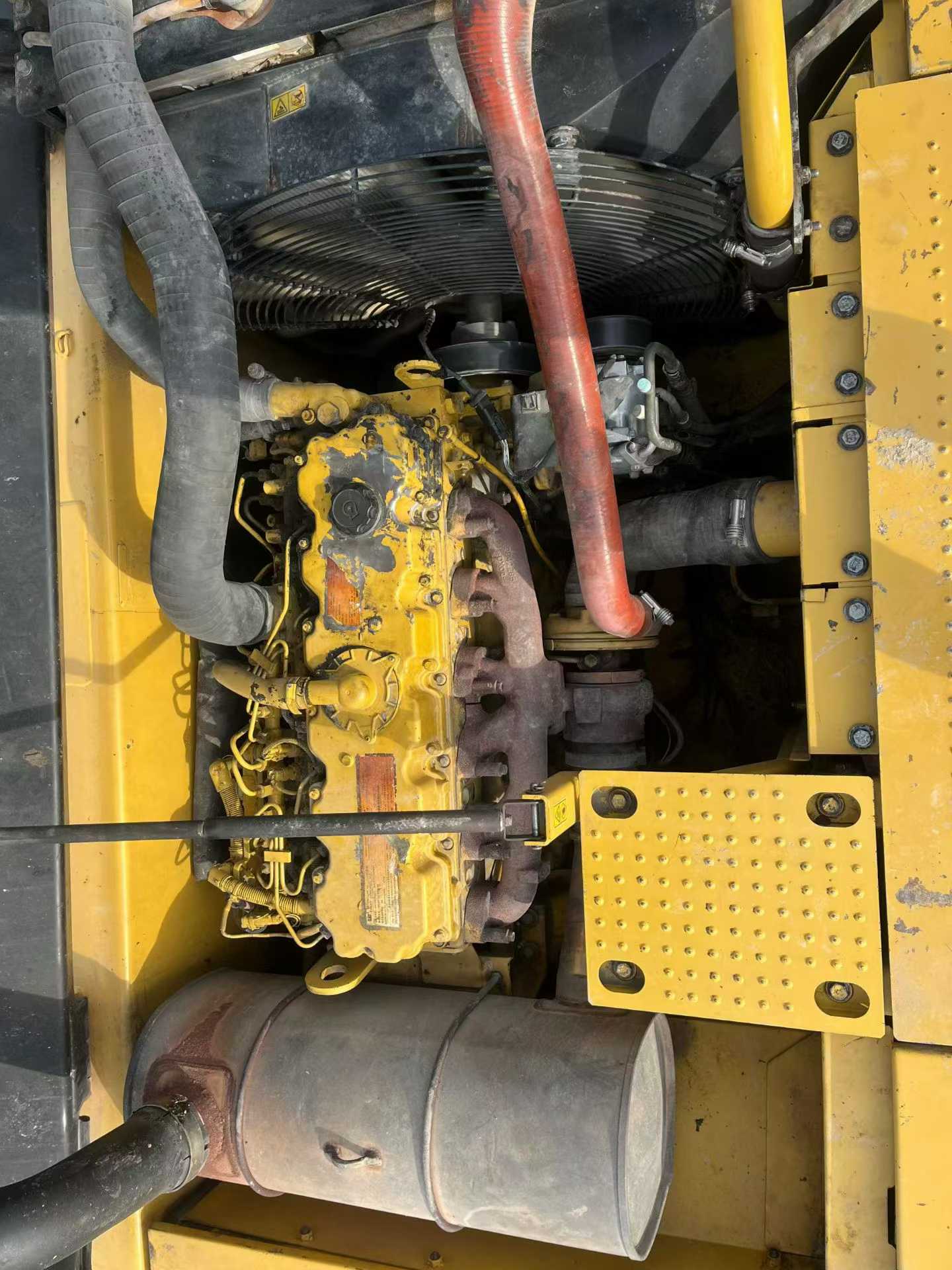

Water-cooled 7.2 L displacement engine maintains consistent performance in demanding conditions. With a working weight of 25,560 kg and 600 mm track plates, this excavator provides the stability required for precision work and heavy material handling. Located in Xuzhou
| Specifications | Value |
|---|---|
| No. | 1010217 |
| Tonnage (tons) | 26 |
| Working weight (kg) | 25560 |
| Bucket capacity (m³) | 1.35/1.57 |
| Boom length (mm) | 5300/5900 |
| Rod length (mm) | 2000/2500/2950 |
| Country of origin | Xuzhou, Jiangsu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar C7 ACERT |
| Rated power (kw/rpm) | 140 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 110 x 127 |
| Displacement (L) | 7.2 |
| Rotation speed (rpm) | 9.6 |
| Bucket digging force (kN) | 174 |
| Rod digging force (kN) | 122 |
| Maximum tractive force (kN) | 227 |
| Travel speed (km/h) | 5.5 |
| Turning torque (Nm) | 73.4 |
| Main overflow set pressure (Mpa) | 35 |

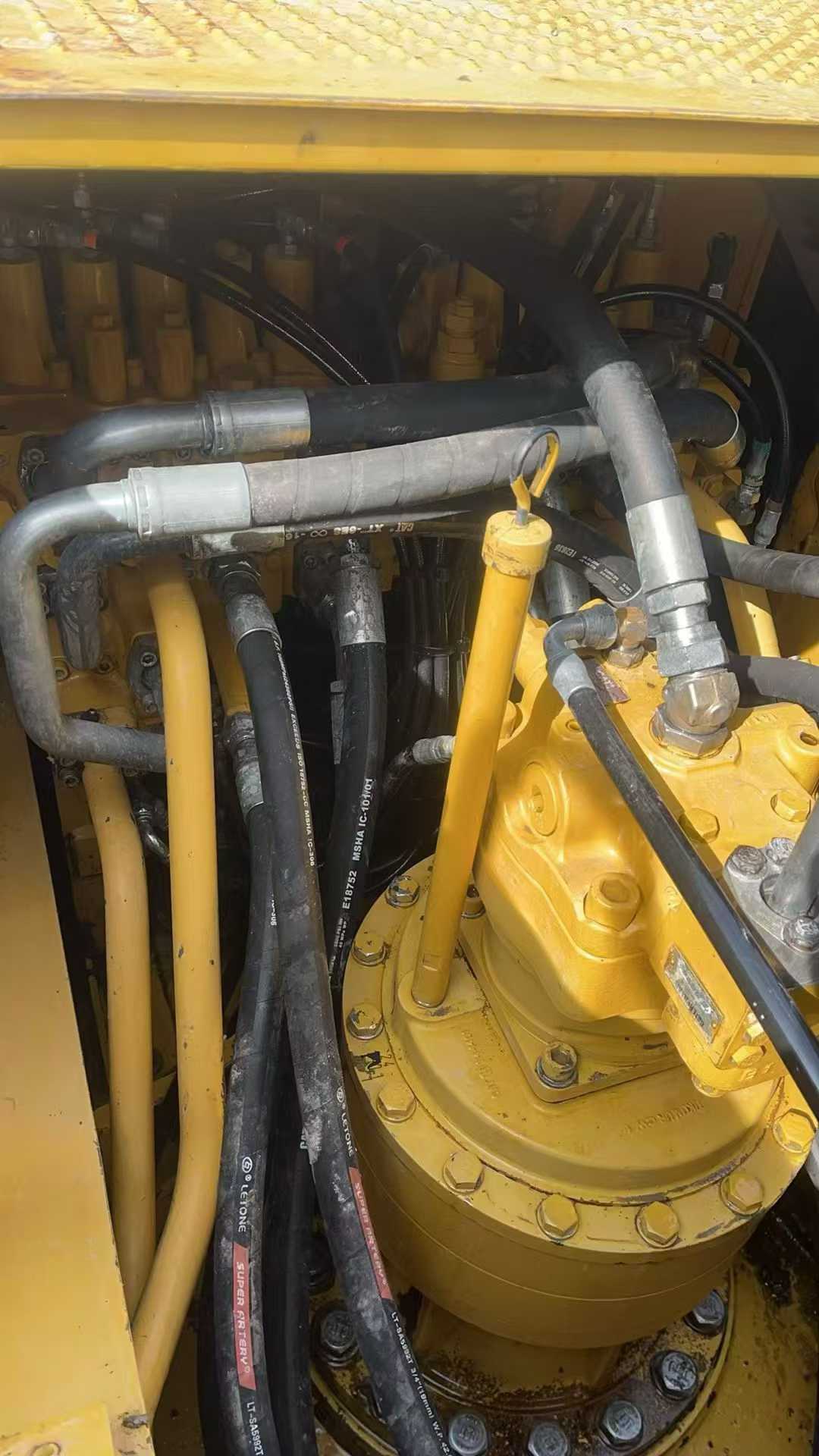

| Rotary hydraulic motor type | 24.5 |
| Type of walking hydraulic motor | 35 |

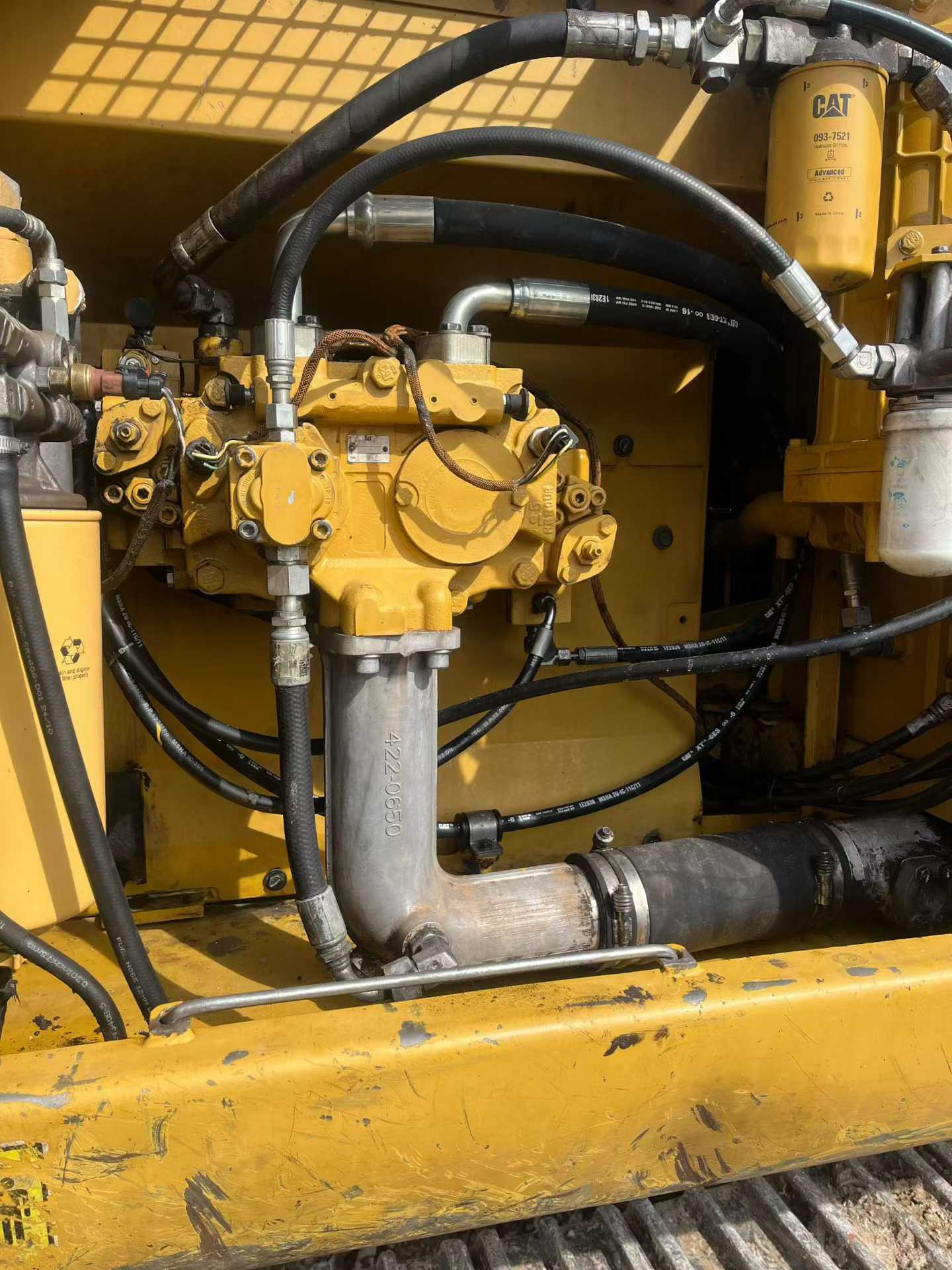

| Maximum flow of main pump (l/min) | 235 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 150 x 1156 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 140 x 1660 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 135 x 1305 |
| Fuel Tank (L) | 520 |
| Hydraulic Tank (L) | 145 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 30 |
| Hydraulic System (L) | 300 |
| Total transport length (mm) | 10060 |
| Total transport width (mm) | 3390 |
| Total transport height (mm) | 3170 |
| Full cab height (mm) | 2980 |
| Counterweight ground clearance (mm) | 1060 |
| Minimum ground clearance (mm) | 470 |
| Back end turning radius (mm) | 2940 |
| Total track length (mm) | 4630 |
| Track gauge (mm) | 2590 |

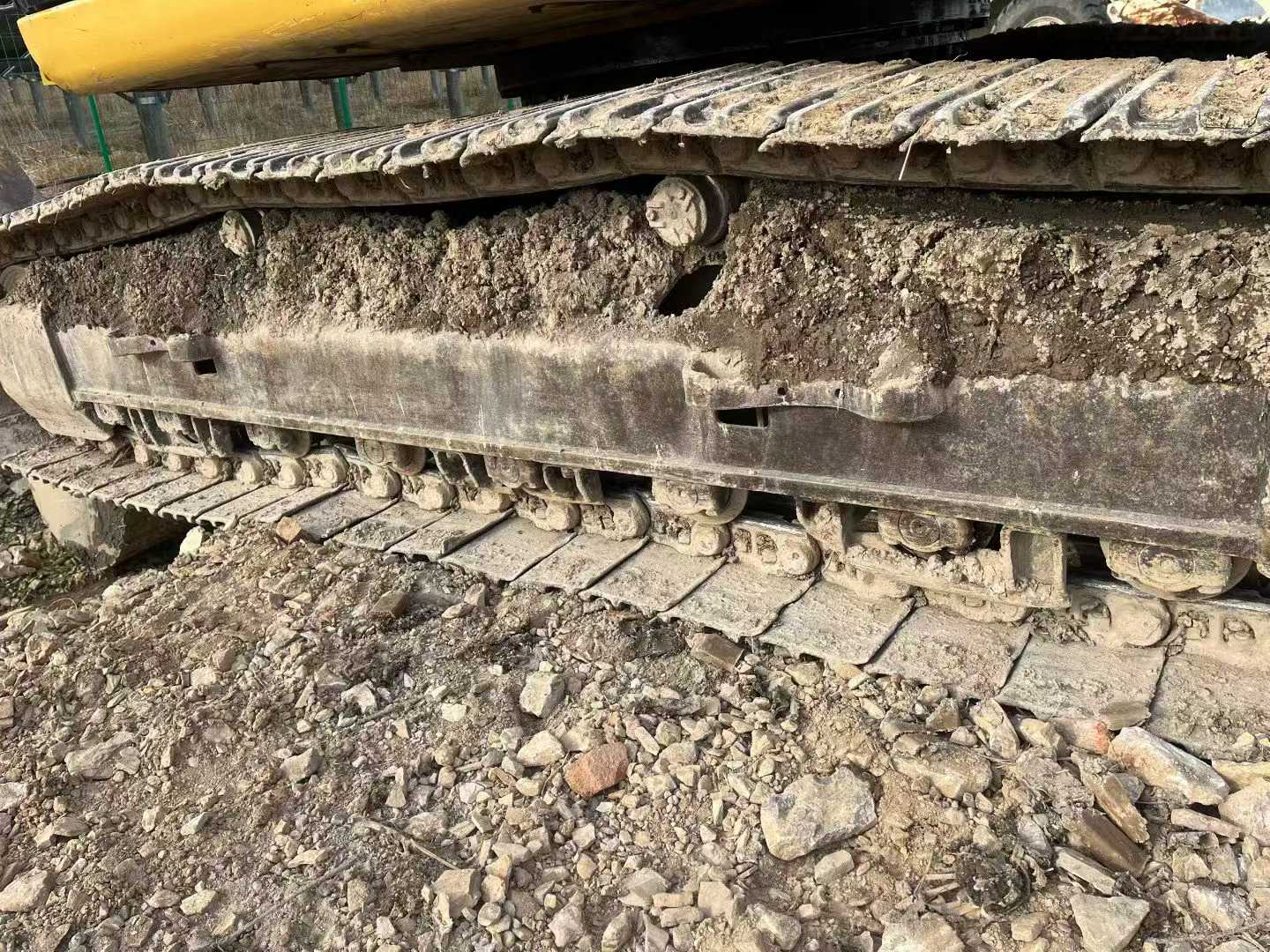

| Track plate width (mm) | 600 |
| Total track width (mm) | 3390 |
| Maximum digging depth (mm) | 6740 |
| Maximum excavation height (mm) | 9660 |
| Maximum unloading height (mm) | 6700 |
| Maximum vertical digging depth (mm) | 5830 |
| Maximum excavation radius of stop surface (mm) | 10030 |
| Maximum effective digging depth (mm) | 6560 |
Overview
No.1010217
Brand Name：
CaterpillarModel Number：
326DLYear：
2016
Location：
Jiangsu China
