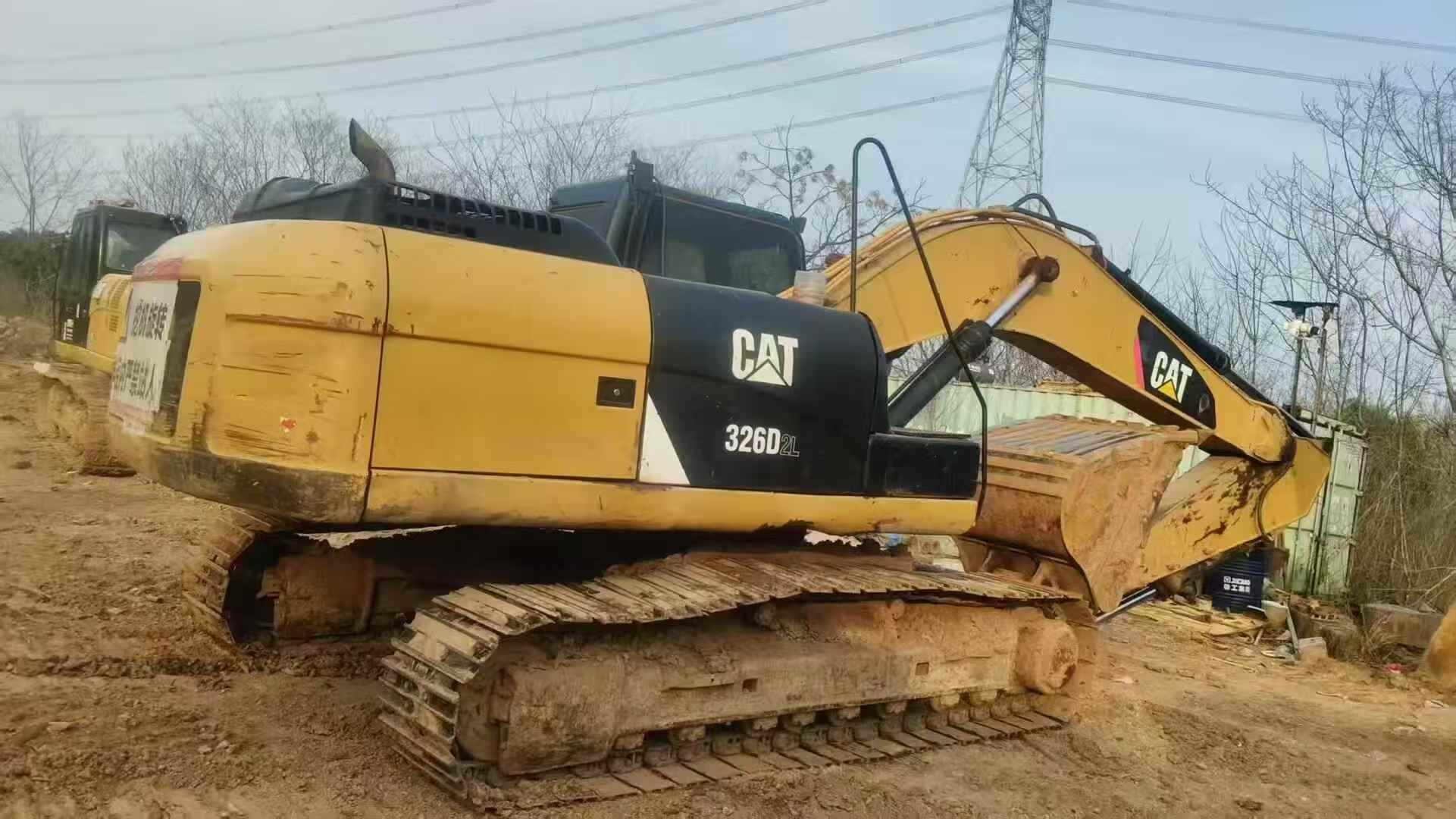

2017 Caterpillar 326DL
Product Description
Built for high-output earthmoving and site development, this 2017 Caterpillar 326DL delivers 26 tons of proven hydraulic power. Equipped with the robust C7 ACERT engine producing 140 kW, this excavator tackles demanding excavation, trenching, and material handling tasks with consistent reliability. A maximum digging depth of 6,740 mm and reach of 10,030 mm provide exceptional working range for foundation work, utility installation, and bulk earthmoving operations.

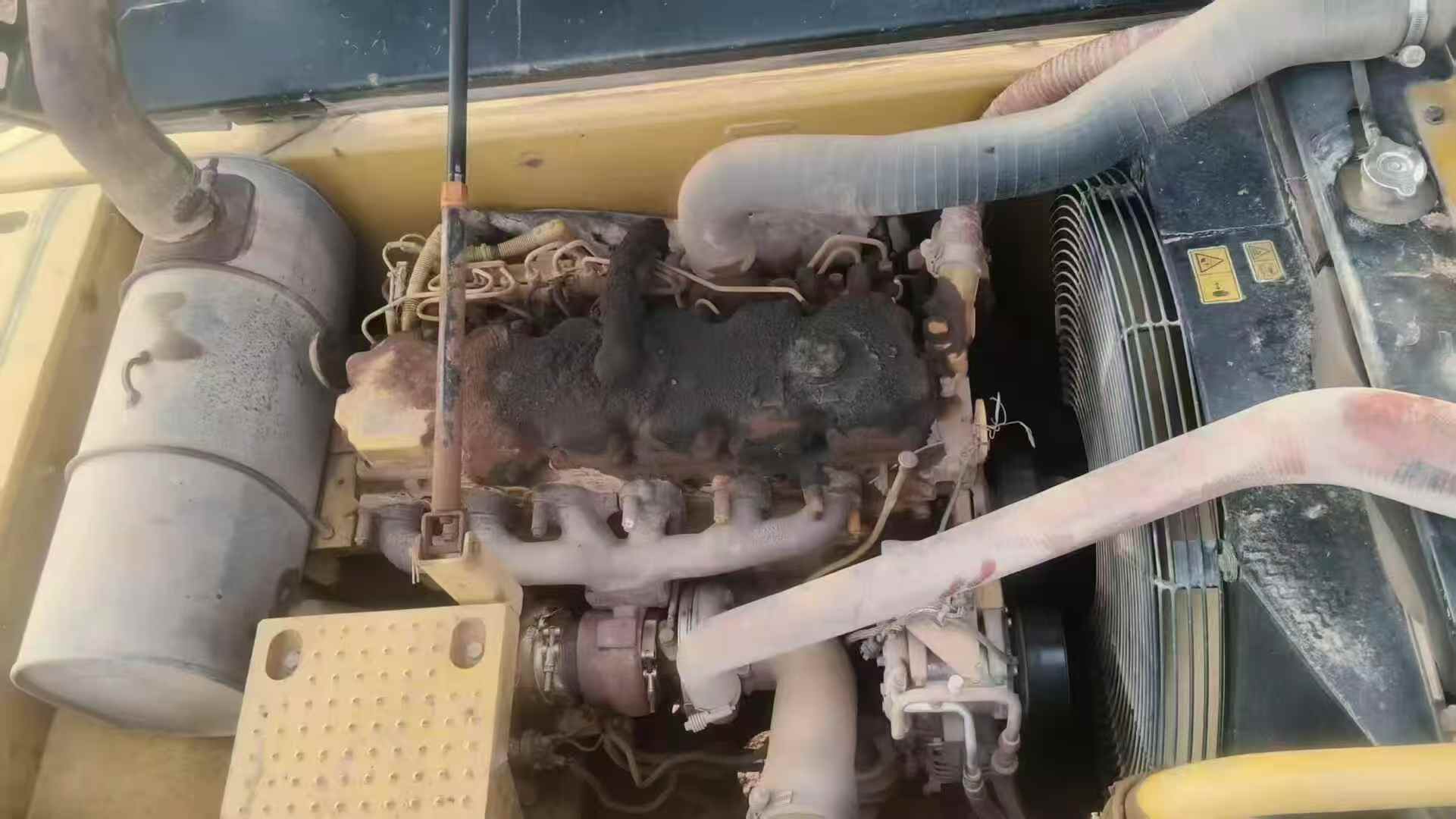

- Caterpillar C7 ACERT engine: 140 kW rated power, water-cooled, 7.2L displacement
- Digging force: 174 kN bucket force, 122 kN stick force for tough ground conditions

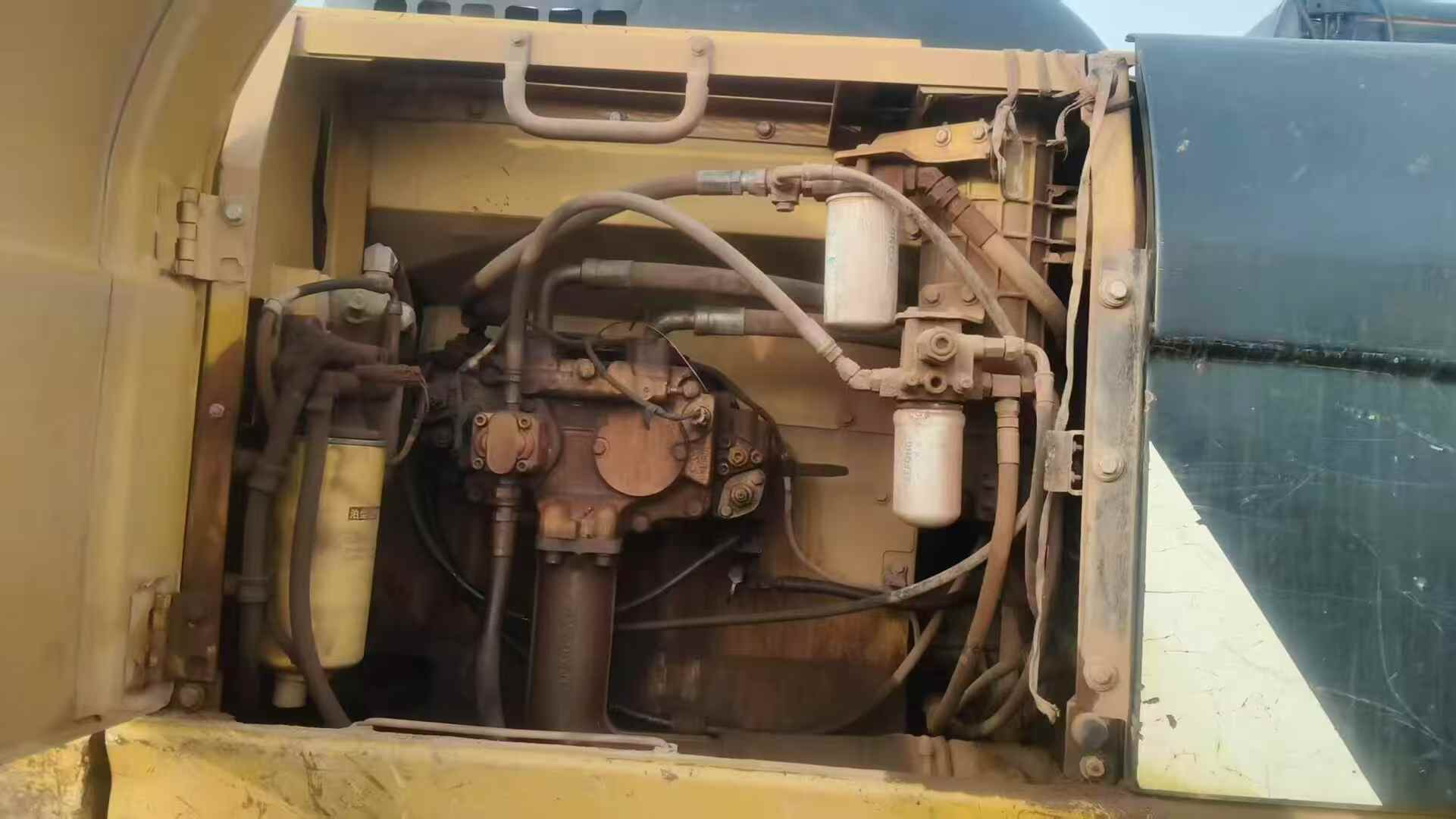

- Hydraulic capacity: 235 L/min main pump flow, 35 MPa system pressure
- Working envelope: 9,660 mm max dig height, 6,700 mm dump height
- Fuel capacity: 520L tank supports extended shift operation
- Transport dimensions: 10,060 mm length × 3,390 mm width
Currently located in Guizhou, this machine is inspection-ready and available for immediate deployment to your project site.
| Specifications | Value |
|---|---|
| No. | 1016540 |
| Tonnage (tons) | 26 |
| Working weight (kg) | 25560 |
| Bucket capacity (m³) | 1.35/1.57 |
| Boom length (mm) | 5300/5900 |
| Rod length (mm) | 2000/2500/2950 |
| Country of origin | Xuzhou, Jiangsu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar C7 ACERT |
| Rated power (kw/rpm) | 140 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 110 x 127 |
| Displacement (L) | 7.2 |
| Rotation speed (rpm) | 9.6 |
| Bucket digging force (kN) | 174 |
| Rod digging force (kN) | 122 |
| Maximum tractive force (kN) | 227 |
| Travel speed (km/h) | 5.5 |
| Turning torque (Nm) | 73.4 |
| Main overflow set pressure (Mpa) | 35 |
| Rotary hydraulic motor type | 24.5 |
| Type of walking hydraulic motor | 35 |
| Maximum flow of main pump (l/min) | 235 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 150 x 1156 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 140 x 1660 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 135 x 1305 |
| Fuel Tank (L) | 520 |
| Hydraulic Tank (L) | 145 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 30 |
| Hydraulic System (L) | 300 |
| Total transport length (mm) | 10060 |
| Total transport width (mm) | 3390 |
| Total transport height (mm) | 3170 |
| Full cab height (mm) | 2980 |
| Counterweight ground clearance (mm) | 1060 |
| Minimum ground clearance (mm) | 470 |
| Back end turning radius (mm) | 2940 |
| Total track length (mm) | 4630 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3390 |
| Maximum digging depth (mm) | 6740 |
| Maximum excavation height (mm) | 9660 |
| Maximum unloading height (mm) | 6700 |
| Maximum vertical digging depth (mm) | 5830 |
| Maximum excavation radius of stop surface (mm) | 10030 |
| Maximum effective digging depth (mm) | 6560 |
