2017 Caterpillar 326DL
Product Description

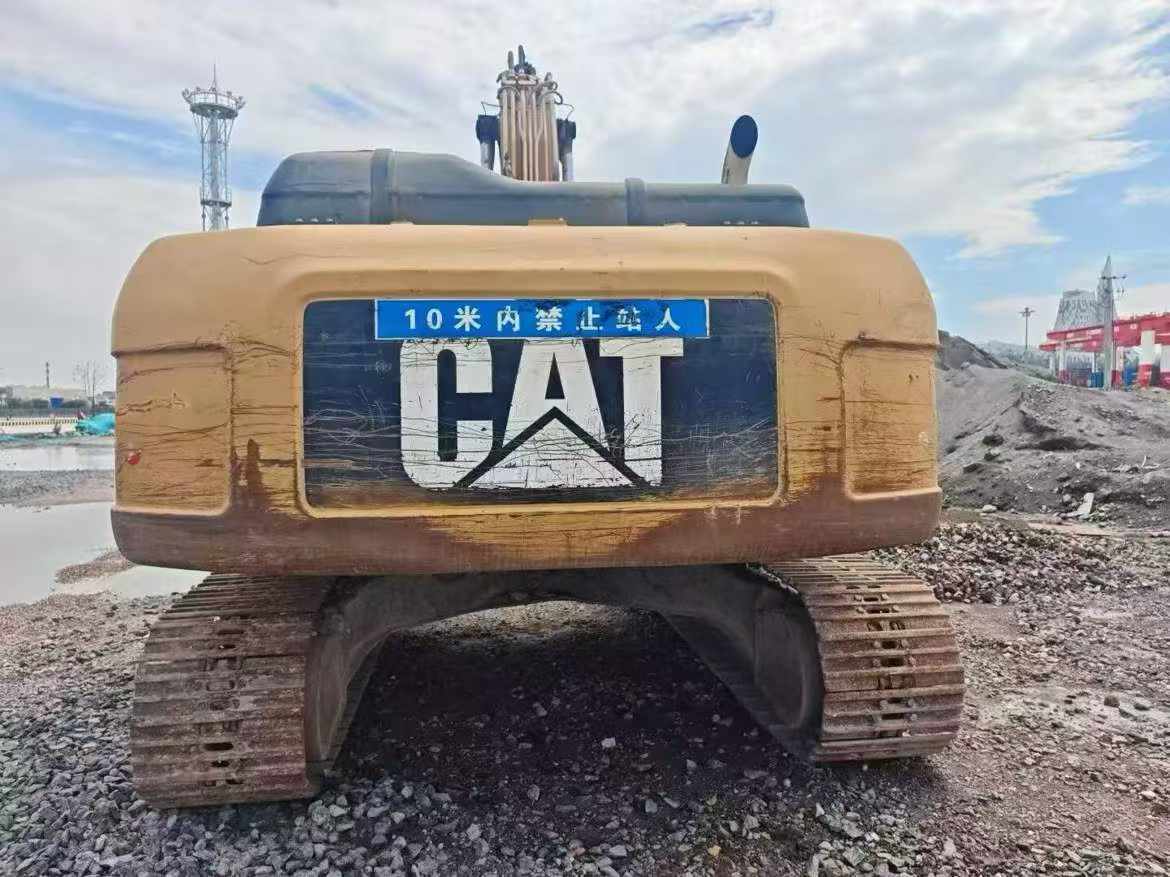

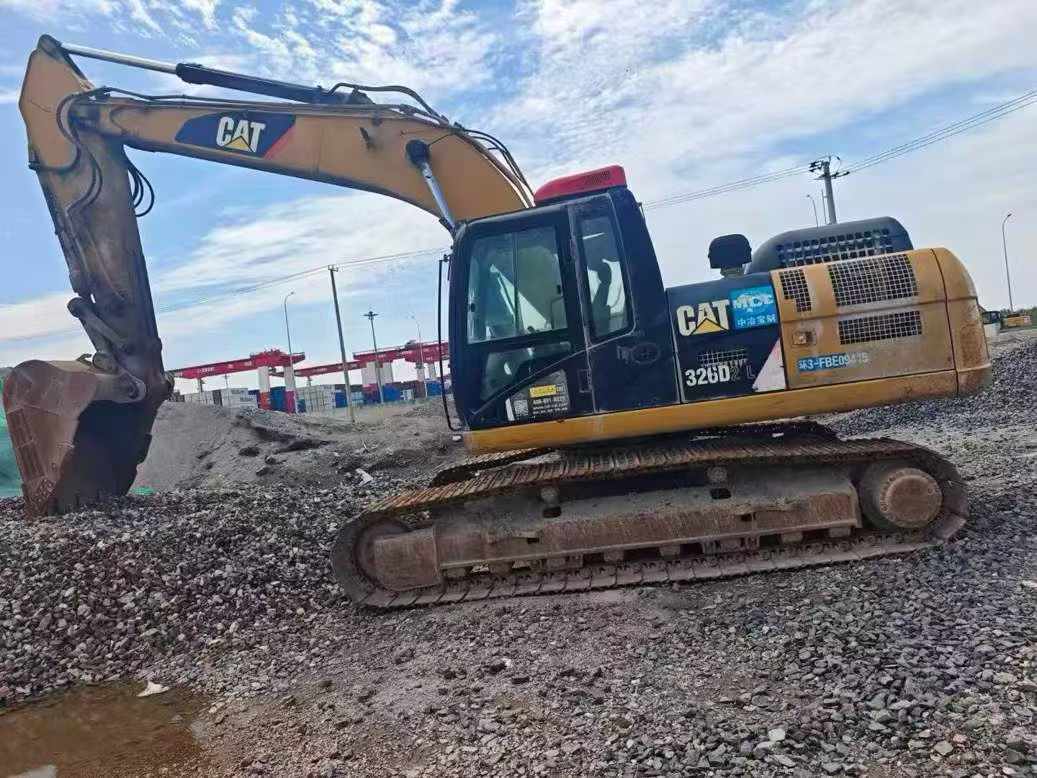

This 2017 Caterpillar 326DL hydraulic excavator offers proven performance for mid-sized earthmoving operations. Located in Guangxi, China, this machine has accumulated approximately 200,000+ hours of operating time, reflecting extensive field use in demanding applications. The 326DL features Cat's reliable C7.1 ACERT engine and advanced hydraulic system, delivering consistent digging force and fuel efficiency across construction, mining, and demolition projects.
Key specifications include:
- Operating weight: approximately 26 metric tons
- Engine power: 140 kW (188 hp)
- Bucket capacity range: 0.8–1.6 m³
- Maximum digging depth: 6.7 meters
This unit is available for immediate inspection in Guangxi. Ideal for contractors seeking dependable used equipment with strong parts availability and service network support throughout Asia-Pacific markets.
| Specifications | Value |
|---|---|
| No. | 1100907 |
| Tonnage (tons) | 26 |
| Working weight (kg) | 25560 |
| Bucket capacity (m³) | 1.35/1.57 |
| Boom length (mm) | 5300/5900 |
| Rod length (mm) | 2000/2500/2950 |
| Country of origin | Xuzhou, Jiangsu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

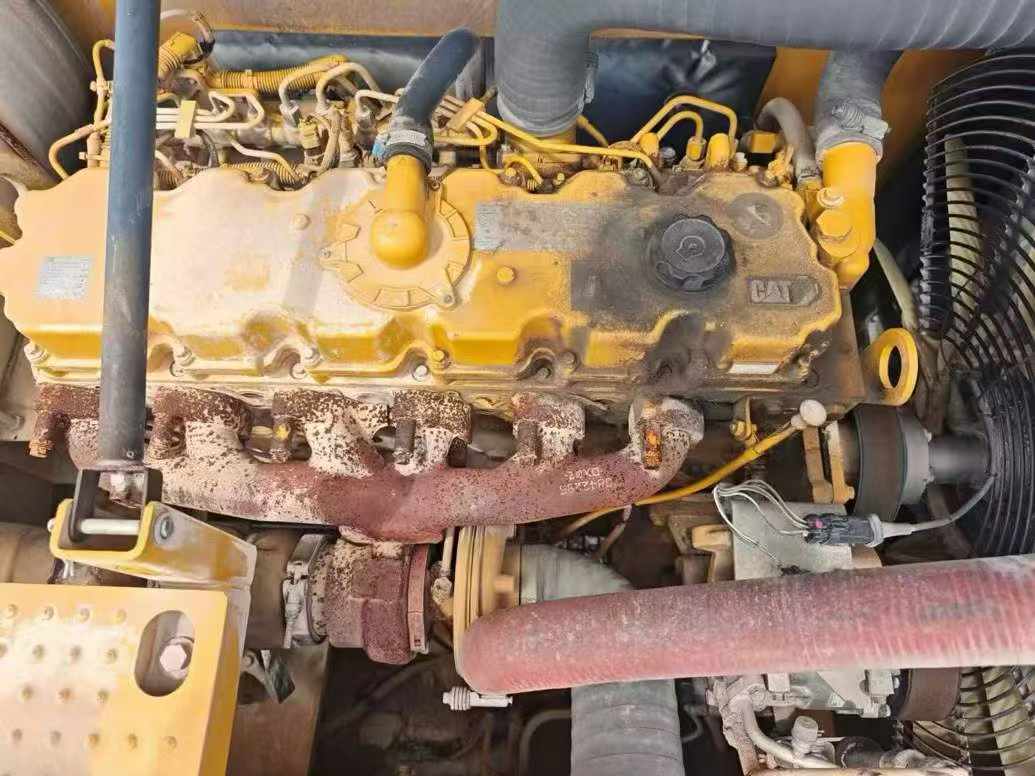

| Engine type | Caterpillar C7 ACERT |
| Rated power (kw/rpm) | 140 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 110 x 127 |
| Displacement (L) | 7.2 |
| Rotation speed (rpm) | 9.6 |
| Bucket digging force (kN) | 174 |
| Rod digging force (kN) | 122 |
| Maximum tractive force (kN) | 227 |
| Travel speed (km/h) | 5.5 |
| Turning torque (Nm) | 73.4 |
| Main overflow set pressure (Mpa) | 35 |
| Rotary hydraulic motor type | 24.5 |
| Type of walking hydraulic motor | 35 |

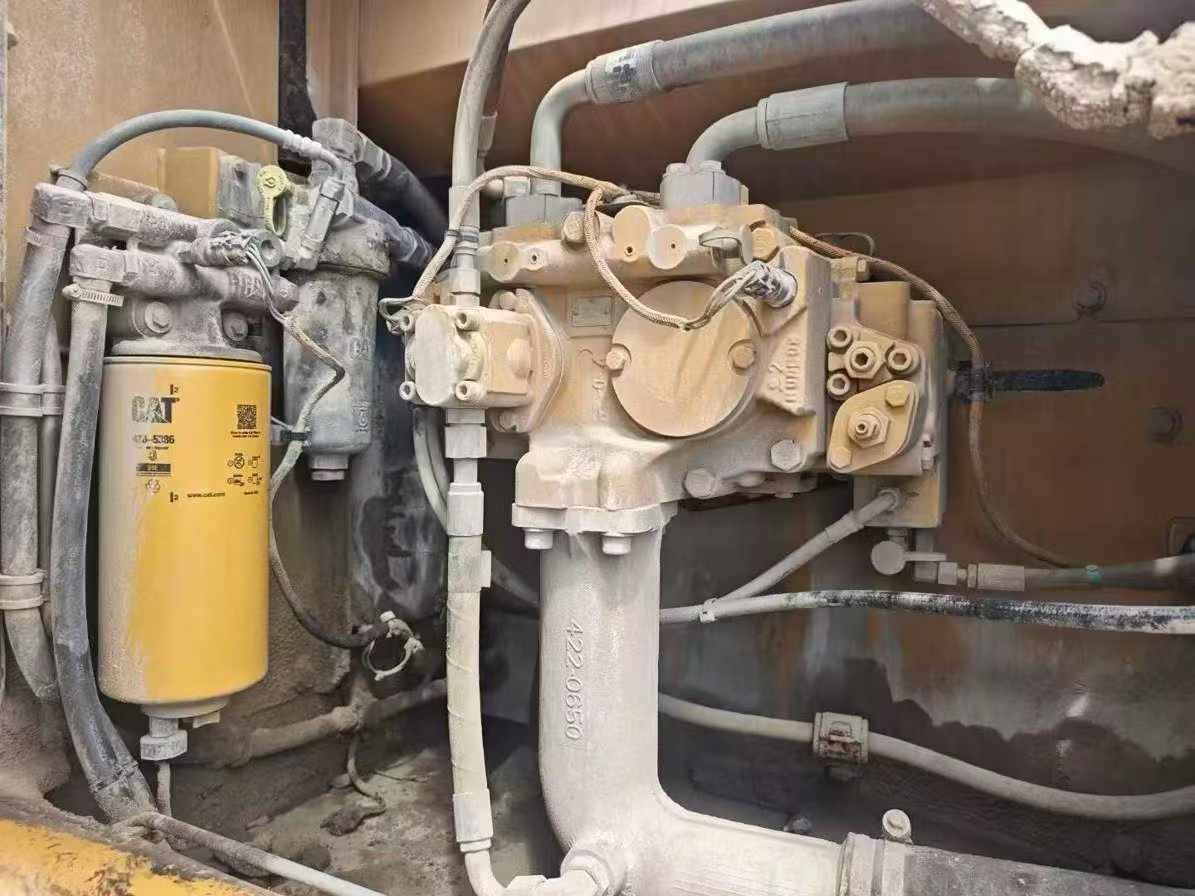

| Maximum flow of main pump (l/min) | 235 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 150 x 1156 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 140 x 1660 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 135 x 1305 |
| Fuel Tank (L) | 520 |
| Hydraulic Tank (L) | 145 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 30 |
| Hydraulic System (L) | 300 |
| Total transport length (mm) | 10060 |
| Total transport width (mm) | 3390 |
| Total transport height (mm) | 3170 |
| Full cab height (mm) | 2980 |
| Counterweight ground clearance (mm) | 1060 |
| Minimum ground clearance (mm) | 470 |
| Back end turning radius (mm) | 2940 |

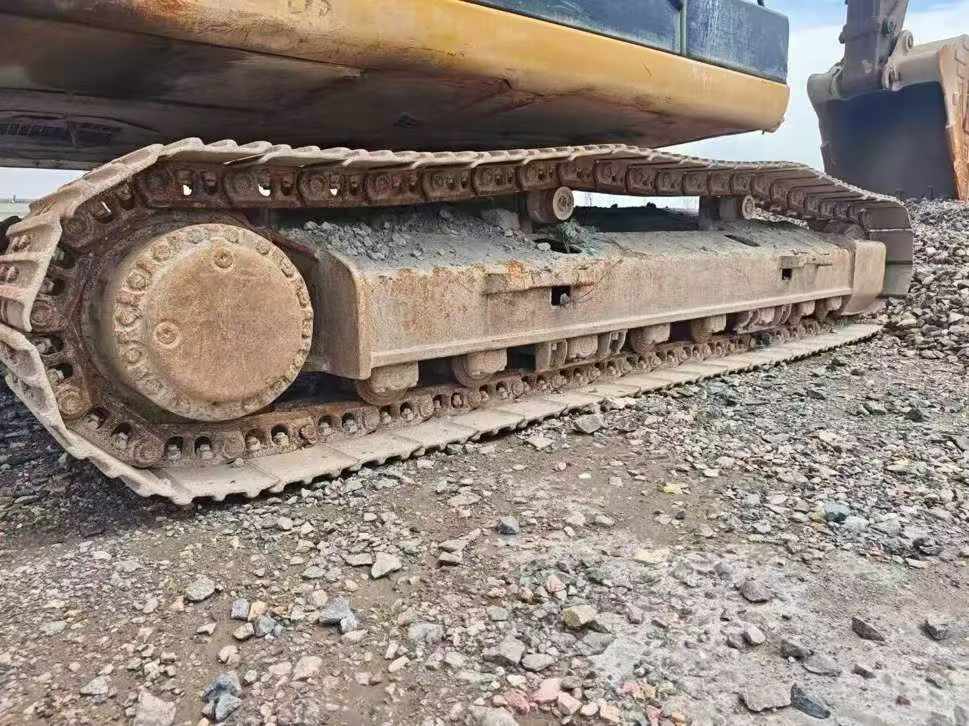

| Total track length (mm) | 4630 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3390 |
| Maximum digging depth (mm) | 6740 |
| Maximum excavation height (mm) | 9660 |
| Maximum unloading height (mm) | 6700 |
| Maximum vertical digging depth (mm) | 5830 |
| Maximum excavation radius of stop surface (mm) | 10030 |
| Maximum effective digging depth (mm) | 6560 |
Overview
No.1100907
Brand Name：
CaterpillarModel Number：
326DLYear：
2017
Location：
Guangxi China
