2017 Caterpillar 326DL
Product Description

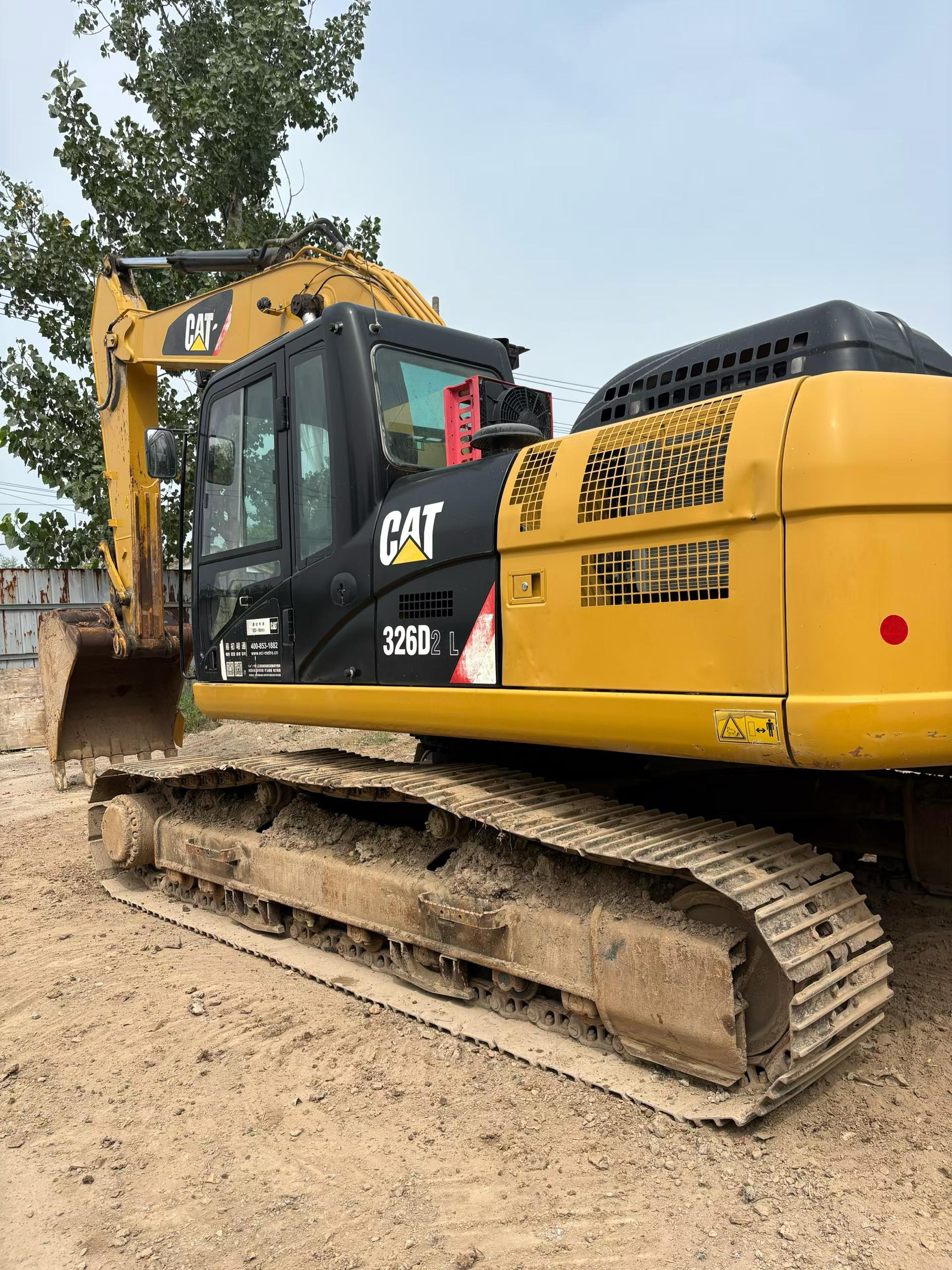

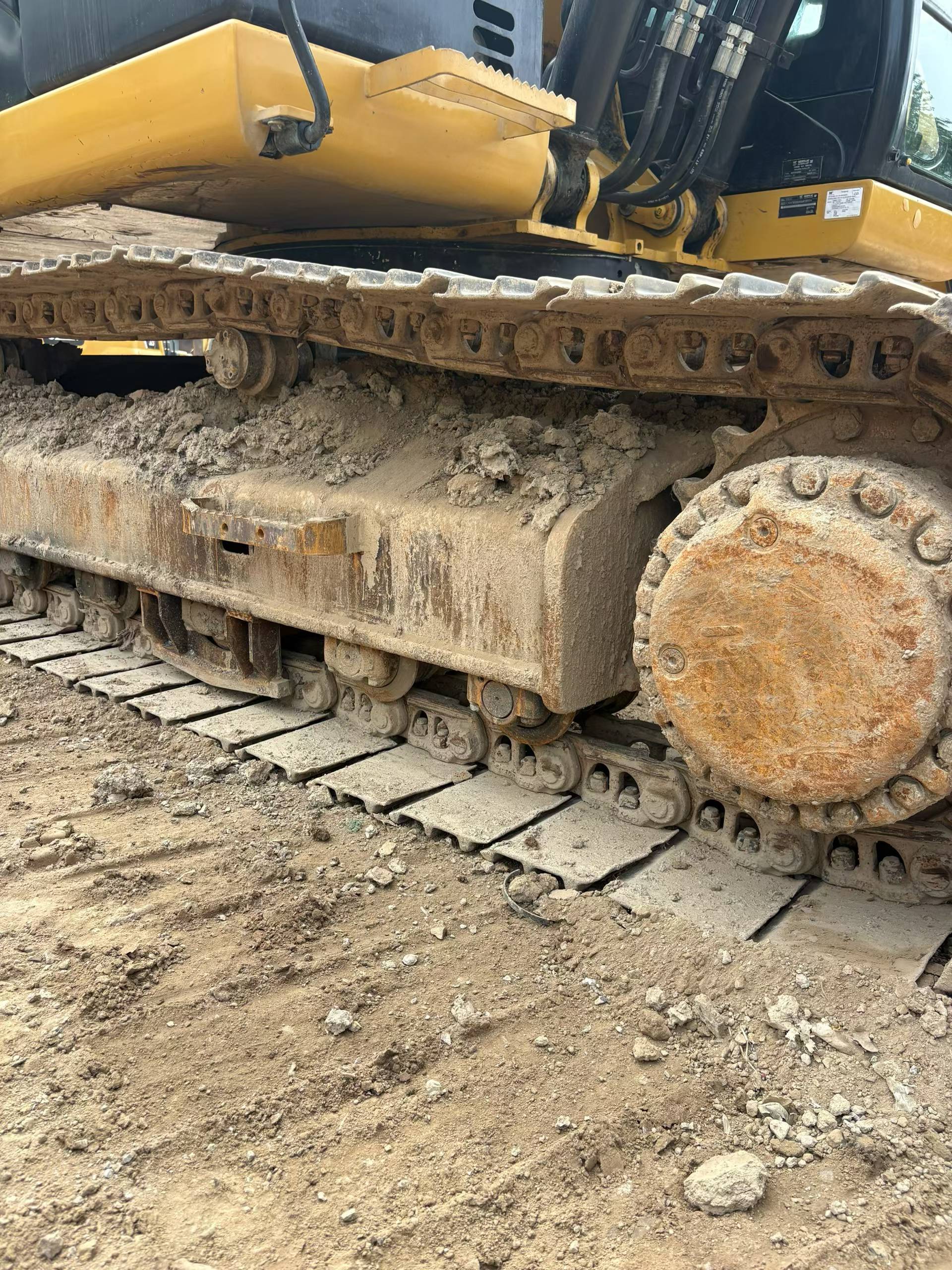

Presenting a 2017 Caterpillar 326DL, currently available in Jiangsu, China. This robust excavator is in excellent condition, with a well-maintained exterior and a solid undercarriage, ensuring reliability on any job site. The machine has been meticulously serviced, showing no signs of leaks, which attests to its durability and operational efficiency. With an operational hour count of 9,600 hours, this 326DL remains a powerful and dependable asset for your construction needs. Detailed images and a video are available upon request, providing a comprehensive view of the machine's current state and performance capabilities.
- Year: 2017
- Brand: Caterpillar
- Model: 326DL
- Location: Jiangsu, China
- Operational Hours: 9,600
| Specifications | Value |
|---|---|
| No. | 1135262 |
| Tonnage (tons) | 26 |
| Working weight (kg) | 25560 |
| Bucket capacity (m³) | 1.35/1.57 |
| Boom length (mm) | 5300/5900 |
| Rod length (mm) | 2000/2500/2950 |
| Country of origin | Xuzhou, Jiangsu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar C7 ACERT |
| Rated power (kw/rpm) | 140 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 110 x 127 |
| Displacement (L) | 7.2 |
| Rotation speed (rpm) | 9.6 |
| Bucket digging force (kN) | 174 |
| Rod digging force (kN) | 122 |
| Maximum tractive force (kN) | 227 |
| Travel speed (km/h) | 5.5 |
| Turning torque (Nm) | 73.4 |
| Main overflow set pressure (Mpa) | 35 |
| Rotary hydraulic motor type | 24.5 |
| Type of walking hydraulic motor | 35 |
| Maximum flow of main pump (l/min) | 235 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 150 x 1156 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 140 x 1660 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 135 x 1305 |
| Fuel Tank (L) | 520 |
| Hydraulic Tank (L) | 145 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 30 |
| Hydraulic System (L) | 300 |
| Total transport length (mm) | 10060 |
| Total transport width (mm) | 3390 |
| Total transport height (mm) | 3170 |
| Full cab height (mm) | 2980 |
| Counterweight ground clearance (mm) | 1060 |
| Minimum ground clearance (mm) | 470 |
| Back end turning radius (mm) | 2940 |
| Total track length (mm) | 4630 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3390 |
| Maximum digging depth (mm) | 6740 |
| Maximum excavation height (mm) | 9660 |
| Maximum unloading height (mm) | 6700 |
| Maximum vertical digging depth (mm) | 5830 |
| Maximum excavation radius of stop surface (mm) | 10030 |
| Maximum effective digging depth (mm) | 6560 |
see more
Overview
No.1135262
Brand Name：
CaterpillarModel Number：
326DLYear：
2017
Location：
Jiangsu China
