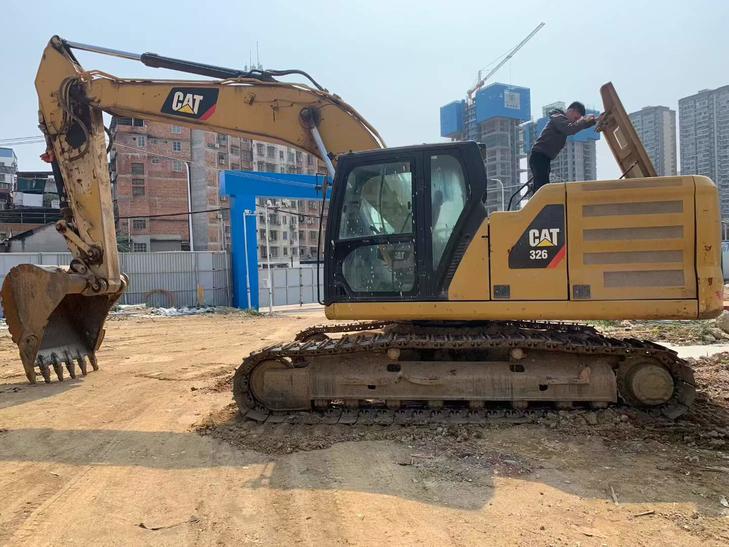

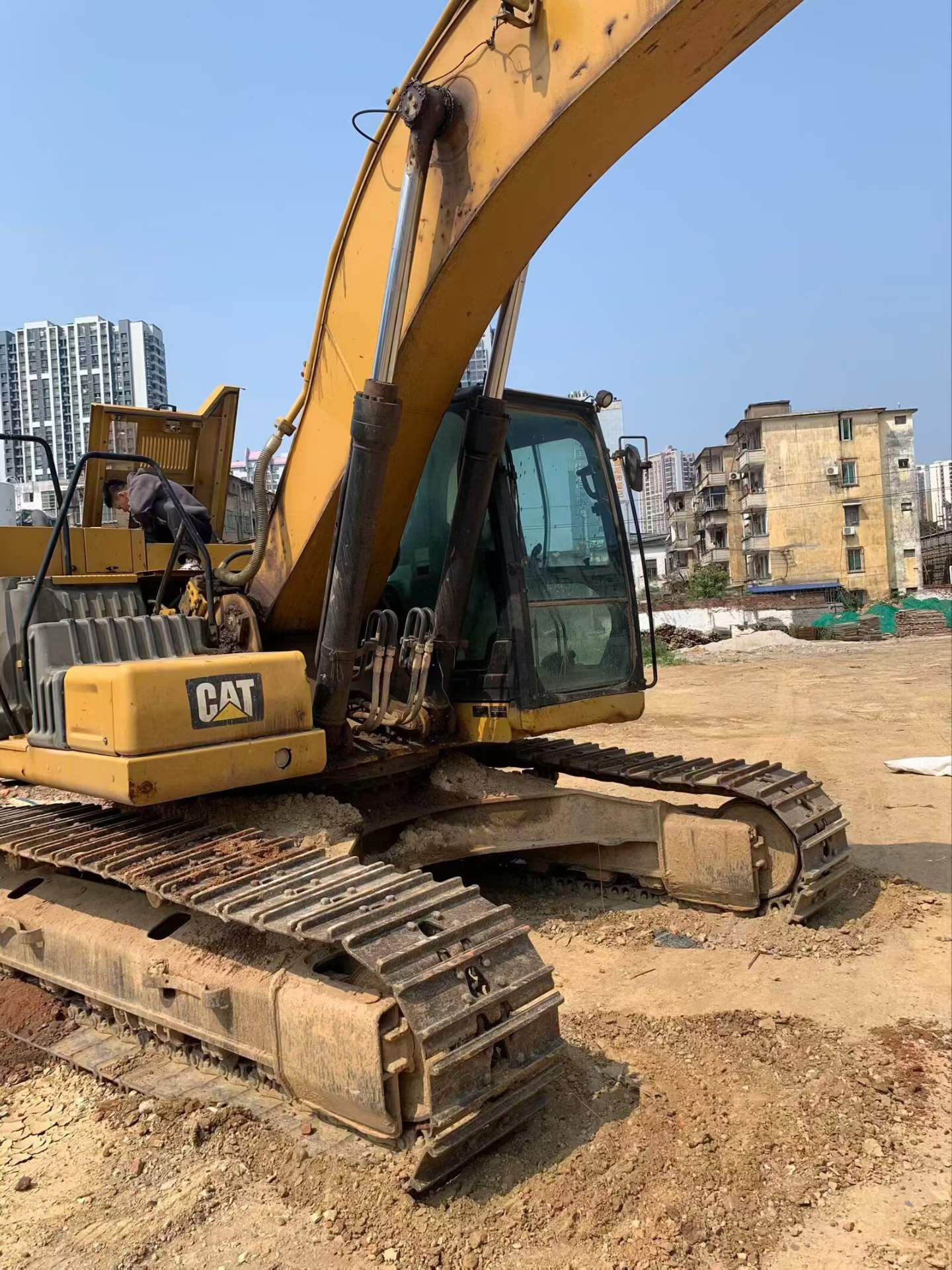

2018 Caterpillar 326DL
Product Description
Boost fleet uptime with this 2018 Caterpillar 326DL excavator, a proven 26-ton workhorse ready for immediate deployment alongside your existing machinery. Powered by the reliable Caterpillar C7 ACERT engine delivering 140kW, this unit handles demanding excavation, trenching, and loading tasks without missing a beat. With a maximum digging depth of 6,740mm and bucket capacity up to 1.57m³, it matches the productivity demands of high-volume job sites.
- Hydraulic Power: 174kN bucket digging force and 235 L/min main pump flow ensure consistent performance in tough ground conditions
- Versatile Reach: Configurable boom (5,300/5,900mm) and rod options (2,000/2,500/2,950mm) adapt to varying project requirements
- Reliable Foundation: Caterpillar's joint-venture manufacturing quality backed by proven component durability
- Fleet-Ready: Currently located in Kunming, Yunnan—available for inspection and rapid integration into your operations
Minimize downtime and maximize project flexibility by adding this capable mid-size excavator to your rental fleet or construction lineup.
| Specifications | Value |
|---|---|
| No. | 1028618 |
| Tonnage (tons) | 26 |
| Working weight (kg) | 25560 |
| Bucket capacity (m³) | 1.35/1.57 |
| Boom length (mm) | 5300/5900 |
| Rod length (mm) | 2000/2500/2950 |
| Country of origin | Xuzhou, Jiangsu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

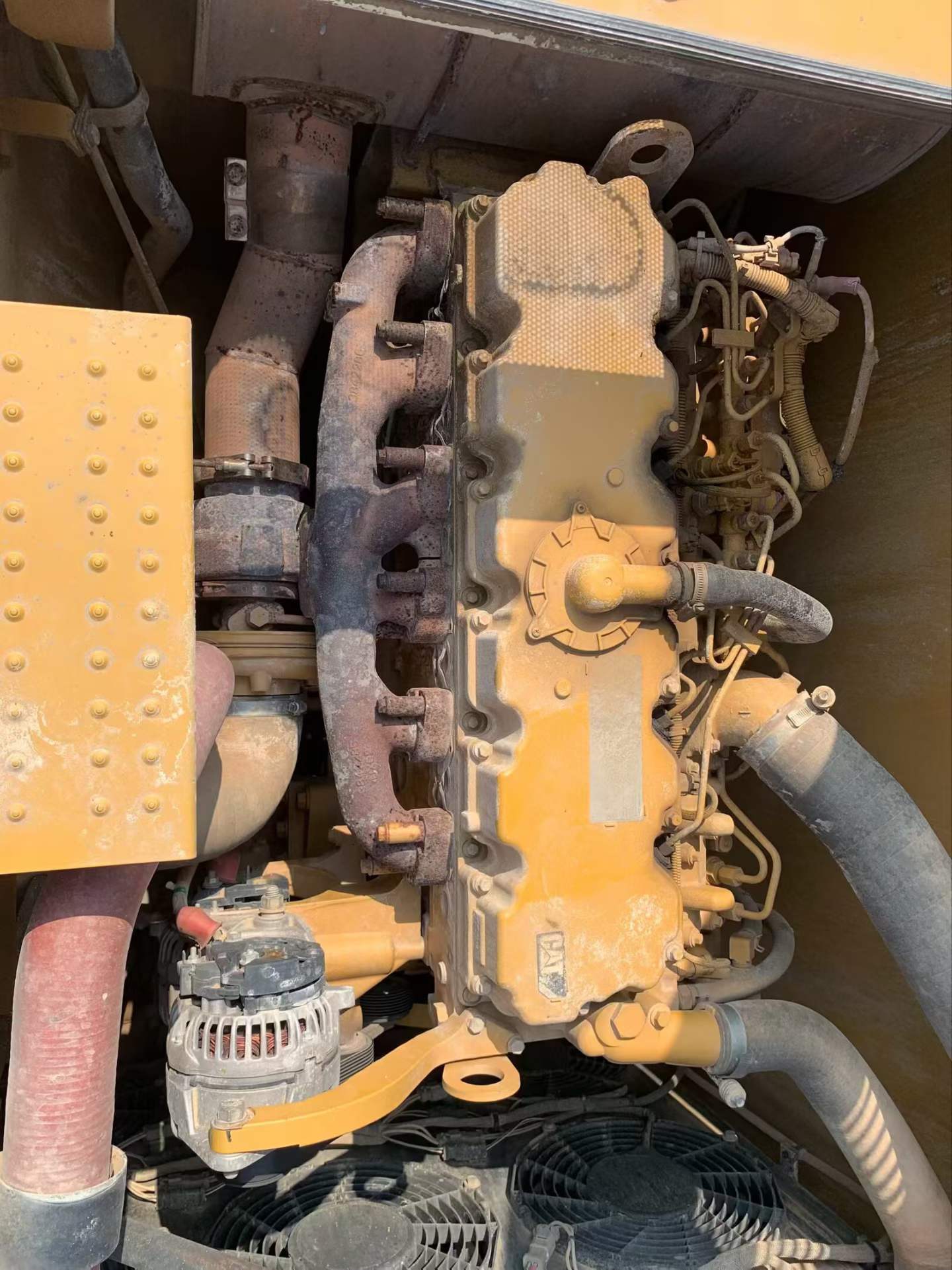

| Engine type | Caterpillar C7 ACERT |
| Rated power (kw/rpm) | 140 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 110 x 127 |
| Displacement (L) | 7.2 |
| Rotation speed (rpm) | 9.6 |
| Bucket digging force (kN) | 174 |
| Rod digging force (kN) | 122 |
| Maximum tractive force (kN) | 227 |
| Travel speed (km/h) | 5.5 |
| Turning torque (Nm) | 73.4 |
| Main overflow set pressure (Mpa) | 35 |
| Rotary hydraulic motor type | 24.5 |
| Type of walking hydraulic motor | 35 |
| Maximum flow of main pump (l/min) | 235 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 150 x 1156 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 140 x 1660 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 135 x 1305 |
| Fuel Tank (L) | 520 |
| Hydraulic Tank (L) | 145 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 30 |
| Hydraulic System (L) | 300 |
| Total transport length (mm) | 10060 |
| Total transport width (mm) | 3390 |
| Total transport height (mm) | 3170 |
| Full cab height (mm) | 2980 |
| Counterweight ground clearance (mm) | 1060 |
| Minimum ground clearance (mm) | 470 |
| Back end turning radius (mm) | 2940 |
| Total track length (mm) | 4630 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3390 |
| Maximum digging depth (mm) | 6740 |
| Maximum excavation height (mm) | 9660 |
| Maximum unloading height (mm) | 6700 |
| Maximum vertical digging depth (mm) | 5830 |
| Maximum excavation radius of stop surface (mm) | 10030 |
| Maximum effective digging depth (mm) | 6560 |
