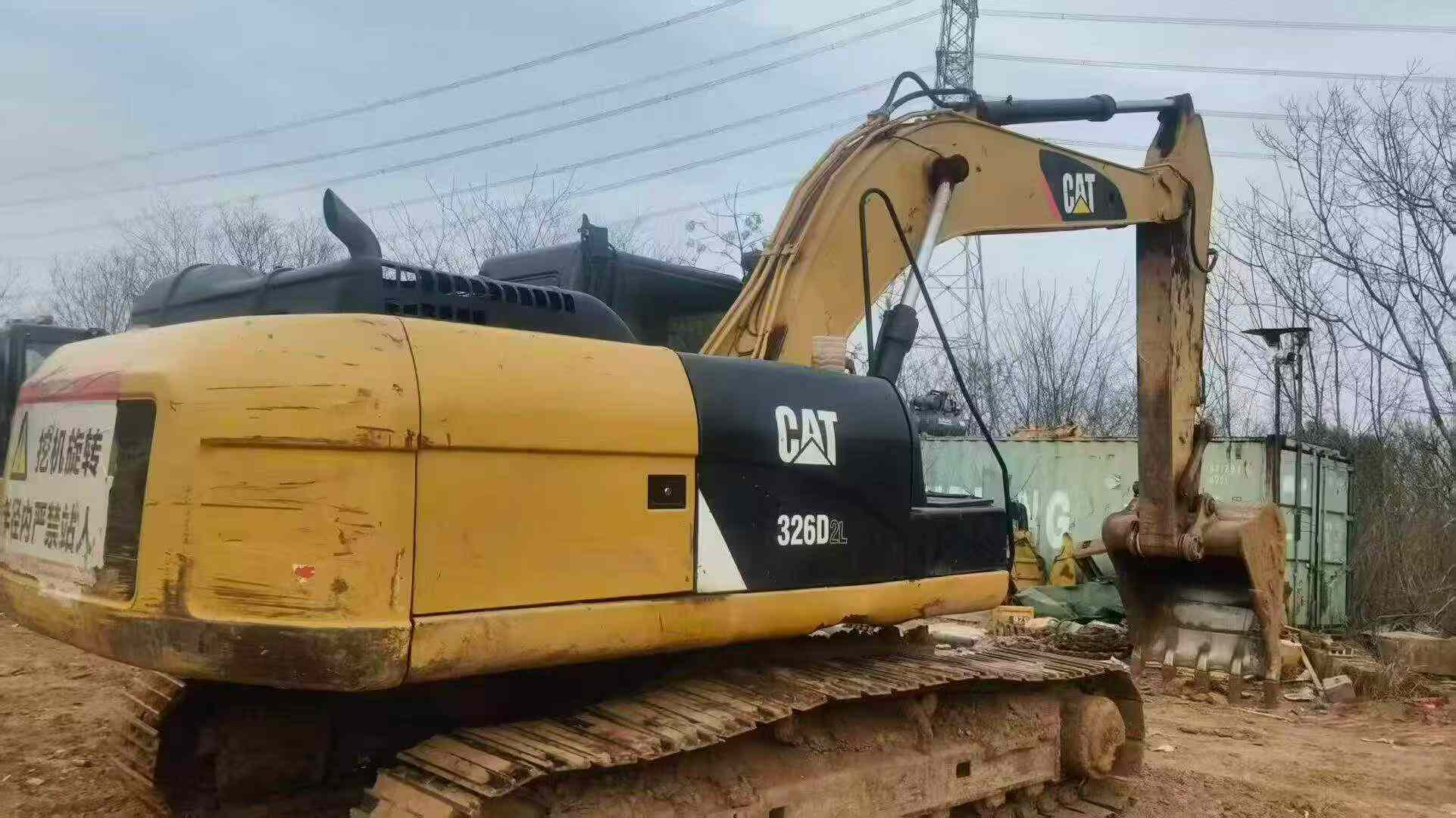

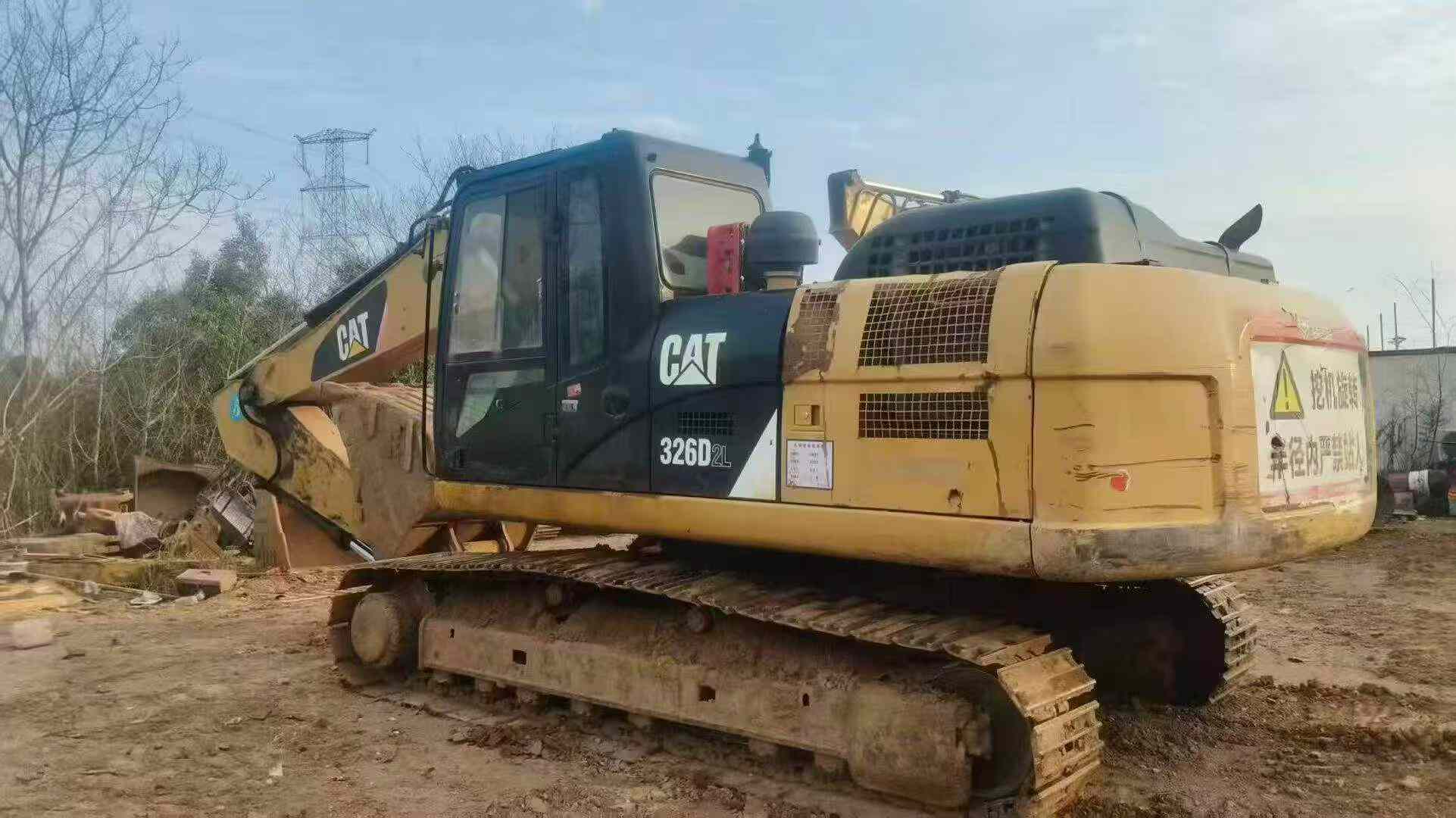

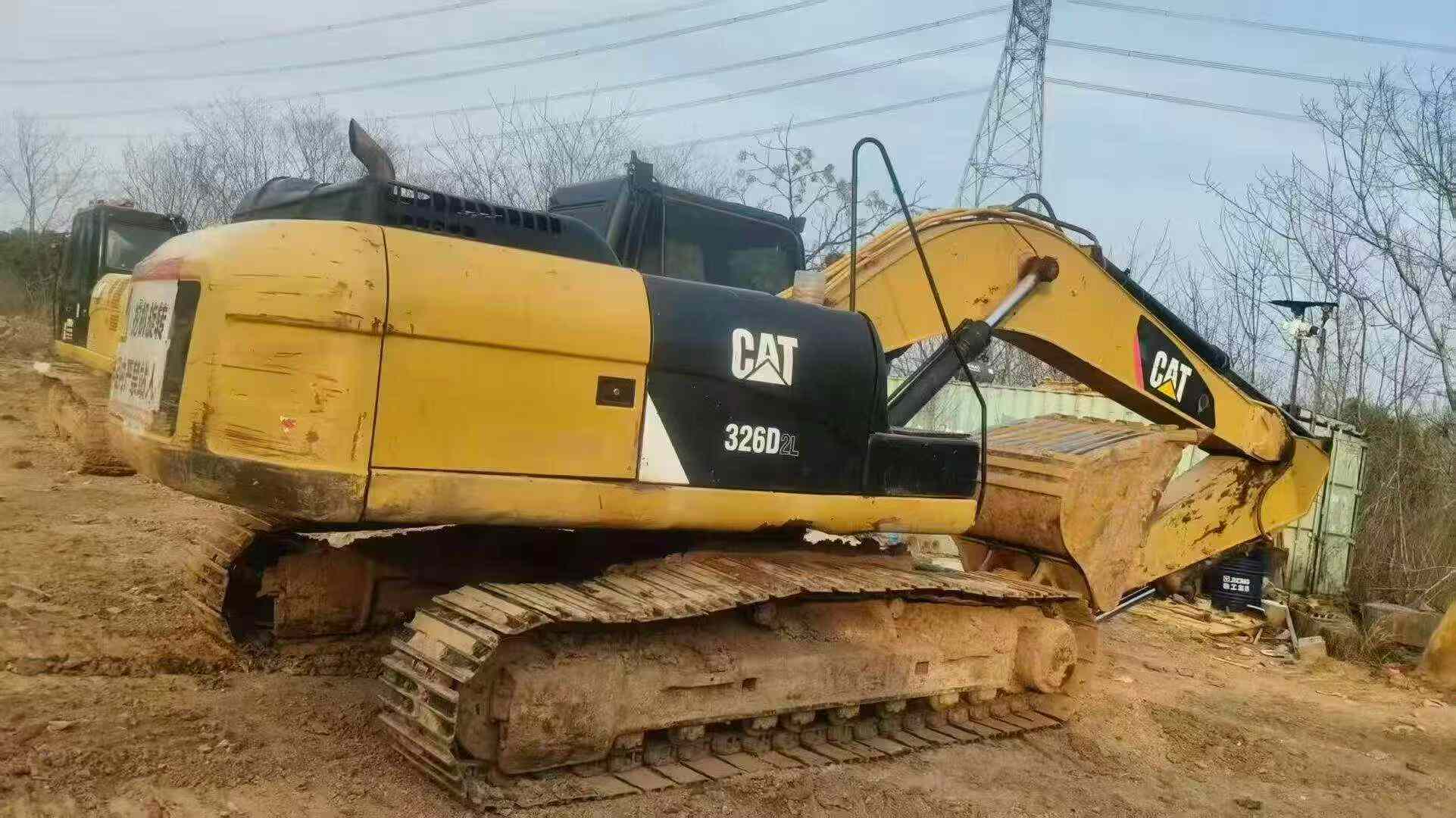

2019 Caterpillar 326DL
Product Description
Engineered with Caterpillar's proven C7 ACERT engine delivering 140 kW of rated power, this 2019 326DL excavator represents the pinnacle of 26-ton class hydraulic machinery. The advanced hydraulic system operates at 35 MPa with a maximum flow of 235 l/min, providing exceptional bucket digging force of 174 kN and rod digging force of 122 kN. Water-cooled efficiency and a 7.2L displacement ensure consistent performance across demanding jobsites.
Built at Caterpillar's Xuzhou facility, this model features superior reach capabilities with a maximum excavation radius of 10,030 mm and digging depth of 6,740 mm. The dual boom configuration (5,300/5,900 mm) and three rod length options (2,000/2,500/2,950 mm) deliver unmatched versatility for various applications.
- Operating weight: 25,560 kg with 1.35/1.57 m³ bucket capacity
- Maximum excavation height: 9,660 mm
- Travel speed: 5.5 km/h with 227 kN tractive force
- Fuel capacity: 520L for extended operation
- Currently located in Luzhou, Sichuan
| Specifications | Value |
|---|---|
| No. | 1016845 |
| Tonnage (tons) | 26 |
| Working weight (kg) | 25560 |
| Bucket capacity (m³) | 1.35/1.57 |
| Boom length (mm) | 5300/5900 |
| Rod length (mm) | 2000/2500/2950 |
| Country of origin | Xuzhou, Jiangsu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar C7 ACERT |
| Rated power (kw/rpm) | 140 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 110 x 127 |
| Displacement (L) | 7.2 |
| Rotation speed (rpm) | 9.6 |
| Bucket digging force (kN) | 174 |
| Rod digging force (kN) | 122 |
| Maximum tractive force (kN) | 227 |
| Travel speed (km/h) | 5.5 |
| Turning torque (Nm) | 73.4 |
| Main overflow set pressure (Mpa) | 35 |
| Rotary hydraulic motor type | 24.5 |
| Type of walking hydraulic motor | 35 |
| Maximum flow of main pump (l/min) | 235 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 150 x 1156 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 140 x 1660 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 135 x 1305 |
| Fuel Tank (L) | 520 |
| Hydraulic Tank (L) | 145 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 30 |
| Hydraulic System (L) | 300 |
| Total transport length (mm) | 10060 |
| Total transport width (mm) | 3390 |
| Total transport height (mm) | 3170 |
| Full cab height (mm) | 2980 |
| Counterweight ground clearance (mm) | 1060 |
| Minimum ground clearance (mm) | 470 |
| Back end turning radius (mm) | 2940 |
| Total track length (mm) | 4630 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3390 |
| Maximum digging depth (mm) | 6740 |
| Maximum excavation height (mm) | 9660 |
| Maximum unloading height (mm) | 6700 |
| Maximum vertical digging depth (mm) | 5830 |
| Maximum excavation radius of stop surface (mm) | 10030 |
| Maximum effective digging depth (mm) | 6560 |
Overview
No.1016845
Brand Name：
CaterpillarModel Number：
326DLYear：
2019
Location：
Sichuan China
