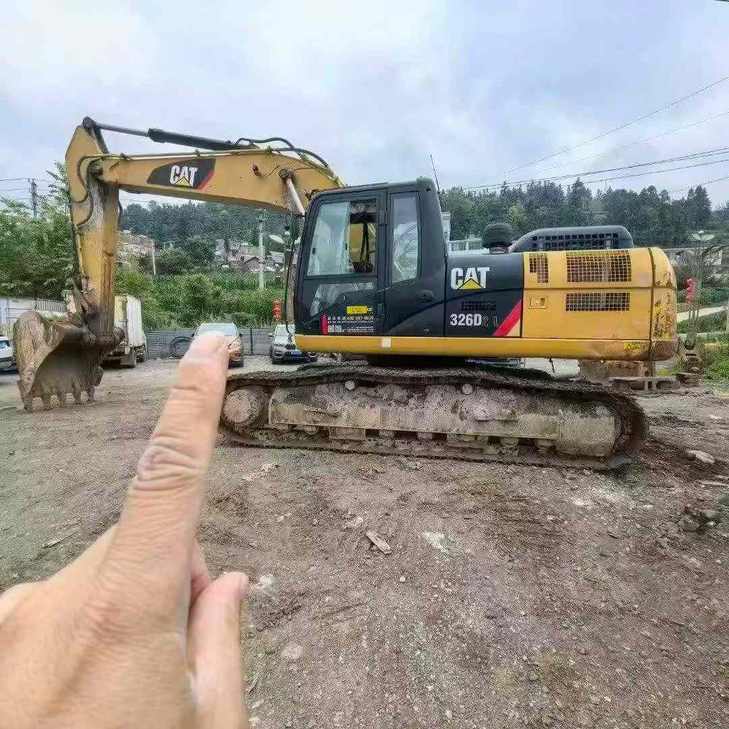

2019 Caterpillar 326DL
Product Description
Built for demanding excavation work, the 2019 Caterpillar 326DL delivers proven performance across infrastructure, construction, and earthmoving applications. Powered by the Caterpillar C7 ACERT engine producing 140 kW, this 26-ton machine combines reliable water-cooled operation with a maximum digging depth of 6,740 mm and bucket digging force of 174 kN — giving operators the muscle needed for consistent, high-output cycles.
From the cab, operators benefit from the wide-format visibility design standard to this generation of Cat excavators, supporting precise bucket placement at maximum excavation heights of 9,660 mm. The low-effort pilot hydraulic system at 3.9 MPa reduces fatigue during extended shifts, while the stable 2,590 mm track gauge and 600 mm track plates provide firm ground contact across varied terrain. Travel speed reaches 5.5 km/h, keeping job site repositioning efficient.
- Engine: Caterpillar C7 ACERT | 140 kW | 7.2L displacement
- Bucket capacity: 1.35 / 1.57 m³ | Digging force: 174 kN
- Maximum digging depth: 6,740 mm | Reach: 10,030 mm
- Working weight: 25,560 kg | Fuel tank: 520 L
- Currently located: Jiangsu, China | Available for global export
| Specifications | Value |
|---|---|
| No. | 1087266 |
| Tonnage (tons) | 26 |
| Working weight (kg) | 25560 |
| Bucket capacity (m³) | 1.35/1.57 |
| Boom length (mm) | 5300/5900 |
| Rod length (mm) | 2000/2500/2950 |
| Country of origin | Xuzhou, Jiangsu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar C7 ACERT |
| Rated power (kw/rpm) | 140 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 110 x 127 |
| Displacement (L) | 7.2 |
| Rotation speed (rpm) | 9.6 |
| Bucket digging force (kN) | 174 |
| Rod digging force (kN) | 122 |
| Maximum tractive force (kN) | 227 |
| Travel speed (km/h) | 5.5 |
| Turning torque (Nm) | 73.4 |
| Main overflow set pressure (Mpa) | 35 |
| Rotary hydraulic motor type | 24.5 |
| Type of walking hydraulic motor | 35 |
| Maximum flow of main pump (l/min) | 235 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 150 x 1156 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 140 x 1660 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 135 x 1305 |
| Fuel Tank (L) | 520 |
| Hydraulic Tank (L) | 145 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 30 |
| Hydraulic System (L) | 300 |
| Total transport length (mm) | 10060 |
| Total transport width (mm) | 3390 |
| Total transport height (mm) | 3170 |
| Full cab height (mm) | 2980 |
| Counterweight ground clearance (mm) | 1060 |
| Minimum ground clearance (mm) | 470 |
| Back end turning radius (mm) | 2940 |
| Total track length (mm) | 4630 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3390 |
| Maximum digging depth (mm) | 6740 |
| Maximum excavation height (mm) | 9660 |
| Maximum unloading height (mm) | 6700 |
| Maximum vertical digging depth (mm) | 5830 |
| Maximum excavation radius of stop surface (mm) | 10030 |
| Maximum effective digging depth (mm) | 6560 |
Overview
No.1087266
Brand Name：
CaterpillarModel Number：
326DLYear：
2019
Location：
Jiangsu China
Pub Date：
