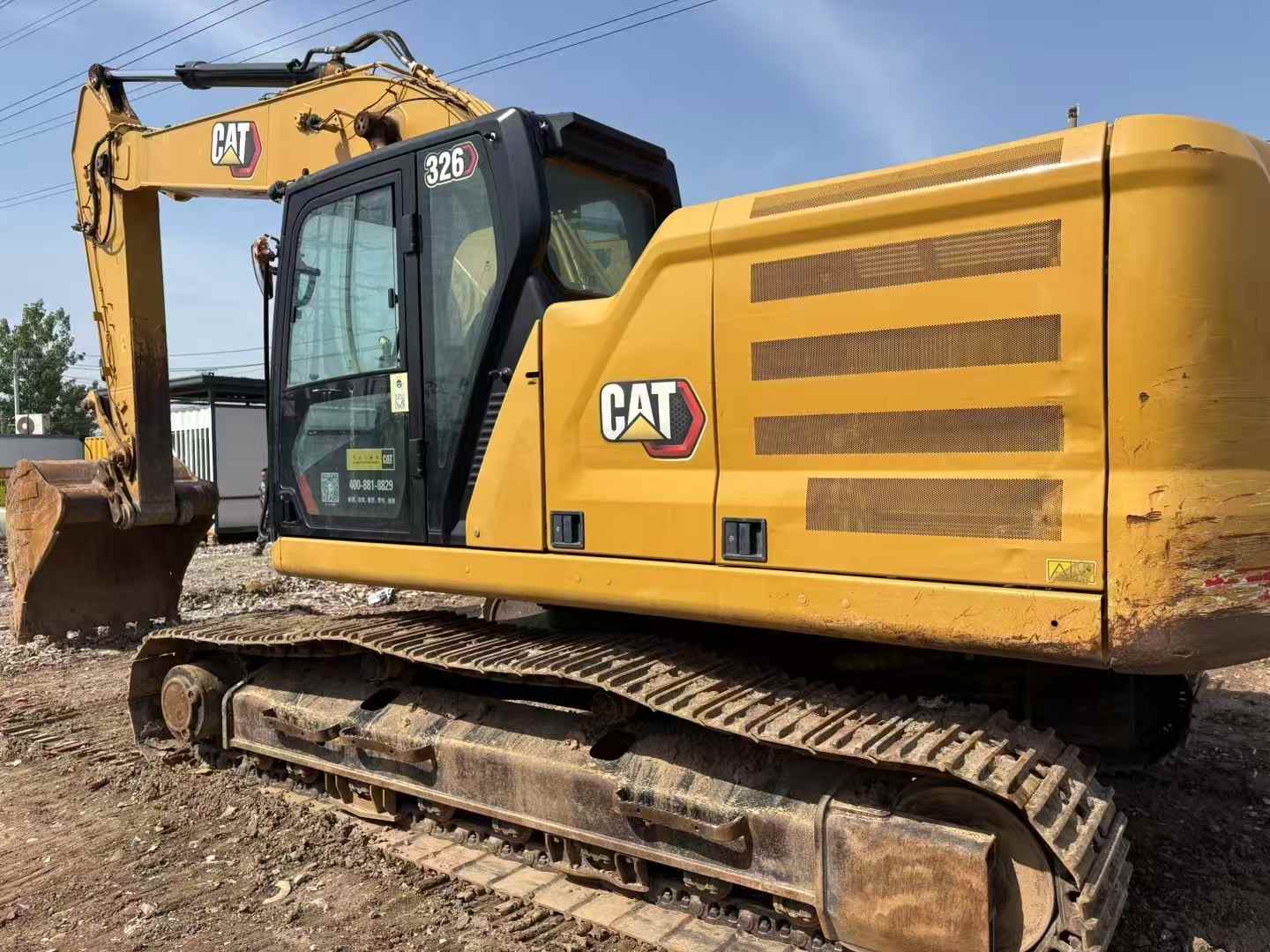

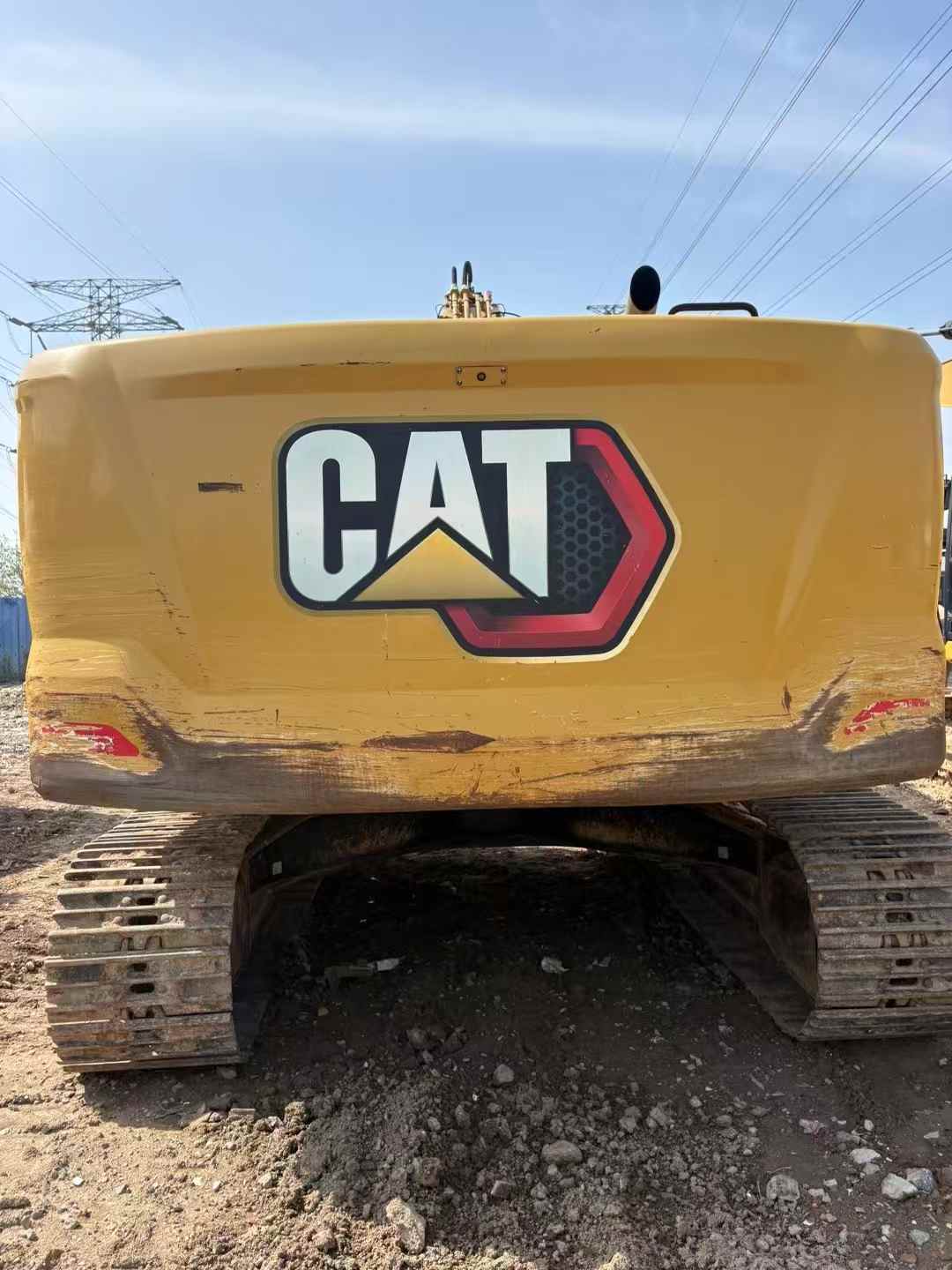

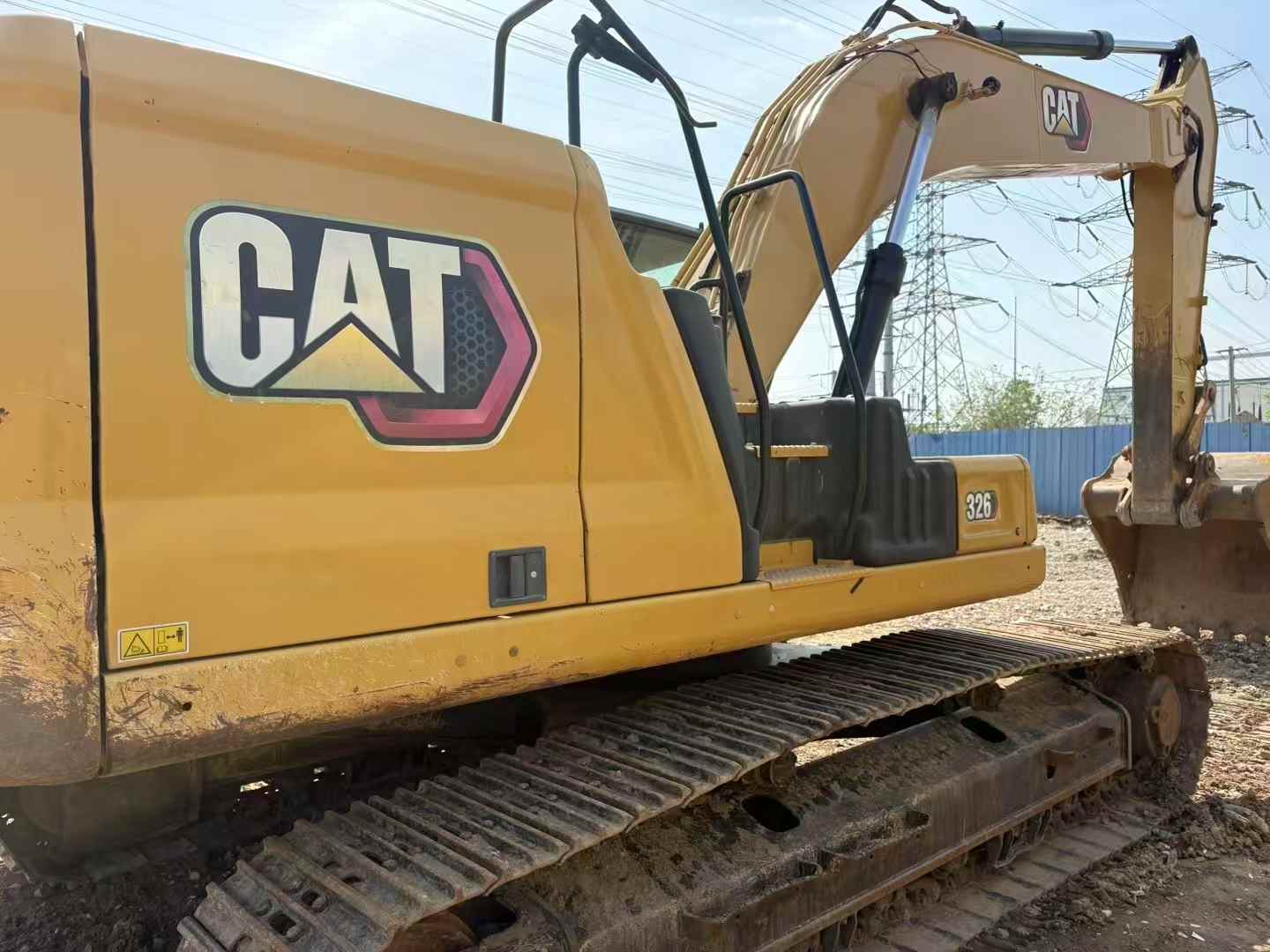

2020 Caterpillar 326DL
Product Description
With a robust 26-ton working weight and powered by the reliable Caterpillar C7 ACERT engine, this 2020 Caterpillar 326DL excavator is an ideal addition to any busy contractor's fleet. Located in Jiangsu, China, this unit boasts a bucket capacity of 1.35/1.57 m³, making it versatile for various excavation tasks. Its boom length options of 5300/5900 mm and rod lengths of 2000/2500/2950 mm ensure flexibility on the job site.
- Rated power: 140 kW
- Maximum digging depth: 6740 mm
- Travel speed: 5.5 km/h
- Fuel tank capacity: 520 L
- Total transport dimensions: 10060 x 3390 x 3170 mm (LxWxH)
Designed for durability and efficiency, this excavator integrates seamlessly into existing fleets, providing essential support during peak demand. Whether as a backup or a primary asset, the 326DL ensures that your operations run smoothly and efficiently.
| Specifications | Value |
|---|---|
| No. | 1057442 |
| Tonnage (tons) | 26 |
| Working weight (kg) | 25560 |
| Bucket capacity (m³) | 1.35/1.57 |
| Boom length (mm) | 5300/5900 |
| Rod length (mm) | 2000/2500/2950 |
| Country of origin | Xuzhou, Jiangsu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

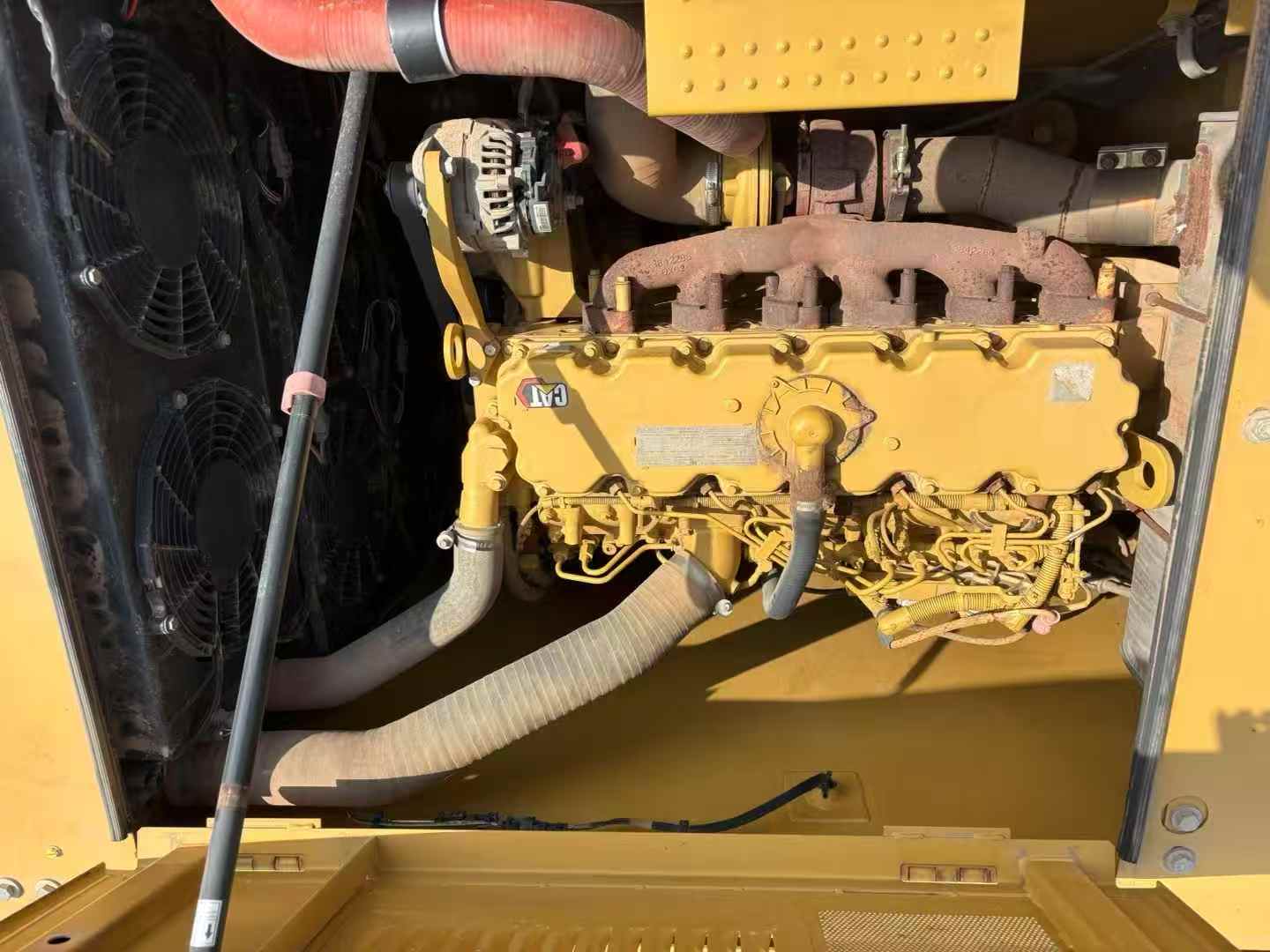

| Engine type | Caterpillar C7 ACERT |
| Rated power (kw/rpm) | 140 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 110 x 127 |
| Displacement (L) | 7.2 |
| Rotation speed (rpm) | 9.6 |
| Bucket digging force (kN) | 174 |
| Rod digging force (kN) | 122 |
| Maximum tractive force (kN) | 227 |
| Travel speed (km/h) | 5.5 |
| Turning torque (Nm) | 73.4 |
| Main overflow set pressure (Mpa) | 35 |
| Rotary hydraulic motor type | 24.5 |
| Type of walking hydraulic motor | 35 |
| Maximum flow of main pump (l/min) | 235 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 150 x 1156 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 140 x 1660 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 135 x 1305 |
| Fuel Tank (L) | 520 |
| Hydraulic Tank (L) | 145 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 30 |
| Hydraulic System (L) | 300 |
| Total transport length (mm) | 10060 |
| Total transport width (mm) | 3390 |
| Total transport height (mm) | 3170 |
| Full cab height (mm) | 2980 |
| Counterweight ground clearance (mm) | 1060 |
| Minimum ground clearance (mm) | 470 |
| Back end turning radius (mm) | 2940 |
| Total track length (mm) | 4630 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3390 |
| Maximum digging depth (mm) | 6740 |
| Maximum excavation height (mm) | 9660 |
| Maximum unloading height (mm) | 6700 |
| Maximum vertical digging depth (mm) | 5830 |
| Maximum excavation radius of stop surface (mm) | 10030 |
| Maximum effective digging depth (mm) | 6560 |
Overview
No.1057442
Brand Name：
CaterpillarModel Number：
326DLYear：
2020
Location：
Jiangsu China
Pub Date：
