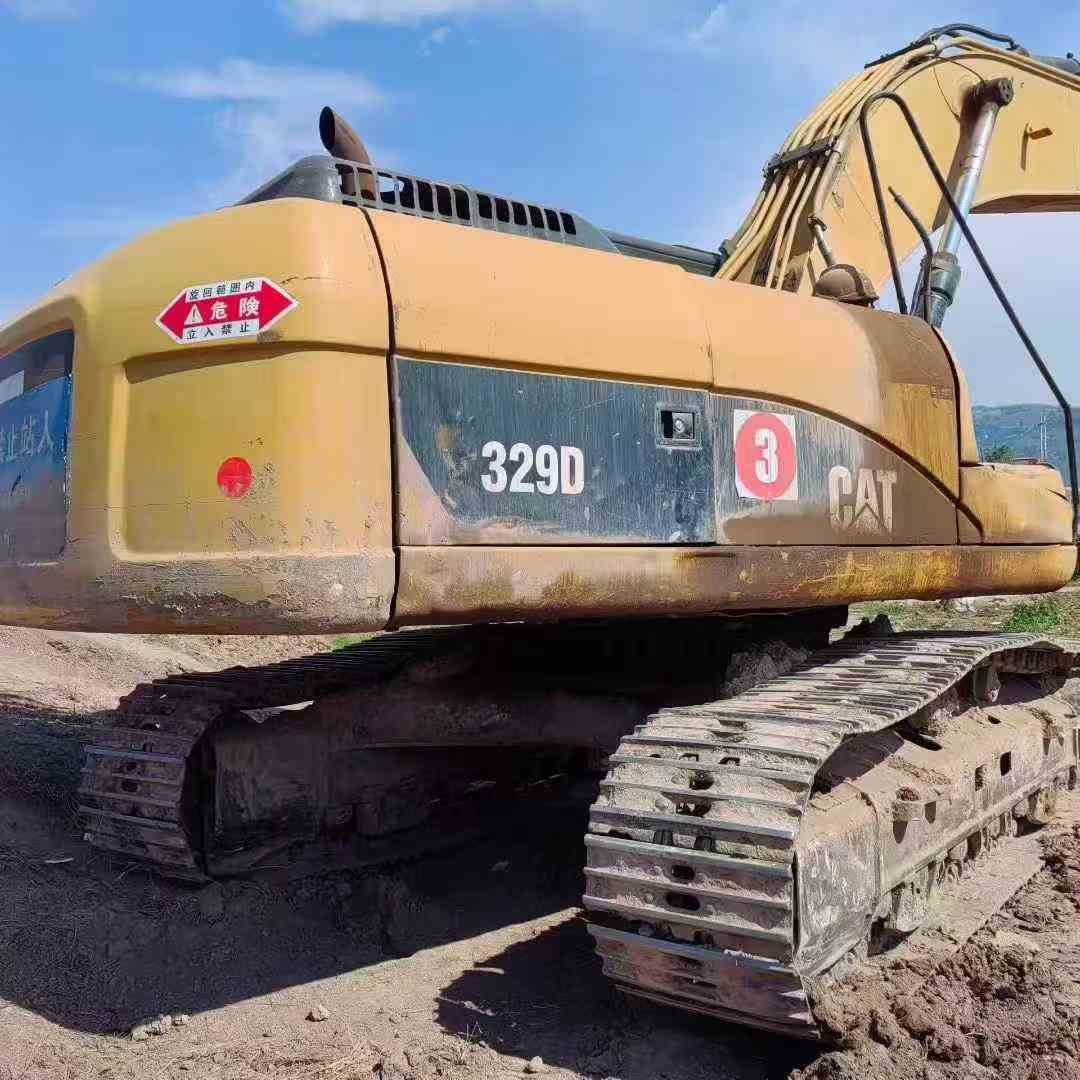

2011 Caterpillar 329D
Product Description
Proven reliability meets exceptional value in this 2011 Caterpillar 329D excavator, currently located in Jiangsu. Powered by the robust C7 ACERT engine delivering 152 kW at 2000 rpm, this 29-ton workhorse combines Cat's legendary durability with genuine performance specs that operators trust worldwide. Water-cooled efficiency and a 7.2L displacement ensure consistent power delivery across demanding jobsites.
Caterpillar's global parts network makes this machine a smart investment—components remain readily available, minimizing downtime and protecting your operational schedule. Maximum digging depth reaches 7,170 mm with a 10,600 mm reach at ground level, while the 1.1 m³ bucket capacity handles substantial material volumes efficiently. Hydraulic performance is backed by a 235 L/min main pump and 3.5 MPa working circuit pressure.
Key Specifications:
- Operating weight: 29,240 kg with superior stability
- Boom/arm configuration: 6,150 mm / 3,200 mm
- Travel speeds: 3.5/5.3 km/h for flexible mobility
- Fuel capacity: 520L for extended operation
- Transport dimensions: 10,410 × 2,990 × 3,180 mm
Strong resale values and proven track records make Caterp
| Specifications | Value |
|---|---|
| No. | 1030051 |
| Tonnage (tons) | 29 |
| Working weight (kg) | 29240 |
| Bucket capacity (m³) | 1.1 |
| Boom length (mm) | 6150 |
| Rod length (mm) | 3200 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | C7ACERT |
| Rated power (kw/rpm) | 152/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 110 x 127 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.2 |
| Rotation speed (rpm) | 10.2 |
| Climbing ability (%) | 70/35 ° |
| Travel speed (km/h) | 3.5/5.3 |
| Main overflow set pressure (Mpa) | 3.5 |
| Maximum flow of main pump (l/min) | 235 |
| Traveling Hydraulic Circuit (Mpa) | 3.5 |
| Rotary Hydraulic Circuit (Mpa) | 2.75 |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 3.5 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 135 x 1156 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 150 x 1646 |
| Boom cylinders - Number × diameter × stroke (mm) | 140 x 1407 |
| Fuel Tank (L) | 520 |
| Hydraulic Tank (L) | 145 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 30 |
| Hydraulic System (L) | 310(including fuel tank) |
| Total transport length (mm) | 10410 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 3180 |
| Full cab height (mm) | 3040 |
| Counterweight ground clearance (mm) | 1110 |
| Minimum ground clearance (mm) | 490 |
| Back end turning radius (mm) | 3080 |
| Total track length (mm) | 4360 |
| Track gauge (mm) | 2390 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2990 |
| Track ground length (mm) | 3490 |
| Maximum digging depth (mm) | 7170 |
| Maximum excavation height (mm) | 9990 |
| Maximum unloading height (mm) | 7020 |
| Maximum vertical digging depth (mm) | 6510 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 10600 |
| Maximum effective digging depth (mm) | 7010 |
Overview
No.1030051
Brand Name：
CaterpillarModel Number：
329DYear：
2011
Location：
Jiangsu China
Pub Date：
