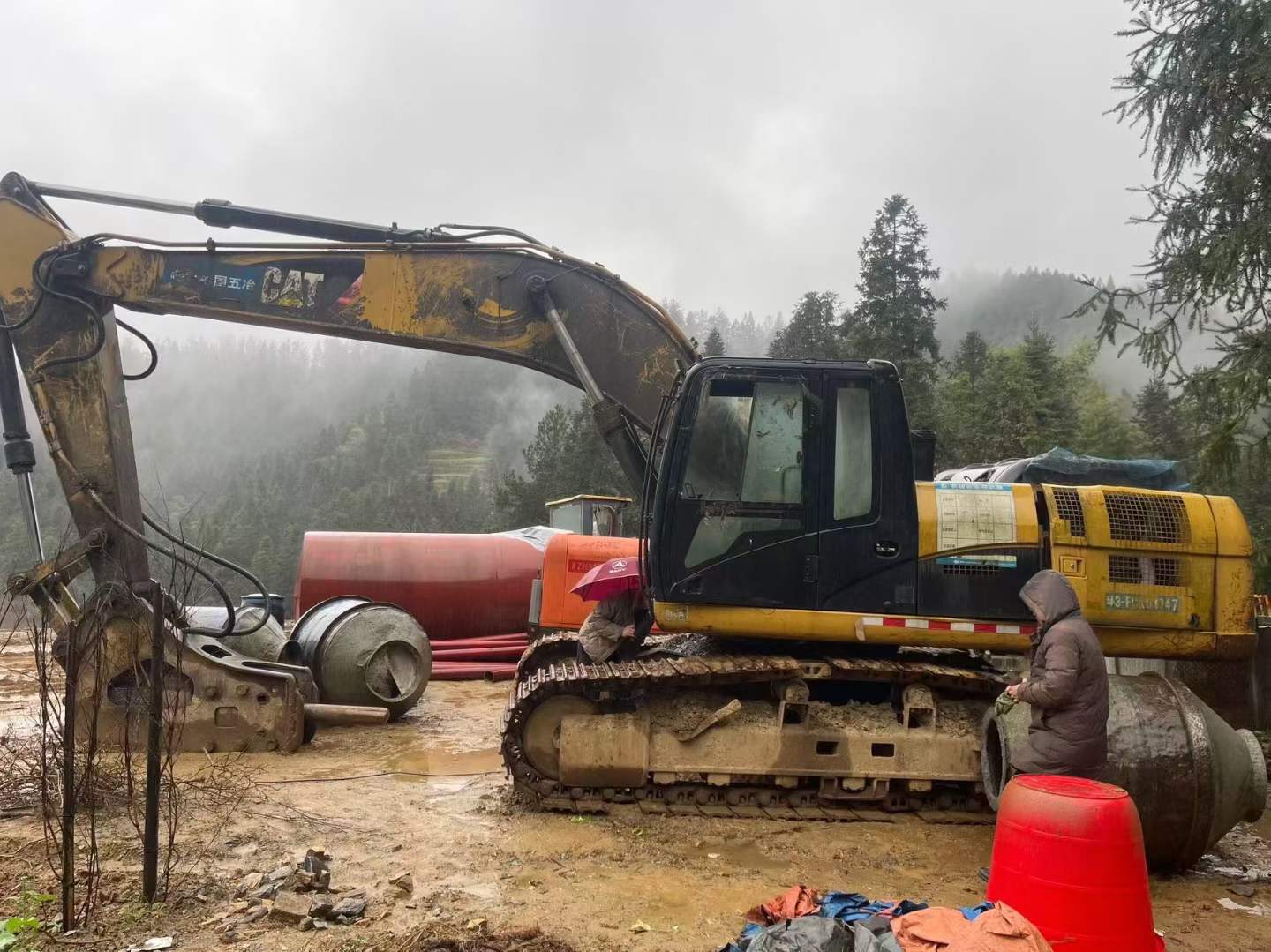

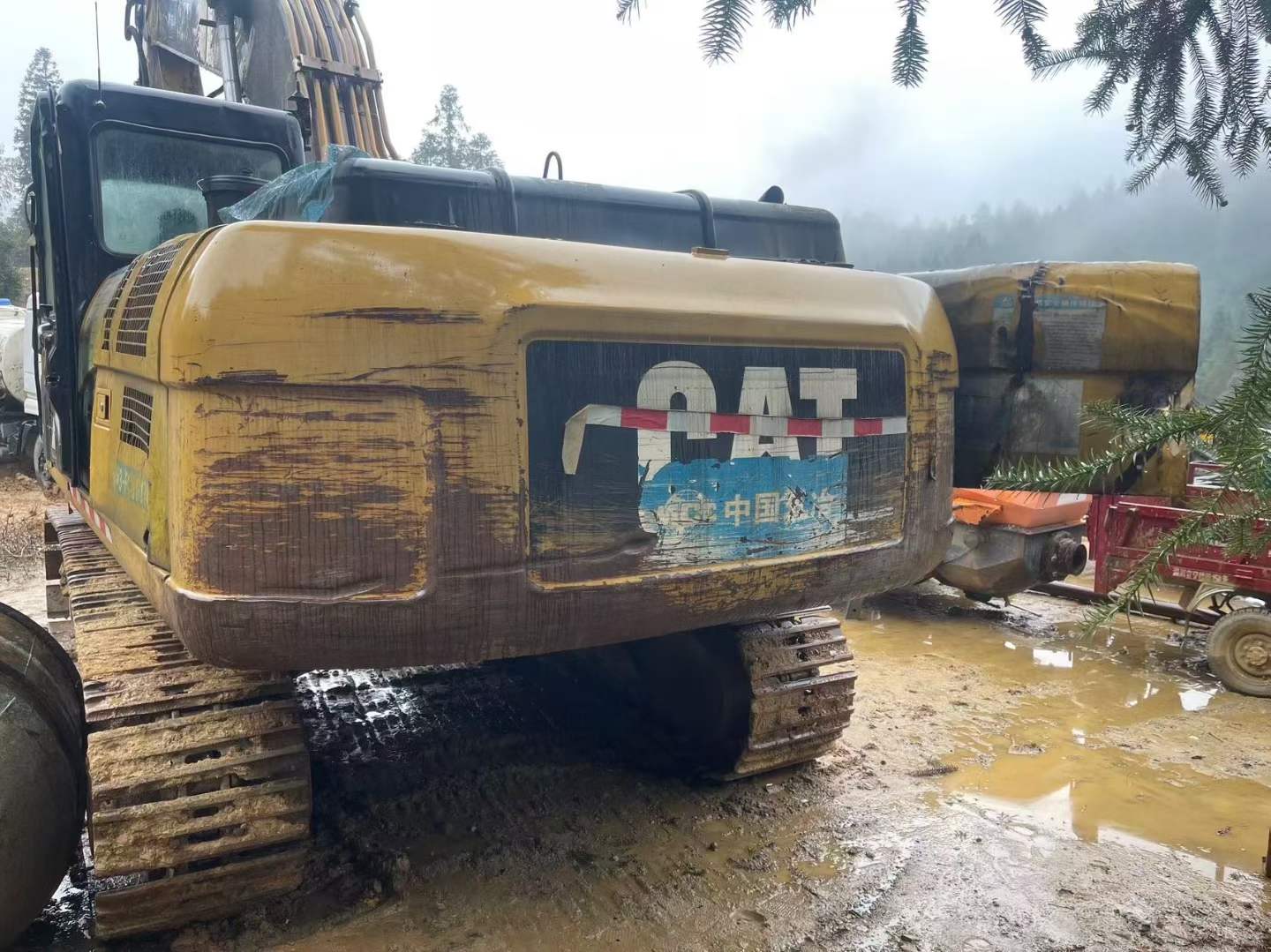

2014 Caterpillar 329D
Product Description
Proven performance meets global parts support with this 2014 Caterpillar 329D excavator from Guangxi. Operating at 29 tons with a robust 152kW C7 ACERT engine, this Japanese-origin machine delivers reliable power for demanding excavation work. Caterpillar's extensive dealer network ensures parts availability wherever your projects take you, minimizing downtime and protecting your investment.
- 1.1m³ bucket capacity with 10,600mm maximum reach handles high-volume earthmoving
- 7,170mm digging depth and 9,990mm maximum height tackle diverse site conditions
- Water-cooled 7.2L engine paired with 235 L/min hydraulic flow for consistent productivity
- Factory-standard specifications maintain strong resale value in secondary markets
- Caterpillar's reputation for durability reduces total cost of ownership
Built by a joint venture manufacturer to exacting standards, this 329D represents smart buying in the used equipment market. Caterpillar machines retain value better than competitors, backed by comprehensive technical documentation and worldwide service infrastructure. Ideal for contractors seeking dependable mid-size excavation capacity with long-term parts confidence.
| Specifications | Value |
|---|---|
| No. | 1026499 |
| Tonnage (tons) | 29 |
| Working weight (kg) | 29240 |
| Bucket capacity (m³) | 1.1 |
| Boom length (mm) | 6150 |
| Rod length (mm) | 3200 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | C7ACERT |
| Rated power (kw/rpm) | 152/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 110 x 127 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.2 |
| Rotation speed (rpm) | 10.2 |
| Climbing ability (%) | 70/35 ° |
| Travel speed (km/h) | 3.5/5.3 |
| Main overflow set pressure (Mpa) | 3.5 |
| Maximum flow of main pump (l/min) | 235 |
| Traveling Hydraulic Circuit (Mpa) | 3.5 |
| Rotary Hydraulic Circuit (Mpa) | 2.75 |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 3.5 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 135 x 1156 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 150 x 1646 |
| Boom cylinders - Number × diameter × stroke (mm) | 140 x 1407 |
| Fuel Tank (L) | 520 |
| Hydraulic Tank (L) | 145 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 30 |
| Hydraulic System (L) | 310(including fuel tank) |
| Total transport length (mm) | 10410 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 3180 |
| Full cab height (mm) | 3040 |
| Counterweight ground clearance (mm) | 1110 |
| Minimum ground clearance (mm) | 490 |
| Back end turning radius (mm) | 3080 |
| Total track length (mm) | 4360 |
| Track gauge (mm) | 2390 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2990 |
| Track ground length (mm) | 3490 |
| Maximum digging depth (mm) | 7170 |
| Maximum excavation height (mm) | 9990 |
| Maximum unloading height (mm) | 7020 |
| Maximum vertical digging depth (mm) | 6510 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 10600 |
| Maximum effective digging depth (mm) | 7010 |
Overview
No.1026499
Brand Name：
CaterpillarModel Number：
329DYear：
2014
Location：
Guangxi China
Pub Date：
