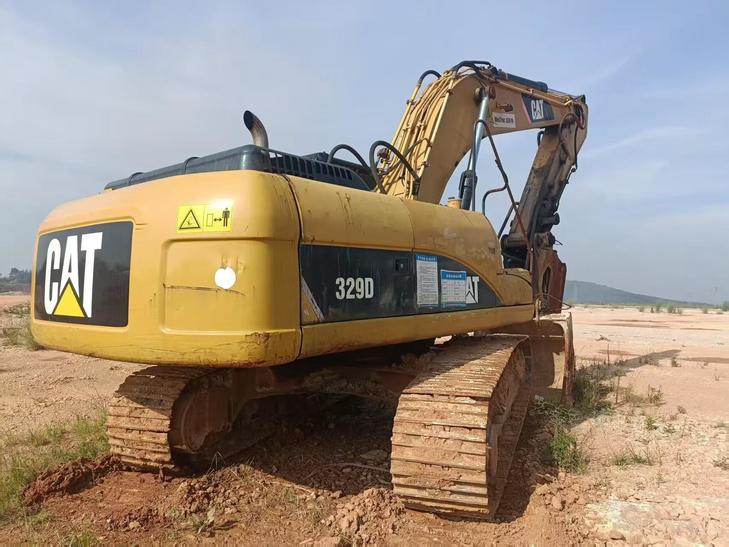

2020 Caterpillar 329D
Product Description
Discover the robust performance and reliability of the 2020 Caterpillar 329D excavator, now available in Yunnan, China. This used machine has been maintained with care, ensuring it remains a powerful asset for any construction or excavation project. Equipped with a hydraulic hammer, this 329D model is designed to tackle tough digging conditions and material handling tasks efficiently. With over 90,000 hours of operational data, you can trust in its durability and consistent performance. Ideal for contractors and construction firms looking for a dependable and versatile piece of heavy machinery.
- Year: 2020
- Brand: Caterpillar
- Model: 329D
- Location: Yunnan, China
- Operational Hours: Over 90,000
- Features: Hydraulic Hammer
| Specifications | Value |
|---|---|
| No. | 1106880 |
| Tonnage (tons) | 29 |
| Working weight (kg) | 29240 |
| Bucket capacity (m³) | 1.1 |
| Boom length (mm) | 6150 |
| Rod length (mm) | 3200 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

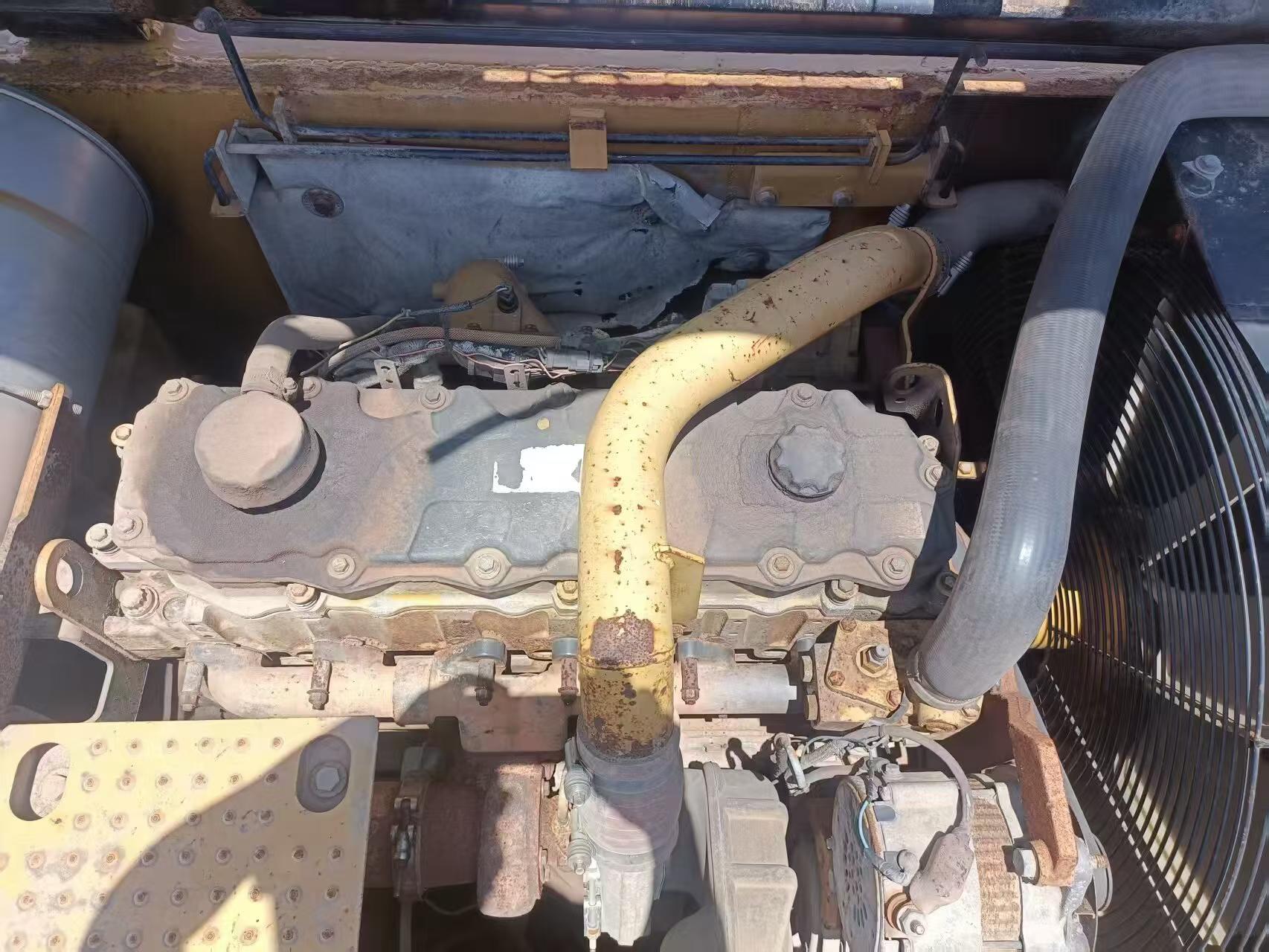

| Engine type | C7ACERT |
| Rated power (kw/rpm) | 152/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 110 x 127 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.2 |
| Rotation speed (rpm) | 10.2 |
| Climbing ability (%) | 70/35 ° |
| Travel speed (km/h) | 3.5/5.3 |
| Main overflow set pressure (Mpa) | 3.5 |
| Maximum flow of main pump (l/min) | 235 |
| Traveling Hydraulic Circuit (Mpa) | 3.5 |
| Rotary Hydraulic Circuit (Mpa) | 2.75 |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 3.5 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 135 x 1156 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 150 x 1646 |
| Boom cylinders - Number × diameter × stroke (mm) | 140 x 1407 |
| Fuel Tank (L) | 520 |
| Hydraulic Tank (L) | 145 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 30 |
| Hydraulic System (L) | 310(including fuel tank) |
| Total transport length (mm) | 10410 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 3180 |
| Full cab height (mm) | 3040 |
| Counterweight ground clearance (mm) | 1110 |
| Minimum ground clearance (mm) | 490 |
| Back end turning radius (mm) | 3080 |
| Total track length (mm) | 4360 |
| Track gauge (mm) | 2390 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2990 |
| Track ground length (mm) | 3490 |
| Maximum digging depth (mm) | 7170 |
| Maximum excavation height (mm) | 9990 |
| Maximum unloading height (mm) | 7020 |
| Maximum vertical digging depth (mm) | 6510 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 10600 |
| Maximum effective digging depth (mm) | 7010 |
