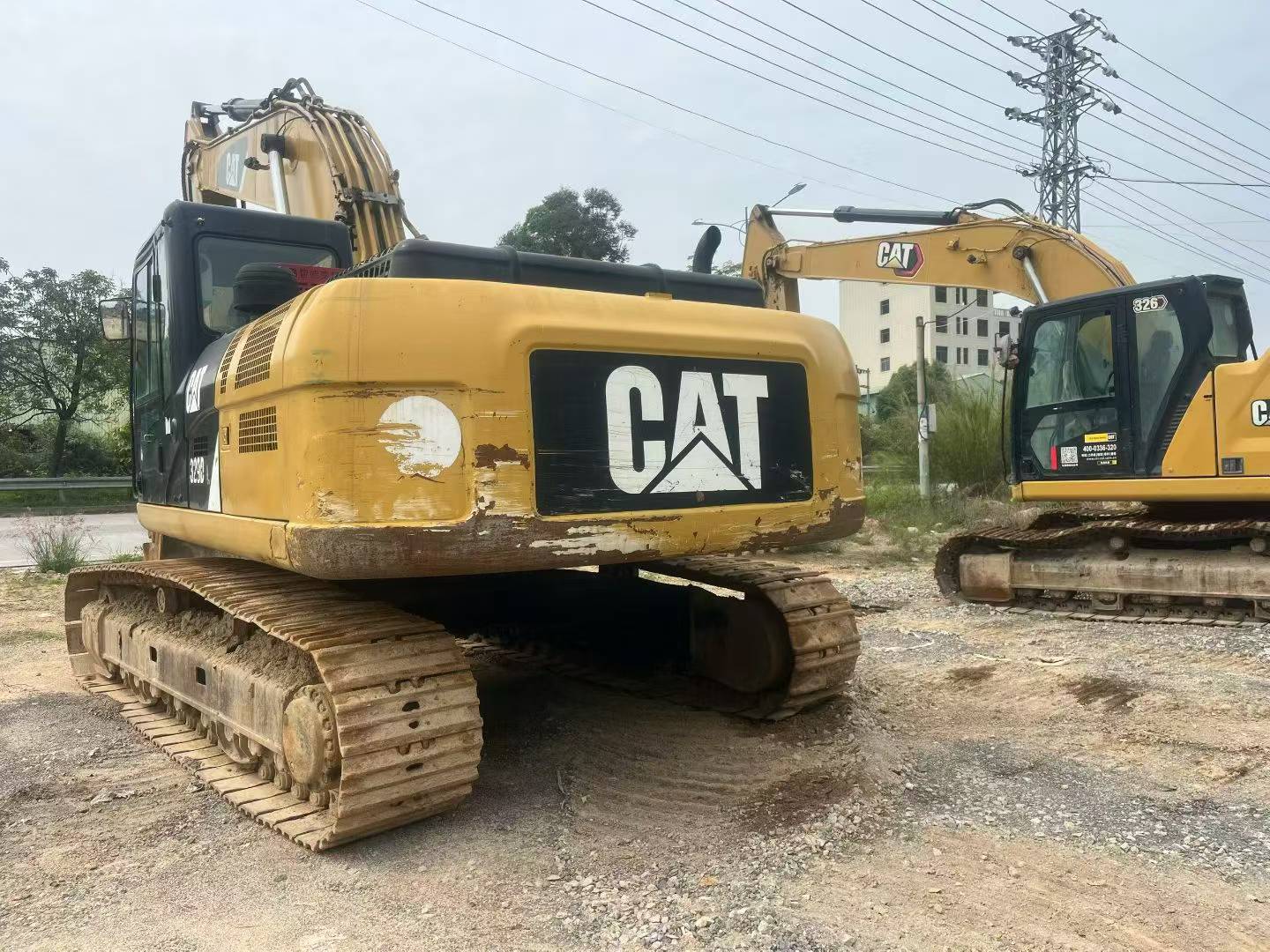

2013 Caterpillar 329DL
Product Description
This 2013 Caterpillar 329DL hydraulic excavator offers proven performance for demanding earthmoving applications. Currently located in Fujian, China, this machine represents a cost-effective solution for contractors and operators seeking reliable Cat quality at competitive pricing.
The 329DL is known for its robust construction, fuel efficiency, and operator comfort. This model features Cat's advanced hydraulic system for precise control and productivity across various applications including general construction, site development, and material handling.
- Year: 2013
- Make: Caterpillar
- Model: 329DL
- Location: Fujian Province, China
- Condition: Used
- Competitively priced for quick sale
Inspection welcome. Contact us for detailed specifications, current machine condition, and pricing information. Shipping and export documentation assistance available.
| Specifications | Value |
|---|---|
| No. | 1119529 |
| Tonnage (tons) | 29 |
| Working weight (kg) | 29240 |
| Bucket capacity (m³) | 1.1 |
| Boom length (mm) | 6150 |
| Rod length (mm) | 3200 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | C7ACERT |
| Rated power (kw/rpm) | 152/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 110 x 127 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.2 |
| Rotation speed (rpm) | 10.2 |
| Climbing ability (%) | 70/35 ° |
| Travel speed (km/h) | 3.5/5.3 |
| Main overflow set pressure (Mpa) | 3.5 |
| Maximum flow of main pump (l/min) | 235 |
| Traveling Hydraulic Circuit (Mpa) | 3.5 |
| Rotary Hydraulic Circuit (Mpa) | 2.75 |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 3.5 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 135 x 1156 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 150 x 1646 |
| Boom cylinders - Number × diameter × stroke (mm) | 140 x 1407 |
| Fuel Tank (L) | 520 |
| Hydraulic Tank (L) | 145 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 30 |
| Hydraulic System (L) | 310(including fuel tank) |
| Total transport length (mm) | 10410 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3180 |
| Full cab height (mm) | 3040 |
| Counterweight ground clearance (mm) | 1110 |
| Minimum ground clearance (mm) | 490 |
| Back end turning radius (mm) | 3080 |
| Total track length (mm) | 4860 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 800 |
| Total track width (mm) | 3190 |
| Track ground length (mm) | 3990 |
| Maximum digging depth (mm) | 7170 |
| Maximum excavation height (mm) | 9990 |
| Maximum unloading height (mm) | 7020 |
| Maximum vertical digging depth (mm) | 6510 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 10600 |
| Maximum effective digging depth (mm) | 7010 |
